Code Q420
Model 20-420
Weight (kg) 20
Weight (m3) 0.180
Weight (Freight) 59.940
Dimensions (cm) 163.5 x 110 x 10
MEASUMAX
1 Year Warranty

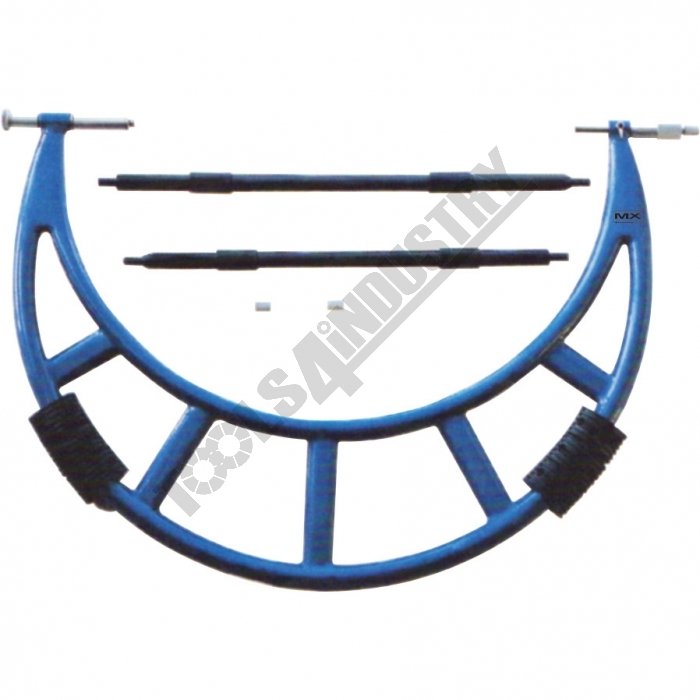

Metric Outside Micrometers - Adjustable Anvil 20-420

Description

Measumax wide range metric micrometer sets are equipped with a series of interchangeable anvils and setting standards to accurately adjust to the required range

Features

  • Wide measuring range with adjustable anvil. High accuracy standard collars enable a reading that does not have to be reset when changing collars
  • Standard collars: 50mm & 100mm (micrometers over 1000mm)
  • Carbide measuring faces, Flatness 0.0008mm
  • Micro-fine clear graduations on satin chrome finish
  • Ratchet thimble for exact repetitive readings
  • Pipe combined frame for light weight and high rigidity
  • Setting standards supplied
  • Graduation 0.01mm

Specifications

ORDER CODE1000 - 1200
Rangemm0.01mm
Graduationmm50mm, 100mm Collars
AnvilsNo.2
StandardsNo.
