Code Q350
Model 20-350
Weight (kg) 10.26
Weight (m3) 0.048
Weight (Freight) 15.984
Dimensions (cm) 82 x 58 x 10
MEASUMAX
1 Year Warranty

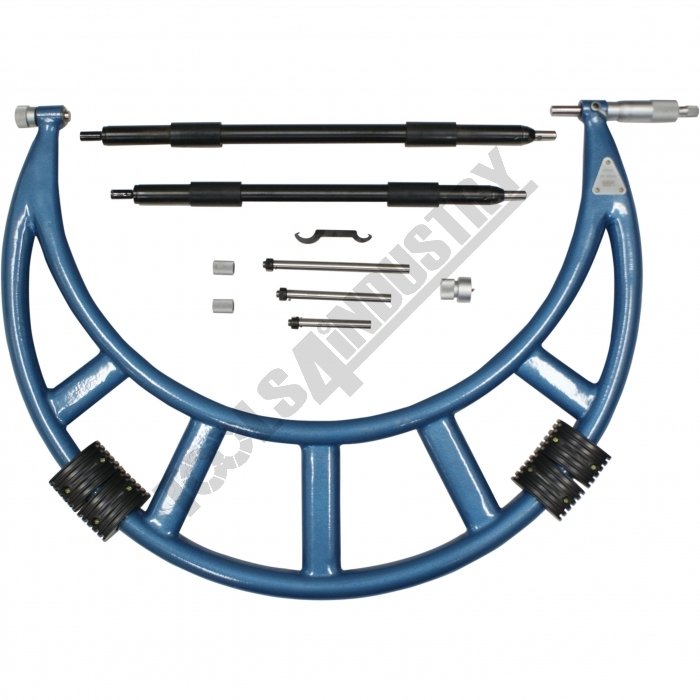

Metric Outside Micrometers - Interchangeable Anvils 20-350

Description

Measumax wide range metric micrometer sets are equipped with a series of interchangeable anvils and setting standards to accurately adjust to the required range

Features

  • Wide measuring range with interchangeable anvils enables readings that do not have to be reset when changing anvils. Setting standards supplied
  • Carbide measuring faces, Flatness 0.0008mm
  • Micro-fine clear graduations on satin chrome finish
  • Ratchet thimble for exact repetitive readings
  • Pipe combined frame for light weight and high rigidity
  • Graduation 0.01mm

Specifications

ORDER CODE400 - 500
Rangemm0.01mm
Graduationmm4
AnvilsNo.2
StandardsNo.
