Code	Q390
Model	20-390
Weight (kg)	20
Weight (m³)	0.124
Weight (Freight)	41.292
Dimensions (cm)	124 x 91 x 11

MEASUMAX

1 Year Warranty

Product Brochure Instruction Sheet [61 KB]

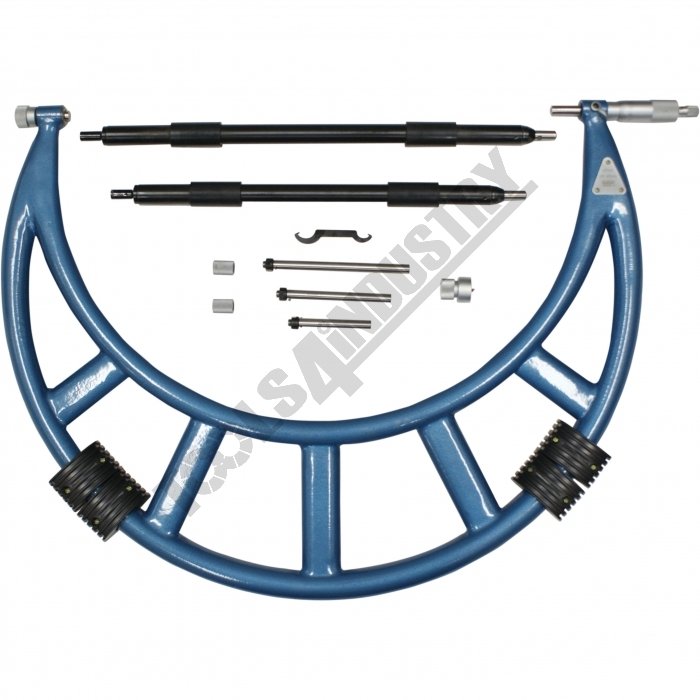

Metric Outside Micrometers - Interchangeable Anvils 20-390

Description

OUTSIDE MICROMETERS - INTERCHANGEABLE ANVILS (20-390): Wide measuring range with interchangeable anvils. High accuracy interchangeable anvils enable a reading that does not have to be reset when changing anvils.

Features

Carbide measuring faces, Flatness 0.0008mm
Micro-fine clear graduations on satin chrome finish
Ratchet thimble for exact repetitive readings
Pipe combined frame for light weight and high rigidity
Graduation 0.01mm

Specifications

Compare 10 Products
ORDER CODE
Rangemm
Graduationmm
AnvilsNo.
StandardsNo.

Q390
800 - 900
0.01mm
4
2

Q391
900 - 1000
0.01mm
4
2

Q420
1000 - 1200
0.01mm
50mm, 100mm Collars
2

Q120
100 - 200
0.01mm
4
4

Q123
200 - 300
0.01mm
4
4

Q340
300 - 400
0.01mm
4
2

Q350
400 - 500
0.01mm
4
2

Q360
500 - 600
0.01mm
4
2

Q370
600 - 700
0.01mm
4
2

Q380
700 - 800
0.01mm
4
2

ORDER CODE	800 - 900
Rangemm	0.01mm
Graduationmm	4
AnvilsNo.	2
StandardsNo.
