Code Q123
Model 20-123
Weight (kg) 4
Weight (m3) 0.008
Weight (Freight) 4
Dimensions (cm) 45 x 30 x 6
MEASUMAX
2 Years Warranty

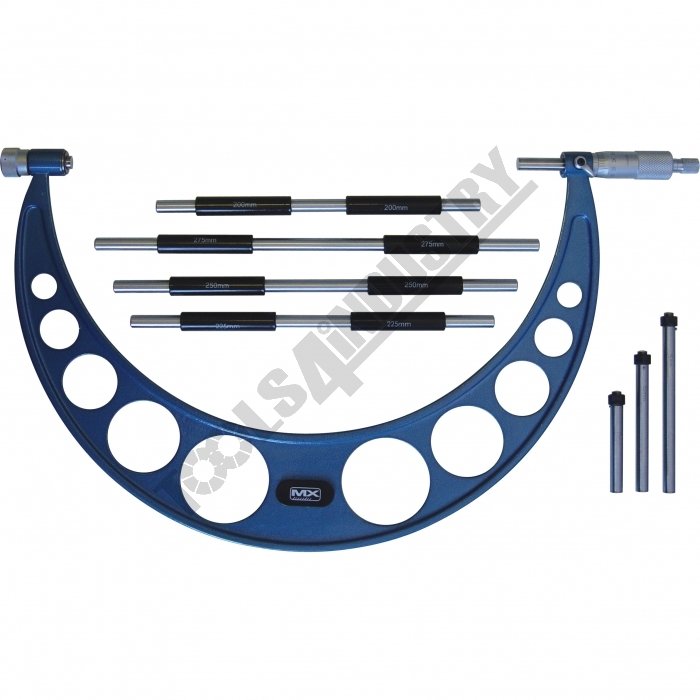

Metric Outside Micrometers - Interchangeable Anvils 20-123

Description

Measumax wide range metric micrometer sets are equipped with a series of interchangeable anvils and setting standards to accurately adjust to the required range.

Features

  • Baked enamel blue cast frame
  • Interchangeable anvils fitted with adjusting collar to set the overall measurement
  • Carbide measuring faces, Flatness 0.0008mm
  • Micro-fine clear graduations on satin chrome finish
  • Ratchet thimble for exact repetitive readings
  • Setting standards supplied and adjustment available on all extension rods
  • Graduation 0.01mm

Specifications

ORDER CODE200 - 300
Rangemm0.01mm
Graduationmm4
AnvilsNo.4
StandardsNo.
