| Code | Q161 |
|---|---|
| Model | 25-161 |
| Capacity | 12-20mm |
| Weight (kg) | 1.2 |
| Weight (m3) | 0.003 |
| Weight (Freight) | 1.2 |
| Dimensions (cm) | 31.5 x 16 x 5 |

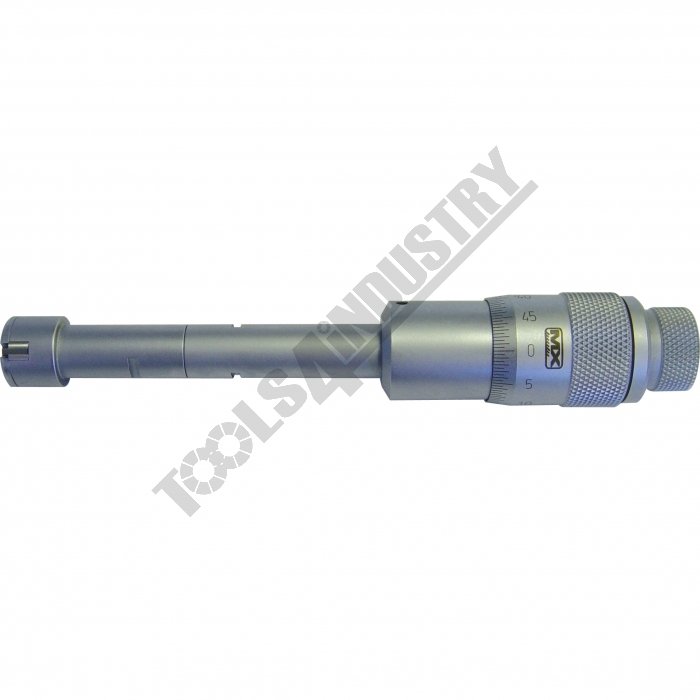

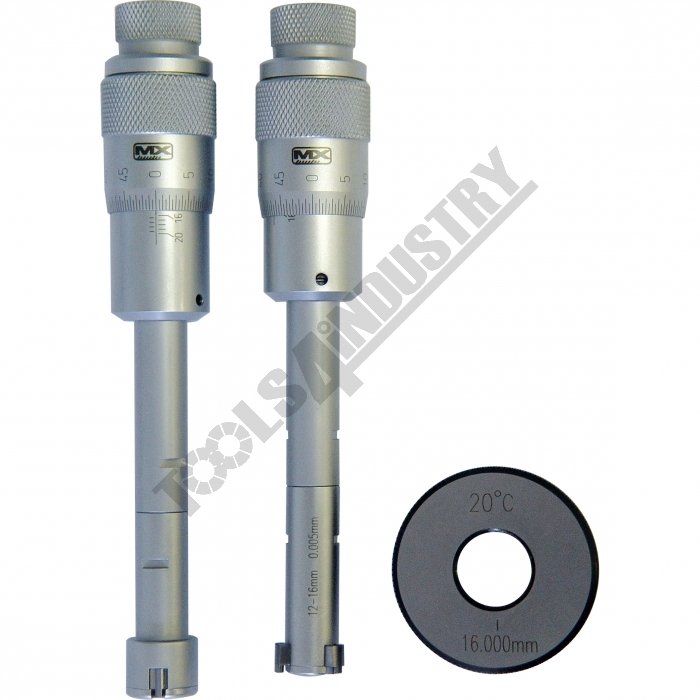

3-Point Internal Micrometers 25-161 12-20mm
Description
Measumax 3-Point Internal Micrometers are self-centering for accurate measurement of internal diametersFeatures
- Carbide tipped contact points
- Measurements can be taken closer to the bottom of a blind bore, and can be taken in a deep hole with an extension
- Supplied in deluxe foam lined aluminium case
Includes

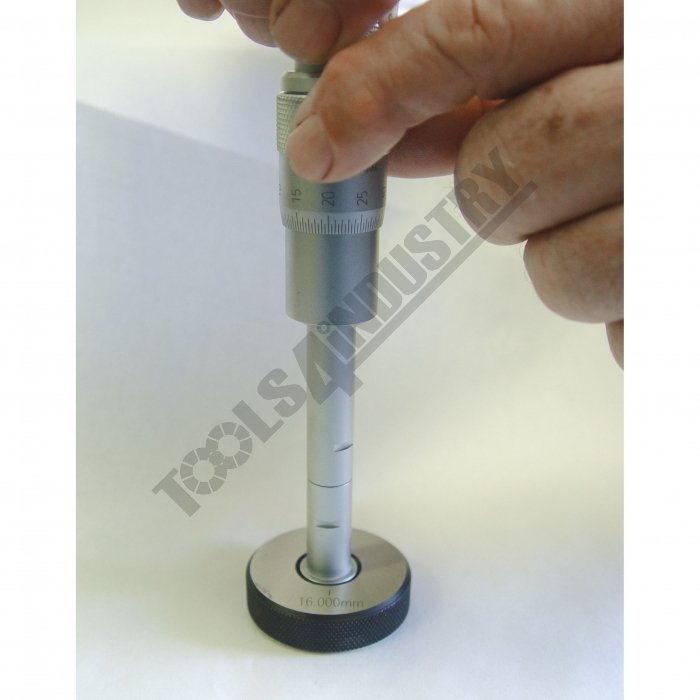

- Setting gauge rings to suit each size

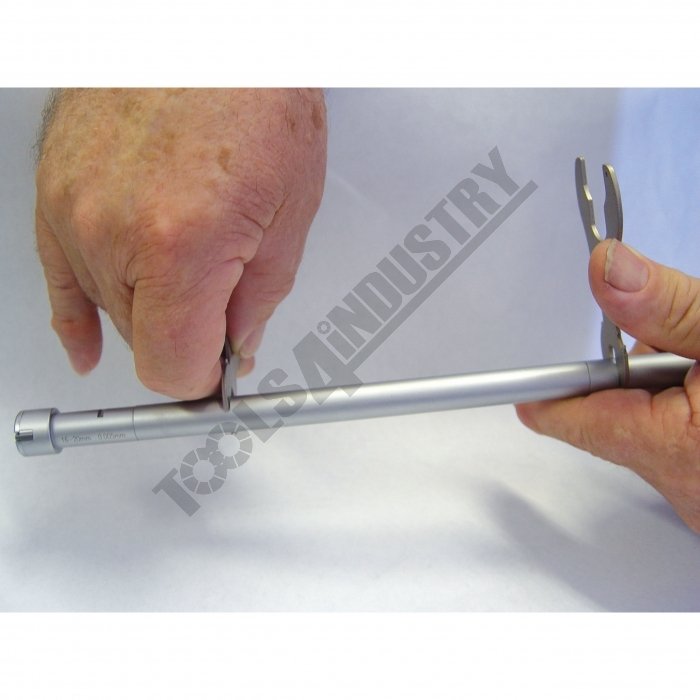

- 150mm extension rod to increase depth capabilities
Specifications
- Compare 5 Products
- ORDER CODE
- Rangemm / inch
- Graduationmm / inch
- Accuracymm / inch
- Individual Rangemm
- Setting Rangemm
- Extension Rod Lengthmm

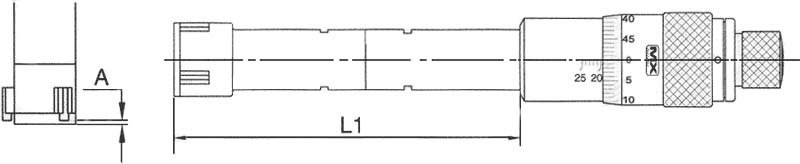

- Amm
- L1mm
| ORDER CODE | 12 - 20 |
|---|---|
| Rangemm / inch | 0.01mm |
| Graduationmm / inch | 0.004 |
| Accuracymm / inch | 12-16, 16-20 |
| Individual Rangemm | Ø16 |
| Setting Rangemm | 150 |
| Extension Rod Lengthmm | 0.5 |
| Amm | 80 |
| L1mm |
