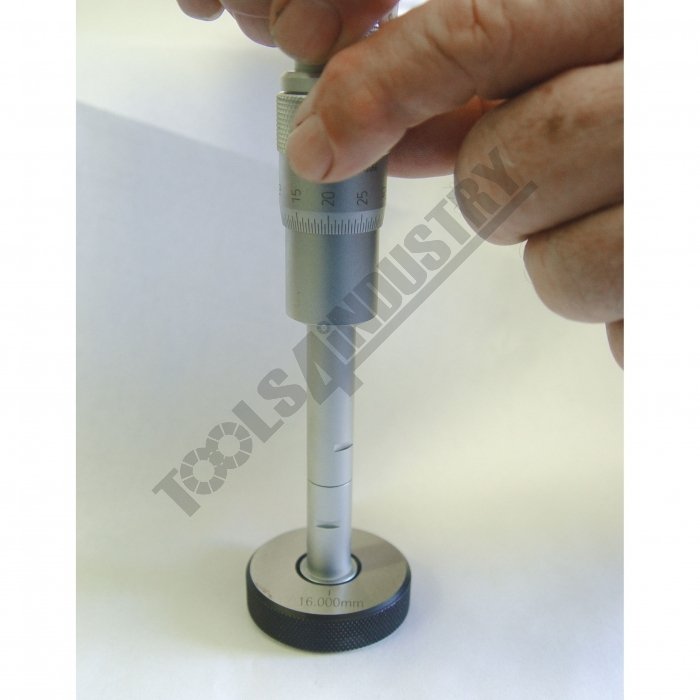

Shown with Setting Ring

Shown with Setting Ring

Code	Q162
Model	25-162
Capacity	20-50mm
Weight (kg)	5.04
Weight (m³)	0.013
Weight (Freight)	5.04
Dimensions (cm)	40.5 x 31 x 10

MEASUMAX

1 Year Warranty

Product Brochure Instruction Manual [1 MB]

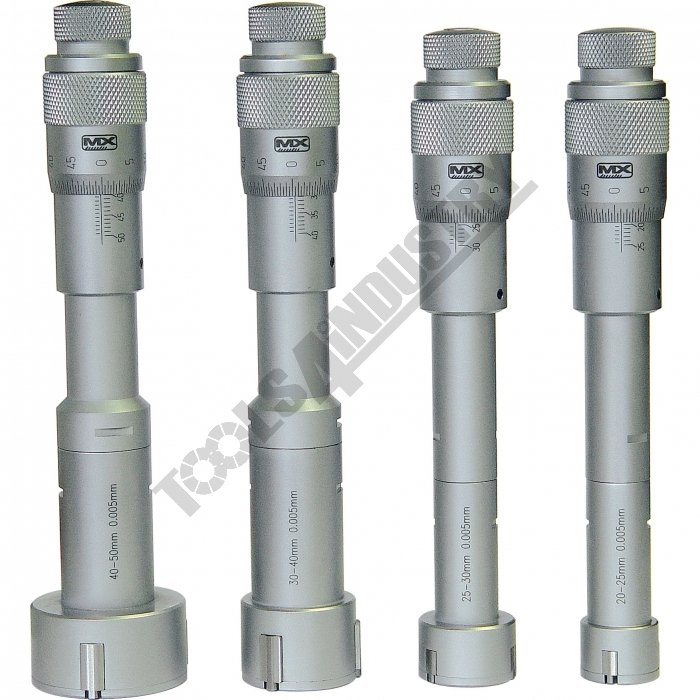

3-Point Internal Micrometers 25-162 20-50mm

Description

Measumax 3-Point Internal Micrometers are self-centering for accurate measurement of internal diameters

Features

Carbide tipped contact points
Measurements can be taken closer to the bottom of a blind bore, and can be taken in a deep hole with an extension
Supplied in deluxe foam lined aluminium case

Includes

Setting gauge rings to suit each size
150mm extension rod to increase depth capabilities

Specifications

Compare 5 Products
ORDER CODE
Rangemm / inch
Graduationmm / inch
Accuracymm / inch
Individual Rangemm
Setting Rangemm
Extension Rod Lengthmm

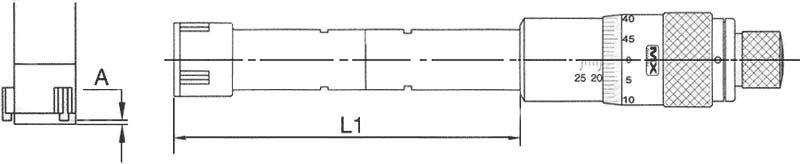

Amm
L1mm

Q162
20 - 50
0.01mm
0.004
20-25, 25-30, 30-40,
40-50
Ø25, 40
150
0.5
90

Q163
50 - 100
0.01mm
0.005
50-63, 62-75, 75-88
87-100
Ø62, 87
150
0.5
114

Q165
100 - 150
0.01mm
0.005
~
Ø100
~
0.5
230

Q160
6 - 12
0.01mm
0.004
6-8, 8-10, 10-12
Ø6, 8, 10
100
1.5
54.5

Q161
12 - 20
0.01mm
0.004
12-16, 16-20
Ø16
150
0.5
80

ORDER CODE	20 - 50
Rangemm / inch	0.01mm
Graduationmm / inch	0.004
Accuracymm / inch	20-25, 25-30, 30-40, 40-50
Individual Rangemm	Ø25, 40
Setting Rangemm	150
Extension Rod Lengthmm	0.5
Amm	90
L1mm
