Code	Q165
Model	25-165
Capacity	100-150mm
Weight (kg)	5.8
Weight (m³)	0.013
Weight (Freight)	5.8
Dimensions (cm)	40.5 x 31 x 10

MEASUMAX

1 Year Warranty

Product Brochure

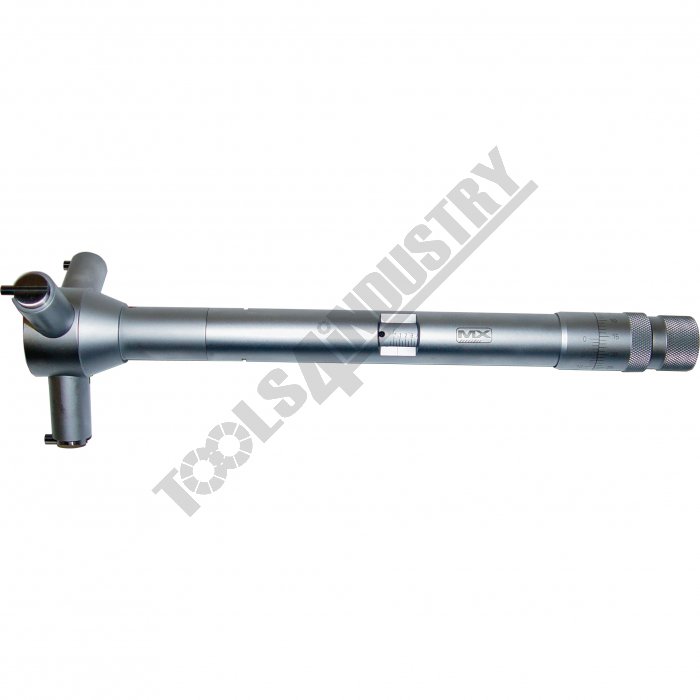

3-Point Internal Micrometer - Large Range 25-165 100-150mm

Description

Measumax large range 3-point internal micrometers are self-centering for accurate measurement of internal diameters

Features

Carbide-tipped contact points
Large range capacity
Measurements can be taken closer to the bottom of a blind bore, and can be taken in a deep hole with an extension

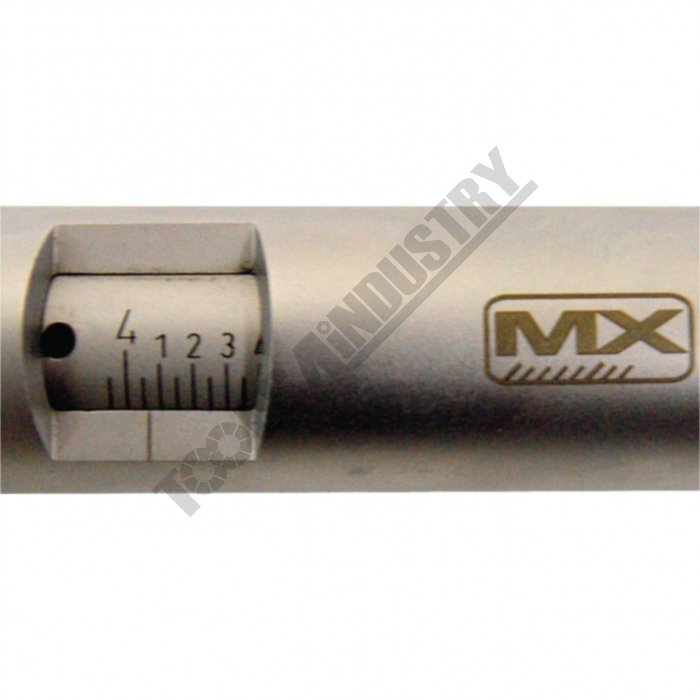

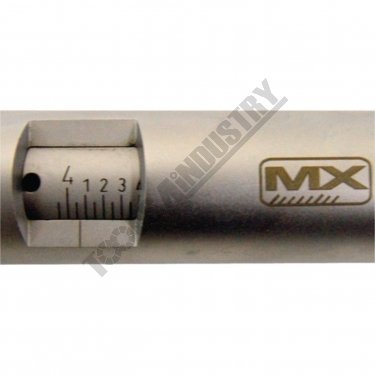

Graduation: 0.01mm

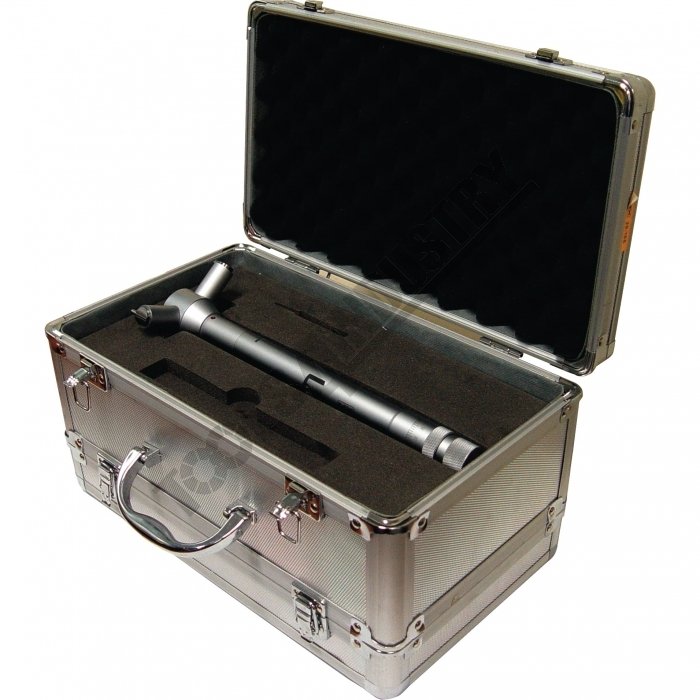

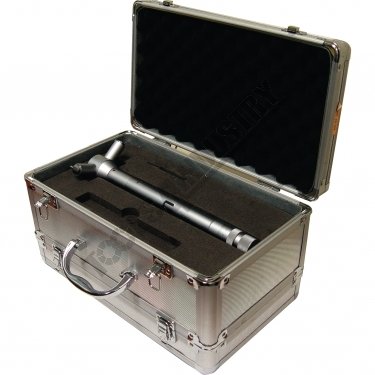

Supplied in deluxe foam lined aluminium case

Includes

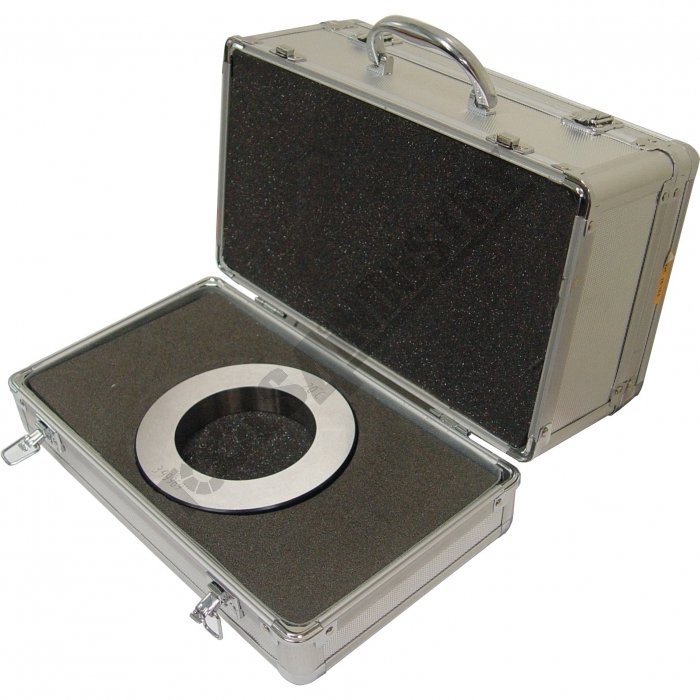

Setting gauge ring to suit

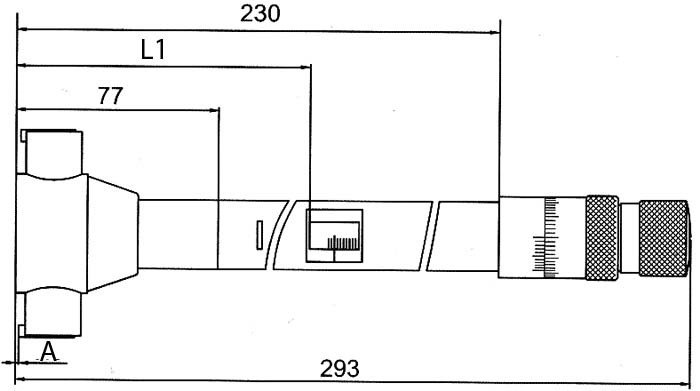

Specifications

Compare 5 Products
ORDER CODE
Rangemm / inch
Graduationmm / inch
Accuracymm / inch
Individual Rangemm
Setting Rangemm
Extension Rod Lengthmm
Amm
L1mm

Q165
100 - 150
0.01mm
0.005
~
Ø100
~
0.5
230

Q160
6 - 12
0.01mm
0.004
6-8, 8-10, 10-12
Ø6, 8, 10
100
1.5
54.5

Q161
12 - 20
0.01mm
0.004
12-16, 16-20
Ø16
150
0.5
80

Q162
20 - 50
0.01mm
0.004
20-25, 25-30, 30-40,
40-50
Ø25, 40
150
0.5
90

Q163
50 - 100
0.01mm
0.005
50-63, 62-75, 75-88
87-100
Ø62, 87
150
0.5
114

ORDER CODE	100 - 150
Rangemm / inch	0.01mm
Graduationmm / inch	0.005
Accuracymm / inch	~
Individual Rangemm	Ø100
Setting Rangemm	~
Extension Rod Lengthmm	0.5
Amm	230
L1mm
