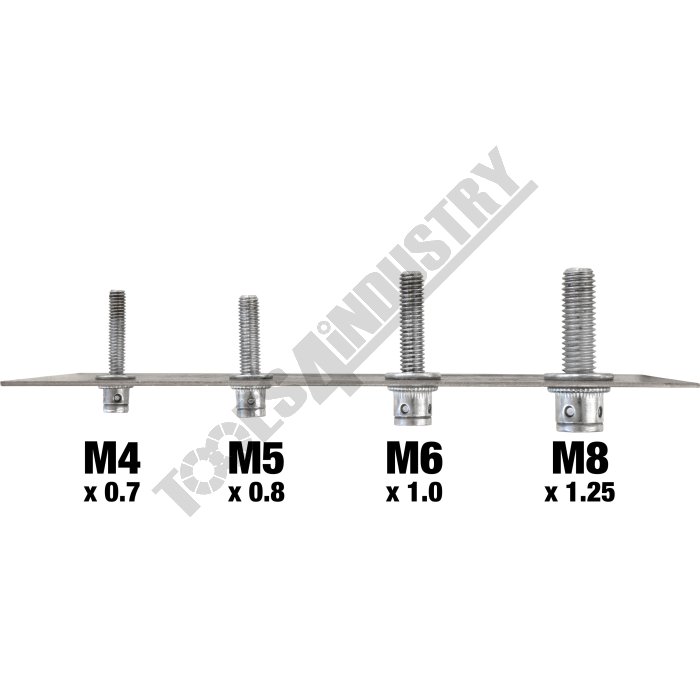

Stud Range N024 28

Stud Range N024 28

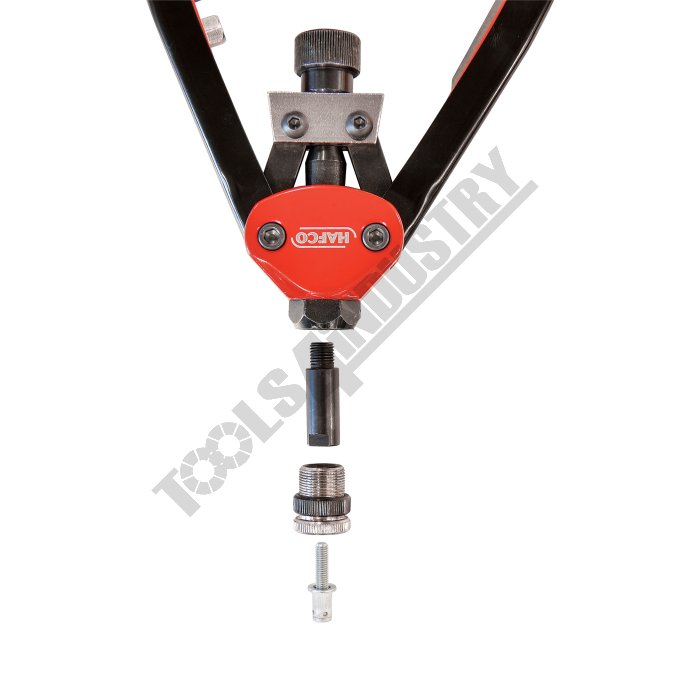

Shown with Optional Mandrel Adaptors N023 and Riveter Set N001

Shown with Optional Mandrel Adaptors N023 and Riveter Set N001

Code	N026
Capacity	Steel - Zinc Plated
Weight (kg)	0.5
Weight (m³)	0.001
Weight (Freight)	0.5
Dimensions (cm)	9 x 17 x 4

HAFCO

1 Year Warranty

Taiwan

Product Brochure

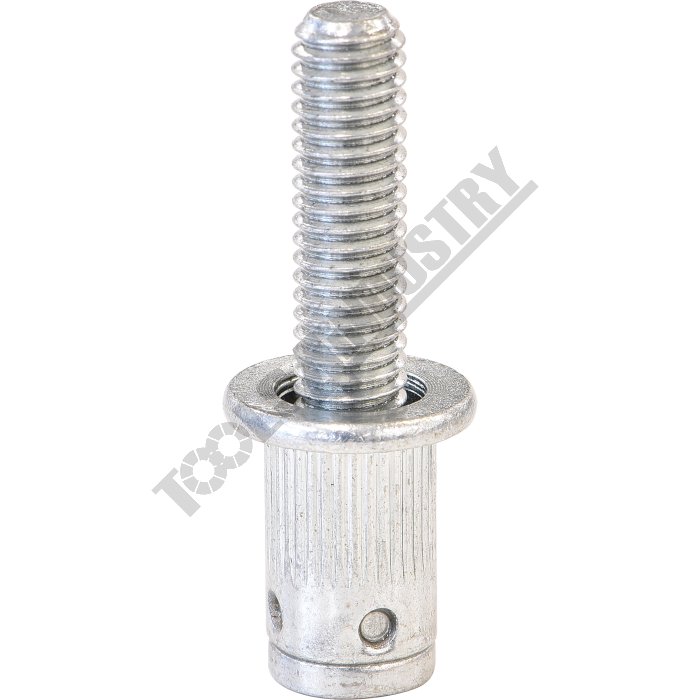

Rivet Stud Inserts - M6 x 1.0mm Steel - Zinc Plated

Description

Suits RNB40 Twin Handle Nut Riveter

Features

Steel - Zinc Coated
Fast & easy installation from one side
Adds a threaded stud to thin sheet metal
Knurled section of the body for anti-rotation
** Easy to install with the RNB40 Nut Riveter

** NOTE: Requires M6 Stud Rivet Mandrel, sold separately (Order Code: N023)

Includes

50 x Rivet Stud Insert - M6 x 1.0mm
20mm thread length

Specifications

Compare 22 Products
ORDER CODE
MODEL
Type
Nut Insert MaterialType
Quantity in Pack
Rivet Nut Inserts RangeMetric
Blind Rivetsmm
Thread Size (T)Metric
Thread Length (TL)Metric
Length (L)mm
Head Height (HH)mm
Head Diameter (HD)mm
Diameter (D)mm
Hole Size (HS)mm
Grip Range (GR)mm
Torque to TurnKgf.cm

N026
~
Rivet Stud Inserts
Steel - Zinc Coated
50
~
~
M6 x 1.0
20
14.4
1.5
13.1
8.9
9
0.75 - 3.00
130

N028
~
Rivet Stud Inserts
Steel - Zinc Coated
50
~
~
M8 x 1.25
20
16.4
1.5
15
10.9
11
1.00 - 3.00
200

N013
~
Rivet Nut Inserts
Aluminium
50
~
~
M3 x 0.5
~
9.25
0.75
8
4.9
5
0.25 - 2.00
20

N003
~
Rivet Nut Inserts
Steel - Zinc Coated
50
~
~
M3 x 0.5
~
8.85
0.75
8
4.9
5
0.25 - 2.00
25

N014
~
Rivet Nut Inserts
Aluminium
50
~
~
M4 x 0.7
~
10.5
0.9
9
5.9
6
0.25 - 2.50
40

N004
~
~
Steel - Zinc Coated
50
~
~
M4 x 0.5
~
10.5
0.75
9
5.8
6
0.25 - 2.50
55

N015
~
Rivet Nut Inserts
Aluminium
50
~
~
M5 x 0.8
~
11.6
1.0
10
6.9
7
0.25 - 2.50
60

N005
~
Rivet Nut Inserts
Steel - Zinc Coated
50
~
~
M5 x 0.8
~
11.8
1.0
9.95
6.9
7
0.25 - 2.50
80

N016
~
Rivet Nut Inserts
Aluminium
50
~
~
M6 x 1.0
~
13.7
1.5
12.7
8.9
9
0.75 - 3.00
100

N006
~
Rivet Nut Inserts
Steel - Zinc Coated
50
~
~
M6 x 1.0
~
14.4
1.5
13.1
8.9
9
0.75 - 3.00
130

N018
~
Rivet Nut Inserts
Aluminium
50
~
~
M8 x 1.25
~
15
1.4
14.4
10.9
11
1.00 - 3.00
170

N008
~
Rivet Nut Inserts
Steel - Zinc Coated
50
~
~
M8 x 1.25
~
16.4
1.5
15
10.9
11
1.00 - 3.00
200

N020
~
Rivet Nut Inserts
Aluminium
50
~
~
M10 x 1.5
~
15.5
1.5
16.6
12.85
13
1.00 - 4.00
350

N010
~
Rivet Nut Inserts
Steel - Zinc Coated
50
~
~
M10 x 1.5
~
18.5
1.5
17.15
12.9
13
1.00 - 4.00
400

N002
~
Replacement Rivet Nut Mandrels
~
4
~
~
M5 x 0.8, M6 x 1.0
M8 x 1.25, M10 x 1.5
~
~
~
~
~
~
~
400

N001
RNB40
Nut & Blind Riveter Set
Aluminium
~
M5, M6, M8, M10
Ø3.2, Ø4.0, Ø4.8, Ø6.4
M5 x 0.8, M6 x 1.0
M8 x 1.25, M10 x 1.5
~
~
~
~
~
~
~
~

N022
~
Rivet Stud Mandrel & Adaptor
~
1
~
~
M4 x 0.7
~
~
~
~
~
~
~
~

N023
~
Rivet Stud Mandrels
~
3
~
~
M5 x 0.8, M6 x 1.0
M8 x 1.25
~
~
~
~
~
~
~
~

N002
~
Replacement Rivet Nut Mandrels
~
4
~
~
M5 x 0.8, M6 x 1.0
M8 x 1.25, M10 x 1.5
~
~
~
~
~
~
~
400

N002
~
Replacement Rivet Nut Mandrels
~
4
~
~
M5 x 0.8, M6 x 1.0
M8 x 1.25, M10 x 1.5
~
~
~
~
~
~
~
400

N024
~
Rivet Stud Inserts
Steel - Zinc Coated
50
~
~
M4 x 0.5
15
10.5
0.75
9
5.8
6
0.25 - 2.50
55

N025
~
Rivet Stud Inserts
Steel - Zinc Coated
50
~
~
M5 x 0.8
15
11.8
1.0
9.95
6.9
7
0.25 - 2.50
80

ORDER CODE	~
MODEL	Rivet Stud Inserts
Type	Steel - Zinc Coated
Nut Insert MaterialType	50
Quantity in Pack	~
Rivet Nut Inserts RangeMetric	~
Blind Rivetsmm	M6 x 1.0
Thread Size (T)Metric	20
Thread Length (TL)Metric	14.4
Length (L)mm	1.5
Head Height (HH)mm	13.1
Head Diameter (HD)mm	8.9
Diameter (D)mm	9
Hole Size (HS)mm	0.75 - 3.00
Grip Range (GR)mm	130
Torque to TurnKgf.cm
