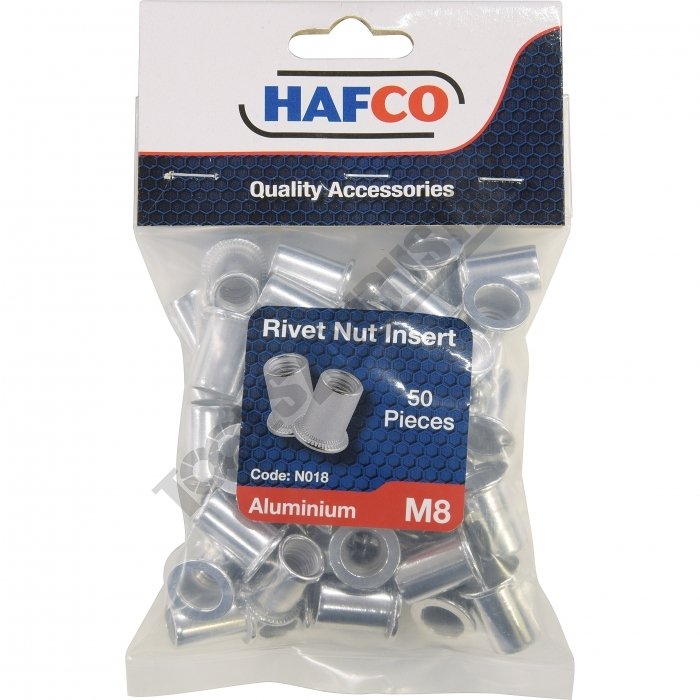

Packaging Front

Packaging Front

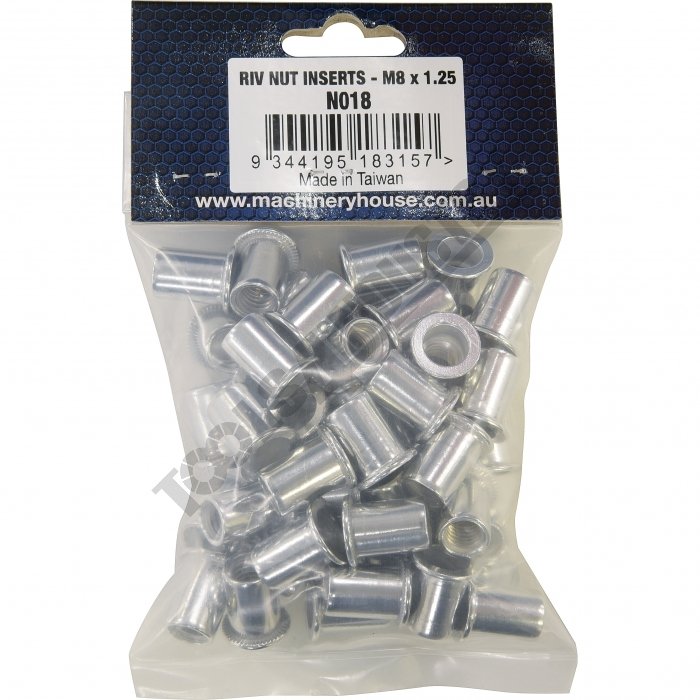

Packaging Rear Side

Packaging Rear Side

Code	N018
Capacity	Aluminium
Weight (kg)	0.095
Weight (m³)	0.000
Weight (Freight)	0.000
Dimensions (cm)	15 x 9 x 3

HAFCO

1 Year Warranty

Taiwan

Product Brochure

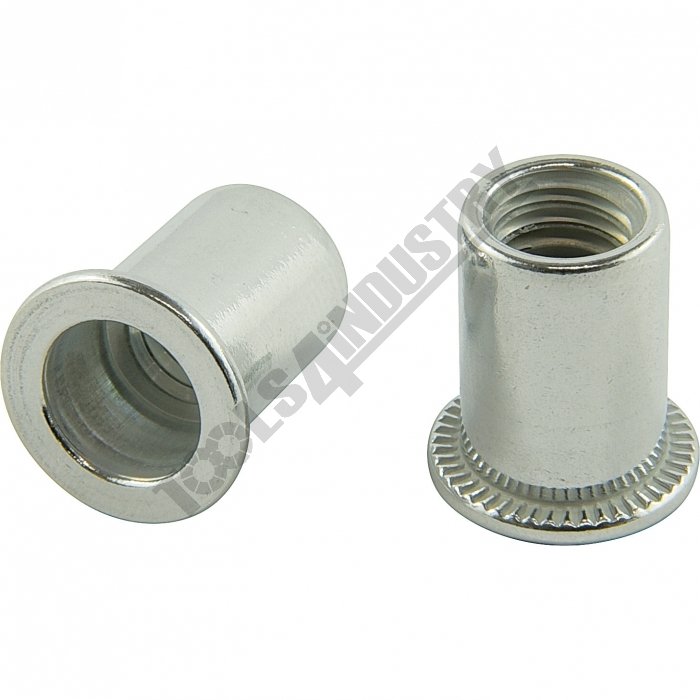

Rivet Nut Inserts - M8 x 1.25mm Aluminium

Description

Suits ATR-10RN Air Operated or RNB40 Twin Handle Nut Riveters

Features

Aluminium inserts
Fast & easy installation from one side
Adds a threaded nut to thin sheet metal
Knurled section under nut head for anti-rotation
Easy to install

Includes

50 x Rivet Nut Inserts - M8 x 1.25mm

Specifications

Compare 22 Products
ORDER CODE
MODEL

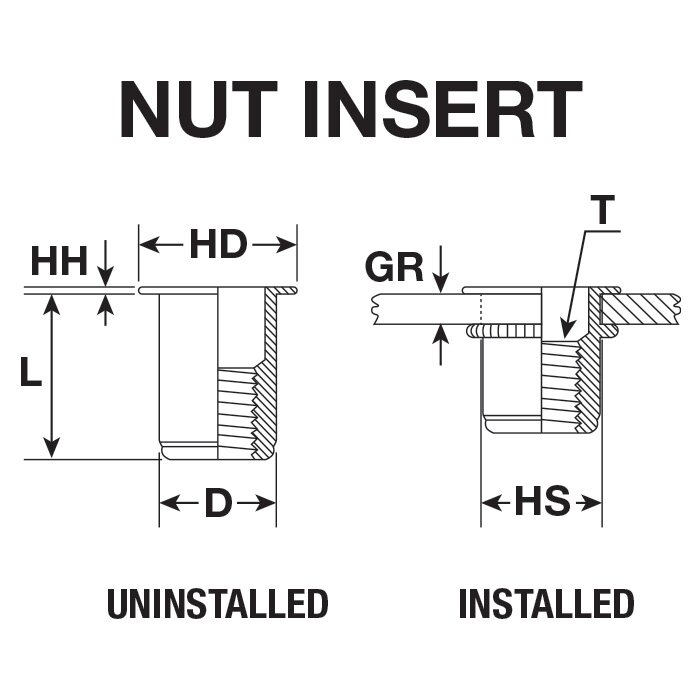

Type
Nut Insert MaterialType
Quantity in Pack
Rivet Nut Inserts RangeMetric
Blind Rivetsmm
Thread Size (T)Metric
Thread Length (TL)Metric
Length (L)mm
Head Height (HH)mm
Head Diameter (HD)mm
Diameter (D)mm
Hole Size (HS)mm
Grip Range (GR)mm
Torque to TurnKgf.cm

N018
~
Rivet Nut Inserts
Aluminium
50
~
~
M8 x 1.25
~
15
1.4
14.4
10.9
11
1.00 - 3.00
170

N008
~
Rivet Nut Inserts
Steel - Zinc Coated
50
~
~
M8 x 1.25
~
16.4
1.5
15
10.9
11
1.00 - 3.00
200

N020
~
Rivet Nut Inserts
Aluminium
50
~
~
M10 x 1.5
~
15.5
1.5
16.6
12.85
13
1.00 - 4.00
350

N010
~
Rivet Nut Inserts
Steel - Zinc Coated
50
~
~
M10 x 1.5
~
18.5
1.5
17.15
12.9
13
1.00 - 4.00
400

N002
~
Replacement Rivet Nut Mandrels
~
4
~
~
M5 x 0.8, M6 x 1.0
M8 x 1.25, M10 x 1.5
~
~
~
~
~
~
~
400

N001
RNB40
Nut & Blind Riveter Set
Aluminium
~
M5, M6, M8, M10
Ø3.2, Ø4.0, Ø4.8, Ø6.4
M5 x 0.8, M6 x 1.0
M8 x 1.25, M10 x 1.5
~
~
~
~
~
~
~
~

N022
~
Rivet Stud Mandrel & Adaptor
~
1
~
~
M4 x 0.7
~
~
~
~
~
~
~
~

N023
~
Rivet Stud Mandrels
~
3
~
~
M5 x 0.8, M6 x 1.0
M8 x 1.25
~
~
~
~
~
~
~
~

N002
~
Replacement Rivet Nut Mandrels
~
4
~
~
M5 x 0.8, M6 x 1.0
M8 x 1.25, M10 x 1.5
~
~
~
~
~
~
~
400

N002
~
Replacement Rivet Nut Mandrels
~
4
~
~
M5 x 0.8, M6 x 1.0
M8 x 1.25, M10 x 1.5
~
~
~
~
~
~
~
400

N024
~
Rivet Stud Inserts
Steel - Zinc Coated
50
~
~
M4 x 0.5
15
10.5
0.75
9
5.8
6
0.25 - 2.50
55

N025
~
Rivet Stud Inserts
Steel - Zinc Coated
50
~
~
M5 x 0.8
15
11.8
1.0
9.95
6.9
7
0.25 - 2.50
80

N026
~
Rivet Stud Inserts
Steel - Zinc Coated
50
~
~
M6 x 1.0
20
14.4
1.5
13.1
8.9
9
0.75 - 3.00
130

N028
~
Rivet Stud Inserts
Steel - Zinc Coated
50
~
~
M8 x 1.25
20
16.4
1.5
15
10.9
11
1.00 - 3.00
200

N013
~
Rivet Nut Inserts
Aluminium
50
~
~
M3 x 0.5
~
9.25
0.75
8
4.9
5
0.25 - 2.00
20

N003
~
Rivet Nut Inserts
Steel - Zinc Coated
50
~
~
M3 x 0.5
~
8.85
0.75
8
4.9
5
0.25 - 2.00
25

N014
~
Rivet Nut Inserts
Aluminium
50
~
~
M4 x 0.7
~
10.5
0.9
9
5.9
6
0.25 - 2.50
40

N004
~
~
Steel - Zinc Coated
50
~
~
M4 x 0.5
~
10.5
0.75
9
5.8
6
0.25 - 2.50
55

N015
~
Rivet Nut Inserts
Aluminium
50
~
~
M5 x 0.8
~
11.6
1.0
10
6.9
7
0.25 - 2.50
60

N005
~
Rivet Nut Inserts
Steel - Zinc Coated
50
~
~
M5 x 0.8
~
11.8
1.0
9.95
6.9
7
0.25 - 2.50
80

N016
~
Rivet Nut Inserts
Aluminium
50
~
~
M6 x 1.0
~
13.7
1.5
12.7
8.9
9
0.75 - 3.00
100

N006
~
Rivet Nut Inserts
Steel - Zinc Coated
50
~
~
M6 x 1.0
~
14.4
1.5
13.1
8.9
9
0.75 - 3.00
130

ORDER CODE	~
MODEL	Rivet Nut Inserts
Type	Aluminium
Nut Insert MaterialType	50
Quantity in Pack	~
Rivet Nut Inserts RangeMetric	~
Blind Rivetsmm	M8 x 1.25
Thread Size (T)Metric	~
Thread Length (TL)Metric	15
Length (L)mm	1.4
Head Height (HH)mm	14.4
Head Diameter (HD)mm	10.9
Diameter (D)mm	11
Hole Size (HS)mm	1.00 - 3.00
Grip Range (GR)mm	170
Torque to TurnKgf.cm
