| Code | C723 |
|---|---|
| Model | K12-160 |
| Capacity | Ø160mm |
| Weight (kg) | 9 |
| Weight (m3) | 0.008 |
| Weight (Freight) | 9 |
| Dimensions (cm) | 21 x 21 x 18 |

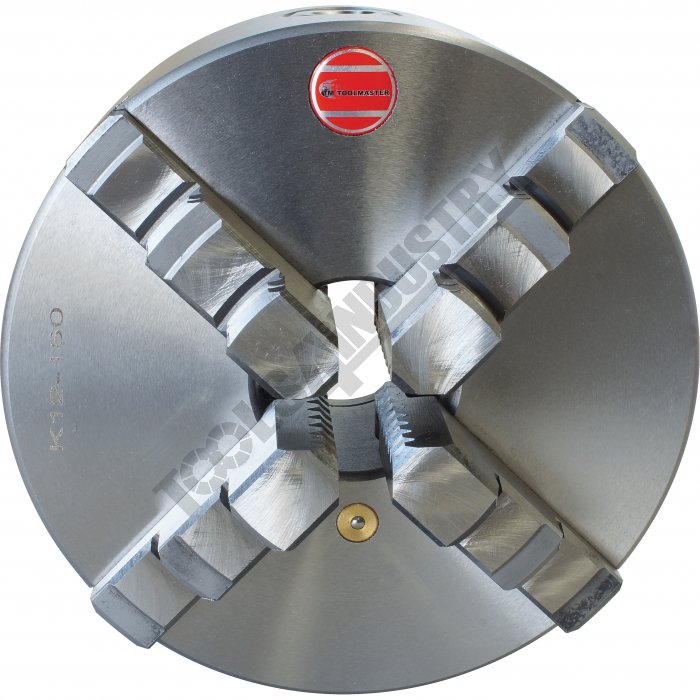

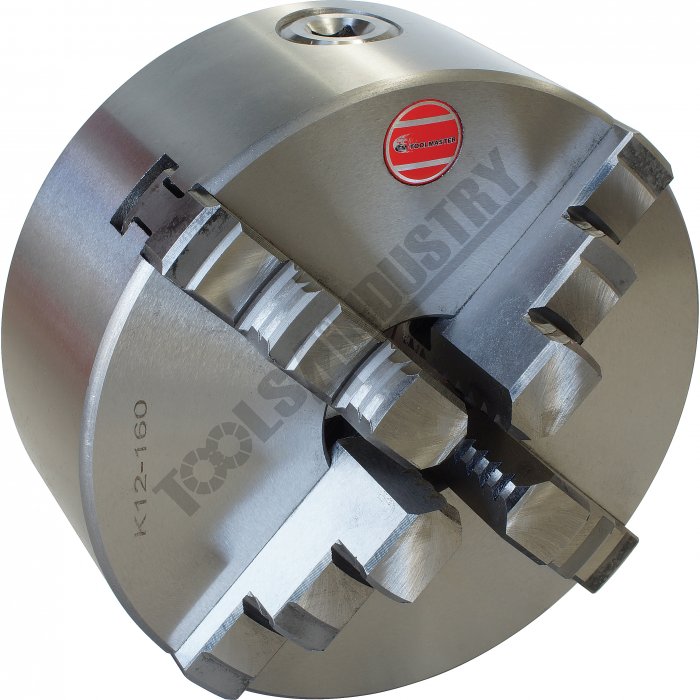

4 Jaw Self Centring Lathe Chuck K12-160 Ø160mm
Description
160mm 4-JAW SELF-CENTRING LATHE CHUCKManufactured from cast iron.

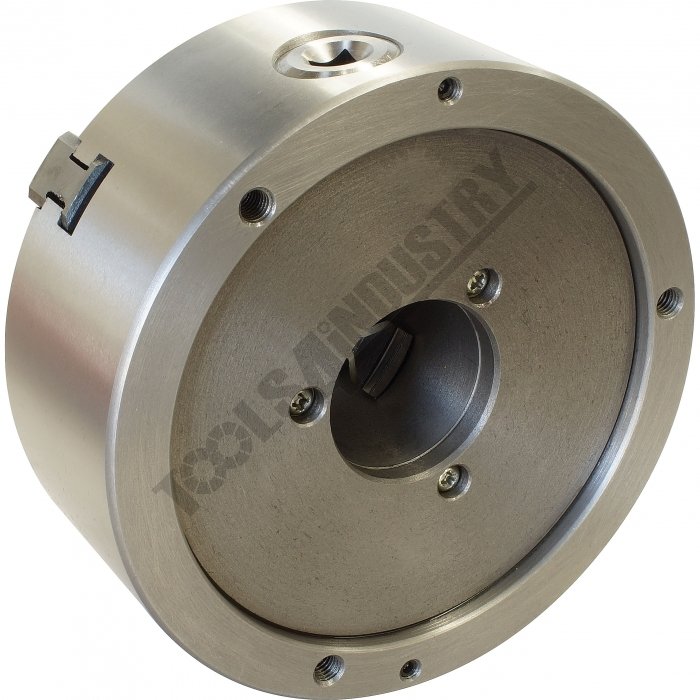

Available only in back mount.

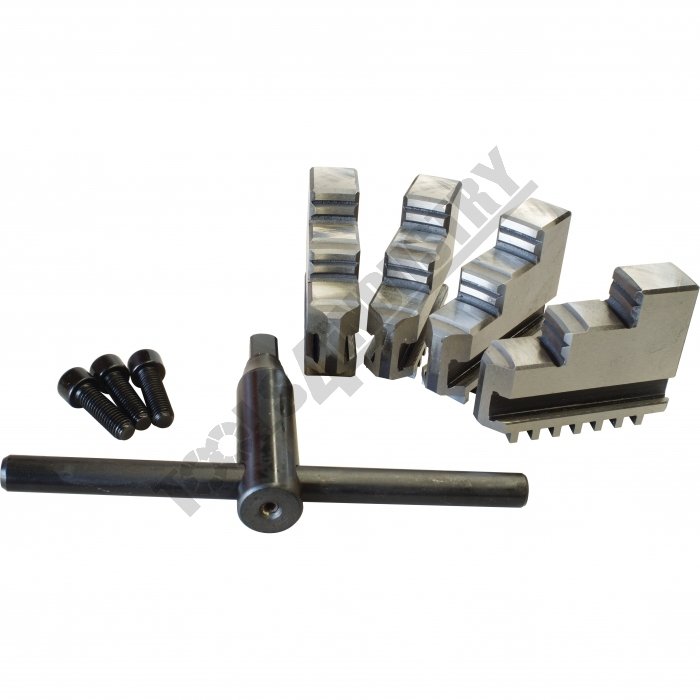

Includes
- 1 x set of outside hard jaws
- 1 x set of inside hard jaws
- 1 x key
- 1 x set of mounting screws

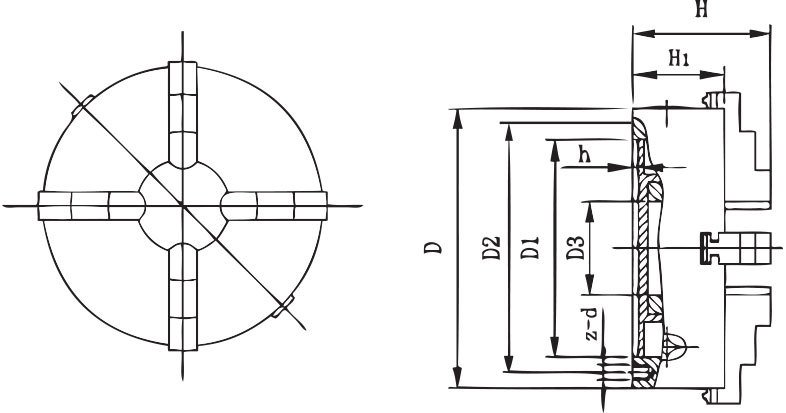

Specifications
- Compare 4 Products
- ORDER CODE
- Sizemm
- Outside Jawmm
- Inside Jawmm
- Speedrpm
- D1mm
- D2mm
- D3 (bore)mm
- Hmm
- H1mm
- hmm
- z-dmm
- Nett Weightkg
| ORDER CODE | Ø160 |
|---|---|
| Sizemm | 3 - 55 |
| Outside Jawmm | 55 - 145 |
| Inside Jawmm | 2500 |
| Speedrpm | 130 |
| D1mm | 142 |
| D2mm | 45 |
| D3 (bore)mm | 95 |
| Hmm | 65 |
| H1mm | 5 |
| hmm | 3-M8 |
| z-dmm | 8.7 |
| Nett Weightkg |
