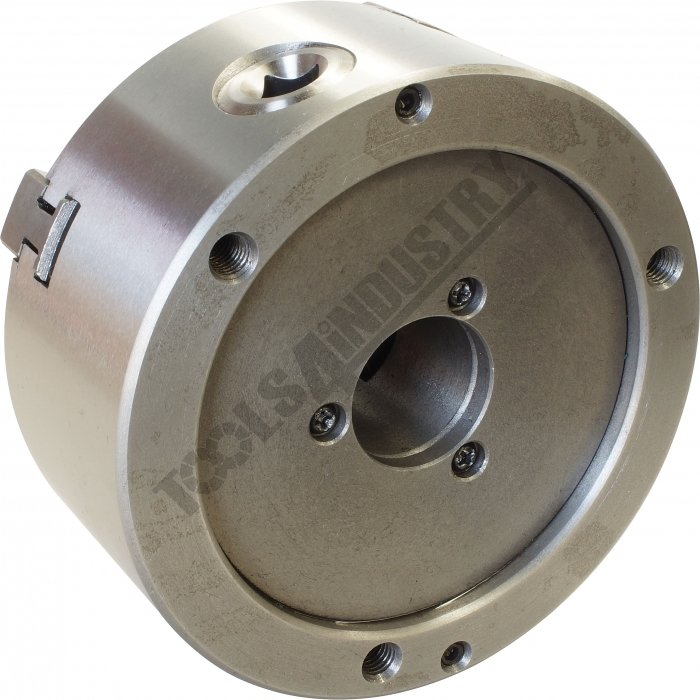

Back Plate Mount

Back Plate Mount

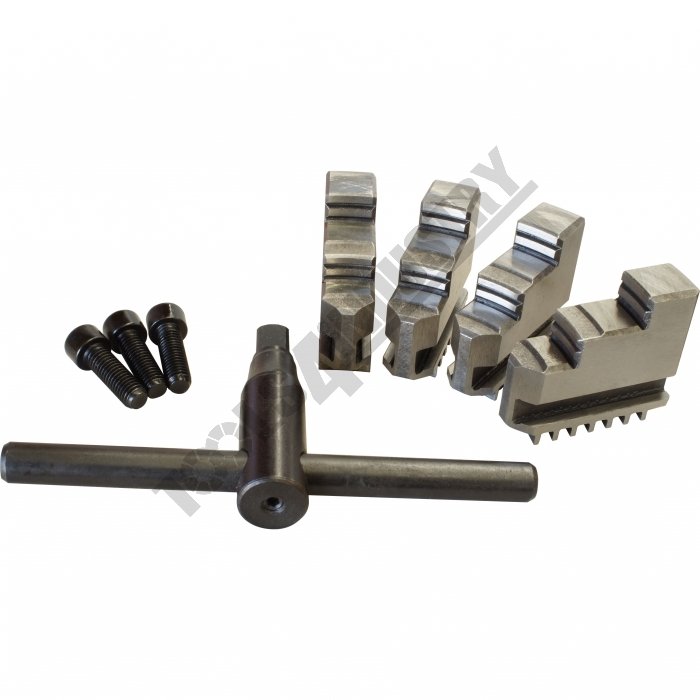

Included Accessories

Included Accessories

Code	C722
Model	K12-125
Capacity	Ø125mm
Weight (kg)	5.6
Weight (m³)	0.005
Weight (Freight)	5.6
Dimensions (cm)	17 x 17 x 16

TOOLMASTER

1 Year Warranty

Product Brochure LATHE CHUCK - SAFETY NOTES [36 KB]

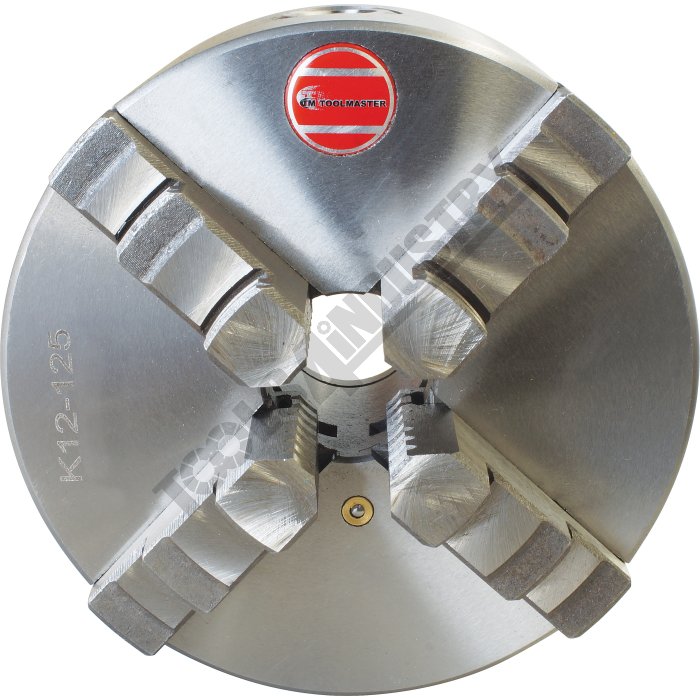

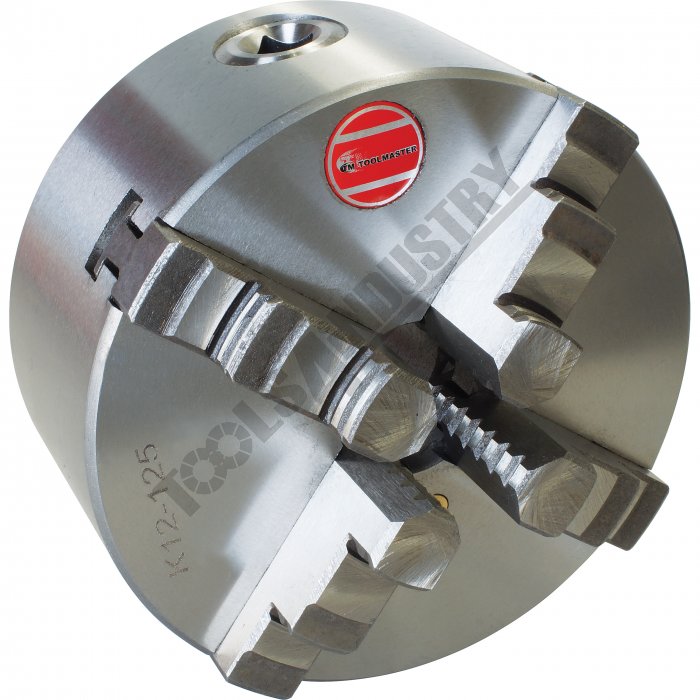

4 Jaw Self Centring Lathe Chuck K12-125 Ø125mm

Description

125mm 4-JAW SELF-CENTRING LATHE CHUCK
Manufactured cast iron.
Available only in back mount.

Includes

1 x set of outside hard jaws
1 x set of inside hard jaws
1 x key
1 x set of mounting screws

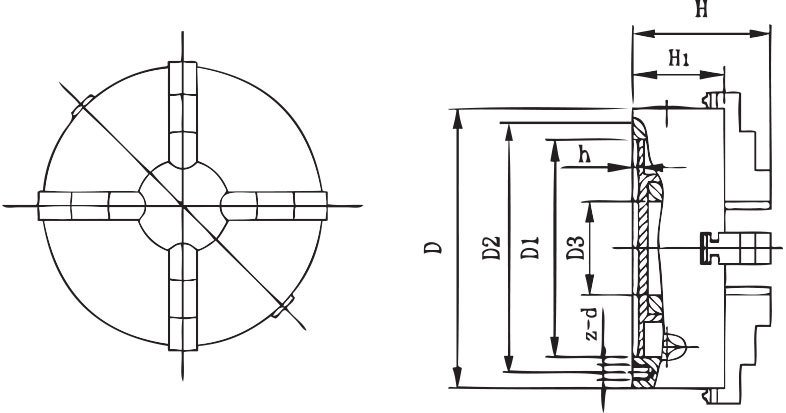

Specifications

Compare 4 Products
ORDER CODE
Sizemm
Outside Jawmm
Inside Jawmm
Speedrpm
D1mm
D2mm
D3 (bore)mm
Hmm
H1mm
hmm
z-dmm
Nett Weightkg

C722
Ø125
2.5 - 40
38 - 110
3000
95
108
30
84
58
4
3-M8
5.1

C723
Ø160
3 - 55
55 - 145
2500
130
142
45
95
65
5
3-M8
8.7

C724
Ø200
4 - 85
65 - 200
2000
165
180
65
109
75
5
3-M10
17

C721
Ø100
2 - 30
30 - 80
3500
72
84
22
74.5
55
3.5
3-M8
3

ORDER CODE	Ø125
Sizemm	2.5 - 40
Outside Jawmm	38 - 110
Inside Jawmm	3000
Speedrpm	95
D1mm	108
D2mm	30
D3 (bore)mm	84
Hmm	58
H1mm	4
hmm	3-M8
z-dmm	5.1
Nett Weightkg

Recommended Accessories

L287

D1-4 Camlock Back Plate

Ø200mm

Code: L287

L2875

D1-5 Camlock Back Plate

Ø250mm

Code: L2875

C2862

Chuck Key

8mm Square

Code: C2862
