| Code | C724 |
|---|---|
| Model | K12-200 |
| Capacity | Ø200mm |
| Weight (kg) | 17.5 |
| Weight (m3) | 0.014 |
| Weight (Freight) | 17.5 |
| Dimensions (cm) | 26 x 26 x 20 |

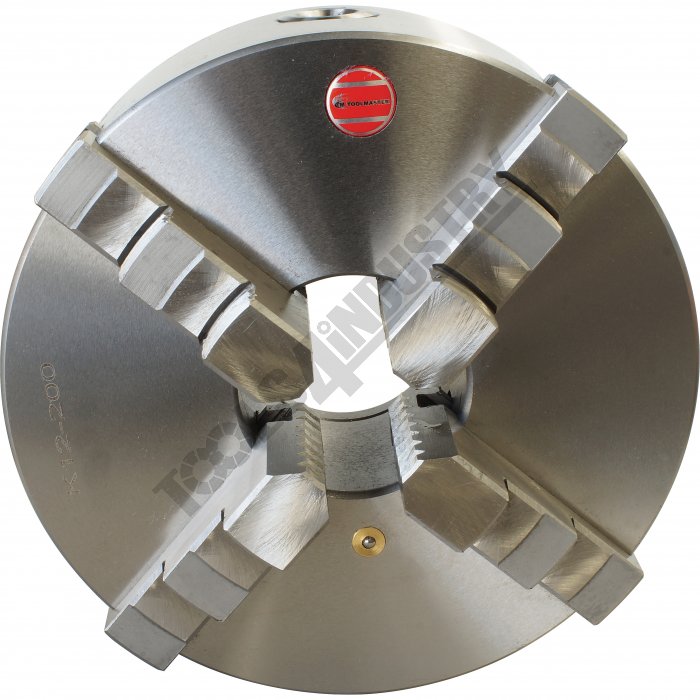

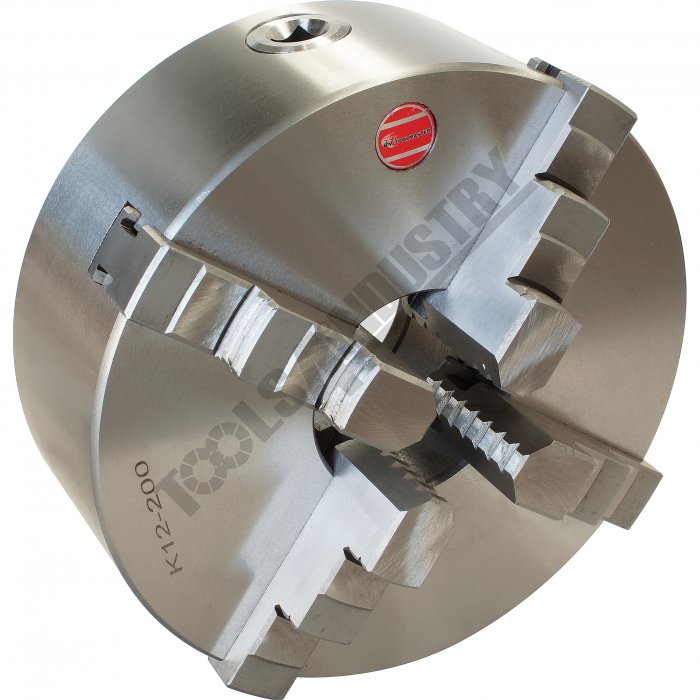

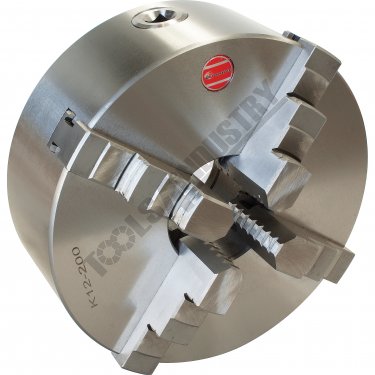

4 Jaw Self Centring Lathe Chuck K12-200 Ø200mm
Description
200mm 4-JAW SELF-CENTRING LATHE CHUCKManufactured from cast iron.

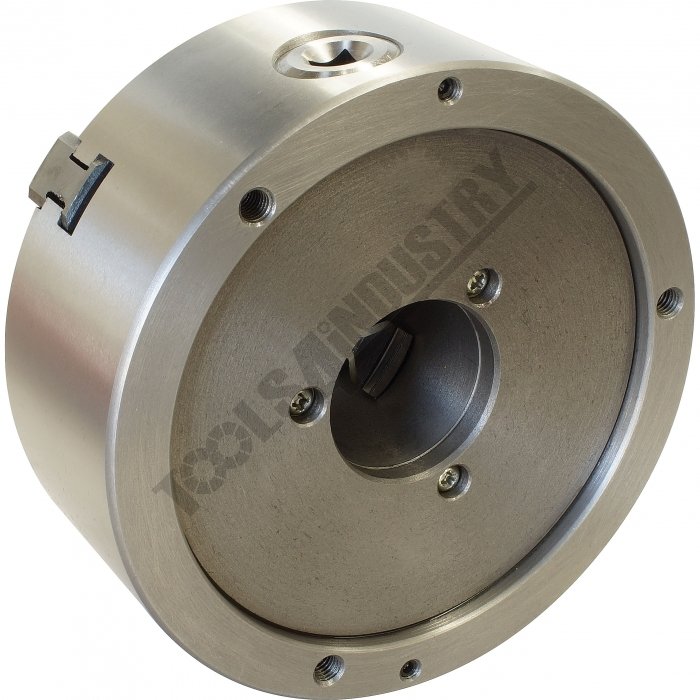

Available only in back mount.

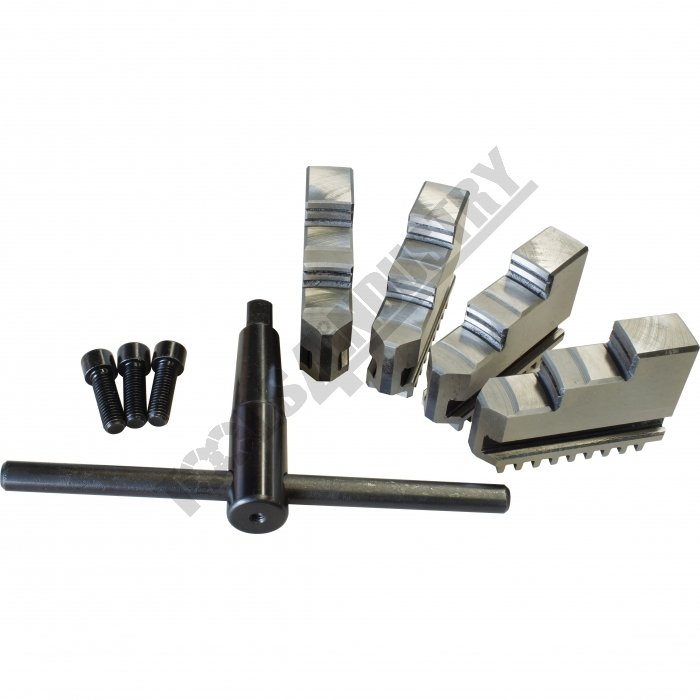

Includes
- 1 x set of outside hard jaws
- 1 x set of inside hard jaws
- 1 x key
- 1 x set of mounting screws

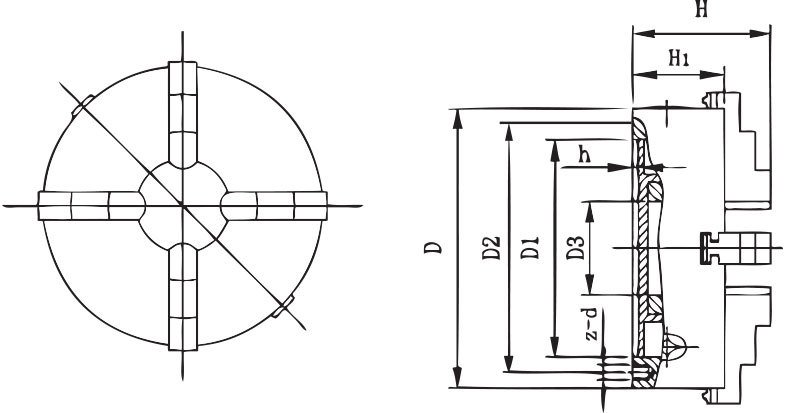

Specifications
- Compare 4 Products
- ORDER CODE
- Sizemm
- Outside Jawmm
- Inside Jawmm
- Speedrpm
- D1mm
- D2mm
- D3 (bore)mm
- Hmm
- H1mm
- hmm
- z-dmm
- Nett Weightkg
| ORDER CODE | Ø200 |
|---|---|
| Sizemm | 4 - 85 |
| Outside Jawmm | 65 - 200 |
| Inside Jawmm | 2000 |
| Speedrpm | 165 |
| D1mm | 180 |
| D2mm | 65 |
| D3 (bore)mm | 109 |
| Hmm | 75 |
| H1mm | 5 |
| hmm | 3-M10 |
| z-dmm | 17 |
| Nett Weightkg |
