| Code | W792 |
|---|---|
| Model | OS-140 |
| Capacity | Ø1/2 - 2" Sanding Sleeves |
| Weight (kg) | 34.5 |
| Weight (m3) | 0.097 |
| Weight (Freight) | 34.5 |
| Dimensions (cm) | 43 x 43 x 52.5 |

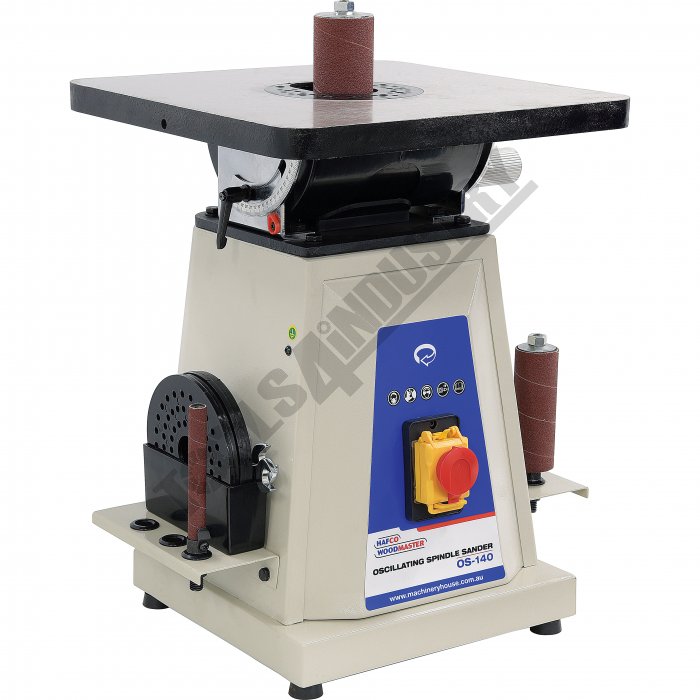

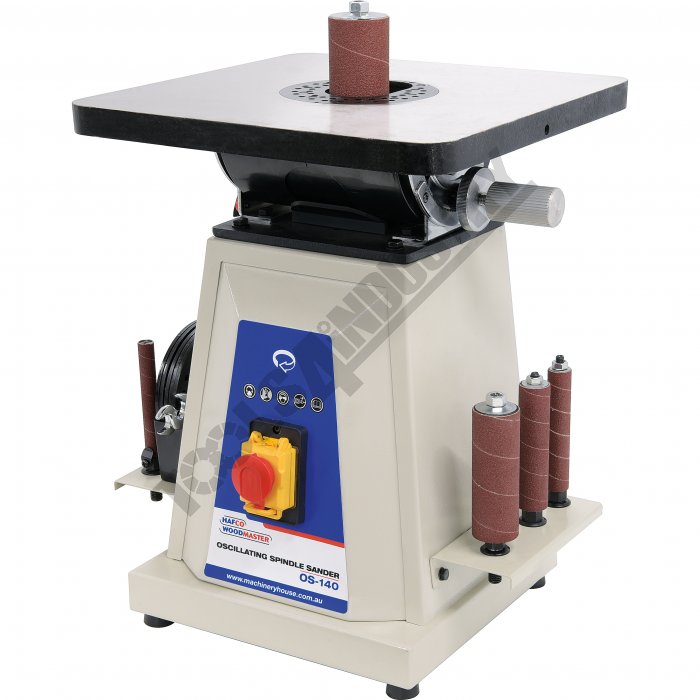

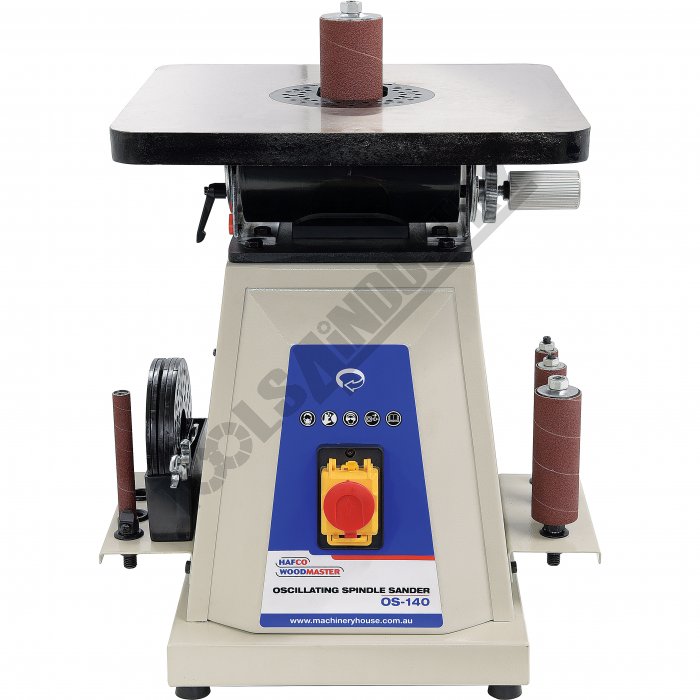

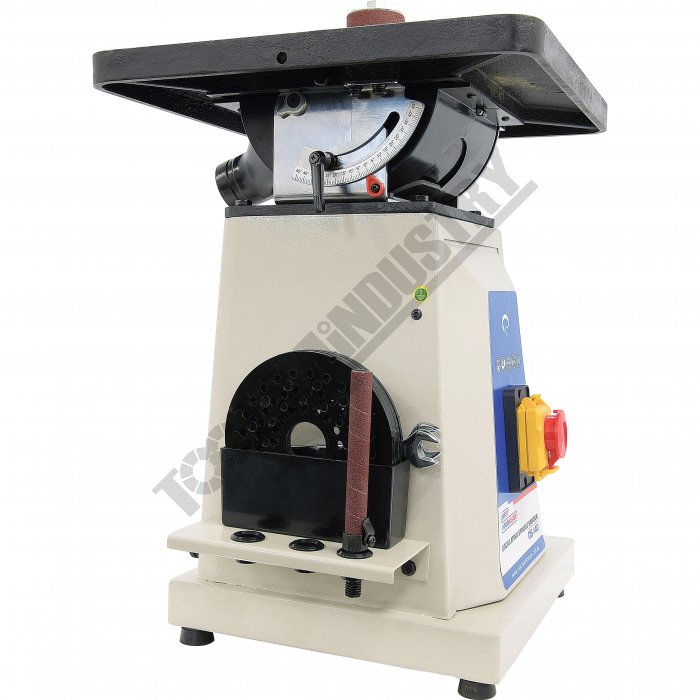

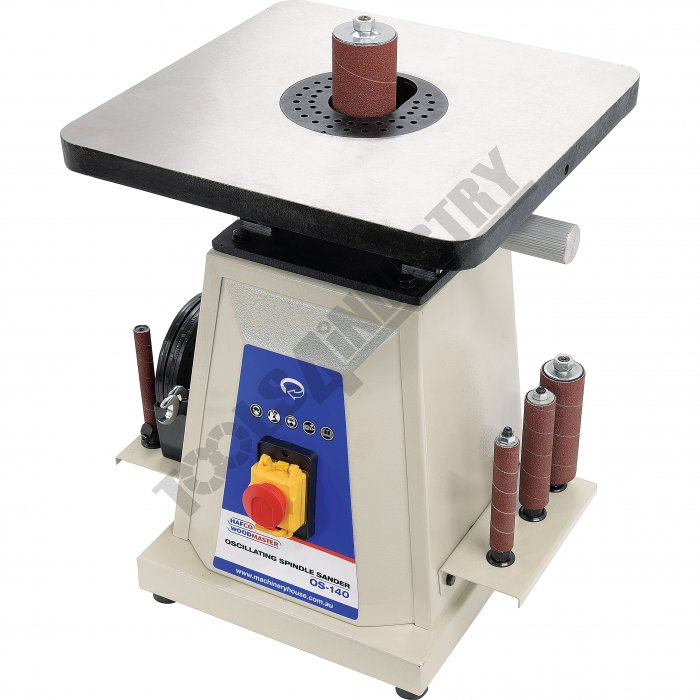

Vertical Oscillating Bench Bobbin Sander OS-140 Ø1/2 - 2" Sanding Sleeves
Description
Used for sanding deep and wide work pieces, front edges, narrow inner curves, horizontal, vertical, diagonal, with or across the grainFeatures
- Rotating & oscillating action 24mm stroke @ 26 times per minute
- Heavy duty cast iron work table

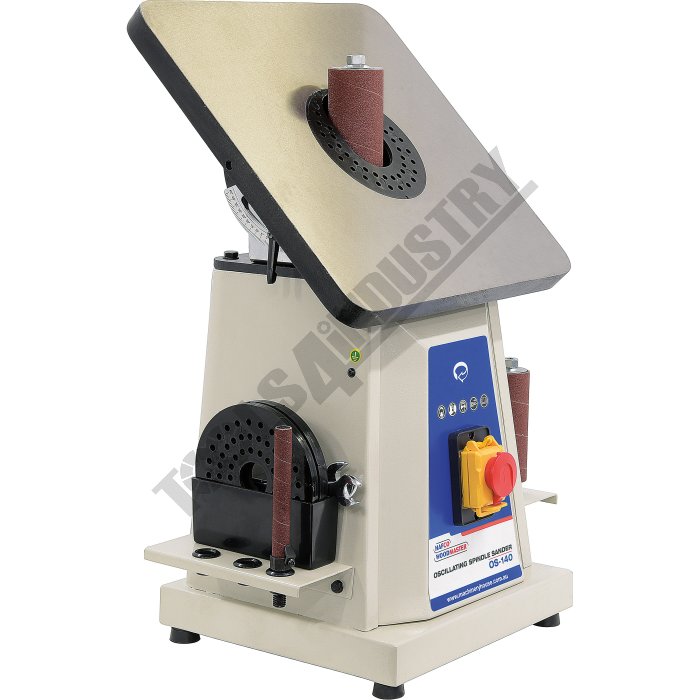

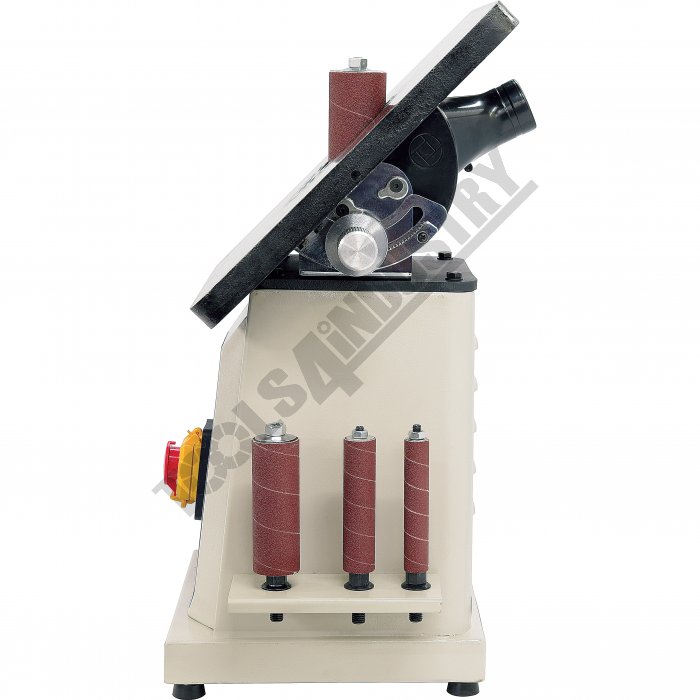

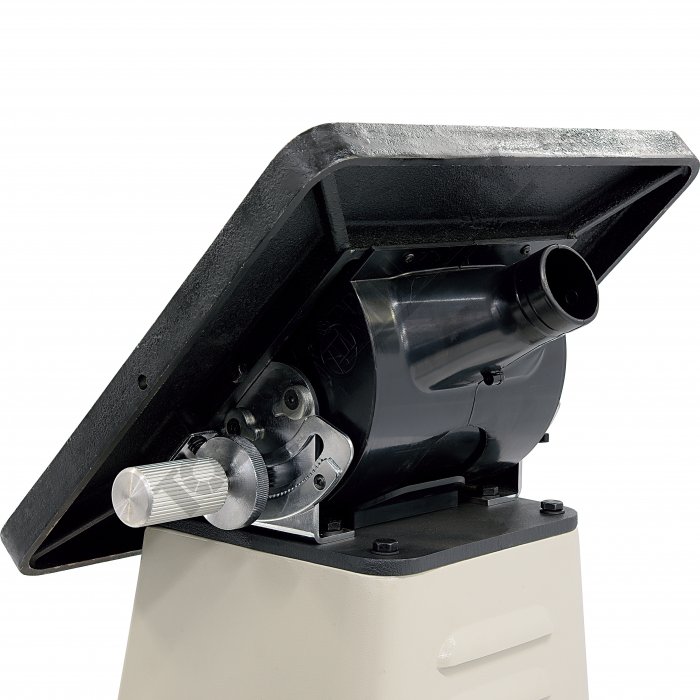

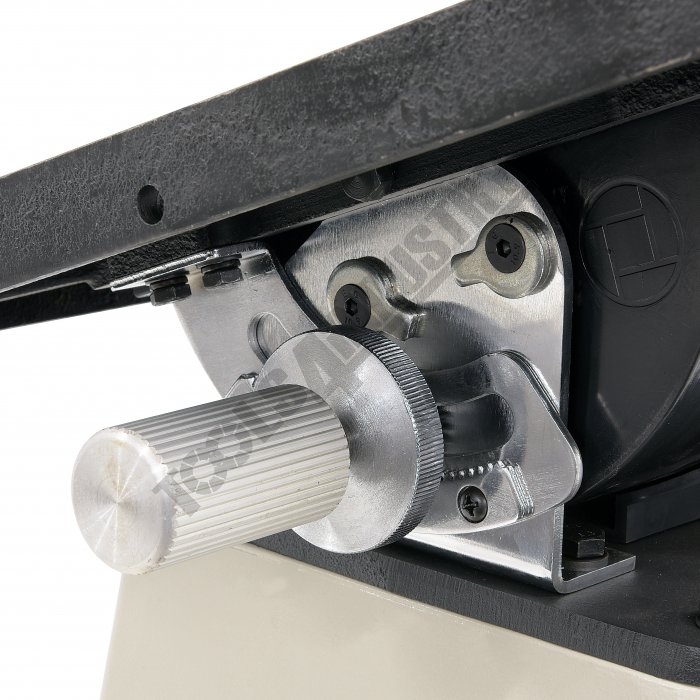

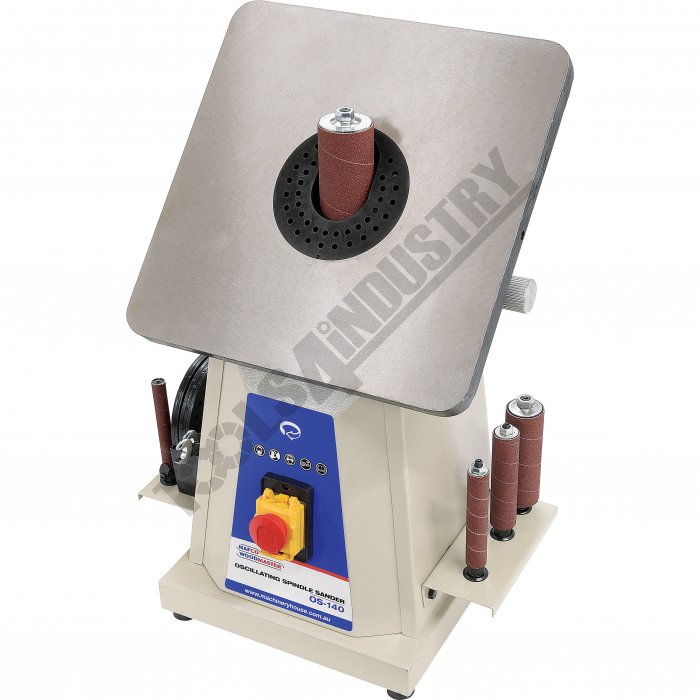

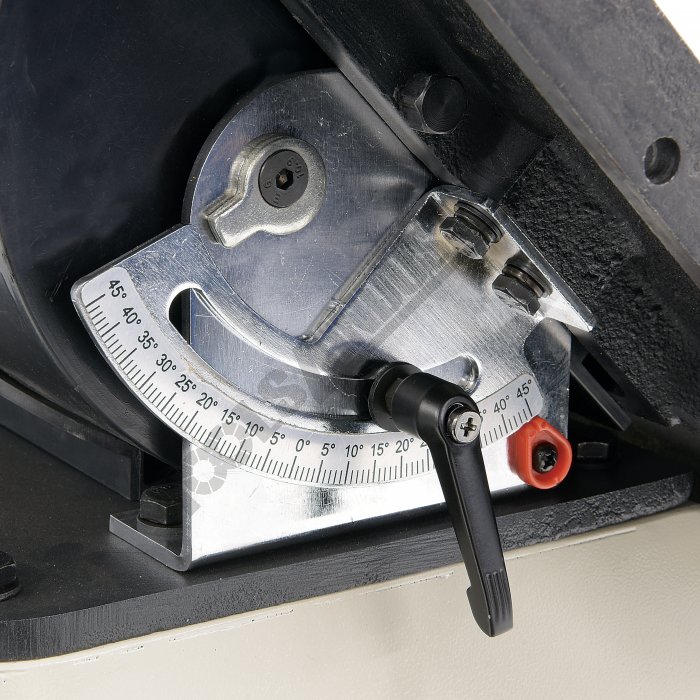

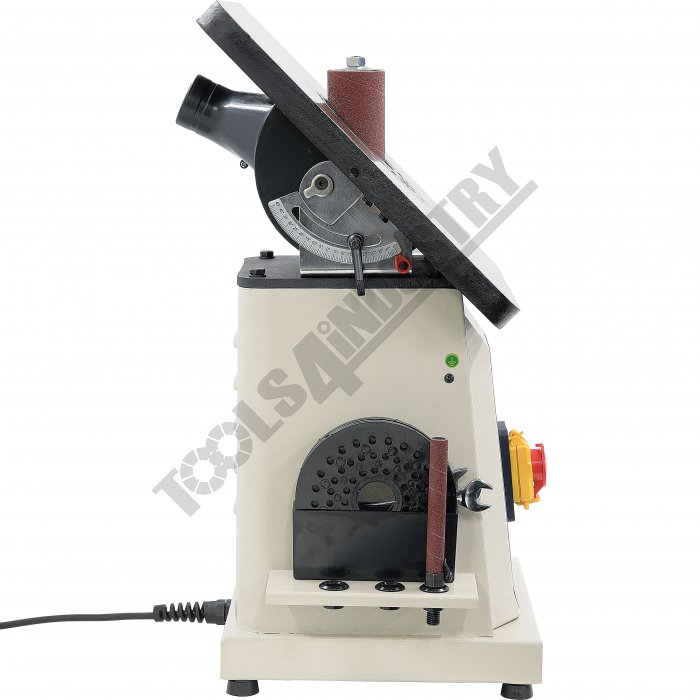

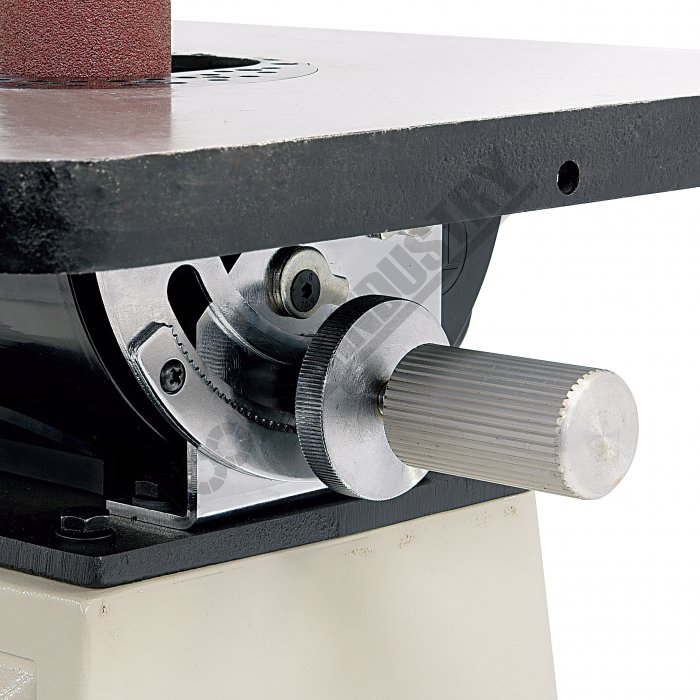

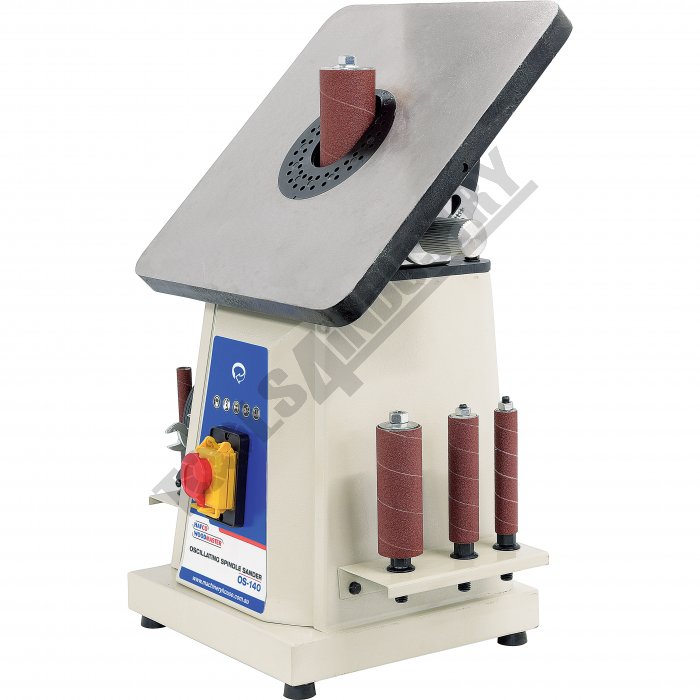

- Table tilts up to 45º with graduated scale

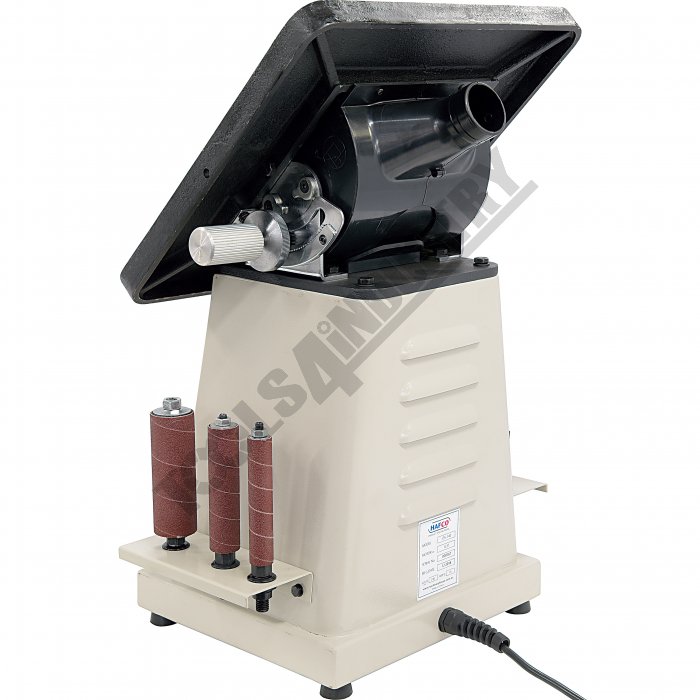

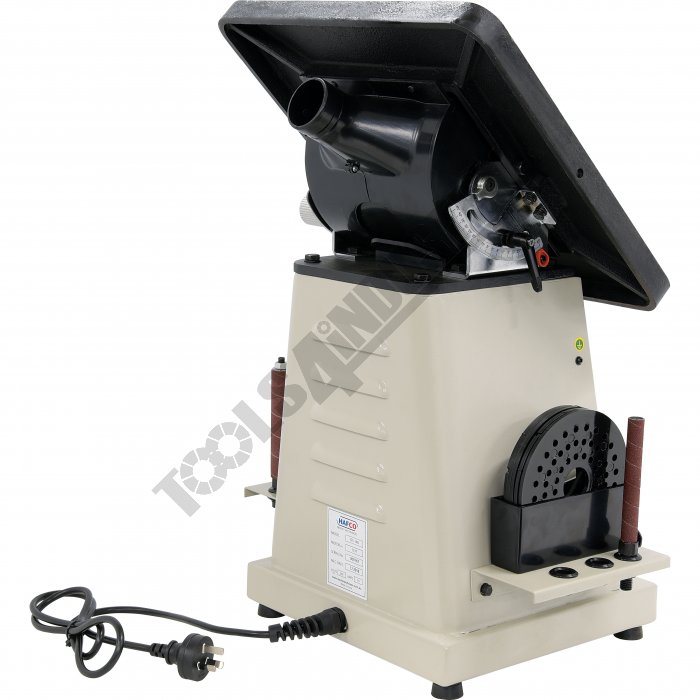

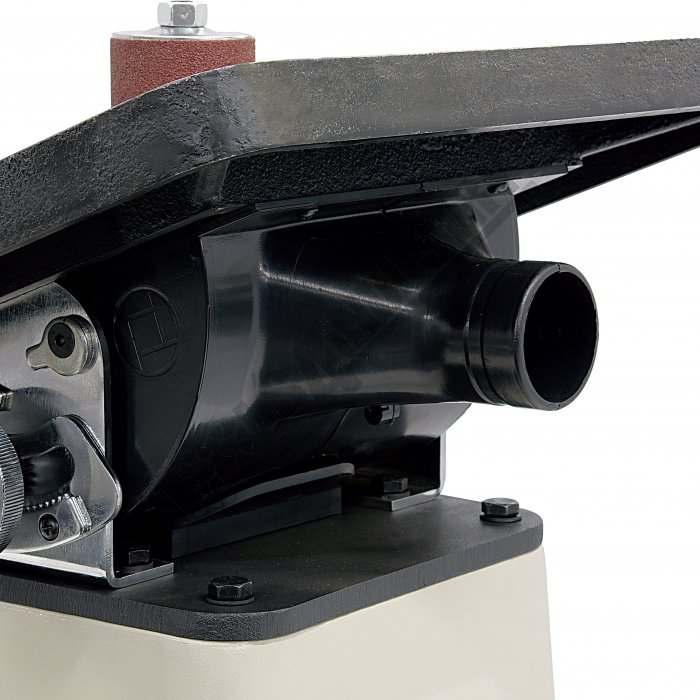

- Ø50mm rear dust chute port

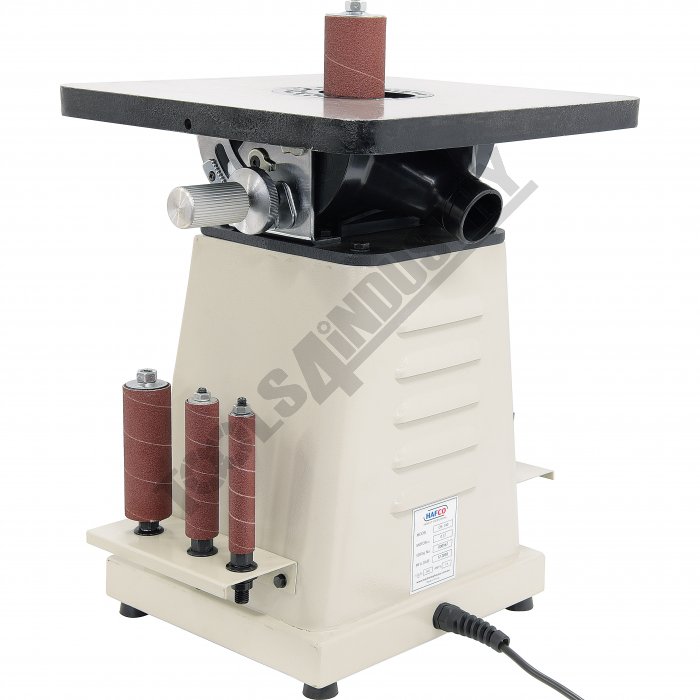

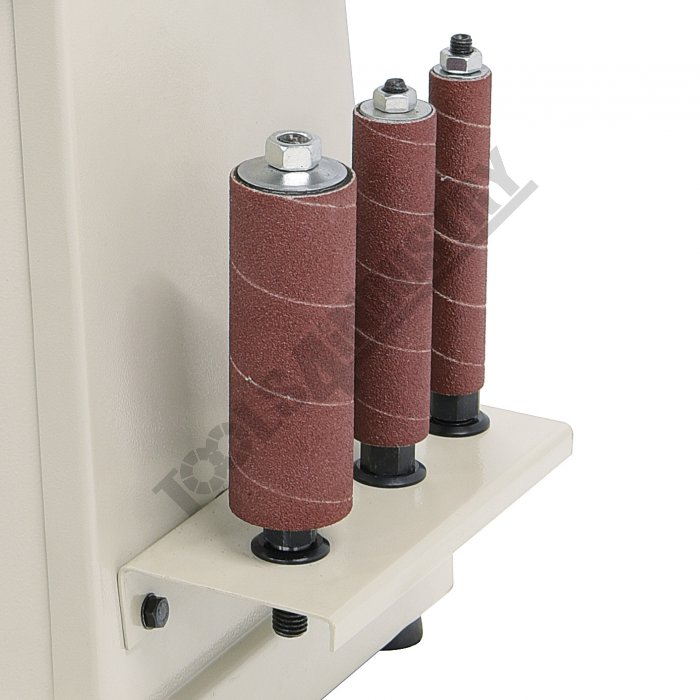

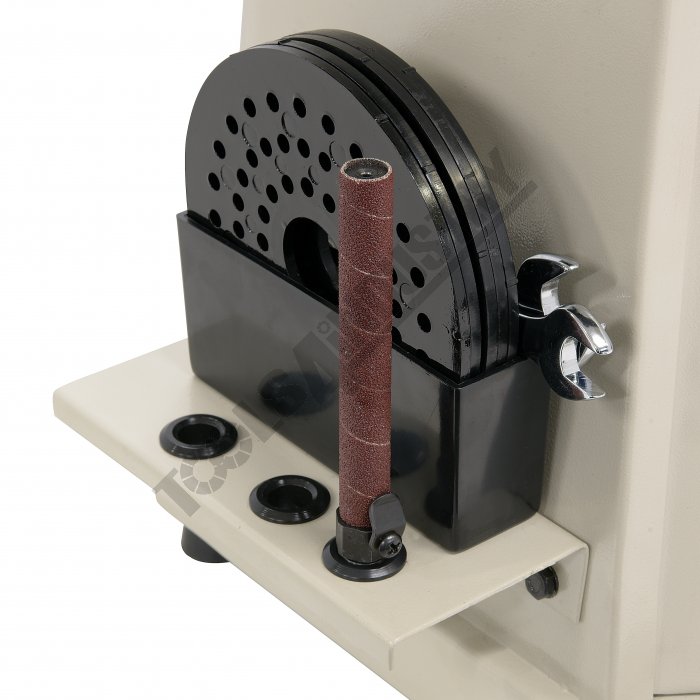

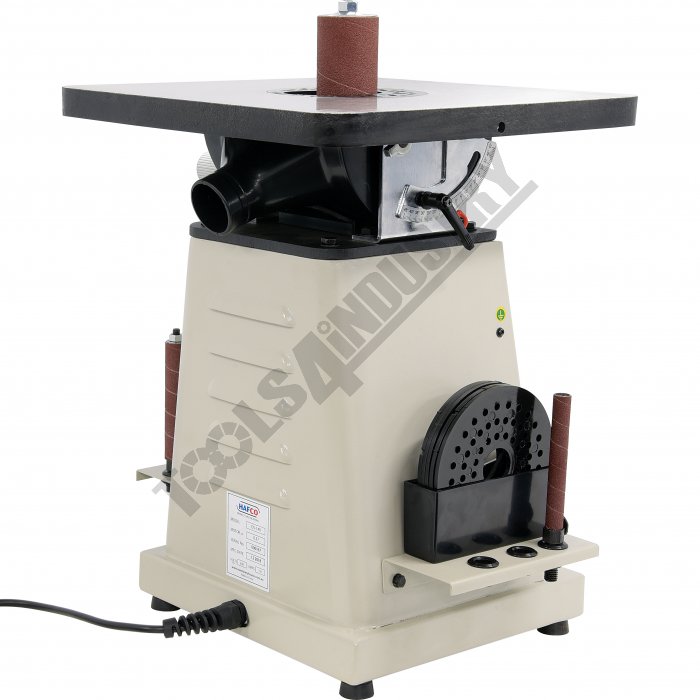

- Storage trays for sanding spindles, sleeves & table inserts

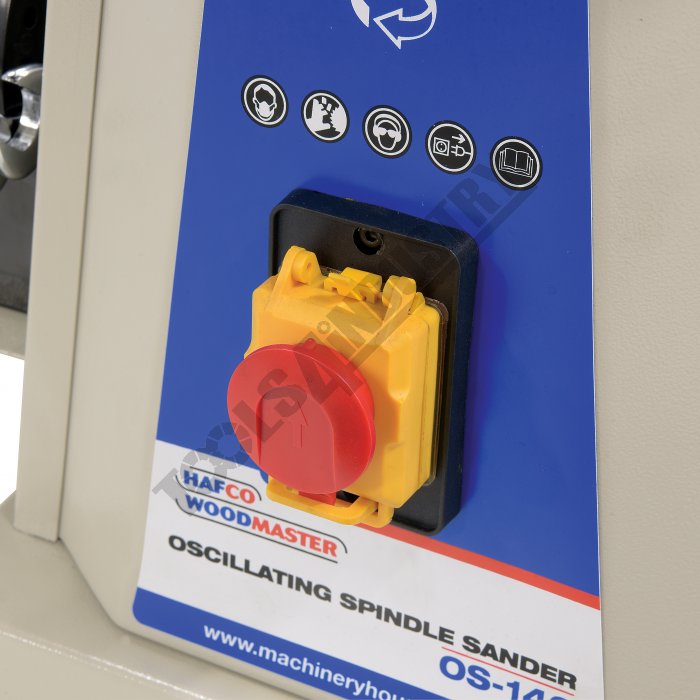

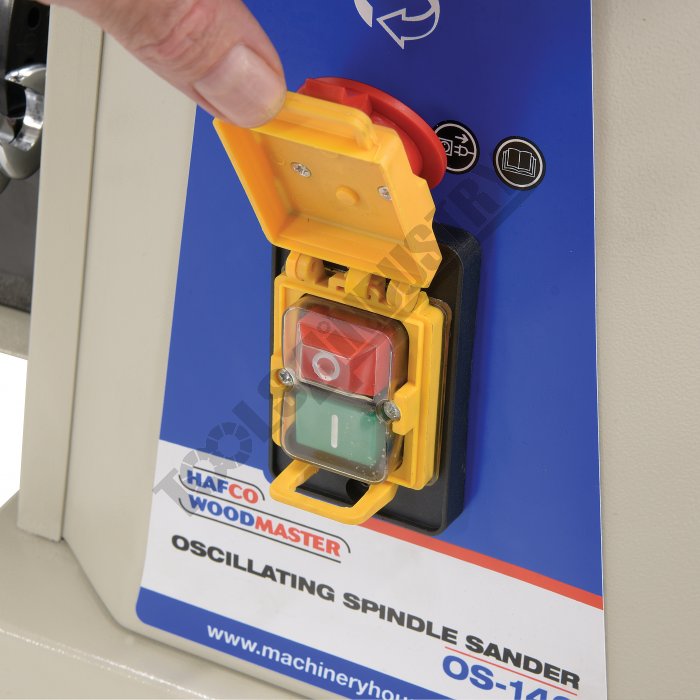

- Safety magnetic switch with emergency stop

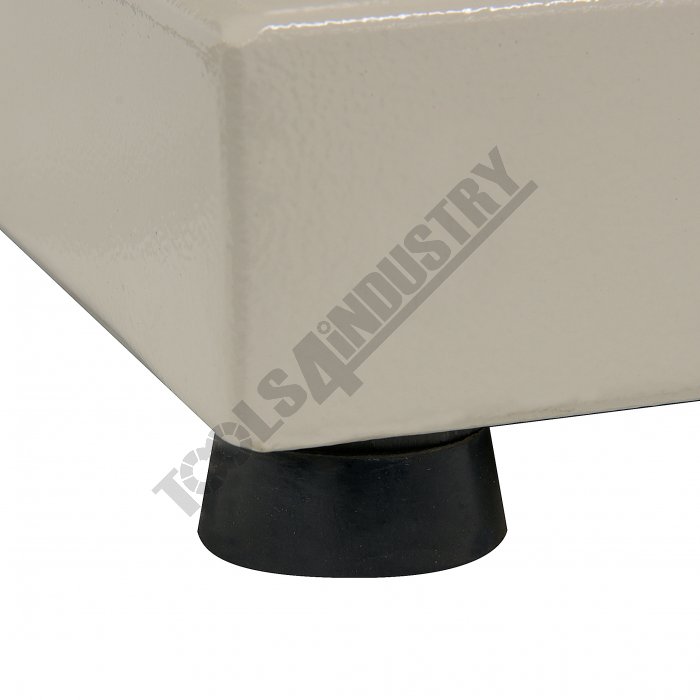

- Anti vibration rubber feet

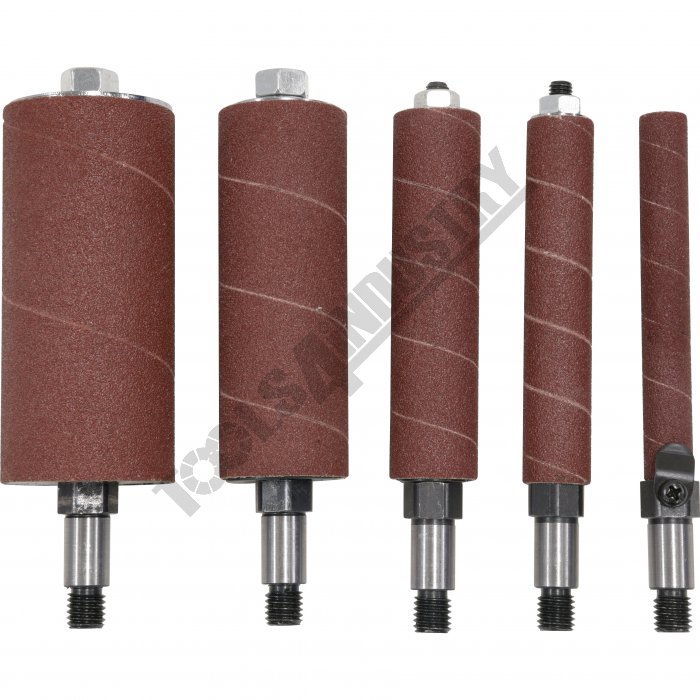

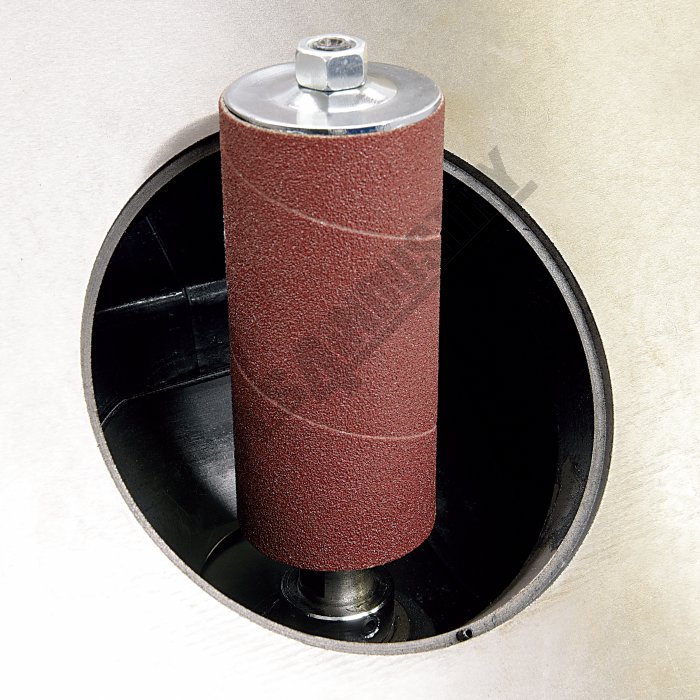

- Sanding sleeves (1/2”, 3/4”, 1”, 1-1/2”, 2”),

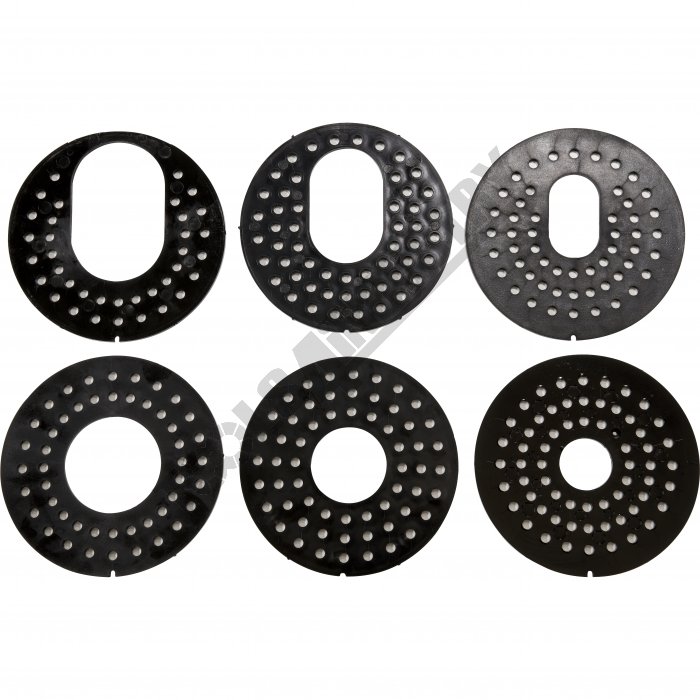

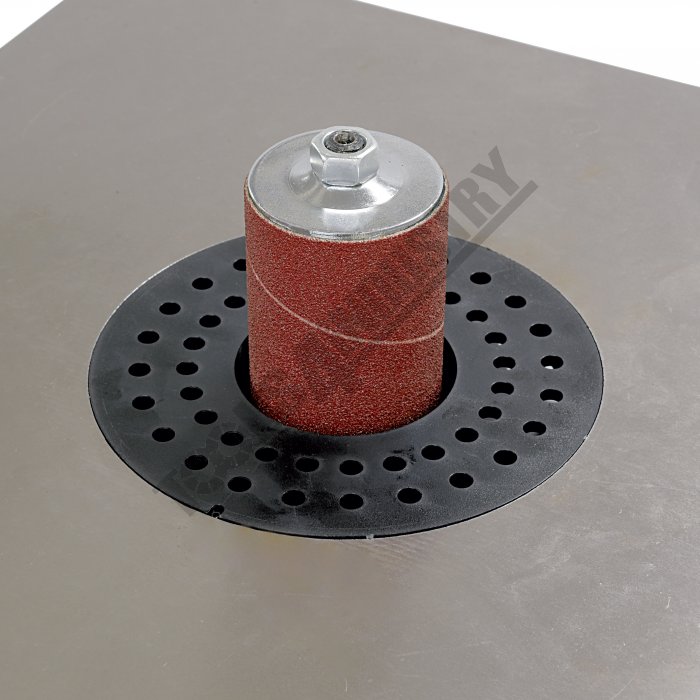

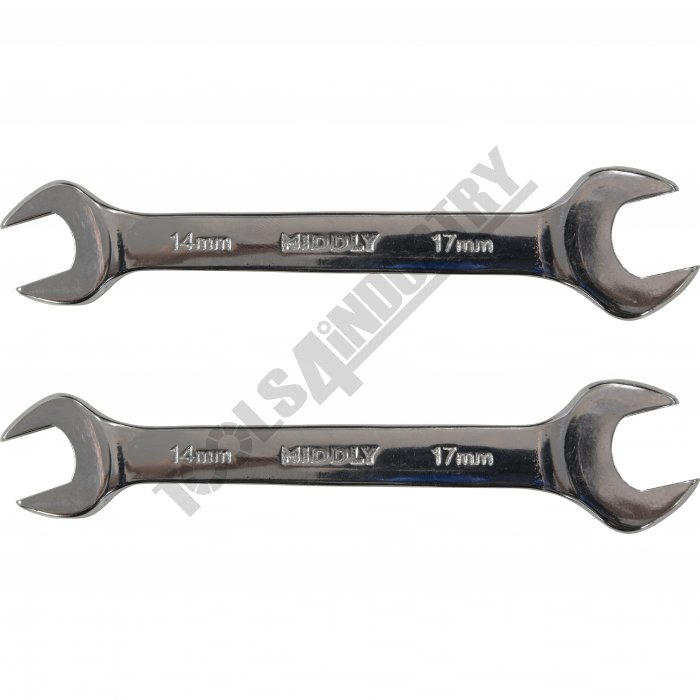

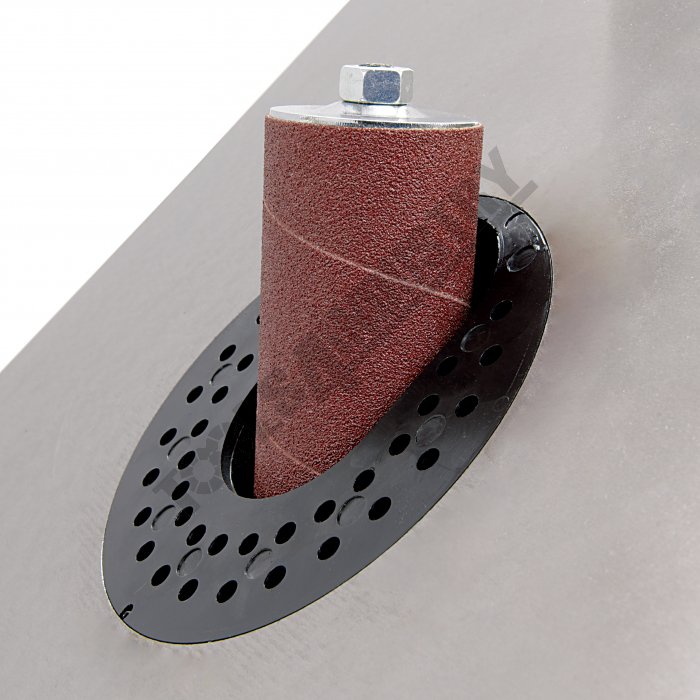

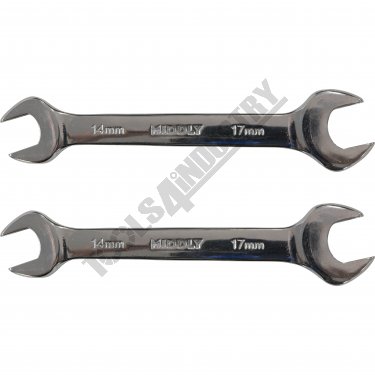

- 6 x table inserts & 1 x sleeve spanner
Specifications
- Compare 3 Products
- ORDER CODE
- MODEL
- Sanding Spindle Sleeve SizesInch
- Table Sizemm
- Table Heightmm
- Oscillating Strokemm
- Sanding Spindle Speedrpm
- Tilting Work TableDeg.
- Dust Port Sizemm
- Motor PowerkW / hp
- Voltage / AmperageV / amp
- Floor SpaceW x D x H
- Weightkg
- W792
- OS-140
- 1/2", 3/4", 1", 1-1/2", 2"
- 370 x 370
- 485
- 24
- 1425
- 45º
- Ø50
- 0.37 / 0.5
- 240 / 10
- 370 x 370 x 500
- 34.5
- W795
- OVS-JM
- 1/4", 3/8", 1/2", 5/8", 3/4"
1", 1-1/2", 2", 3" & 4" - 609 x 609
- 990
- 38
- 1725
- 45º
- Ø100
- 0.75 / 1
- 240 / 10
- 620 x 620 x 1200
- 145
- W843
- OS-58
- 1/2", 3/4", 1", 1-1/2", 2"
& 3" - 370 x 290
- 330
- 16
- 2000
- ~
- Ø40
- 0.45 / 0.6
- 240 / 10
- 370 x 450 x 440
- 17.3
| ORDER CODE | OS-140 |
|---|---|
| MODEL | 1/2", 3/4", 1", 1-1/2", 2" |
| Sanding Spindle Sleeve SizesInch | 370 x 370 |
| Table Sizemm | 485 |
| Table Heightmm | 24 |
| Oscillating Strokemm | 1425 |
| Sanding Spindle Speedrpm | 45º |
| Tilting Work TableDeg. | Ø50 |
| Dust Port Sizemm | 0.37 / 0.5 |
| Motor PowerkW / hp | 240 / 10 |
| Voltage / AmperageV / amp | 370 x 370 x 500 |
| Floor SpaceW x D x H | 34.5 |
| Weightkg |
