| Code | W08290 |
|---|---|
| Model | WT28-LFK2 |
| Capacity | 1000kg WLL Total Capacity as a pair |
| Weight (kg) | 8 |
| Weight (m3) | 0.002 |
| Weight (Freight) | 8 |
| Dimensions (cm) | 15 x 15 x 10 |
Table & Accessory Lifting Kit WT28-LFK2 1000kg WLL Total Capacity as a pair
Description

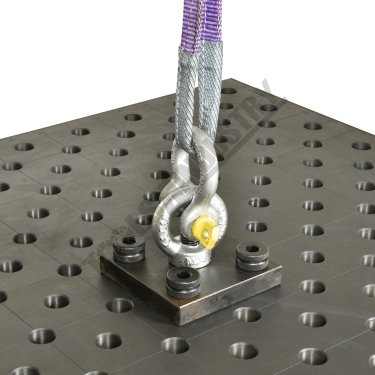

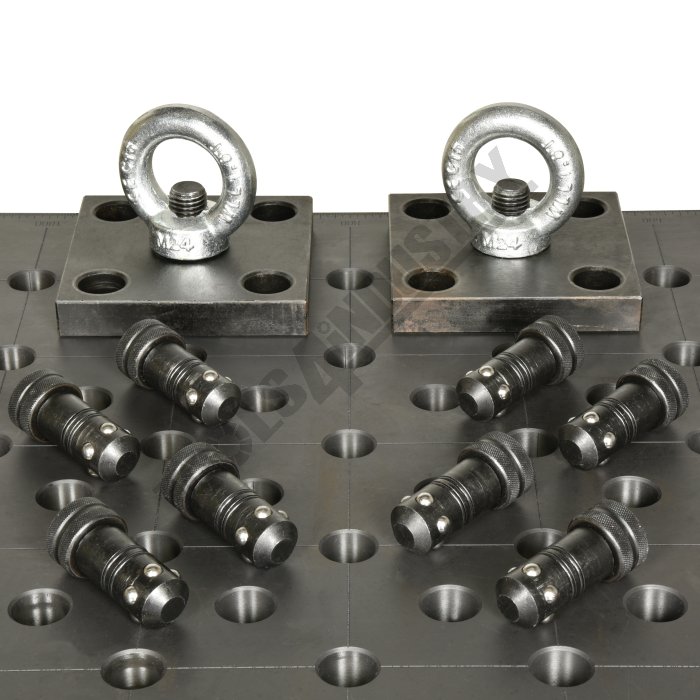

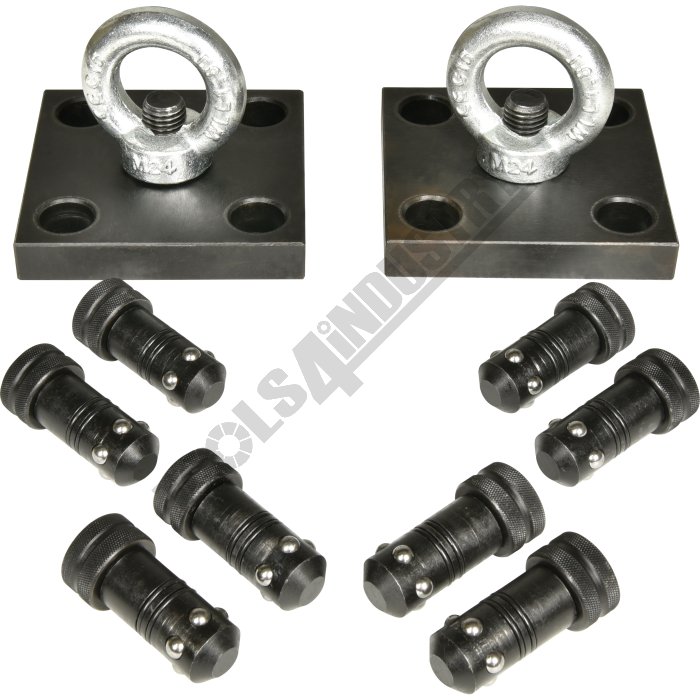

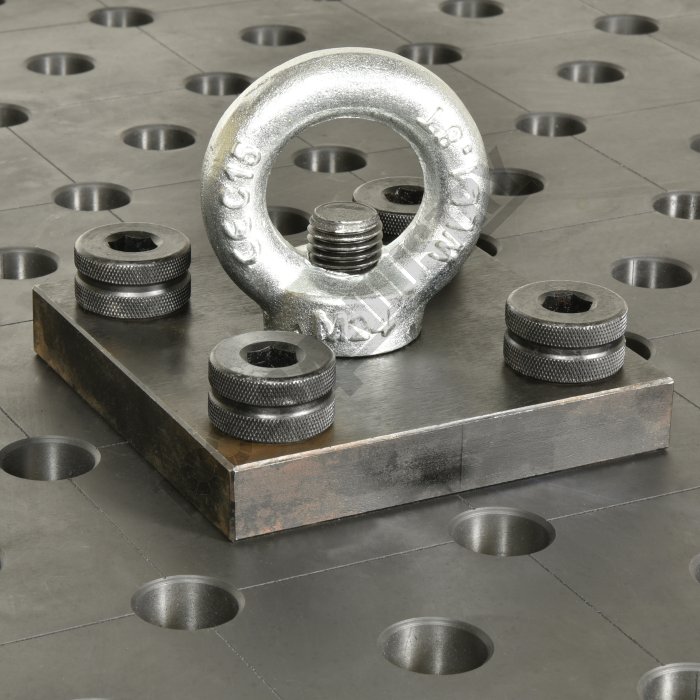

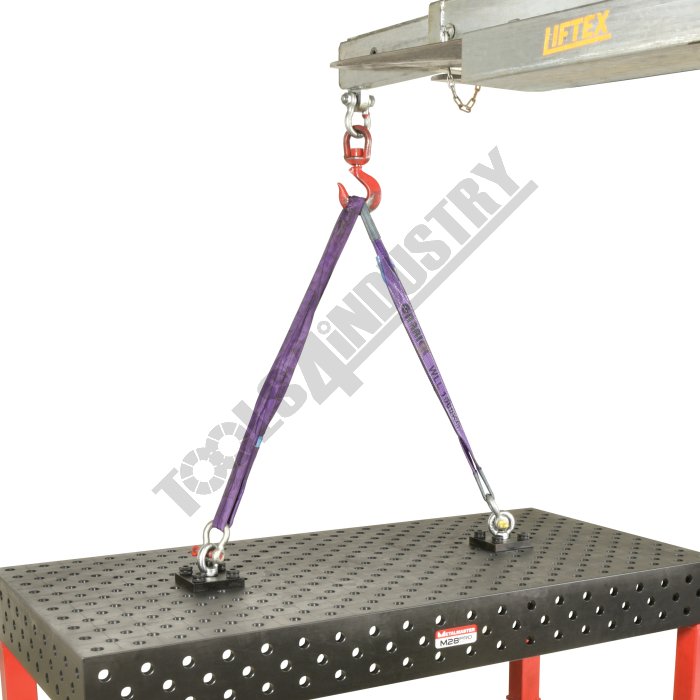

Use to assist in lifting of our METALMASTER M28 Pro Series welding tables, riser blocks & any large or heavy table accessories. The kit comes standard with 2pcs of 4-hole lifting plates with M24 Eye nuts along with 8pcs of ball lock pins to secure the plates in place making them the perfect addition to your welding table.Features
- Heavy steel construction
- Fast & easy way to securely lift fixture elements to a table
- CNC machined surfaces to ensure precision tolerances
- Burnished finish surface treatment to prevent rust
- 1000kg WLL as a pair or 500kg WLL for each
- Suits Ø28mm Welding Tables Holes
- It is recommended that a minimum of 2 pairs (4pcs) of the lifting plates be used when lifting WT28-3015N - 3000 x 1500mm M28 Pro Welding Tables
Specifications
- Compare 16 Products
- ORDER CODE
- MODEL
- Type
- Size
- Quantity Per PackNo.
- Suits
- Nett Weightkg
- W08290
- WT28-LFK2
- Lifting Kit
- 1000kg WLL
(500kg WLL each) - 2
- Ø28mm Table Holes
- ~
