| Code | V334 |
|---|---|
| Model | PHV-200 |
| Capacity | 200mm Jaw Width |
| Weight (kg) | 120 |
| Weight (m3) | 0.085 |
| Weight (Freight) | 120 |
| Dimensions (cm) | 86 x 38 x 26 |
| Only Available From | Auckland |

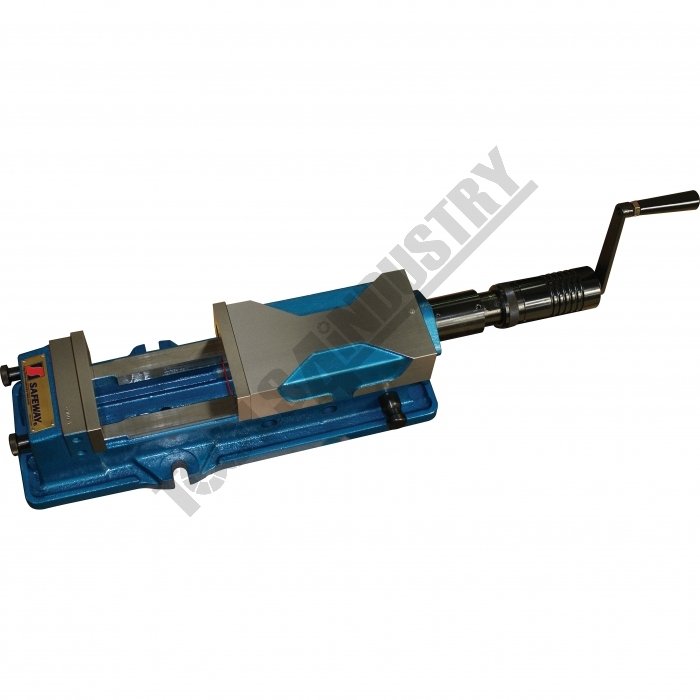

Safeway Mechanical/Hydraulic Machine Vice PHV-200 200mm Jaw Width
Description

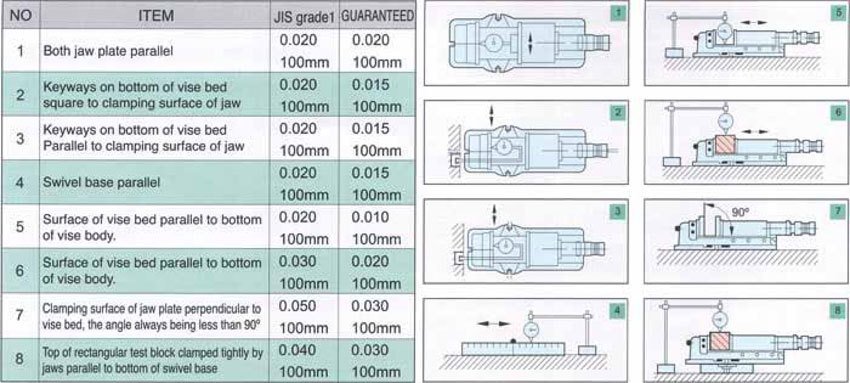

200mm MECHANICAL/HYDRAULIC MACHINE VICE:Precision manufactured from rigid material - Ductile iron FCD60JIS (equal to GGG60) with 60kg/mm2 or 80,000 psi tensile strength.;All Safeway vices are precision ground and the surfaces set to the tolerances set out below. This allows these vices to be used in pairs and multiple configurations.
Features
- Flame-hardened to HRC 45 to take up wear and maintain accuracy

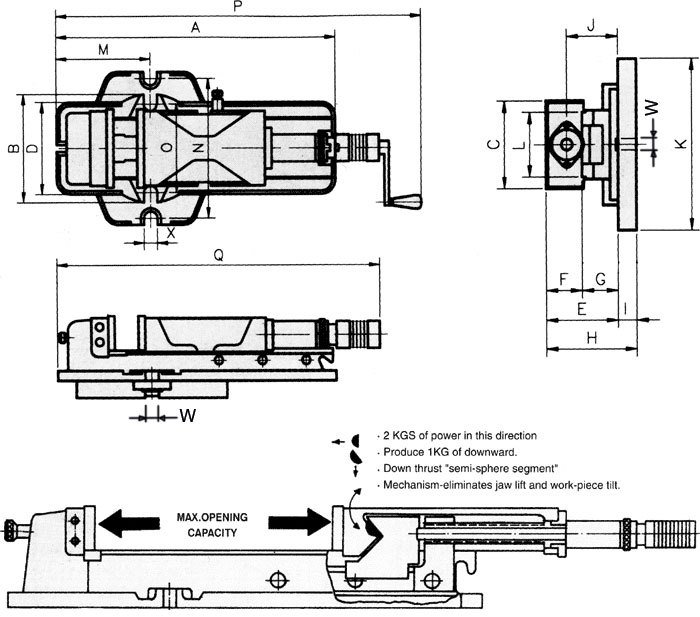

- The semi-sphere segment eliminates movable jaw lifting and creates a down force of 1kg for every 2kg of clamping force, preventing the work piece from tilting

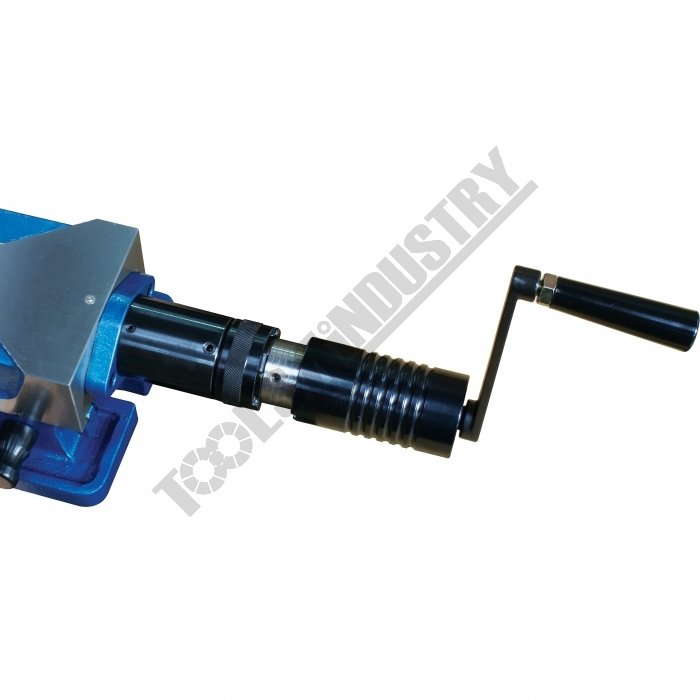

- The hydraulic cylinder is mounted externally for easy maintenance

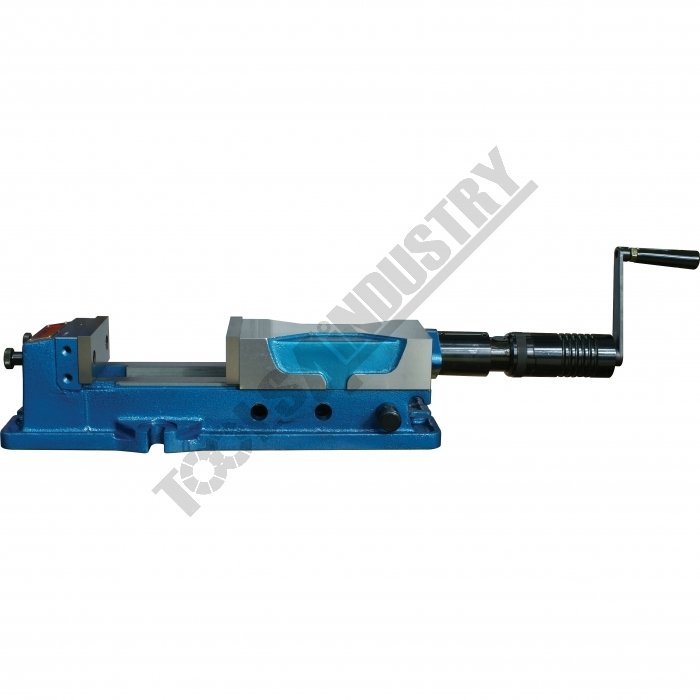

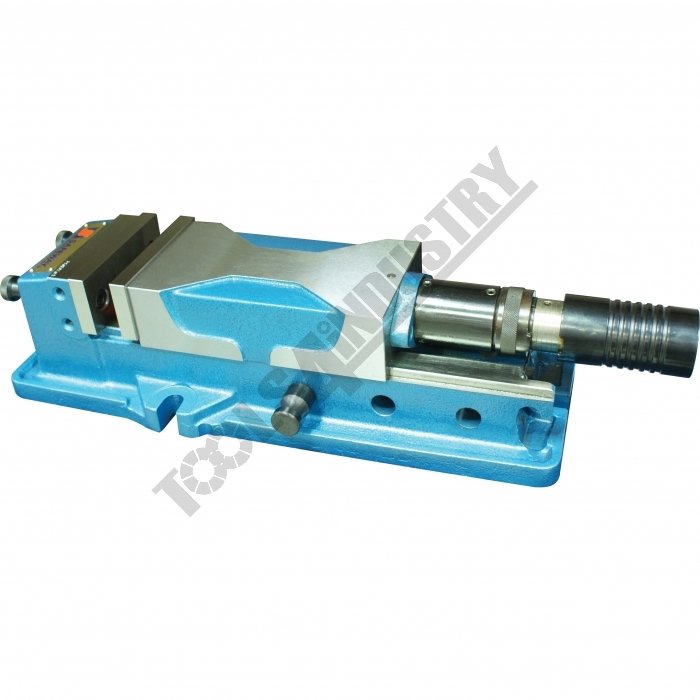

- Large clamping range through screw adjustment and 3 pin positions in the base.
- The vise can be used in either a mechanical mode or in a hydraulic mode
Specifications
- Compare 3 Products
- ORDER CODE
- MODEL
- C - Jaw Widthmm
- Max. - Jaw Openingmm
- F - Jaw Heightmm
- Max. Pressurekgf
- Amm
- Bmm
- Dmm
- Emm
- Gmm
- Hmm
- Imm
- Jmm
- Kmm
- Lmm
- Mmm
- Nmm
- Omm
- Pmm
- Qmm
- Xmm
- Keyway (W)mm
- Nett Weightkg
| ORDER CODE | PHV-200 |
|---|---|
| MODEL | 200 |
| C - Jaw Widthmm | 310 |
| Max. - Jaw Openingmm | 63 |
| F - Jaw Heightmm | 6000 |
| Max. Pressurekgf | 700 |
| Amm | 280 |
| Bmm | 240 |
| Dmm | 163 |
| Emm | 100 |
| Gmm | 205 |
| Hmm | 42 |
| Imm | 125 |
| Jmm | 400 |
| Kmm | 165 |
| Lmm | 265 |
| Mmm | 360 |
| Nmm | 240 |
| Omm | 830 |
| Pmm | 725 |
| Qmm | 22 |
| Xmm | 18 |
| Keyway (W)mm | 90 |
| Nett Weightkg |
