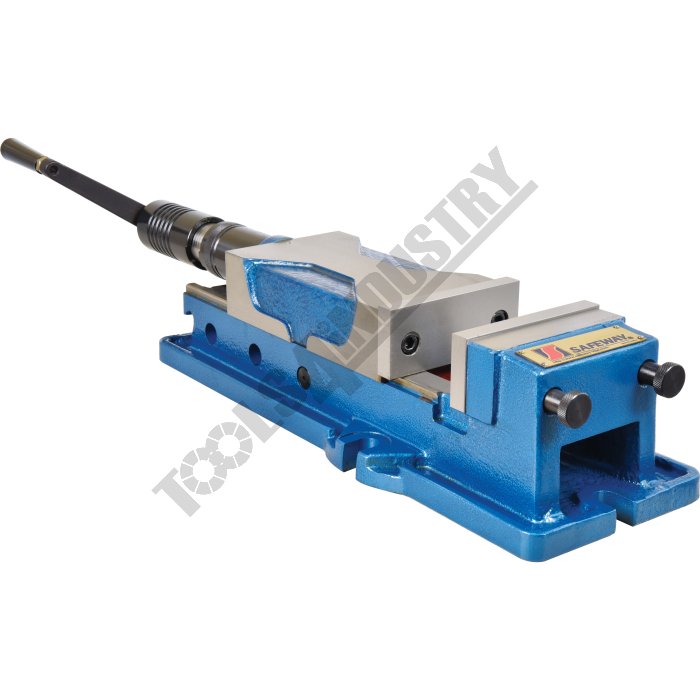

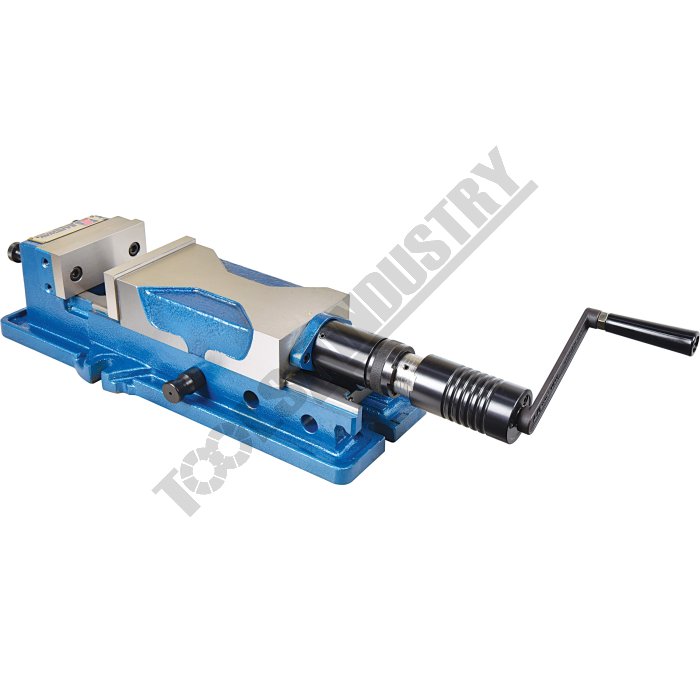

Safeway Mechanical/Hydraulic Machine Vice PHV-160 160mm Jaw Width

Description

160mm MECHANICAL/HYDRAULIC MACHINE VICE:Precision manufactured from rigid material - Ductile iron FCD60JIS (equal to GGG60) with 60kg/mm2 or 80,000 psi tensile strength.

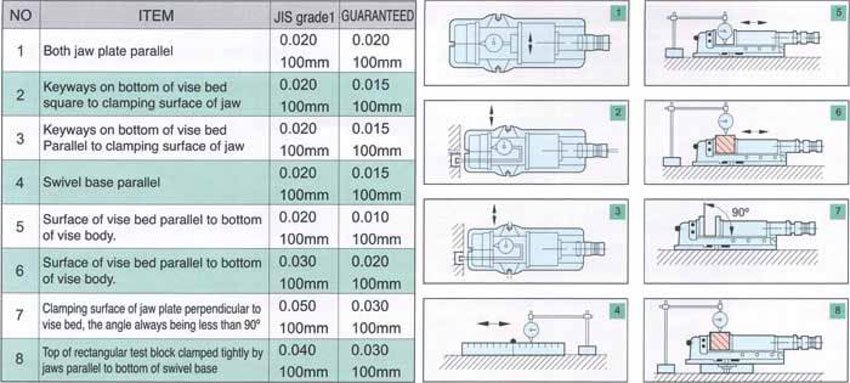

;All Safeway vices are precision ground and the surfaces set to the tolerances set out below. This allows these vices to be used in pairs and multiple configurations.

Features

• Flame-hardened to HRC 45 to take up wear and maintain accuracy

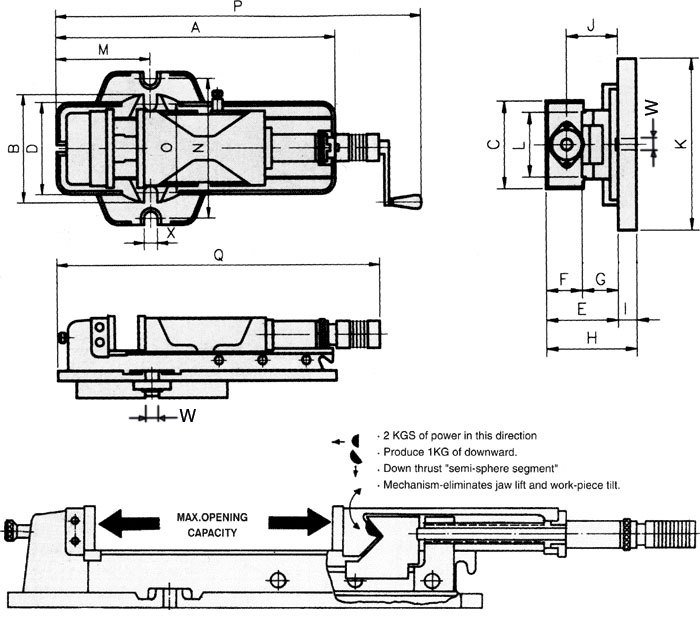

• The semi-sphere segment eliminates movable jaw lifting and creates a down force of 1kg for every 2kg of clamping force, preventing the work piece from tilting

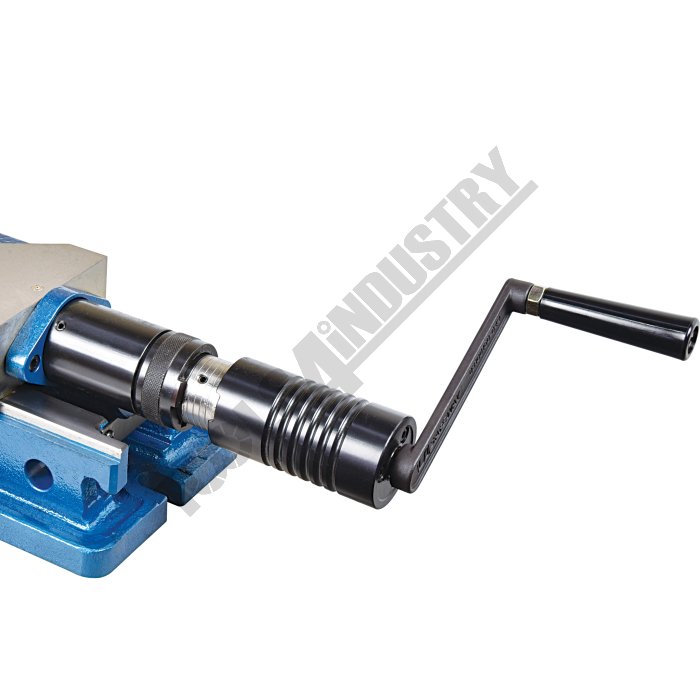

• The hydraulic cylinder is mounted externally for easy maintenance

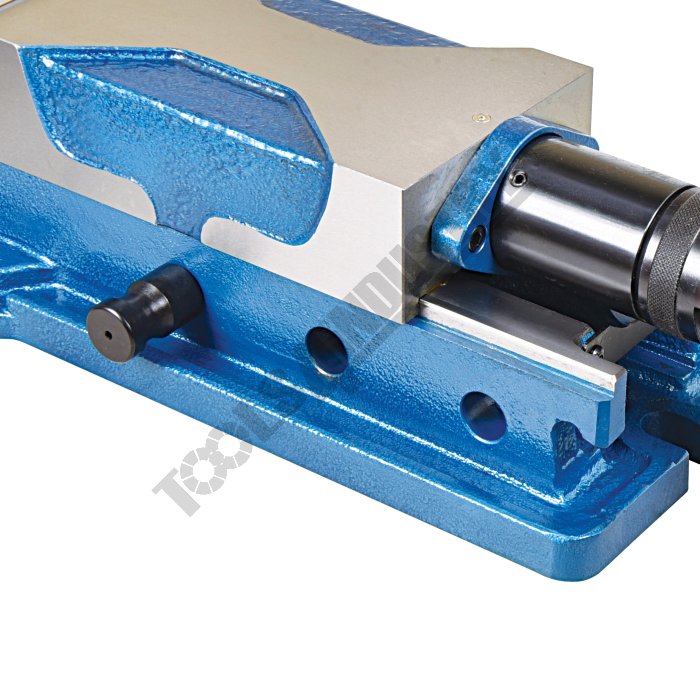

• Large clamping range through screw adjustment and 3 pin positions in the base.
• The vise can be used in either a mechanical mode or in a hydraulic mode
