Code	T8423
Capacity	Metric Coarse Pitch
Weight (kg)	0.02
Weight (m³)	0.000
Weight (Freight)	0.02
Dimensions (cm)	6 x 2 x 1

TOOLMASTER

Product Brochure

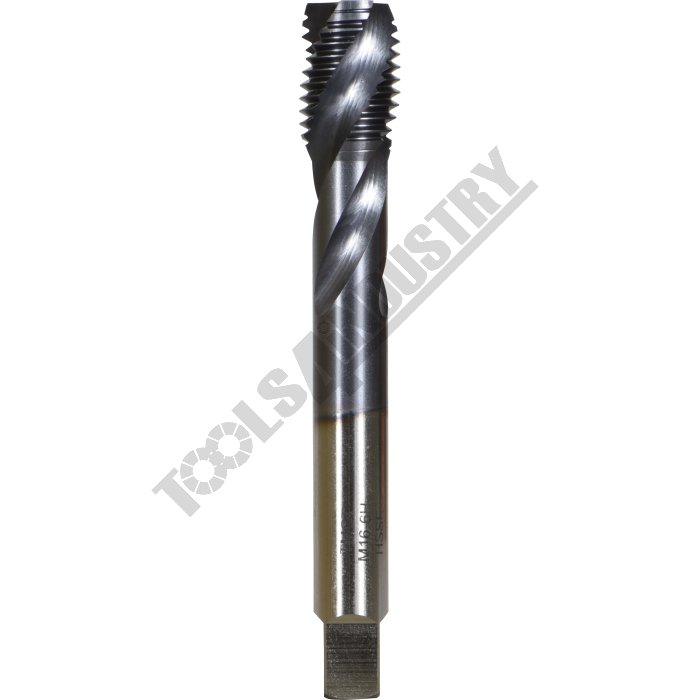

M16 x 2.0mm HSS Spiral Flute Tap Metric Coarse Pitch

Description

Spiral flute taps feature a spiral fluted design rather than conventional straight flutes. The spiral flutes assist in ejecting chips upward & out of the tapped hole & are commonly used in blind hole applications when threads are required close to the bottom of the hole.

Features

M35 High Speed Steel with 5% cobalt
TiCN Coating for increased wear resistance
Precision ground thread
DIN 371 Standard

Specifications

Compare 30 Products
ORDER CODE
Size
Pitch
Pitch Type
Flute Type
Thread Form
Max Cut Depth
Nut Tolerance
Standard
test

T8423
M16
2.0mm
Metric Course
Spiral
Metric
2.5 x D
ISO 2 / 6H
DIN 376

T8424
M16
1.5mm
Metric Fine
Spiral
Metric
2.5 x D
ISO 2 / 6H
DIN 374

T850
1/8"
28 TPI
Imperial
Straight
BSPT
2.5 x D
~
JB/T 9996

T851
1/4"
19TPI
Imperial
Straight
BSPT
2.5 x D
~
JB/T 9996

T852
3/8"
19TPI
Imperial
Straight
BSPT
2.5 x D
~
JB/T 9996

T853
1/2"
14TPI
Imperial
Straight
BSPT
2.5 x D
~
JB/T 9996

T8306
M6
1.0mm
Metric Course
Spiral Point (Gun Tap)
Metric
2.5 x D
ISO 2 / 6H
DIN 371

T8306
M6
0.75
Metric Fine
Spiral Point (Gun Tap)
Metric
2.5 x D
ISO 2 / 6H
DIN 374

T8308
M8
1.25mm
Metric Course
Spiral Point (Gun Tap)
Metric
2.5 x D
ISO 2 / 6H
DIN 371

T8309
M8
1.0mm
Metric Fine
Spiral Point (Gun Tap)
Metric
2.5 x D
ISO 2 / 6H
DIN 374

T8311
M10
1.5mm
Metric Course
Spiral Point (Gun Tap)
Metric
2.5 x D
ISO 2 / 6H
DIN 371

T8312
M10
1.25mm
Metric Fine
Spiral Point (Gun Tap)
Metric
2.5 x D
ISO 2 / 6H
DIN 374

T8315
M12
1.75mm
Metric Course
Spiral Point (Gun Tap)
Metric
2.5 x D
ISO 2 / 6H
DIN 376

T8316
M12
1.5mm
Metric Fine
Spiral Point (Gun Tap)
Metric
2.5 x D
ISO 2 / 6H
DIN 374

T8319
M14
2.0mm
Metric Course
Spiral Point (Gun Tap)
Metric
2.5 x D
ISO 2 / 6H
DIN 376

T8320
M14
1.5mm
Metric Fine
Spiral Point (Gun Tap)
Metric
2.5 x D
ISO 2 / 6H
DIN 374

T8321
M14
1.25mm
Metric Extra Fine
Spiral Point (Gun Tap)
Metric
2.5 x D
ISO 2 / 6H
DIN 374

T8319
M16
2.0mm
Metric Course
Spiral Point (Gun Tap)
Metric
2.5 x D
ISO 2 / 6H
DIN 376

T8324
M16
1.5mm
Metric Fine
Spiral Point (Gun Tap)
Metric
2.5 x D
ISO 2 / 6H
DIN 374

T8406
M6
1.0mm
Metric Course
Spiral
Metric
2.5 x D
ISO 2 / 6H
DIN 371

T8407
M6
0.75mm
Metric Fine
Spiral
Metric
2.5 x D
ISO 2 / 6H
DIN 374

T8408
M8
1.25mm
Metric Course
Spiral
Metric
2.5 x D
ISO 2 / 6H
DIN 371

T8409
M8
1.0mm
Metric Fine
Spiral
Metric
2.5 x D
ISO 2 / 6H
DIN 374

T8411
M10
1.5mm
Metric Course
Spiral
Metric
2.5 x D
ISO 2 / 6H
DIN 371

T8412
M10
1.25mm
Metric Fine
Spiral
Metric
2.5 x D
ISO 2 / 6H
DIN 374

T8415
M12
1.75mm
Metric Course
Spiral
Metric
2.5 x D
ISO 2 / 6H
DIN 376

T8416
M12
1.5mm
Metric Fine
Spiral
Metric
2.5 x D
ISO 2 / 6H
DIN 374

T8419
M14
2.0mm
Metric Course
Spiral
Metric
2.5 x D
ISO 2 / 6H
DIN 376

T8416
M14
1.5mm
Metric Fine
Spiral
Metric
2.5 x D
ISO 2 / 6H
DIN 374

T8421
M14
1.25mm
Metric Extra Fine
Spiral
Metric
2.5 x D
ISO 2 / 6H
DIN 374

ORDER CODE	M16
Size	2.0mm
Pitch	Metric Course
Pitch Type	Spiral
Flute Type	Metric
Thread Form	2.5 x D
Max Cut Depth	ISO 2 / 6H
Nut Tolerance	DIN 376
Standard
test
