| Code | T005 |
|---|---|
| Model | T4-MT4 |
| Capacity | Include 3MT & 4MT Arbours |
| Weight (kg) | 6.8 |
| Weight (m3) | 0.007 |
| Weight (Freight) | 6.8 |
| Dimensions (cm) | 30 x 19 x 12 |

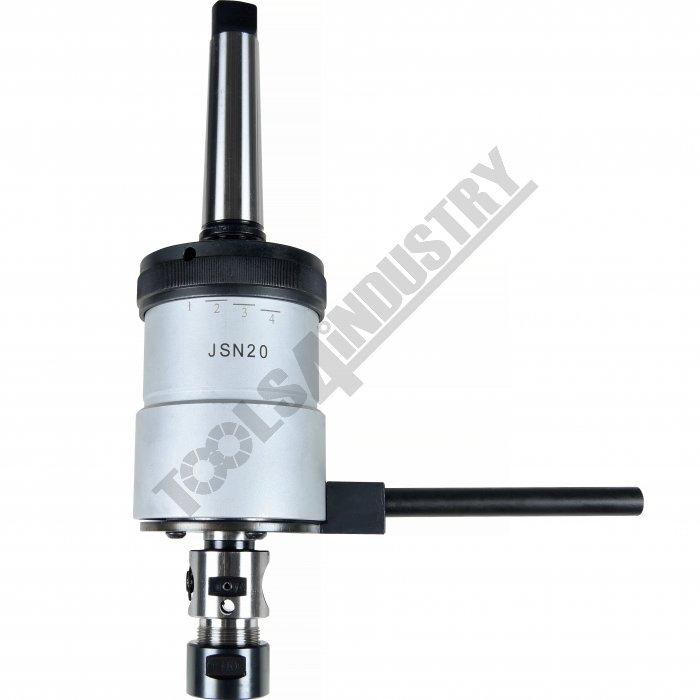

Reversible Tapping Chuck - Adjustable Clutch T4-MT4 Include 3MT & 4MT Arbours
Features
- Pre-select torque drive to prevent tap breakage and allow for blind hole tapping
- Tension and compression feature compensates between rate of feed applied and thread pitch
- Suitable for right and left hand, vertical and horizontal tapping
- Fast tap reversal. Re-entry cushioning eliminates cross threading
- Clutch Torque Setting:
- 1 - 12 Nm
- 2 - 20 Nm
- 3 - 60 Nm
- 4 - 110 Nm
- Please Note: M20 tap requires a 14mm Shank

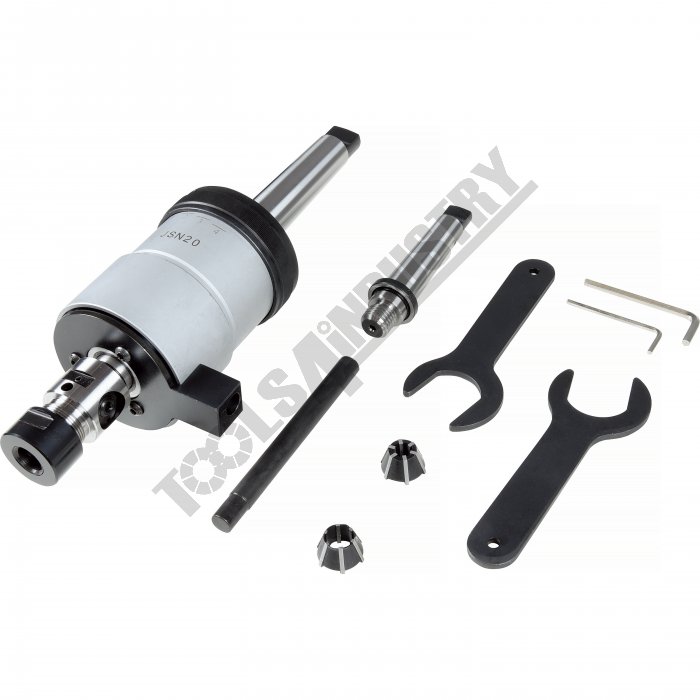

Includes
- MT3 & MT4 arbors - threaded end
- 2 x Collet chuck spanners
- 2 x Rubber flex collets
- 2 x allen keys

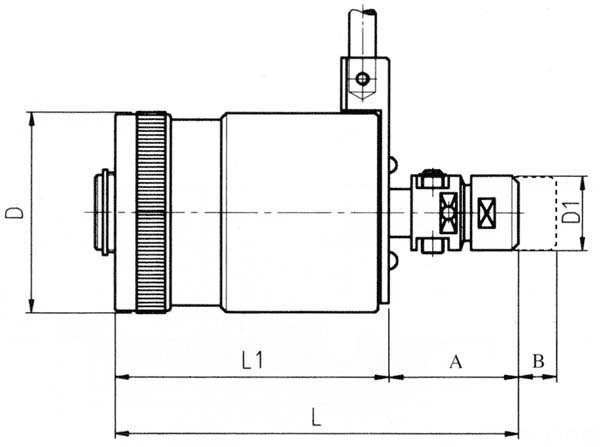

Specifications
- Compare 2 Products
- ORDER CODE
- MODEL
- Arbor Mount
- TaperMT
- Tapping Rangemm
- Tapping Shank Sizemm
- Dmm
- D1mm
- Lmm
- L1mm
- Amm
- Bmm
- Nett Weightkg
| ORDER CODE | T4-MT4 |
|---|---|
| MODEL | Threaded |
| Arbor Mount | 3 & 4 |
| TaperMT | 8 - 20 |
| Tapping Rangemm | 6.3 - 14 |
| Tapping Shank Sizemm | 90 |
| Dmm | 38 |
| D1mm | 195 |
| Lmm | 134 |
| L1mm | 62 |
| Amm | 20 |
| Bmm | 6.8 |
| Nett Weightkg |
