| Code | T004 |
|---|---|
| Model | T3-MT3 |
| Capacity | Include 3MT & 4MT Arbours |
| Weight (kg) | 4.83 |
| Weight (m3) | 0.006 |
| Weight (Freight) | 4.83 |
| Dimensions (cm) | 25.1 x 20.6 x 11.5 |

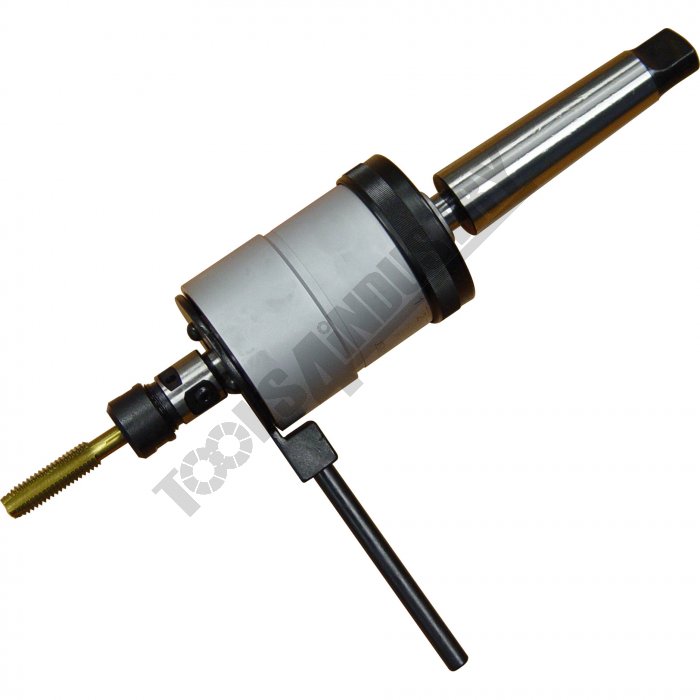

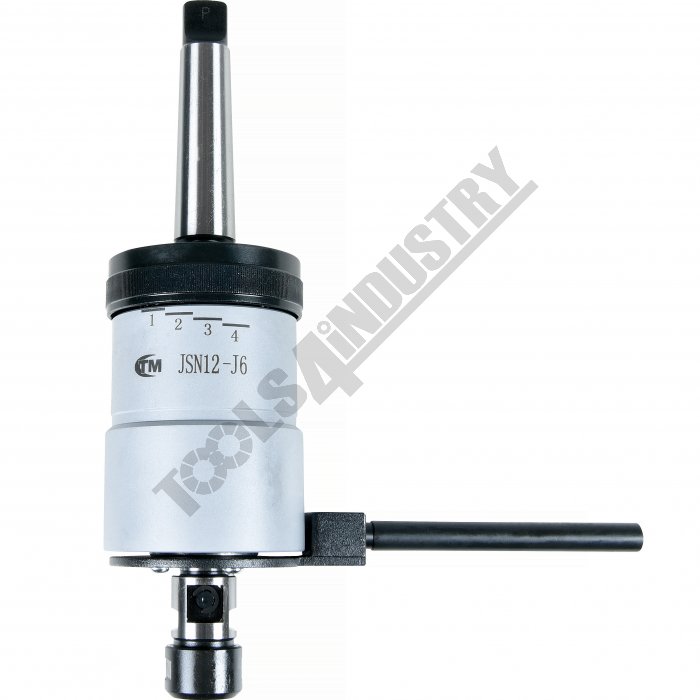

Reversible Tapping Chuck - Adjustable Clutch T3-MT3 Include 3MT & 4MT Arbours
Features
- Pre-select torque drive to prevent tap breakage and allow for blind hole tapping
- Tension and compression feature compensates between rate of feed applied and thread pitch
- Suitable for right and left hand, vertical and horizontal tapping
- Fast tap reversal. Re-entry cushioning eliminates cross threading
- Clutch Torque Setting:
- 1 - 5 Nm
- 2 - 20 Nm
- 3 - 50 Nm
- 4 - 75 Nm

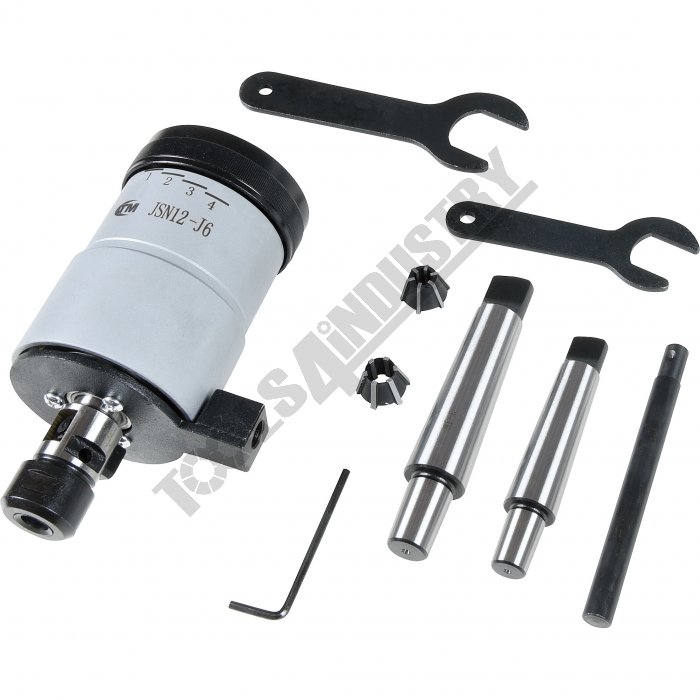

Includes
- MT3 & MT4 x JT6 arbors
- 2 x Collet chuck spanners
- 2 x Rubber flex collets
- 2 x allen keys

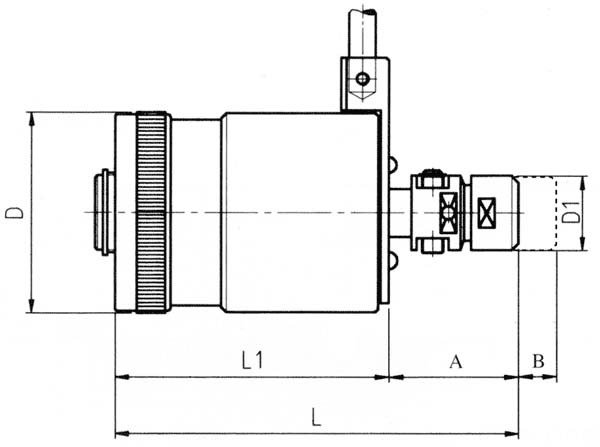

Specifications
- Compare 2 Products
- ORDER CODE
- MODEL
- Arbor Mount
- TaperMT
- Tapping Rangemm
- Tapping Shank Sizemm
- Dmm
- D1mm
- Lmm
- L1mm
- Amm
- Bmm
- Nett Weightkg
| ORDER CODE | T3-MT3 |
|---|---|
| MODEL | JT6 |
| Arbor Mount | 3 & 4 |
| TaperMT | 5 - 12 |
| Tapping Rangemm | 3.5 - 10 |
| Tapping Shank Sizemm | 75 |
| Dmm | 28 |
| D1mm | 150 |
| Lmm | 105 |
| L1mm | 45 |
| Amm | 12 |
| Bmm | 4.2 |
| Nett Weightkg |
