| Code | S860B |
|---|---|
| Model | HGL-3106 |
| Capacity | 3060 x 6mm Mild Steel Shearing Capacity |
| Weight (kg) | 5900 |
| Weight (m3) | 14.960 |
| Weight (Freight) | 5900 |
| Dimensions (cm) | 400 x 220 x 170 |
| Only Available From | (Limited Availability) |

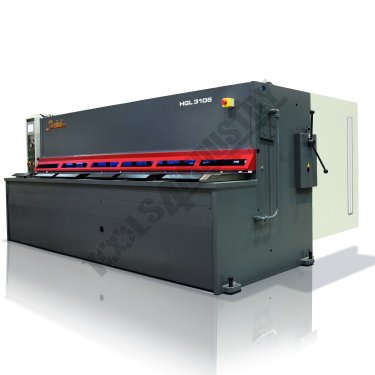

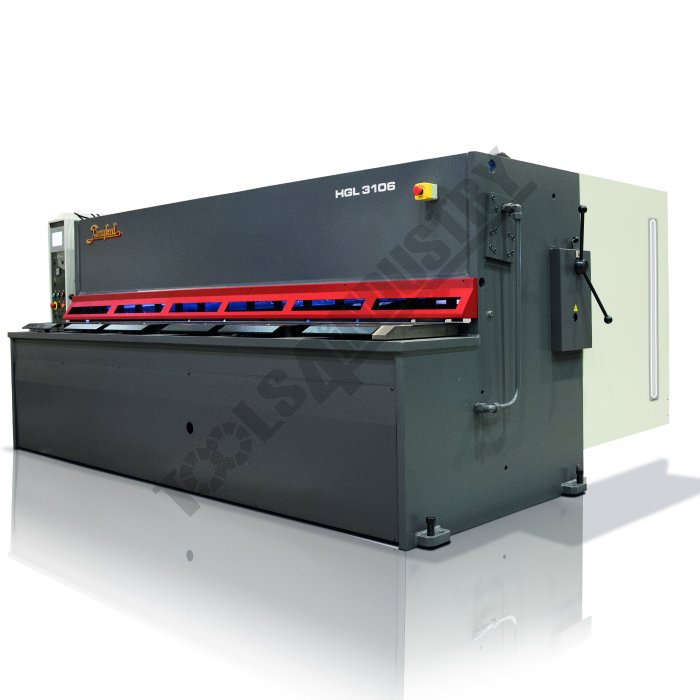

Hydraulic Swing Beam Guillotine - EURO HGL-3106 3060 x 6mm Mild Steel Shearing Capacity
Features

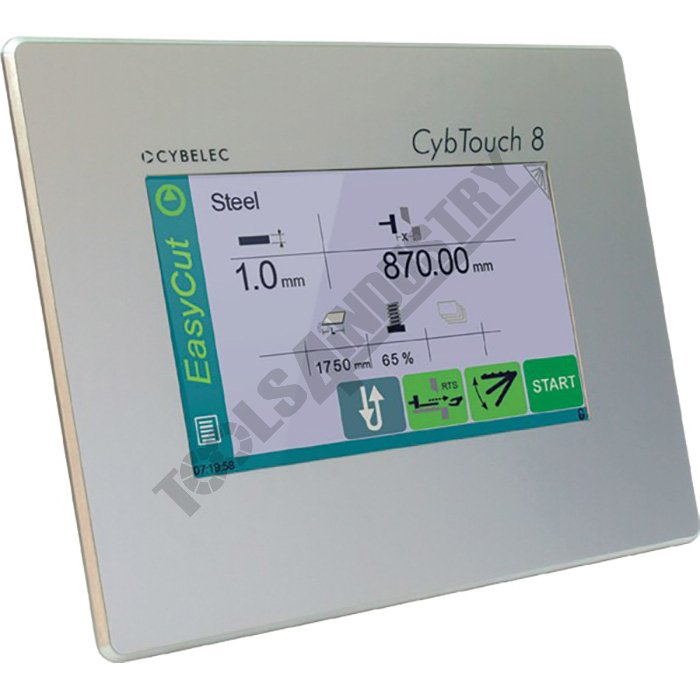

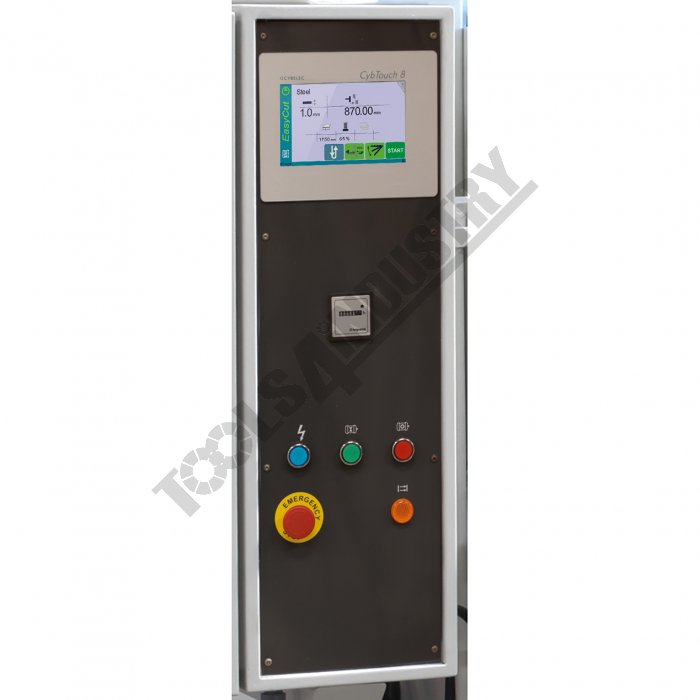

- Cybelec Cybtouch 8W NC touch colour screen control, intuitive interface, online help and many other user friendly automatic functions

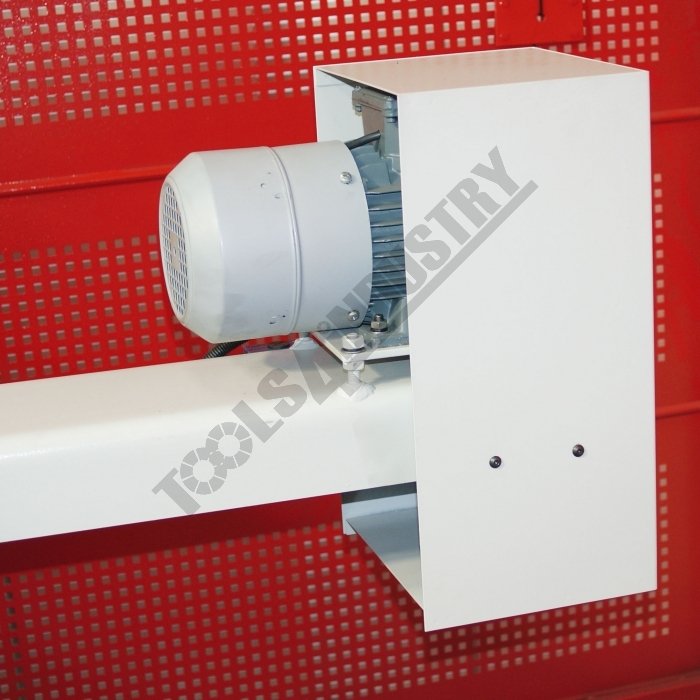

- 1000mm hardened ballscrew backgauge with 0.1 mm precision with digital readout display

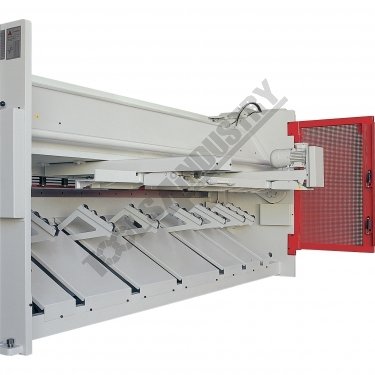

- Pneumatic sheet supports help prevent thin material from flexing away from back gauge
- Shear blades are tough and wear-resistant made from Böhler K110 alloyed steel manufactured in Austria : Top blade - two cutting edges & Bottom blade - four cutting edges
- Swinging top beam working on high precision and self aligning roller bearings

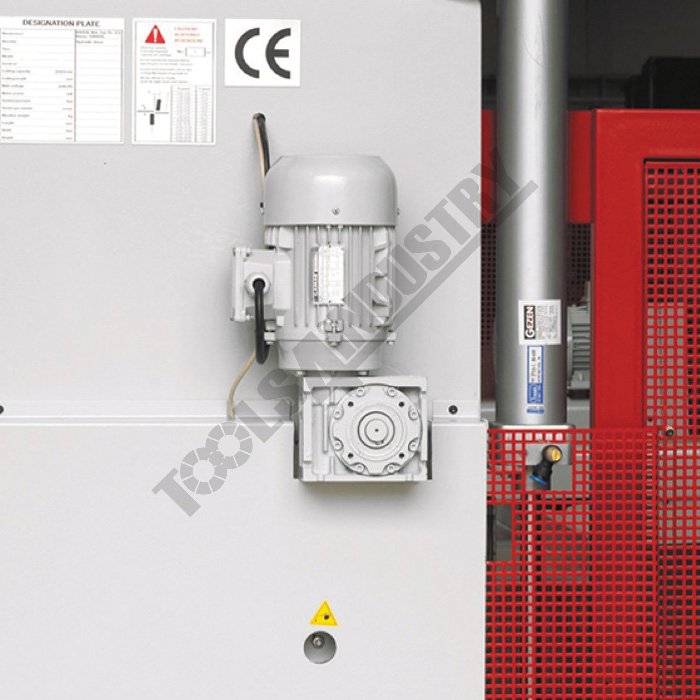

- Motorised blade gap adjustment via Cybelec Cybtouch 8W NC touch screen control

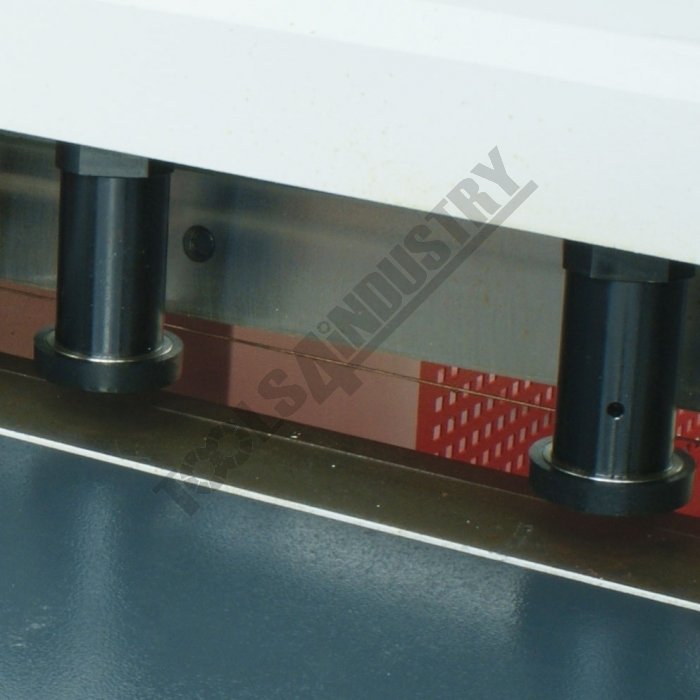

- LED shadow line lighting provides clear line on material
- Steel front guard with clear & obstruction free view
- Swing away backgauge enables operator to cut longer than 1000mm

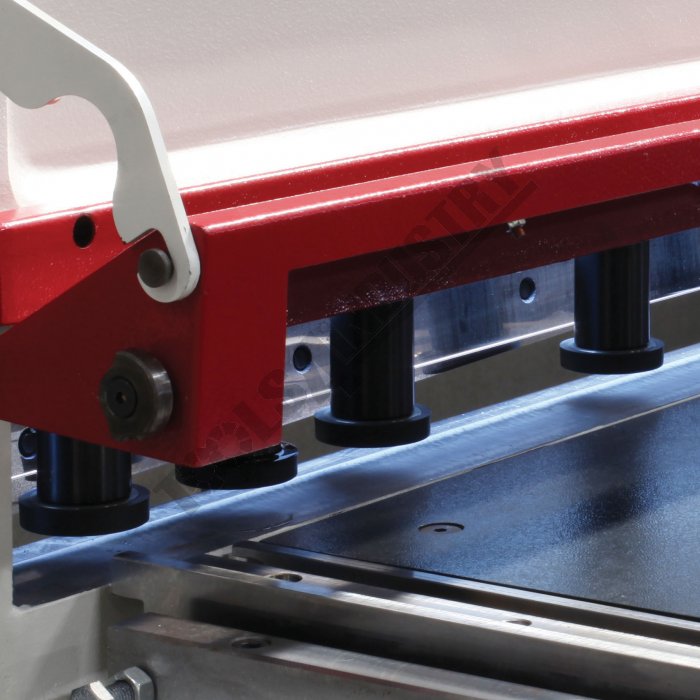

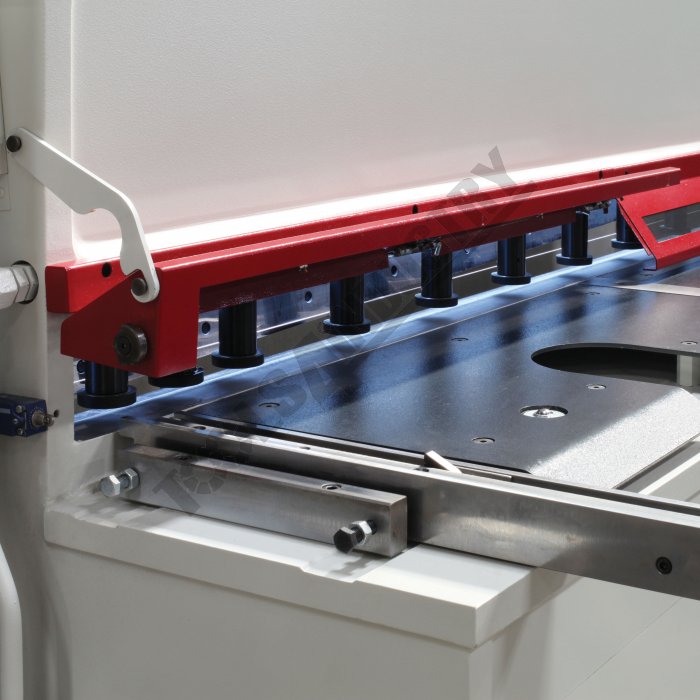

- Individual hydraulic hold down system provide excellent material clamping

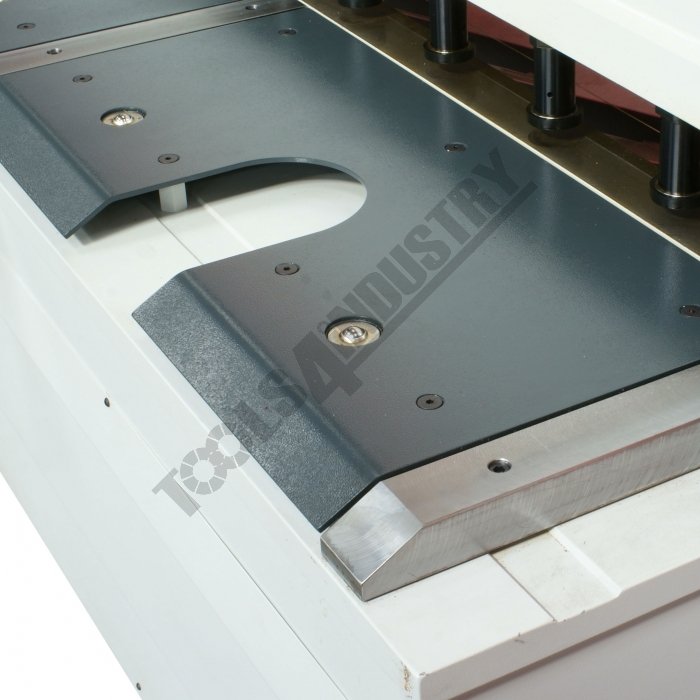

- Ball transfer on table allows material to slide with ease
- 1000mm squaring arm with scale, T-slot and flip-stop
- 1000mm front material support arms
- Stroke counter keeps count per cut

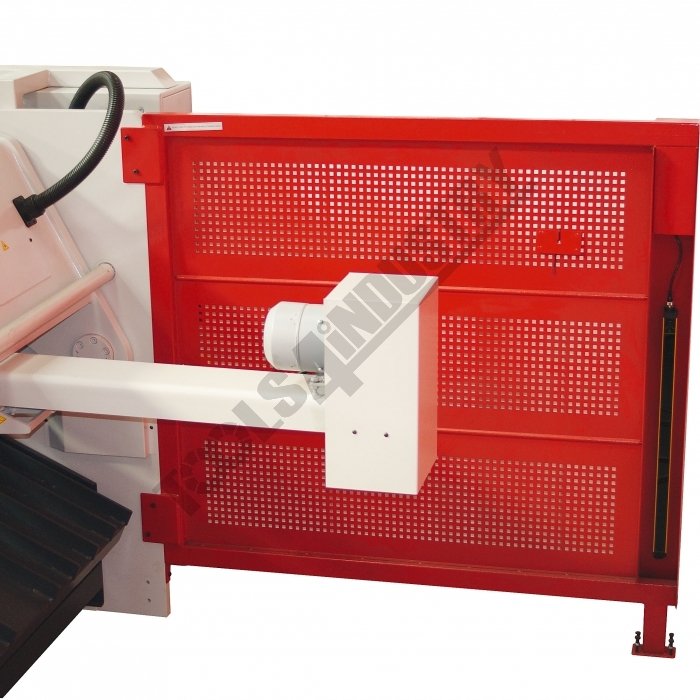

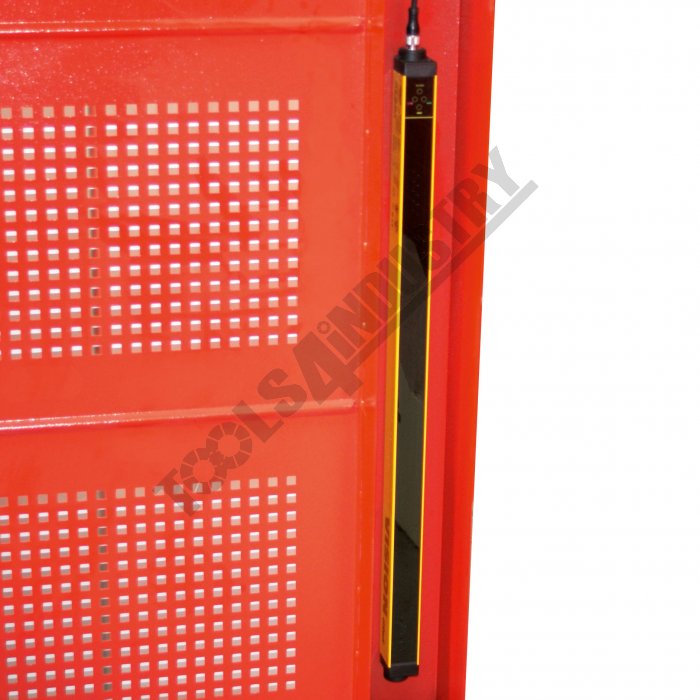

- Rear safety light guarding
- Made in Turkey
- Mild steel capacity is rated on hot rolled material with 250MPA
- Pre-Commissioning:
- 1. Guillotine is run & tested prior delivery
- 2. Hydraulic oil is included with machine
Includes
- CYBELEC CYBTOUCH-8W FEATURES:
- Easy operating
- Large, vivid and high-contrast fully touchscreen
- Simple pages, clear display, large keys
- Intuitive user-friendly interface
- Motorised blade gap adjustment
- Complete programming for efficient mass-production with multiple cuts
- Easy single cuts thanks to the Easy page
- On-line help and interactive warning pop-ups
- Comfortable wireless data backup and software updating using PC or Notebook
- USB memory stick port for data transfer/backup
- Large variety of languages available
Specifications
- Compare 13 Products
- ORDER CODE
- MODEL
- Shearing Capacity - Mild Steelmm
- Shearing Capacity - Stainless Steelmm
- Shearing Lengthmm
- NC ControlType
- BackgaugeType
- Backgauge Travelmm
- Pneumatic Sheet Supports
- Quick Action Blade Clearance Adjustment
- Strokes / minSPM
- Blade Angledeg
- Throat Depthmm
- Motor PowerkW / hp
- Voltage / AmperageV / amp
- Floor Space Requirements (L x W x H)mm
- Nett Weightkg
- S860B
- HGL-3106
- 6
- 4
- 3060
- Cybelec Cybtouch 8W
- Ballscrew
- 1000
- Yes
- Yes
- 20
- 1.6º
- ~
- 11 / 15
- 415
- ~
- 5900
- S9461
- HG-4006
- 6
- 4
- 4000
- Estun E21S
- Ballscrew
- 1000
- ~
- Yes
- 14
- 1º 30
- 250
- 7.5 / 10
- 415
- 4800 x 3600 x 1800
- 8860
- S9461S
- HG-4006
- 6
- 4
- 4000
- Estun E21S
- Ballscrew
- 1000
- Yes
- Yes
- 14
- 1º 30'
- 250
- 7.5 / 10
- 415
- 4800 x 3600 x 1800
- 9000
- S535
- SG-420
- 2
- 0.9
- 1300
- ~
- Manual
- 550
- ~
- ~
- ~
- ~
- ~
- 2.2 / 3
- 240 / 15
- 1750 x 1475 x 1110
- 560
- S924A
- MG-440
- 4
- 2.5
- 1300
- ~
- Manual
- 500
- ~
- Yes
- 22
- 2º
- ~
- 4 / 5.3
- 415
- 2060 x 2030 x 1312
- 1450
- S923
- HG-460B
- 6
- 4
- 1300
- Ezy-Set NC-89
- Leadscrew
- 700
- ~
- Yes
- 12
- 2º
- ~
- 5.5 / 7.5
- 415
- 1990 x 2230 x 1312
- 2046
- S537
- SG-815H
- 1.6
- 0.8
- 2470
- ~
- Manual
- 550
- ~
- ~
- ~
- ~
- ~
- 2.2 / 3
- 240 / 15
- 2970 x 1720 x 1200
- 1173
- S9335
- HG-2504C
- 4
- 2.5
- 2500
- Estun E21S
- Leadscrew
- 800
- ~
- Yes
- 20
- 1º 30
- 90
- 5.5 / 7.5
- 415
- 3300 x 2930 x 1700
- 3050
- S9341
- HG-2504E
- 4
- 2.5
- 2500
- Estun E21S
- Ballscrew
- 800
- ~
- Yes
- 22
- 1º 30
- 130
- 4 / 5.5
- 415
- 3300 x 3400 x 1800
- 3450
- S9341S
- HG-2504E
- 4
- 2.5
- 2500
- Estun E21S
- Ballscrew
- 800
- Yes
- Yes
- 22
- 1º 30
- 130
- 4 / 5.5
- 415
- 3300 x 3400 x 1800
- 3540
- S9371S
- HG-2506E
- 6
- 4
- 2500
- Estun E21S
- Ballscrew
- 1000
- Yes
- Yes
- 20
- 1º 30
- 130
- 7.5 / 10
- 415
- 3300 x 3400 x 1800
- 4820
- S9401
- HG-3206E
- 6
- 4
- 3200
- Estun E21S
- Ballscrew
- 1000
- ~
- Yes
- 16
- 1º 30
- 150
- 7.5 / 10
- 415
- 4000 x 3500 x 1800
- 6000
- S9401S
- HG-3206E
- 6
- 4
- 3200
- Estun E21S
- Ballscrew
- 1000
- Yes
- Yes
- 16
- 1º 30
- 150
- 7.5 / 10
- 415
- 4000 x 3500 x 1800
- 6150
| ORDER CODE | HGL-3106 |
|---|---|
| MODEL | 6 |
| Shearing Capacity - Mild Steelmm | 4 |
| Shearing Capacity - Stainless Steelmm | 3060 |
| Shearing Lengthmm | Cybelec Cybtouch 8W |
| NC ControlType | Ballscrew |
| BackgaugeType | 1000 |
| Backgauge Travelmm | Yes |
| Pneumatic Sheet Supports | Yes |
| Quick Action Blade Clearance Adjustment | 20 |
| Strokes / minSPM | 1.6º |
| Blade Angledeg | ~ |
| Throat Depthmm | 11 / 15 |
| Motor PowerkW / hp | 415 |
| Voltage / AmperageV / amp | ~ |
| Floor Space Requirements (L x W x H)mm | 5900 |
| Nett Weightkg |
