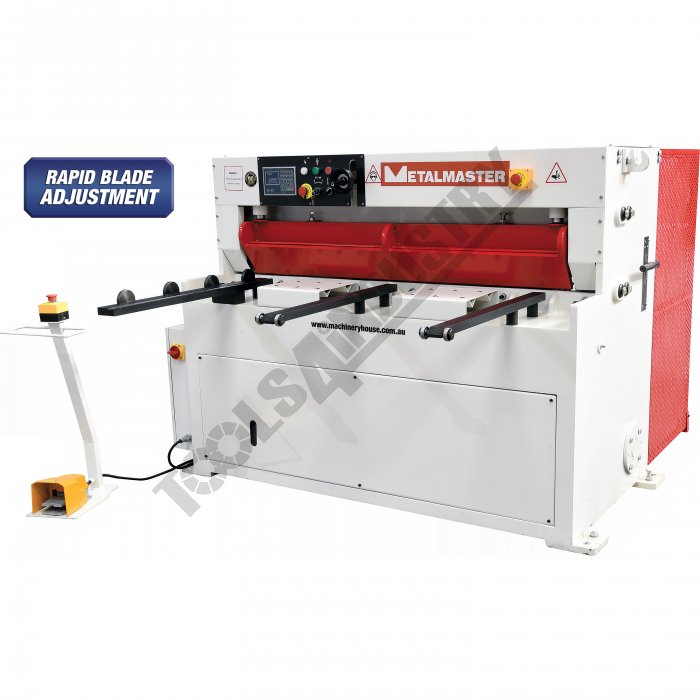

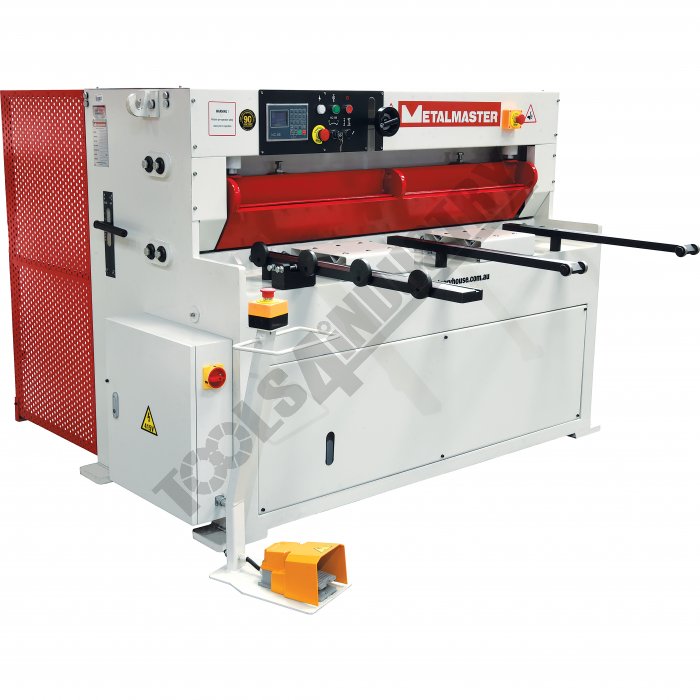

Hydraulic NC Guillotine HG-460B 1300 x 6mm Mild Steel Shearing Capacity

Features

• 1300mm x 6mm cutting capacity
• 5.5kW / 7.5hp 415V motor

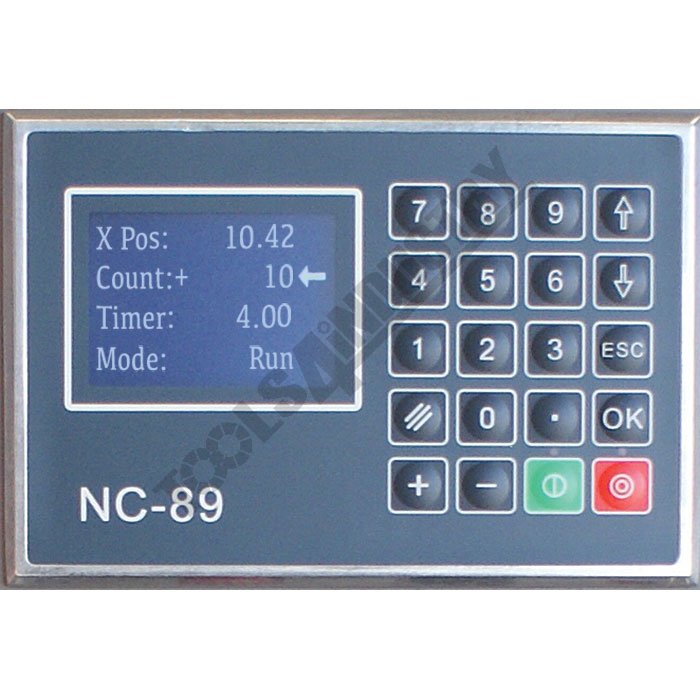

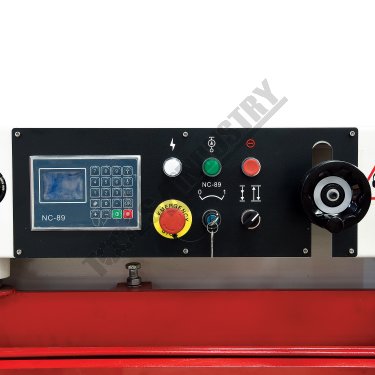

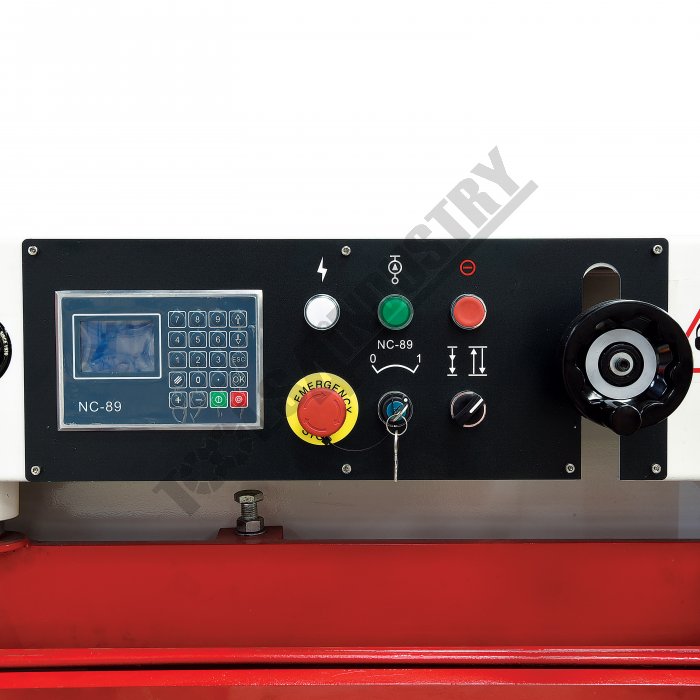

• Ezy-Set NC-89 Go-To digital display controlled backgauge with DRO counter

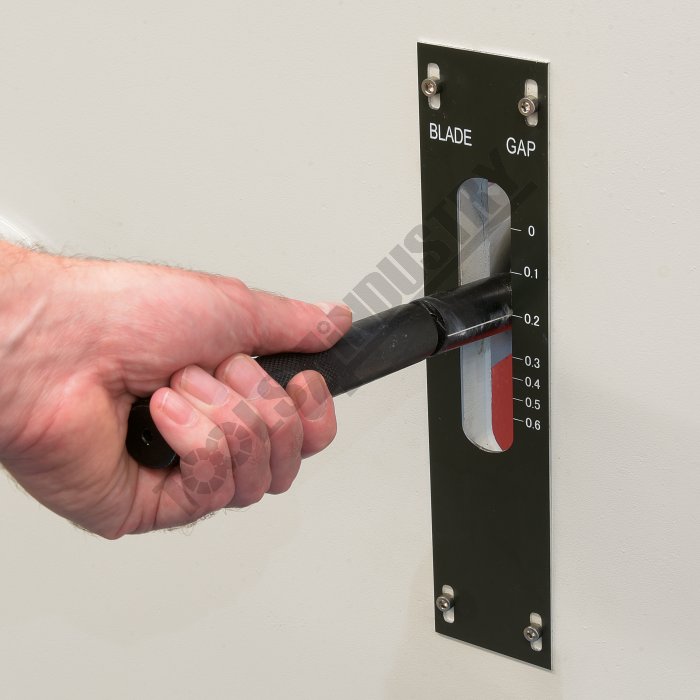

• Quick action blade clearance adjustment for shearing material 1 - 6mm
• Hydraulic material clamping for accurate shearing

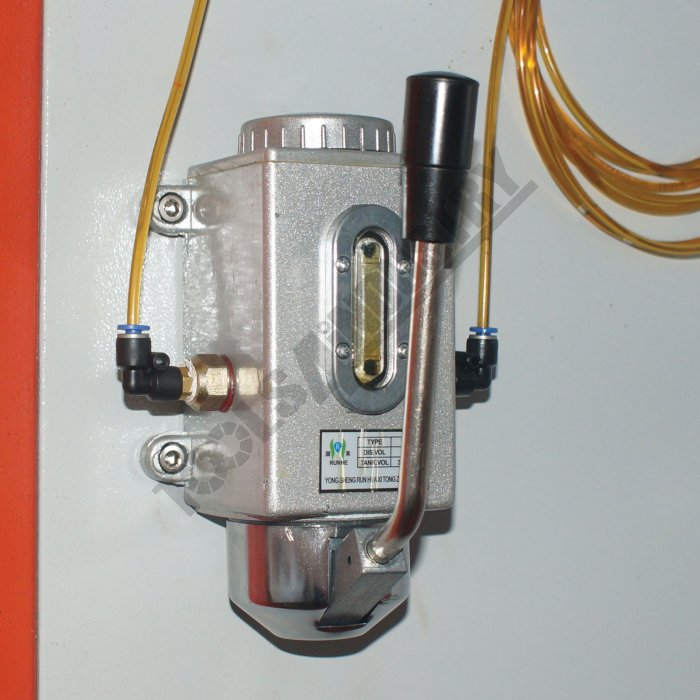

• One shot lubrication pump & reservoir for slideway protection
• Blades made from 9CrSi material suitable for cutting stainless steel

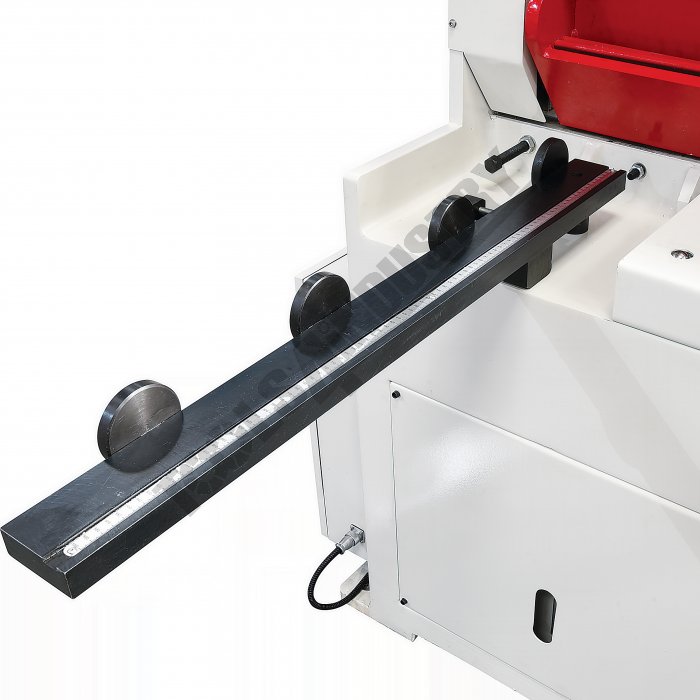

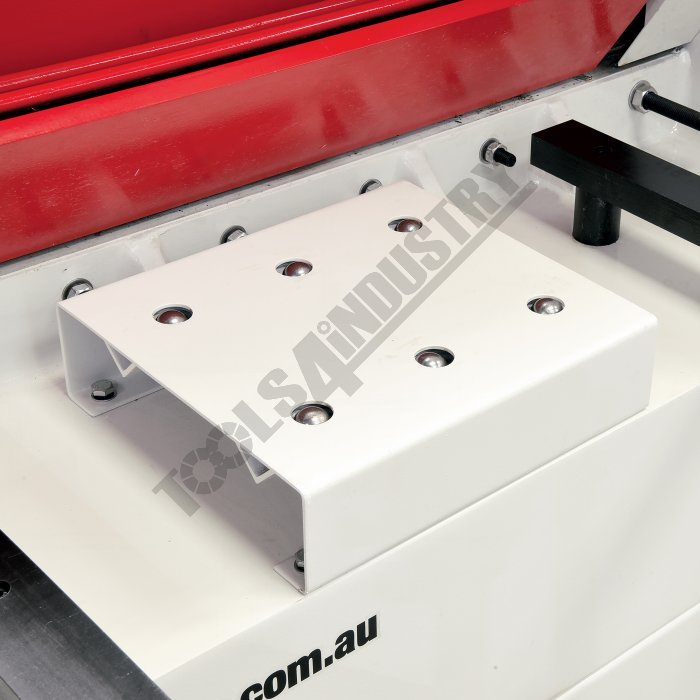

• Transfer balls inserted into work table allowing larger sheets to be easily positioned to the cut position and squaring arm

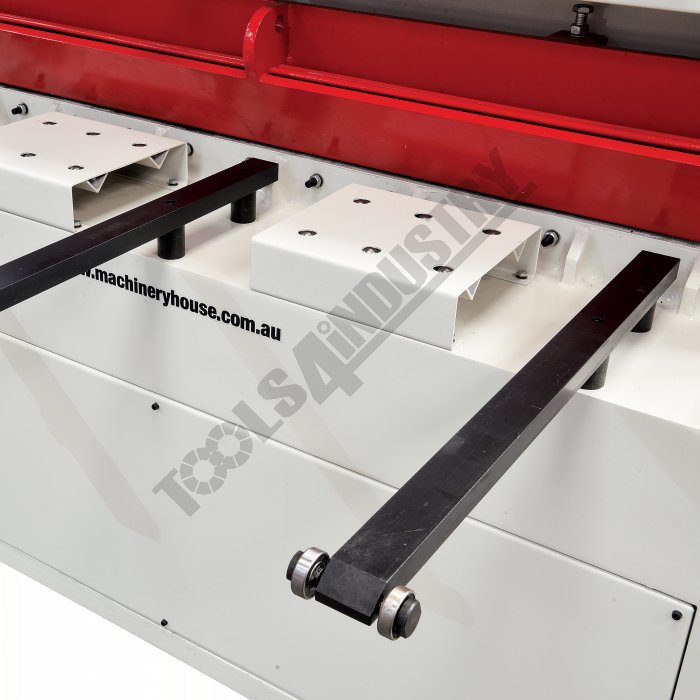

• Front sheet supports with ball bearing guides preventing material damage when setting up

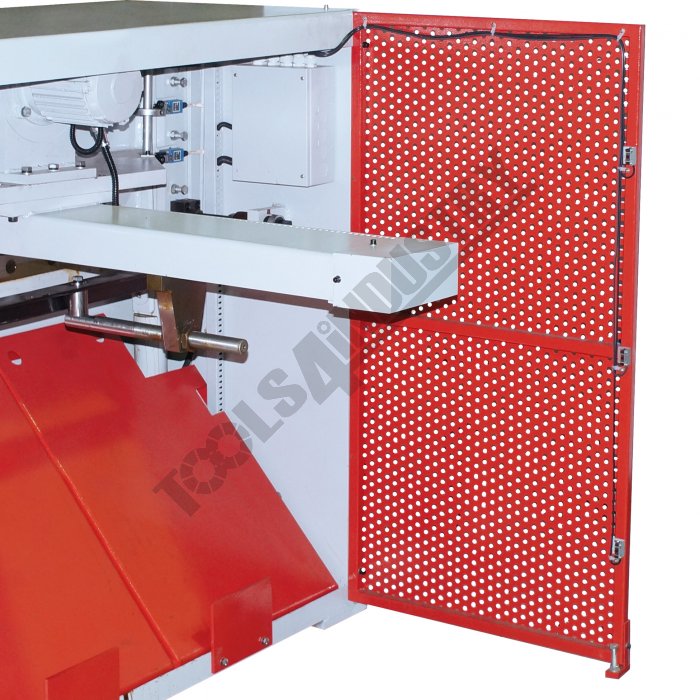

• Three safety photo electric light beams on rear guarding

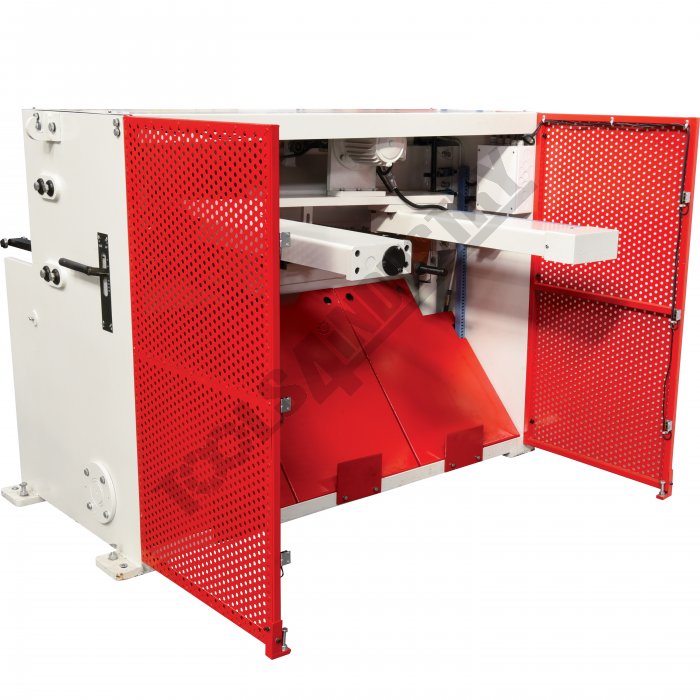

• Safety reset rear guarding button mounted to back of electrical box
• Heavy duty under driven machine construction
• Equipped with shadow line lighting-alignment device

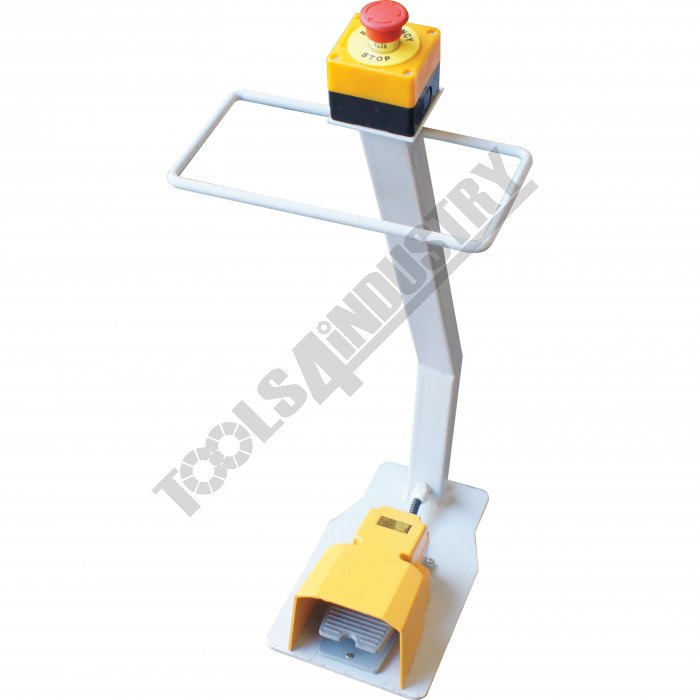

• Roving foot pedal control
• Mild steel capacity is rated on hot rolled material with 250MPA


• Pre-Commissioning:
• 1. Guillotine is run & tested prior delivery
• 2. Hydraulic oil is included with machine
