| Code | S785 |
|---|---|
| Model | IRM1270x140 |
| Capacity | 1270 x 5mm Mild Steel Capacity |
| Weight (kg) | 1350 |
| Weight (m3) | 1.853 |
| Weight (Freight) | 1350 |
| Dimensions (cm) | 247 x 75 x 100 |

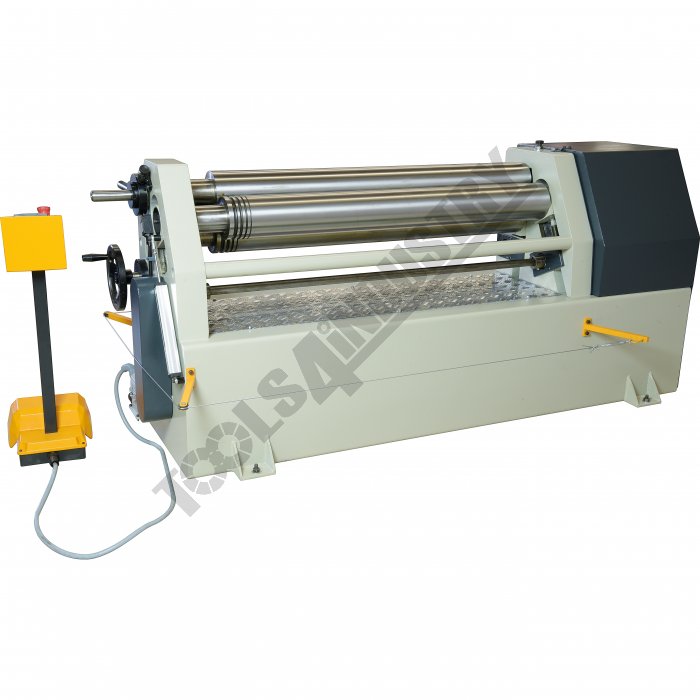

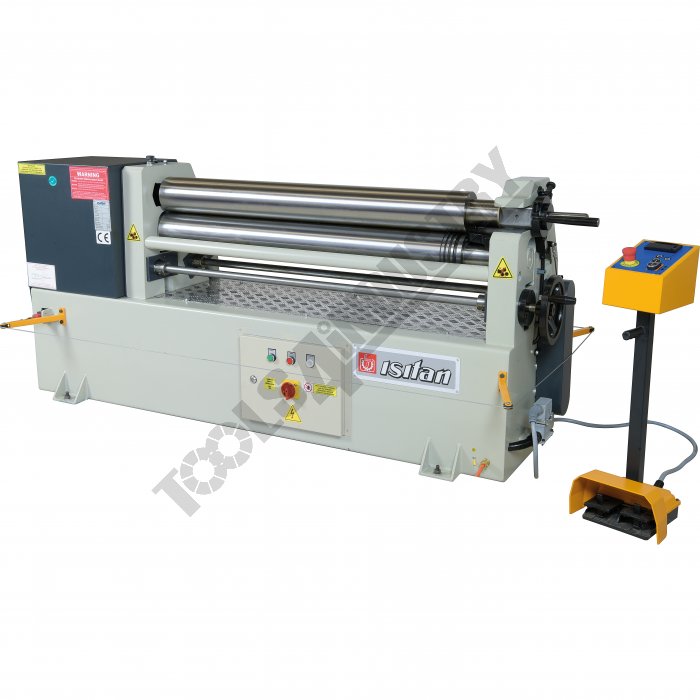

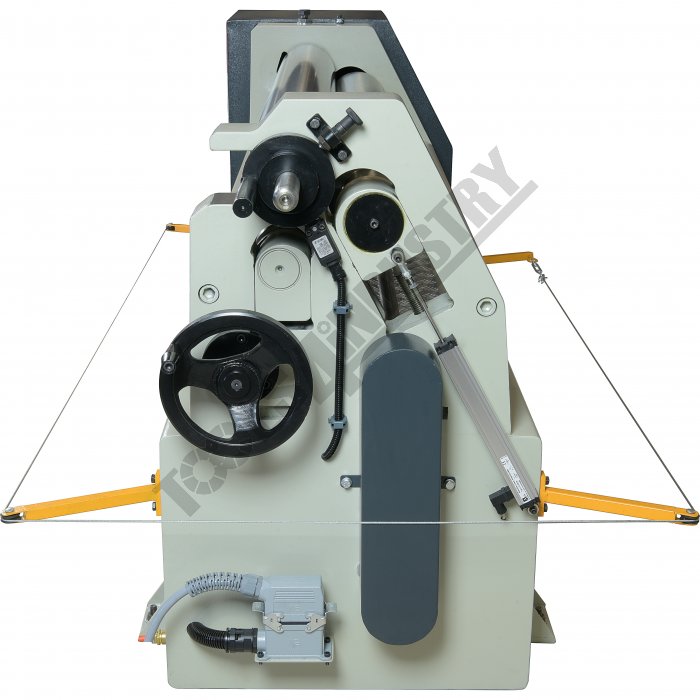

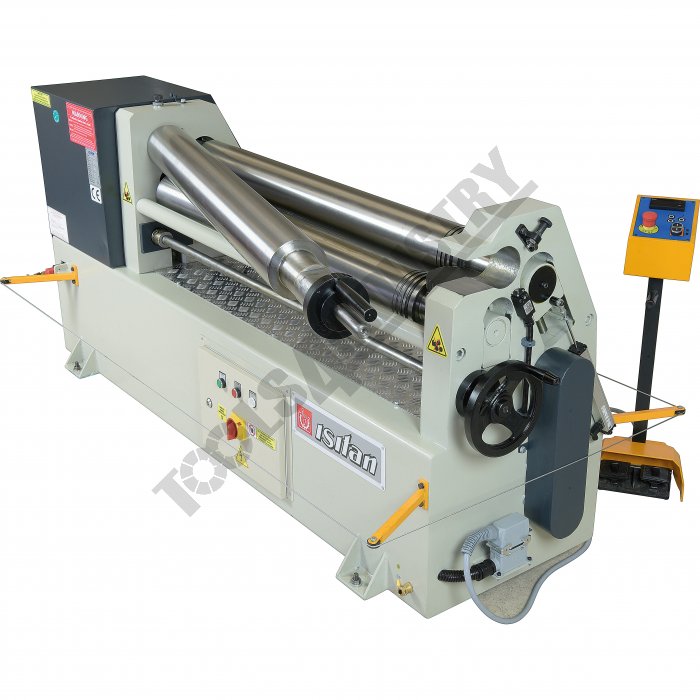

Motorised Plate Curving Rolls IRM1270x140 1270 x 5mm Mild Steel Capacity
Features
- SAE 1050 (CK45) certificated forged steel rolls with high tensile strength

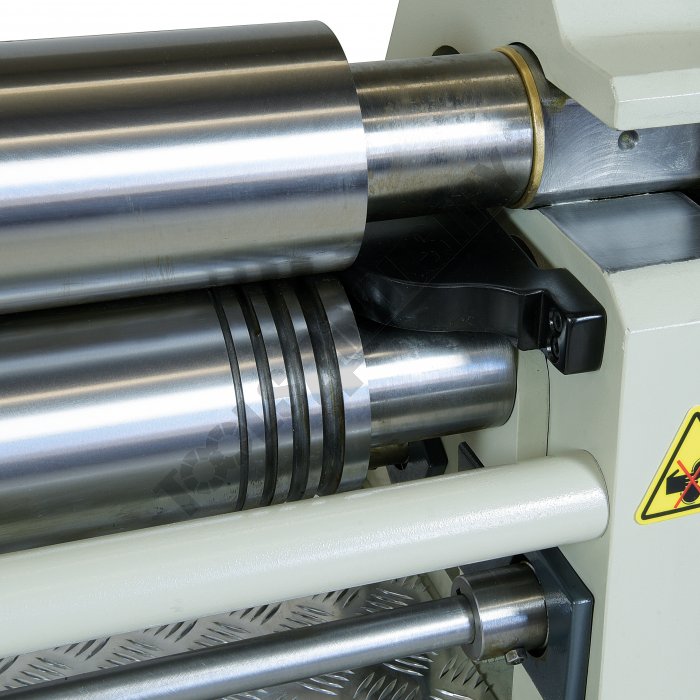

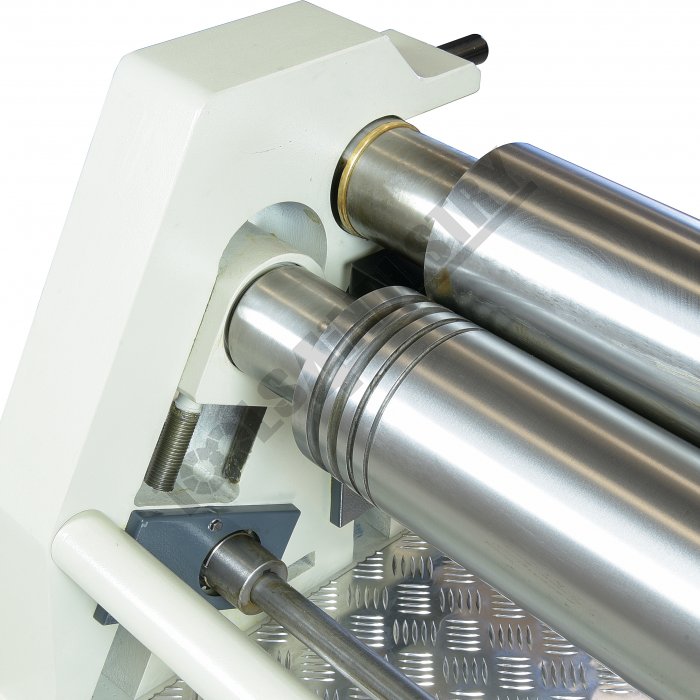

- Precision hardened rolls wire wire grooves, also suitable for stainless steel

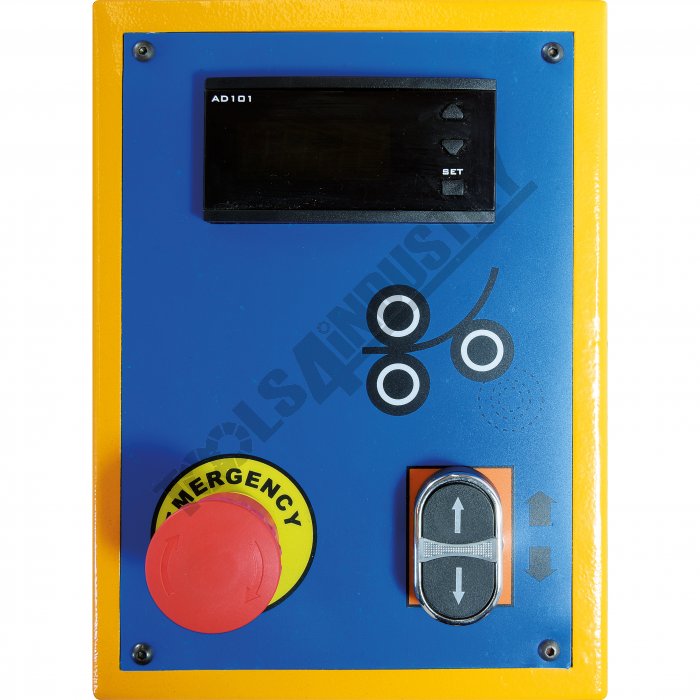

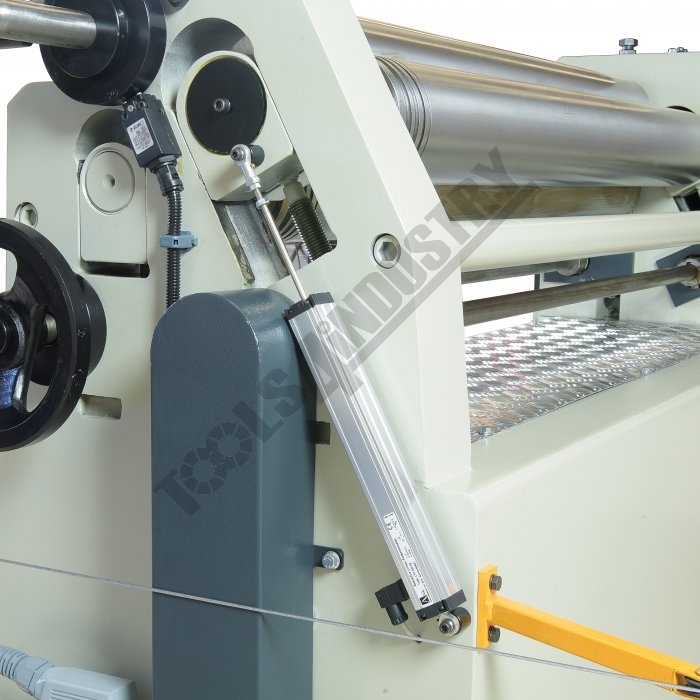

- Motorised rear bending roller with digital readout display for positioning
- Heavy cast iron construction at each end frames providing stability and rigidity

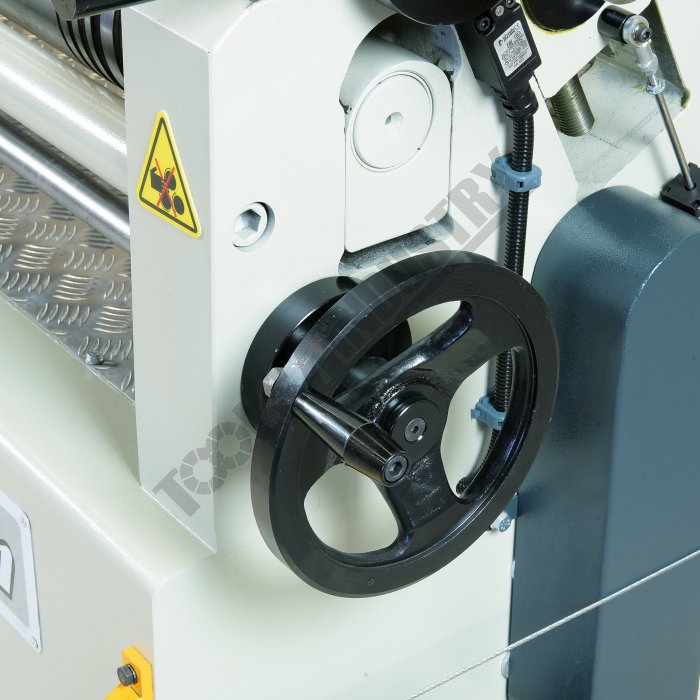

- Single handle adjustment of bottom rolls to suit material thickness

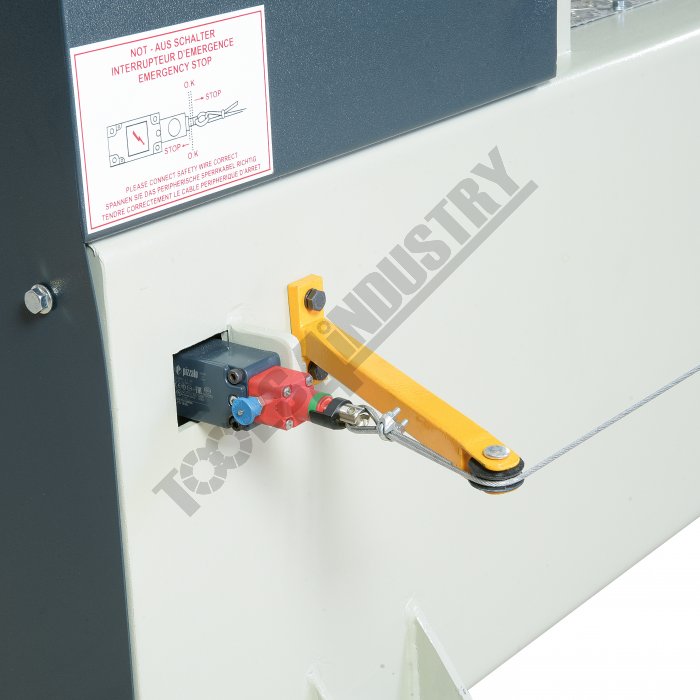

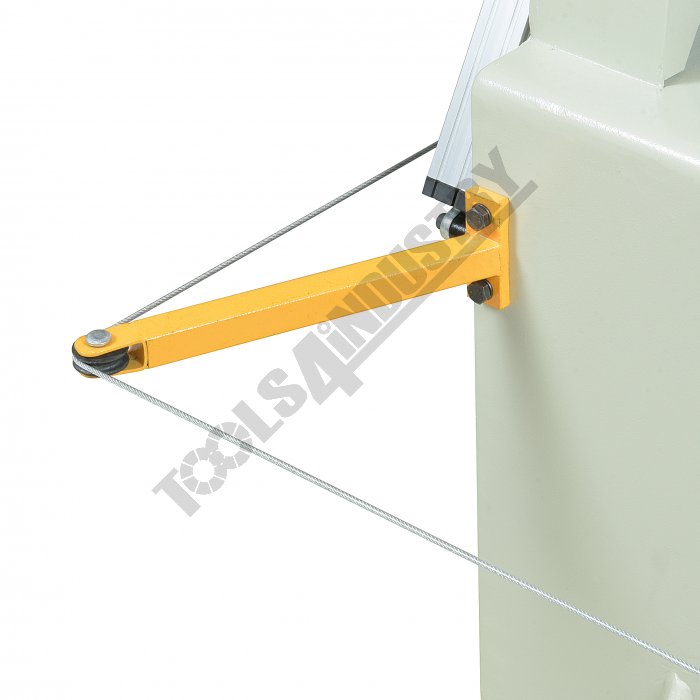

- Safety trip wire (RM & IRM) or kick bar (IR) standard
- Brake motor standard for precision bending

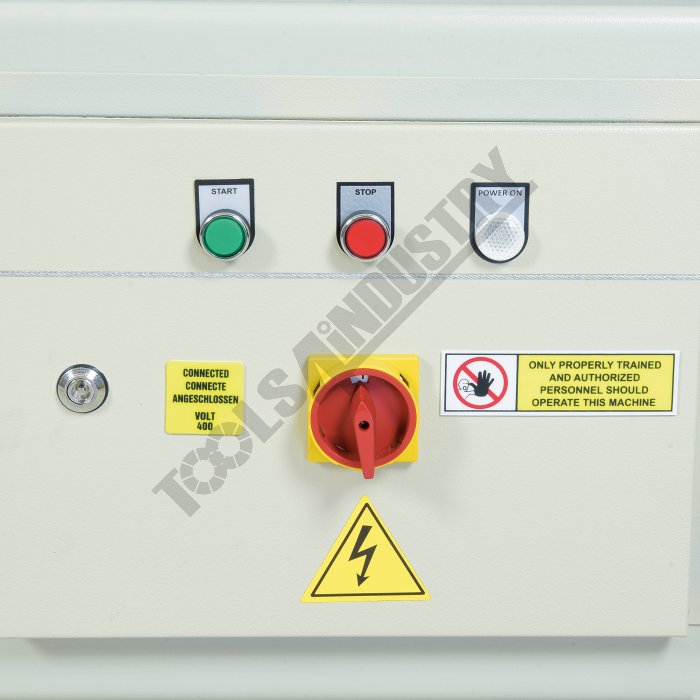

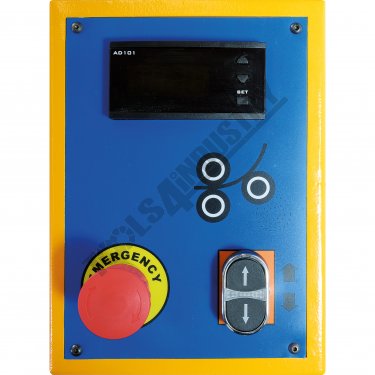

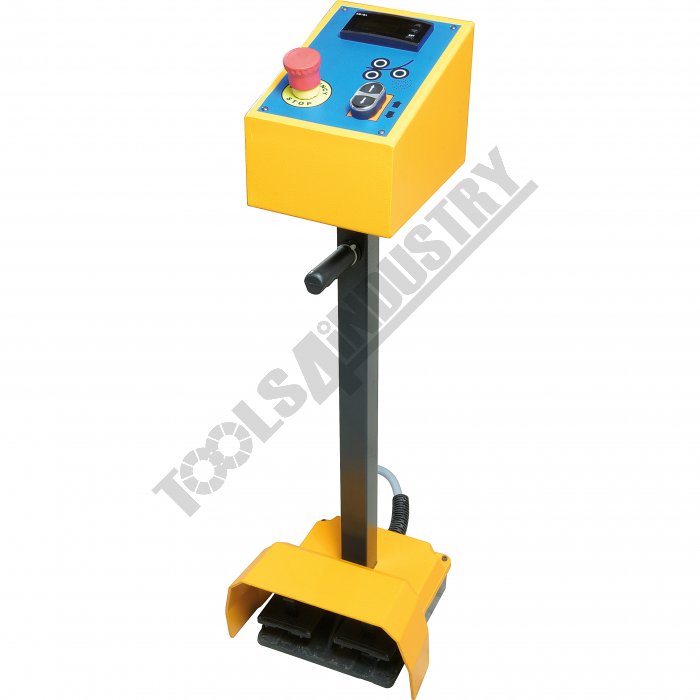

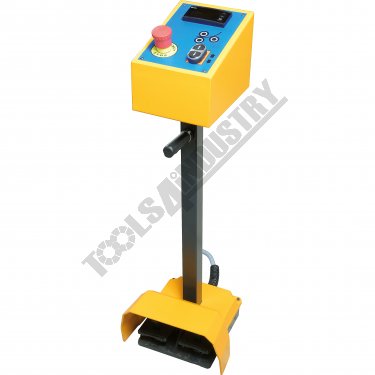

- Mobile control panel with emergency stop
- Conical bending device
- Made in Turkey
- Mild steel capacity is rated on hot rolled material with 250MPA
Includes

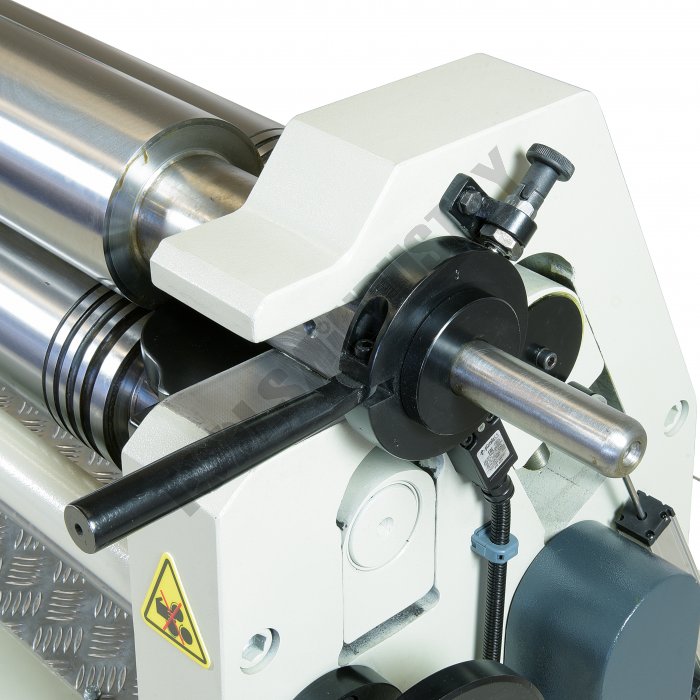

- Standard manual drop end
Videos
Specifications
- Compare 9 Products
- ORDER CODE
- MODEL
- Curving System Type
- Curving Material Lengthmm
- Curving Plate Thickness - Mild Steelmm
- Minimum Rolling Diametermm
- Roll Diametermm
- Motor PowerkW / hp
- Voltage / AmperageV / amp
- Dimensions (LxWxH)mm
- Floor Space (L x W x H)mm
- Nett Weightkg
- S785
- IRM1270x140
- Initial Pinch
- 1270
- 5
- 210
- 140
- 2.2 / 3
- 415
- 2470 x 750 x 1000
- ~
- 1350
- S7965
- MRM-S 1550x130
- Initial Pinch
- 1550
- 6
- 195
- 130
- 2.2 / 3
- 415
- 3250 x 650 x 1020
- ~
- 1400
- S7968
- MRM-S 2550x150
- Initial Pinch
- 2550
- 4
- 225
- 150
- 2.2 / 3
- 415
- 4250 x 650 x 1020
- ~
- 2150
- S797
- MRM-S 2550x190
- Initial Pinch
- 2550
- 6
- 285
- 190
- 4 / 5
- 415
- 4700 x 950 x 1300
- ~
- 3400
- S770
- PR-3108
- Pyramid
- 3100
- 8
- 400
- 210
- 5.5 / 7.37
- 415
- 4700 x 1100 x 1450
- ~
- 4500
- S7760
- 4R HS 25-245
- 4 Roll System
- 2550
- 10
- 370
- 245
- 7.5 / 10
- 415
- 4800 x 1425 x 1470
- ~
- 5700
- S7760
- 4R HS 25-245
- 4 Roll System
- 2550
- 10
- 370
- 245
- 7.5 / 10
- 415
- 4800 x 1425 x 1470
- ~
- 5700
- S7775
- 4R HS 30-260
- 4 Roll System
- 3100
- 10
- 390
- 260
- 7.5 / 10
- 415
- 5350 x 1460 x 1550
- ~
- 7500
- S778C
- 4R HSS NC 30-280
- 4 Roll System
- 3100
- 12
- 420
- 280
- 15 / 20
- 415
- 5850 x 1750 x 1850
- ~
- 10000
| ORDER CODE | IRM1270x140 |
|---|---|
| MODEL | Initial Pinch |
| Curving System Type | 1270 |
| Curving Material Lengthmm | 5 |
| Curving Plate Thickness - Mild Steelmm | 210 |
| Minimum Rolling Diametermm | 140 |
| Roll Diametermm | 2.2 / 3 |
| Motor PowerkW / hp | 415 |
| Voltage / AmperageV / amp | 2470 x 750 x 1000 |
| Dimensions (LxWxH)mm | ~ |
| Floor Space (L x W x H)mm | 1350 |
| Nett Weightkg |
