| Code | S797 |
|---|---|
| Model | MRM-S 2550x190 |
| Capacity | 2550 x 6mm Mild Steel Capacity |
| Weight (kg) | 3400 |
| Weight (m3) | 5.805 |
| Weight (Freight) | 3400 |
| Dimensions (cm) | 470 x 95 x 130 |

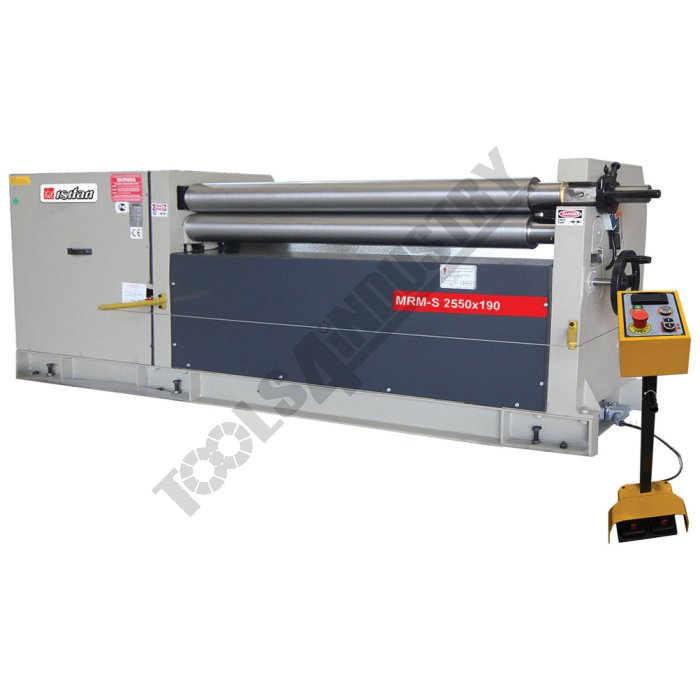

Motorised Plate Curving Rolls MRM-S 2550x190 2550 x 6mm Mild Steel Capacity
Description

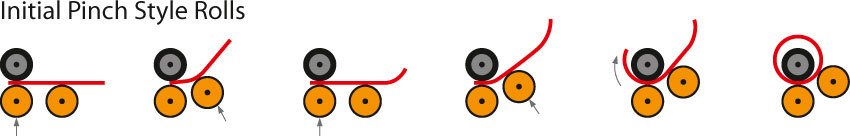

The Isitan MRM-S 2550x190 3 Roll Initial Pinch Plate Rolling machines have a heavy duty, steel welded frame construction for superior rigidity and are used for applications up to a maximum material thickness of 6mm mild steel.The asymmetric design provides pre-bending capability on the machine and the swing out top roll allows for removal of complete cylindrical components.
Other models ranging up to 3050mm working length are available.
Features
- SAE 150 quality certified steel rolls with high tensile strength
- Induction hardened rolls suitable for stainless steel
- Steel welded main frame
- Conical bending device
- Digital readout display for rear roll position
- Motorised up & down on rear roll
- Manual pinching of bottom roll
- Manual handwheel adjustment of the pre-bending roll
- Swing out top roll for removal of complete cylinders
- Central lubrication system
- Safety cut out trip wire
- Brake motor standard for precision bending
- Mobile control panel
- Mild steel capacity is rated on hot rolled material with 250MPA
Videos
Specifications
- Compare 9 Products
- ORDER CODE
- MODEL
- Curving System Type
- Curving Material Lengthmm
- Curving Plate Thickness - Mild Steelmm
- Minimum Rolling Diametermm
- Roll Diametermm
- Motor PowerkW / hp
- Voltage / AmperageV / amp
- Dimensions (LxWxH)mm
- Floor Space (L x W x H)mm
- Nett Weightkg
- S797
- MRM-S 2550x190
- Initial Pinch
- 2550
- 6
- 285
- 190
- 4 / 5
- 415
- 4700 x 950 x 1300
- ~
- 3400
- S770
- PR-3108
- Pyramid
- 3100
- 8
- 400
- 210
- 5.5 / 7.37
- 415
- 4700 x 1100 x 1450
- ~
- 4500
- S7760
- 4R HS 25-245
- 4 Roll System
- 2550
- 10
- 370
- 245
- 7.5 / 10
- 415
- 4800 x 1425 x 1470
- ~
- 5700
- S7760
- 4R HS 25-245
- 4 Roll System
- 2550
- 10
- 370
- 245
- 7.5 / 10
- 415
- 4800 x 1425 x 1470
- ~
- 5700
- S7775
- 4R HS 30-260
- 4 Roll System
- 3100
- 10
- 390
- 260
- 7.5 / 10
- 415
- 5350 x 1460 x 1550
- ~
- 7500
- S778C
- 4R HSS NC 30-280
- 4 Roll System
- 3100
- 12
- 420
- 280
- 15 / 20
- 415
- 5850 x 1750 x 1850
- ~
- 10000
- S785
- IRM1270x140
- Initial Pinch
- 1270
- 5
- 210
- 140
- 2.2 / 3
- 415
- 2470 x 750 x 1000
- ~
- 1350
- S7965
- MRM-S 1550x130
- Initial Pinch
- 1550
- 6
- 195
- 130
- 2.2 / 3
- 415
- 3250 x 650 x 1020
- ~
- 1400
- S7968
- MRM-S 2550x150
- Initial Pinch
- 2550
- 4
- 225
- 150
- 2.2 / 3
- 415
- 4250 x 650 x 1020
- ~
- 2150
| ORDER CODE | MRM-S 2550x190 |
|---|---|
| MODEL | Initial Pinch |
| Curving System Type | 2550 |
| Curving Material Lengthmm | 6 |
| Curving Plate Thickness - Mild Steelmm | 285 |
| Minimum Rolling Diametermm | 190 |
| Roll Diametermm | 4 / 5 |
| Motor PowerkW / hp | 415 |
| Voltage / AmperageV / amp | 4700 x 950 x 1300 |
| Dimensions (LxWxH)mm | ~ |
| Floor Space (L x W x H)mm | 3400 |
| Nett Weightkg |
