Code S2262
Model SHST-1.2H
Capacity Works On Flanges Up To 25.4mm Wide
Weight (kg) 9.9
Weight (m3) 0.006
Weight (Freight) 9.9
Dimensions (cm) 35 x 19 x 9
METALMASTER
1 Year

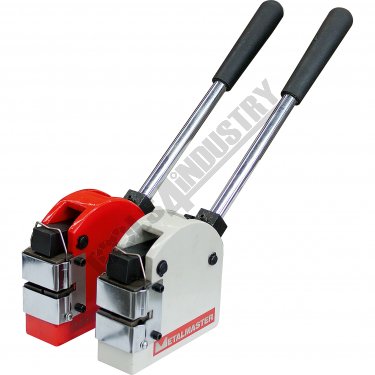

SHST-1.2H Shrinker & Stretcher - Bench Mount Works On Flanges Up To 25.4mm Wide

Description

The SHST-1.2H hand lever operated shrinker & stretcher for shrinking or stretching mild steel sheet metal up to 18-gauge, 1.2mm in thickness and can be bench mounted or attached to the optional stand (S2263).

This is the perfect machine for working metal for auto, cycle or aeroplane body work. This machine is ruggedly built and can shrink or stretch metal with ease at full capacity.

Features

  • Ideal for repair work around wheel openings, door jams, windshields and trunk gutters
  • Shrinks metal for inside bends
  • Stretches metal for outside bends
  • Works on flanges up to 25.4mm wide
  • 1.2mm mild steel capacity
  • 1.6mm aluminium capacity
  • 0.9mm stainless steel capacity
  • Curves to a 76mm radius
  • Totally portable
  • Mounting holes in base
  • Can be held in vice
  • Toughened arms and pivot pins
  • Change from stretcher to shrinker in seconds


Includes

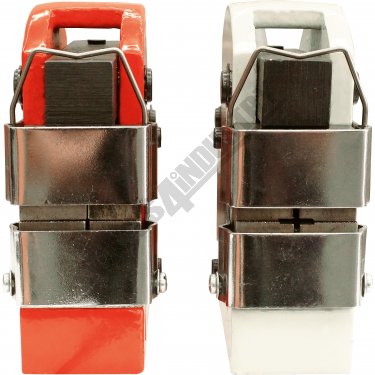

  • 1 x set of shrinking dies
  • 1 x set of stretching dies

Optional Accessories

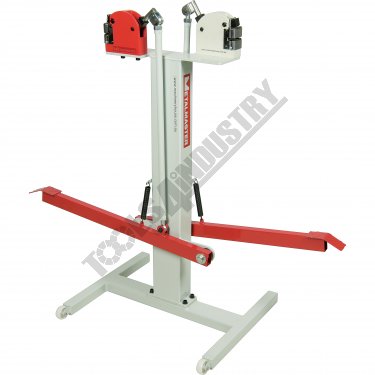

  • Floor Stand (S2263)

Specifications

ORDER CODES2262
MODELSHST-1.2H
OperationTypeManual /
Hand Operated
Mild Steel - Capacitymm / Gauge1.2 / 18
Aluminium - Capacitymm / Gauge~
Throat Depthmm25.4
Working Heightmm60
Shipping Dimensions (L x W x H)mm350 x 190 x 90
Nett Weightkg10.5
