Code	Q2205
Model	34-2205
Capacity	12.5mm / 0.5"
Weight (kg)	0.26
Weight (m³)	0.001
Weight (Freight)	0.26
Dimensions (cm)	14.5 x 7.5 x 6.5

MEASUMAX

1 Year Warranty

Product Brochure Instructions [203 KB]

Digital Indicator 34-2205 12.5mm / 0.5"

Features

Manual power On/Off
Zero setting at any position
Metric/Imperial system conversion at any position
With data output interface (cable 40-4061)
Max speed 1.5m/sec
Supplied with Lugged Back

Includes

Includes CR2032 battery

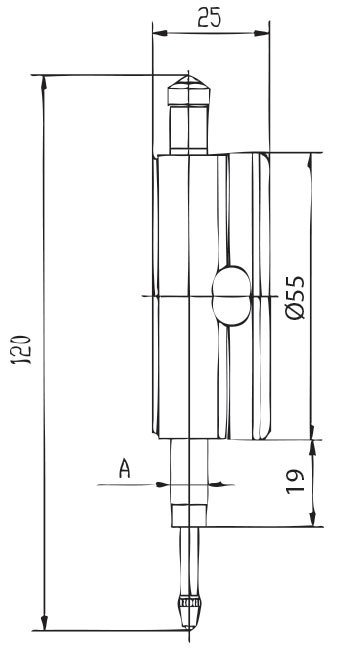

Specifications

Compare 2 Products
ORDER CODE
Rangemm / inch
Resolution
Accuracy
Diameter
A

Q2205
12.5mm / 0.5"
0.01mm / 0.0005"
0.02
55
8

Q221
0 - 50mm / 0 - 2"
0.01mm / 0.0005"
0.009
55
8

ORDER CODE	12.5mm / 0.5"
Rangemm / inch	0.01mm / 0.0005"
Resolution	0.02
Accuracy	55
Diameter	8
A

Recommended Accessories

Q2165

Ø10mm Flat Contact for Dial Indicators

Thread M2.5 x 0.45mm

Code: Q2165

Q2167

Contact Point for Dial Indicators

Thread M2.5 x 0.45mm

Code: Q2167

M050

Magnetic Base - Standard

60kg Holding Power

Code: M050

M051

Magnetic Base - Deluxe - One Lock

60kg Holding Power

Code: M051

Q430

Magnetic Base - Small
38-430
30kg Holding Power

Code: Q430

Q435

Magnetic Base - Large
38-435
80kg Holding Power

Code: Q435

Q4351

Magnetic Base - Large
38-4351
60kg Holding Power

Code: Q4351

Q436

Magnetic Base - One Lock (Large)
38-436
80kg Holding Power

Code: Q436
