Code	Q214
Model	34-214
Capacity	0-10mm
Weight (kg)	0.32
Weight (m³)	0.001
Weight (Freight)	0.32
Dimensions (cm)	14 x 9 x 4

MEASUMAX

1 Year Warranty

Product Brochure

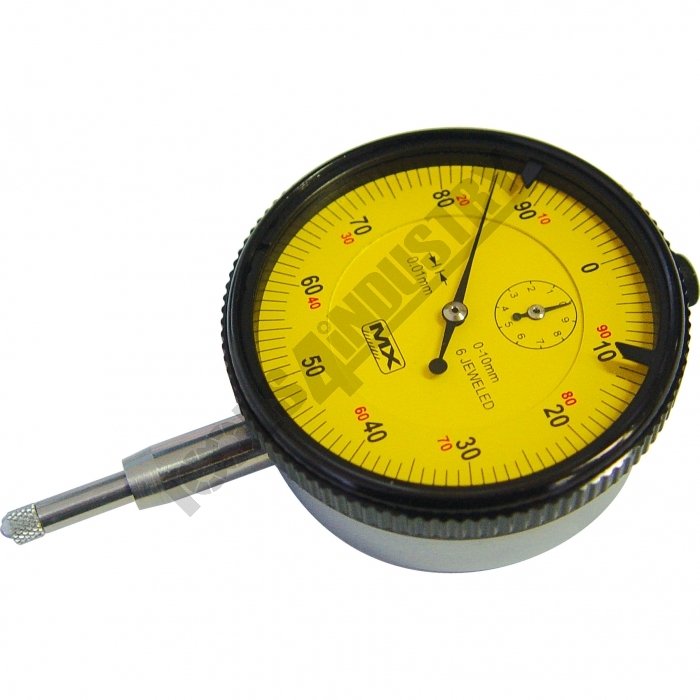

Metric Dial Indicator - Precision 34-214 0-10mm

Features

Smooth 6 jewel movement
In-out tolerance maker
Flat glass
Flat back and back lug supplied
Jewelled bearing construction, shockproof
Individual serial numbers with corresponding calibration certificate
Supplied in foam lined plastic case

Specifications

Compare 3 Products

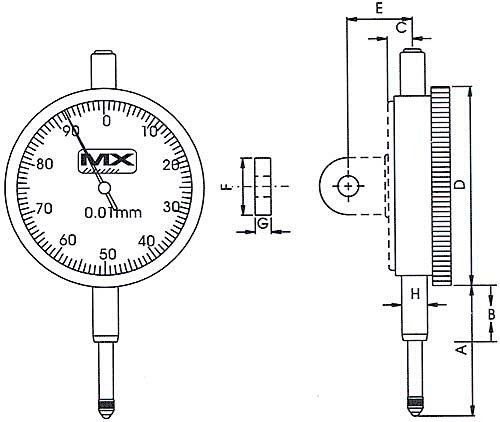

ORDER CODE
Rangemm
Graduationsmm
Amm
Bmm
Cmm
Dmm
Emm
Fmm
Gmm
Hmm

Q214
0 - 10mm
0.01mm
35
19
8
60
19
18
5
8

Q215
0 - 30
0.01
58
21
8
60
20
18
5
8

Q213
0 - 5mm
0.01mm
26
12
7.2
40
19
16
5
8

ORDER CODE	0 - 10mm
Rangemm	0.01mm
Graduationsmm	35
Amm	19
Bmm	8
Cmm	60
Dmm	19
Emm	18
Fmm	5
Gmm	8
Hmm
