Code	Q211
Model	34-211
Capacity	0-10mm
Weight (kg)	0.3
Weight (m³)	0.001
Weight (Freight)	0.3
Dimensions (cm)	14 x 9 x 4

MEASUMAX

1 Year

Product Brochure

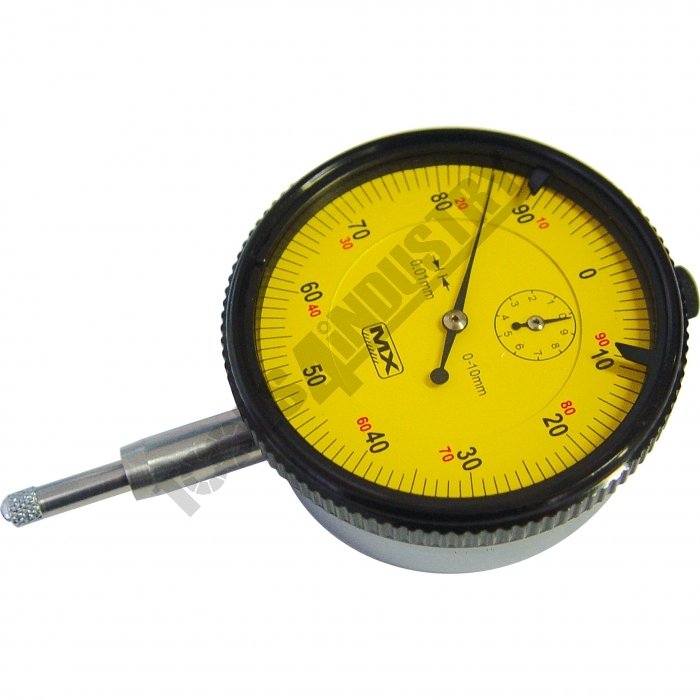

34-211 Metric Dial Indicator 0-10mm

Features

Face Ø58mm - Back plate mounting lug
Smooth movement
In-out tolerance marker
Supplied in foam lined plastic case with calibration certificate

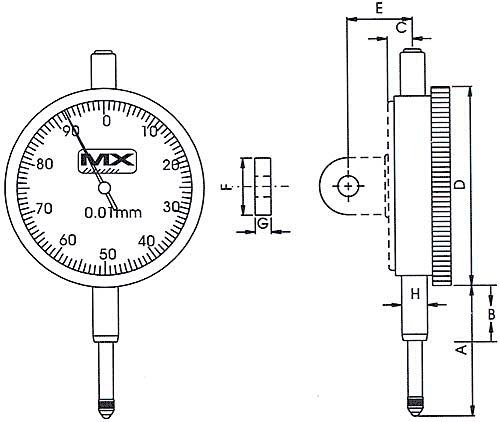

Specifications

Compare 5 Products
ORDER CODE
Rangemm / inch
Graduationsmm / inch
Amm
Bmm
Cmm
Dmm
Emm
Fmm
Gmm
Hmm

Q211
0 - 10mm
0.01mm
40
21
8
58
19
17
6.35
8

Q212
0 - 1"
0.001"
52
20
8
58
19
17
6.35
9.5

Q215
0 - 30
0.01
58
21
8
60
20
18
5
8

M046
0 - 10mm
0.01mm
~
~
~
~
~
~
~
~

M045
0 - 1"
0.001"
40
~
~
~
~
~
~
~

ORDER CODE	0 - 10mm
Rangemm / inch	0.01mm
Graduationsmm / inch	40
Amm	21
Bmm	8
Cmm	58
Dmm	19
Emm	17
Fmm	6.35
Gmm	8
Hmm

Recommended Accessories

Q2165

Ø10mm Flat Contact for Dial Indicators

Thread M2.5 x 0.45mm

Code: Q2165

Q2167

Contact Point for Dial Indicators

Thread M2.5 x 0.45mm

Code: Q2167

Q2125

Back Plate with Lug for Dial Indicators

Ø51.44mm

Code: Q2125

M050

Magnetic Base - Standard
60kg Holding Power

Code: M050

M051

Magnetic Base - Deluxe - One Lock
60kg Holding Power

Code: M051

Q430

38-430
Magnetic Base - Small
30kg Holding Power

Code: Q430

Q435

38-435
Magnetic Base - Large
80kg Holding Power

Code: Q435

Q4351

38-4351
Magnetic Base - Large
60kg Holding Power

Code: Q4351

Q436

38-436
Magnetic Base - One Lock (Large)
80kg Holding Power

Code: Q436
