| Code | Q155 |
|---|---|
| Model | 25-155 |
| Capacity | 100-1300mm |
| Weight (kg) | 4.04 |
| Weight (m3) | 0.006 |
| Weight (Freight) | 4.04 |
| Dimensions (cm) | 49 x 23 x 5 |

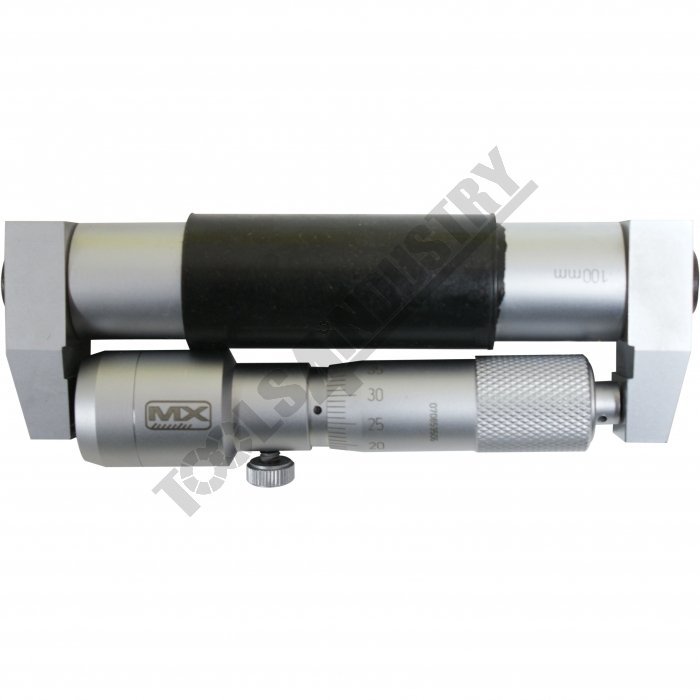

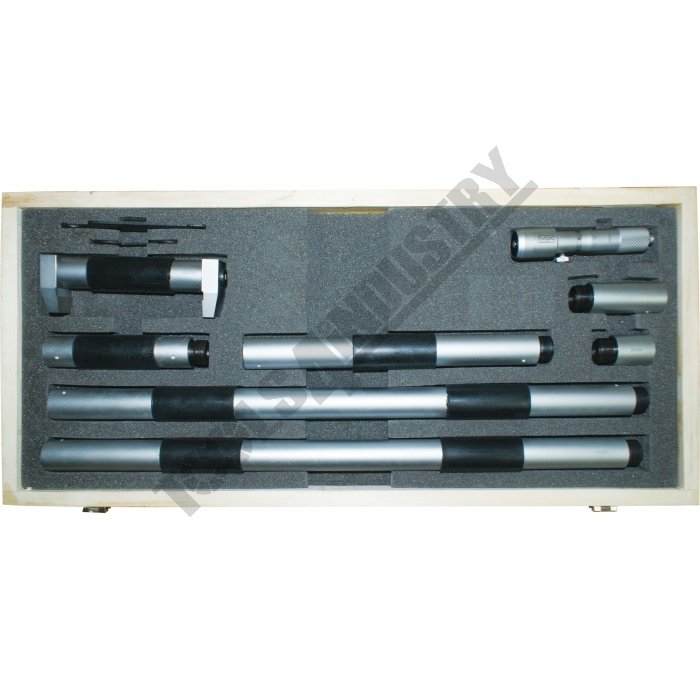

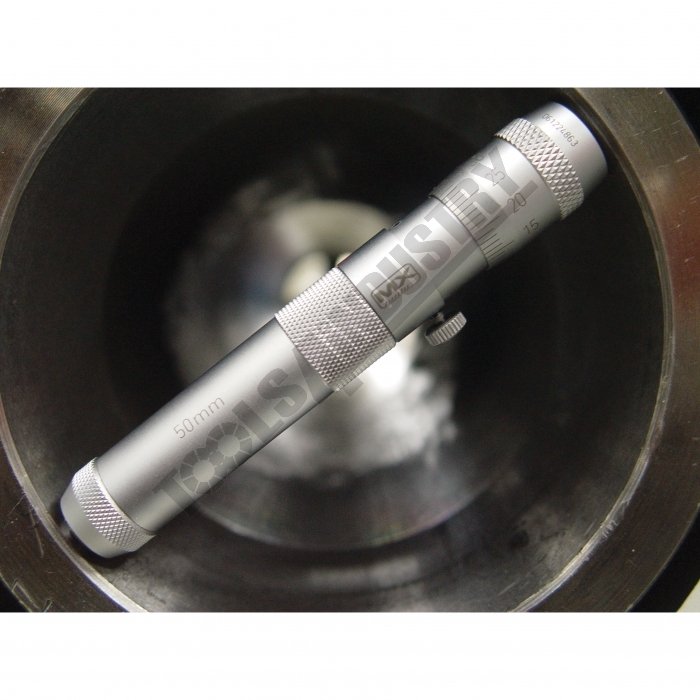

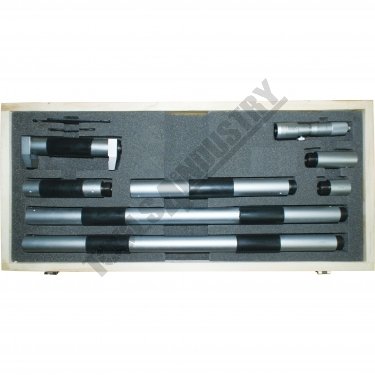

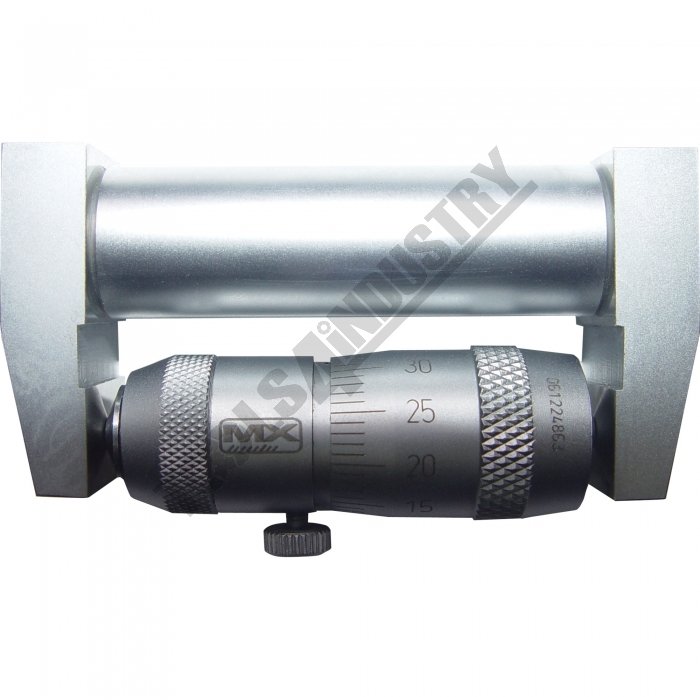

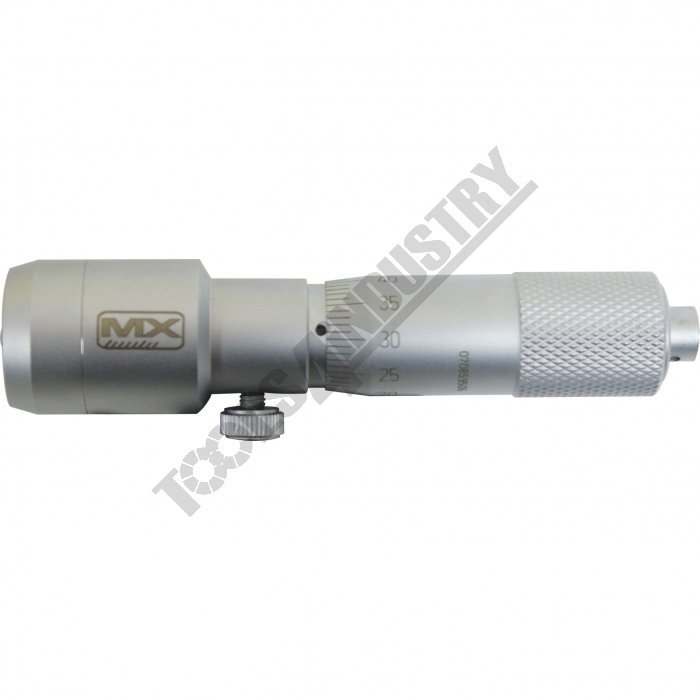

Large Tube Type - Inside Micrometer 25-155 100-1300mm
Description
Measumax series 25 inside micrometers are tube type with high rigidity for large diameter measuring.Features
- The anvil and the spindle are hardened and precision ground
- Spindle thread is hardened and precision ground
- Carbide measuring faces
- Each interchangeable rod is marked with the range
- Large diameter rod for rigidity
- Graduation: 0.01mm
- Accuracy : Metric (7+n+L/50)µm (L=Max. measuring length, n=number of rods)
Specifications
- Compare 4 Products
- ORDER CODE
- Rangemm / inch
- Micrometer Headmm / inch
- Head Travelmm
- Graduationmm / inch
- Extension Rods
- Rod Diametermm
- Accuracyµm
| ORDER CODE | 100 - 1300 |
|---|---|
| Rangemm / inch | 100 - 125 |
| Micrometer Headmm / inch | 25 |
| Head Travelmm | 0.01mm |
| Graduationmm / inch | 25, 50, 100, 200, 2x400mm |
| Extension Rods | 22 |
| Rod Diametermm | (3+n+L/50) |
| Accuracyµm |
