| Code | Q1495 |
|---|---|
| Model | 25-1495 |
| Capacity | 2-12" |
| Weight (kg) | 1.12 |
| Weight (m3) | 0.002 |
| Weight (Freight) | 1.12 |
| Dimensions (cm) | 32 x 19 x 4 |
Inside Micrometers - Small Tube Type 25-1495 2-12"
Description
Measumax series 25 inside micrometers are a tube type and have a wide measuring range. Any one single tube inside micrometer can replace many bar type.Features
- The combining of extension rods provide a wide measuring range

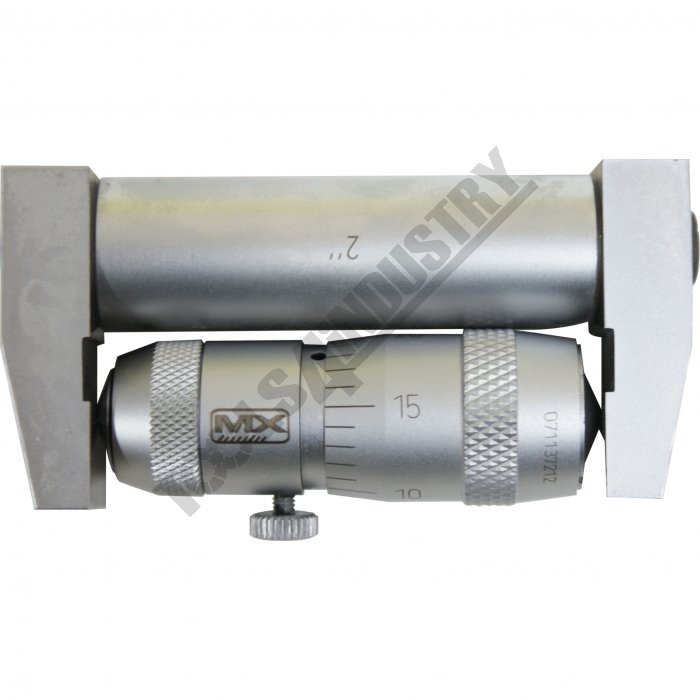

- Supplied with a standard caliper gauge for zero setting
- Carbide measuring faces. Positive locking clamp
- Diameter of extension rods: Ø15.5mm
- Graduation: 0.001"
- Imperial [0.00005(3+L/2)]" (n=number of rods L= maximum measuring length
Specifications
- Compare 4 Products
- ORDER CODE
- Rangemm / inch
- Micrometer Headmm / inch
- Head Travelmm
- Graduationmm / inch
- Extension Rods
- Rod Diametermm
- Accuracyµm
| ORDER CODE | 2 - 12" |
|---|---|
| Rangemm / inch | 2 - 2.5" |
| Micrometer Headmm / inch | ~ |
| Head Travelmm | 0.001" |
| Graduationmm / inch | 0.5", 1", 2" (2pce), 4" |
| Extension Rods | ~ |
| Rod Diametermm | ~ |
| Accuracyµm |
