Internal Measuring

Internal Measuring

Code	Q150
Model	25-150
Capacity	50-500mm
Weight (kg)	1.3
Weight (m³)	0.002
Weight (Freight)	1.3
Dimensions (cm)	27 x 16 x 4

MEASUMAX

1 Year Warranty

Product Brochure Instruction Manual [811 KB]

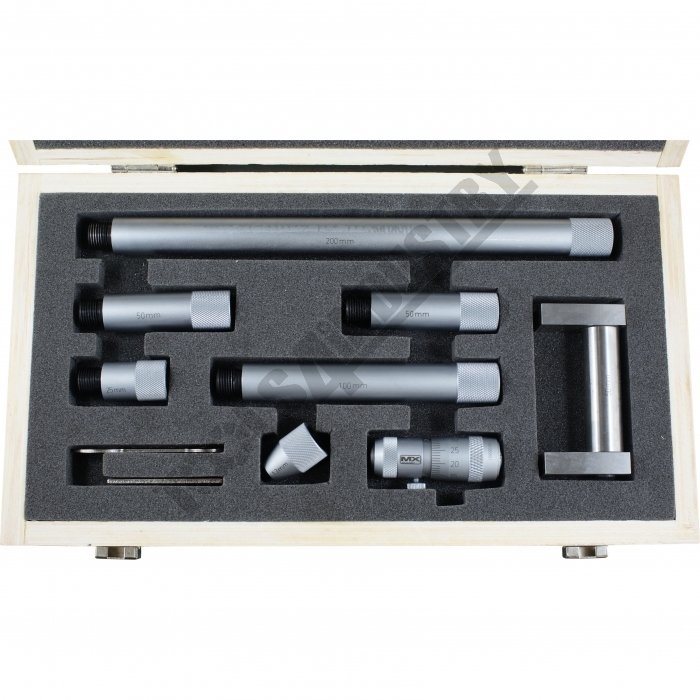

Inside Micrometers - Small Tube Type 25-150 50-500mm

Description

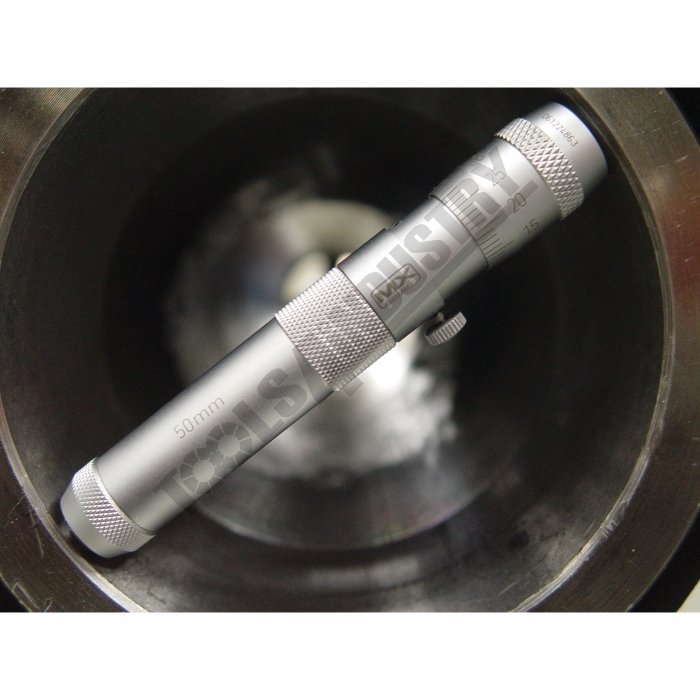

Measumax series 25 inside micrometers are a tube type and have a wide measuring range. Any one single tube inside micrometer can replace many bar type.

Features

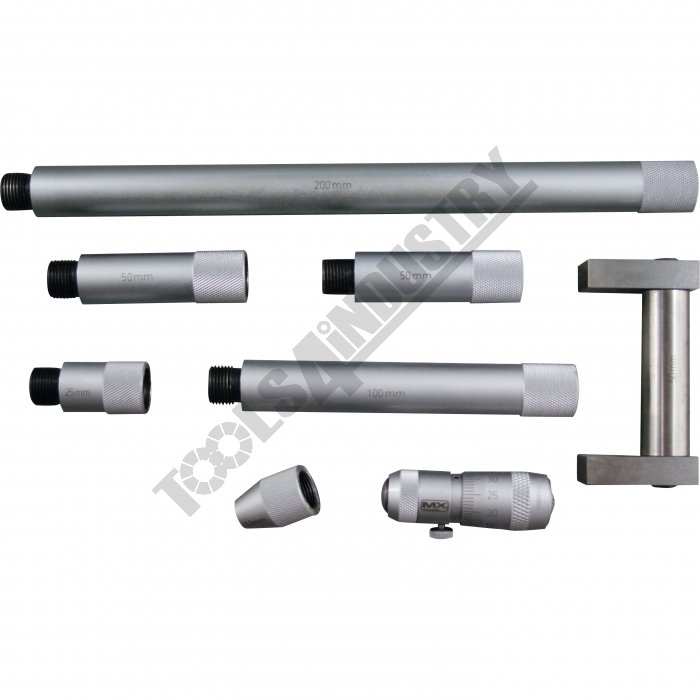

The combining of extension rods provide a wide measuring range

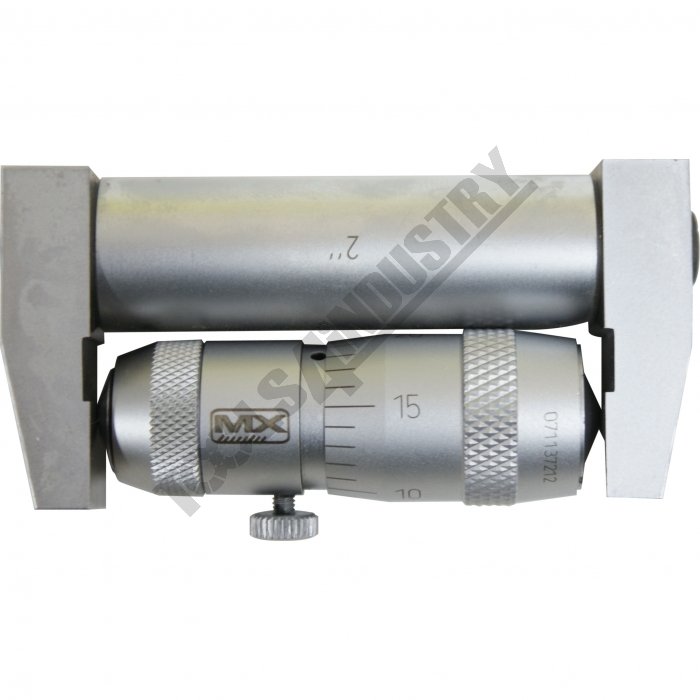

Supplied with a standard caliper gauge for zero setting
Carbide measuring faces. Positive locking clamp
Diameter of extension rods: Ø15.5mm
Graduation: 0.01mm
Accuracy: Metric ±(3+n+L/50)µm.(n=number of rods, L= maximum measuring length)

Specifications

Compare 4 Products
ORDER CODE
Rangemm / inch
Micrometer Headmm / inch
Head Travelmm
Graduationmm / inch
Extension Rods
Rod Diametermm
Accuracyµm

Q150
50 - 500
50 - 63
~
0.01mm
13,25,50 (2pce),100, 200
~
~

Q155
100 - 1300
100 - 125
25
0.01mm
25, 50, 100, 200, 2x400mm
22
(3+n+L/50)

Q1491
50 - 300
50 - 63
~
0.01mm
13, 25, 50 (2pce), 100
~
~

Q1495
2 - 12"
2 - 2.5"
~
0.001"
0.5", 1", 2" (2pce), 4"
~
~

ORDER CODE	50 - 500
Rangemm / inch	50 - 63
Micrometer Headmm / inch	~
Head Travelmm	0.01mm
Graduationmm / inch	13,25,50 (2pce),100, 200
Extension Rods	~
Rod Diametermm	~
Accuracyµm
