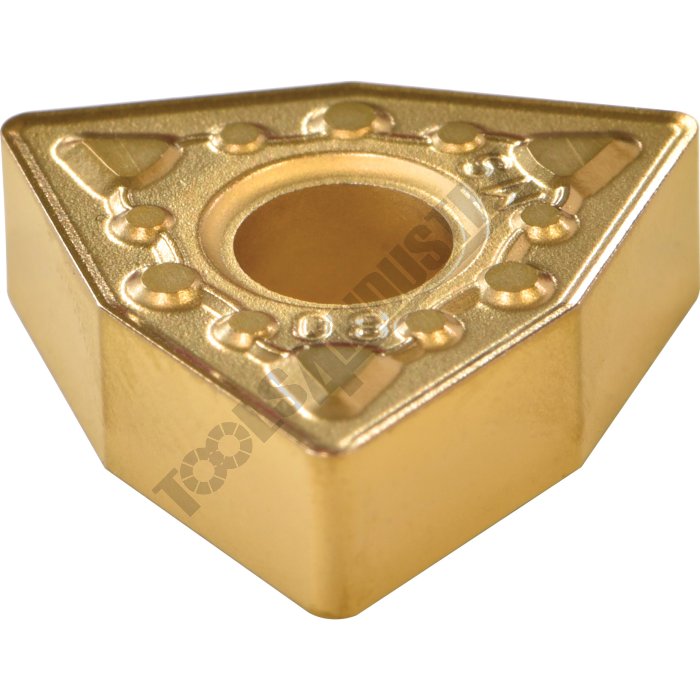

Tip

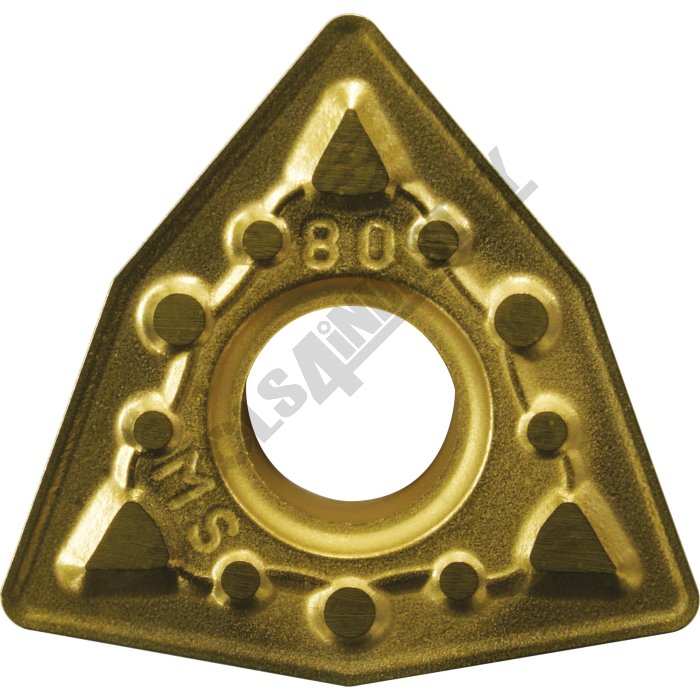

Tip Top View

Code	L0538
Model	WNMG 080408MS
Capacity	Grade CA6525 - Stainless Steel
Weight (kg)	0.1
Weight (m³)	0.000
Weight (Freight)	0.1
Dimensions (cm)	7 x 2 x 2

Product Brochure

KYOCERA Carbide Inserts - Turning WNMG 080408MS Grade CA6525 - Stainless Steel

Description

CA6525 Grade CVD Coated Carbide
Suitable for stainless steel, heat-resistant steel and general steel.

MS Chipbreaker
The first recommendation for medium to roughing applications, featuring a positive land, a tough cutting edge, and excellent chip control.

Features

Japanese Made
CVD Coated Carbide with Thin Ultra-fine TiCN Coating

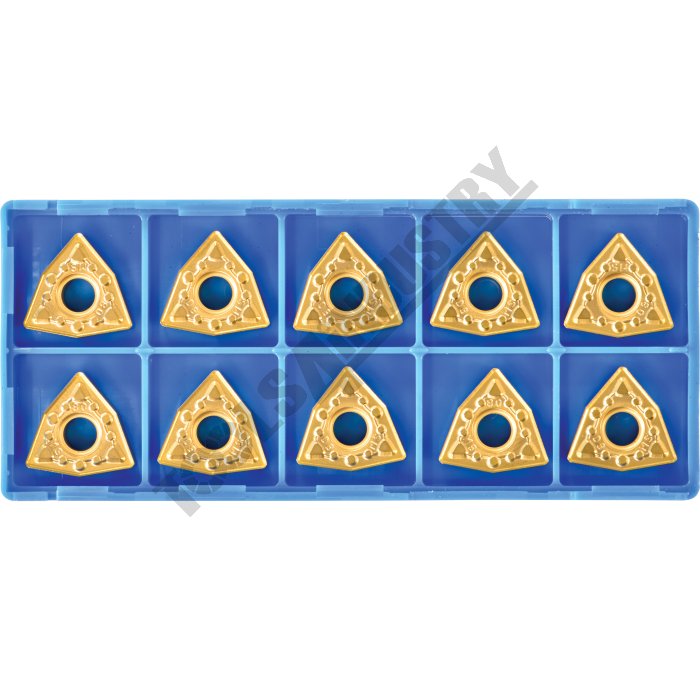

10 Inserts Per Pack

Specifications

Compare 18 Products
ORDER CODE
MODEL
Grade
Application
Pieces in SetNo.
I.C.mm
Thickness (S)mm
Hole Diameter Ø (D1)mm
Corner Radius (RE)mm
Relief AngleDeg
dmm
Insert shape
Use Classification
Clearance Angle

L0538
WNMG 080408MS
CA6525
Stainless Steel
10
8.7
4.76
5.16
0.8
~
12.7
~
~
~

L009A
Suits 12mm Lathe Set
~
General Purpose Steel
9
~
~
~
~
~
~
~
~
~

L0098
Suits 12mm Lathe Set
~
General Purpose Steel
10
~
~
~
~
~
~
~
~
~

L0078
Suits 16mm Lathe Set
~
General Purpose Steel
10
~
~
~
~
~
~
~
~
~

L060
CCMT 060204GK
CA125P
General Purpose Steel
10
6.35
2.38
2.8
0.4
7°
~
~
~
~

L060A
CCMT 9T304GK
CA125P
General Purpose Steel
10
9.525
3.97
4.4
0.40
7°
~
~
~
~

L0615
TCMT 090204HQ
CA525
General Purpose Steel
10
5.56
2.38
2.5
0.4
7°
~
~
~
~

L0515
SCMT09T304HQ
CA125P
Finishing to Medium
10
9.525
3.97
4.4
0.4
7°
~
~
~
~

L062
TCMT 110204HQ
CA125P
General Purpose Steel
10
11.0
2.38
2.80
0.40
~
6.35
~
~
~

L054
TCMT 16T304HQ
CA525
General Purpose Steel
10
16.5
3.97
4.10
0.40
~
9.35
~
~
~

L061
TPMR 110304
CA125P
General Purpose Steel
10
11.0
3.18
~
0.40
~
6.35
~
~
~

L063
TPMR 160308
CA125P
General Purpose Steel
10
16.5
3.17
~
0.80
~
9.52
~
~
~

L0644
TNMG 160404HQ
CA115P
Finishing Steel
10
16.5
4.76
3.81
0.40
~
9.525
~
~
~

L064
TNMG 160408PS
CA125P
General Purpose Steel
10
16.5
4.76
3.81
0.80
~
9.525
~
~
~

L0648
TNMG 160408MS
CA6525
Stainless Steel
10
16.5
4.76
3.81
0.80
~
9.525
~
~
~

L0602
CNMG120408PS
CA125P
General Purpose Steel
10
12.7
4.76
5.16
0.80
~
12.7
~
~
~

L053
WNMG 080408PS
CA125P
General Purpose Steel
10
8.7
4.76
5.16
0.8
~
12.7
~
~
~

L0534
WNMG 080404HQ
CA115P
Finishing Steel
10
8.7
4.76
5.16
0.4
~
12.7
~
~
~

ORDER CODE	WNMG 080408MS
MODEL	CA6525
Grade	Stainless Steel
Application	10
Pieces in SetNo.	8.7
I.C.mm	4.76
Thickness (S)mm	5.16
Hole Diameter Ø (D1)mm	0.8
Corner Radius (RE)mm	~
Relief AngleDeg	12.7
dmm	~
Insert shape	~
Use Classification	~
Clearance Angle
