Code	L060A
Model	CCMT 09T304GK
Capacity	Grade CA125P - General Purpose Steel
Weight (kg)	0.06
Weight (m³)	0.000
Weight (Freight)	0.06
Dimensions (cm)	7 x 3 x 2

KYOCERA

Product Brochure KYOCERA CA115P CA125P [7 MB]

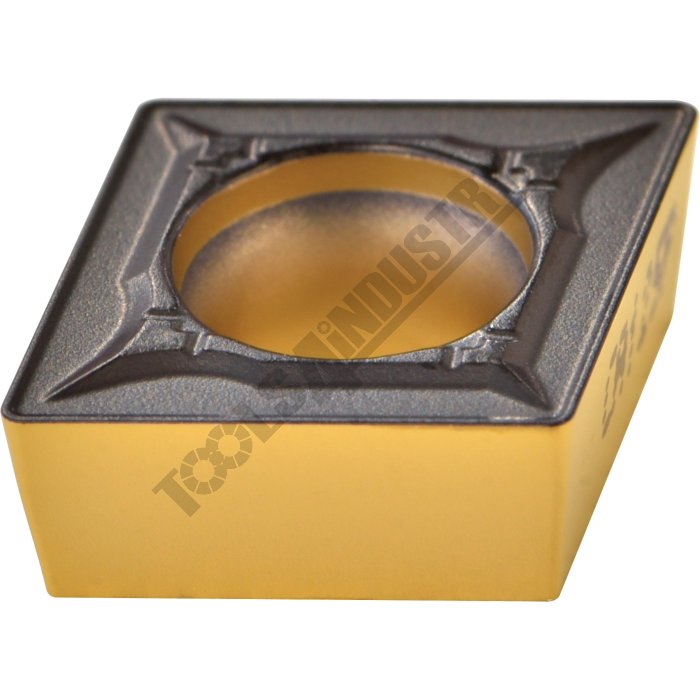

KYOCERA Carbide Inserts - Turning CCMT 09T304GK Grade CA125P - General Purpose Steel

Description

CA125P Grade CVD Coated Carbide for Steel
Suitable for continuous to heavy interrupted machining, these inserts are designed for general-purpose applications.

GK Chipbreaker
General purpose chipbreaker for medium roughing.

Features

Japanese Made
CVD Coated Carbide with Thin Ultra-fine TiCN Coating

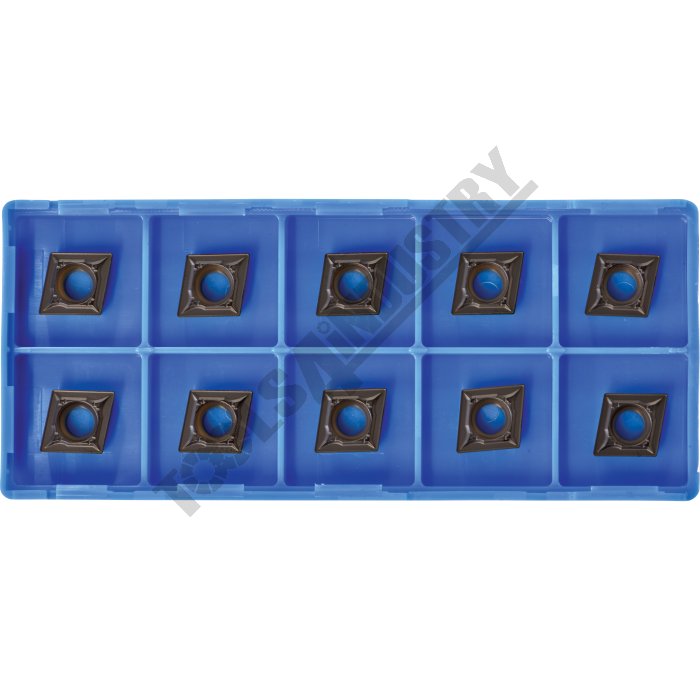

10 Inserts Per Pack

Specifications

Compare 18 Products
ORDER CODE
MODEL
Grade
Application
Pieces in SetNo.
I.C.mm
Thickness (S)mm
Hole Diameter Ø (D1)mm
Corner Radius (RE)mm
Relief AngleDeg
dmm
Insert shape
Use Classification
Clearance Angle

L060A
CCMT 9T304GK
CA125P
General Purpose Steel
10
9.525
3.97
4.4
0.40
7°
~
~
~
~

L0615
TCMT 090204HQ
CA525
General Purpose Steel
10
5.56
2.38
2.5
0.4
7°
~
~
~
~

L0515
SCMT09T304HQ
CA125P
Finishing to Medium
10
9.525
3.97
4.4
0.4
7°
~
~
~
~

L062
TCMT 110204HQ
CA125P
General Purpose Steel
10
11.0
2.38
2.80
0.40
~
6.35
~
~
~

L054
TCMT 16T304HQ
CA525
General Purpose Steel
10
16.5
3.97
4.10
0.40
~
9.35
~
~
~

L061
TPMR 110304
CA125P
General Purpose Steel
10
11.0
3.18
~
0.40
~
6.35
~
~
~

L063
TPMR 160308
CA125P
General Purpose Steel
10
16.5
3.17
~
0.80
~
9.52
~
~
~

L0644
TNMG 160404HQ
CA115P
Finishing Steel
10
16.5
4.76
3.81
0.40
~
9.525
~
~
~

L064
TNMG 160408PS
CA125P
General Purpose Steel
10
16.5
4.76
3.81
0.80
~
9.525
~
~
~

L0648
TNMG 160408MS
CA6525
Stainless Steel
10
16.5
4.76
3.81
0.80
~
9.525
~
~
~

L0602
CNMG120408PS
CA125P
General Purpose Steel
10
12.7
4.76
5.16
0.80
~
12.7
~
~
~

L053
WNMG 080408PS
CA125P
General Purpose Steel
10
8.7
4.76
5.16
0.8
~
12.7
~
~
~

L0534
WNMG 080404HQ
CA115P
Finishing Steel
10
8.7
4.76
5.16
0.4
~
12.7
~
~
~

L0538
WNMG 080408MS
CA6525
Stainless Steel
10
8.7
4.76
5.16
0.8
~
12.7
~
~
~

L009A
Suits 12mm Lathe Set
~
General Purpose Steel
9
~
~
~
~
~
~
~
~
~

L0098
Suits 12mm Lathe Set
~
General Purpose Steel
10
~
~
~
~
~
~
~
~
~

L0078
Suits 16mm Lathe Set
~
General Purpose Steel
10
~
~
~
~
~
~
~
~
~

L060
CCMT 060204GK
CA125P
General Purpose Steel
10
6.35
2.38
2.8
0.4
7°
~
~
~
~

ORDER CODE	CCMT 9T304GK
MODEL	CA125P
Grade	General Purpose Steel
Application	10
Pieces in SetNo.	9.525
I.C.mm	3.97
Thickness (S)mm	4.4
Hole Diameter Ø (D1)mm	0.40
Corner Radius (RE)mm	7°
Relief AngleDeg	~
dmm	~
Insert shape	~
Use Classification	~
Clearance Angle
