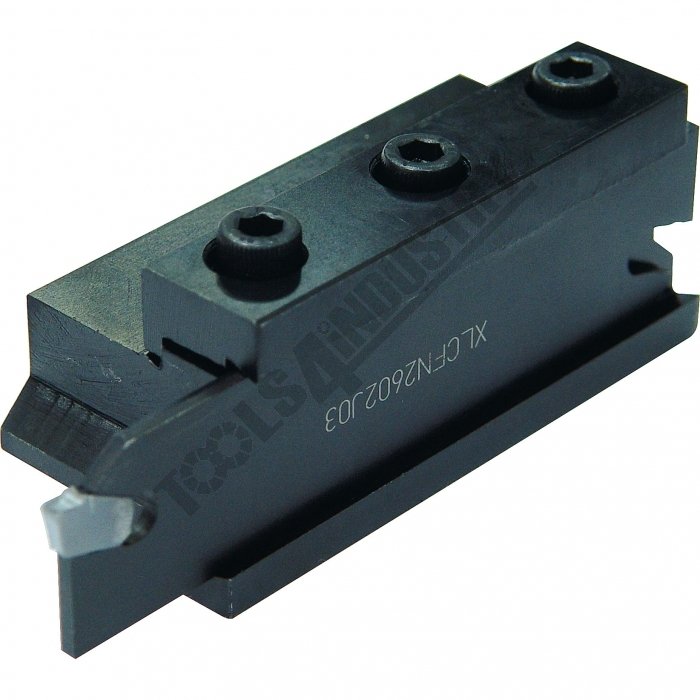

Shown Setup with Optional Blade and Tip

Shown Setup with Optional Blade and Tip

Code	L029B
Capacity	20mm Tool Height
Weight (kg)	1.921
Weight (m³)	0.000
Weight (Freight)	1.921
Dimensions (cm)	12 x 5.4 x 5.2

TOOLMASTER

India

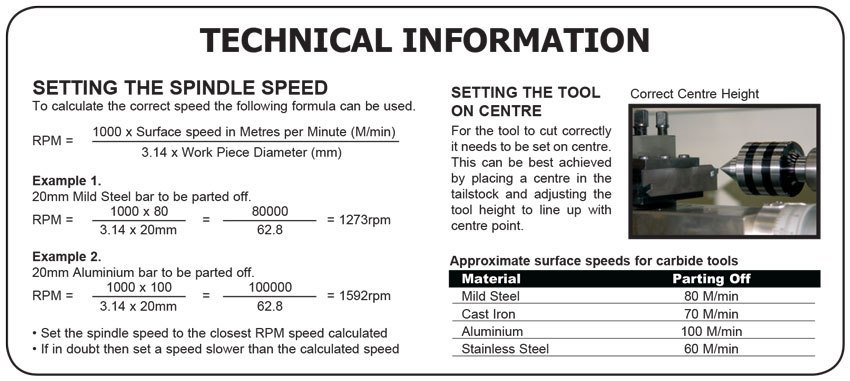

Product Brochure Technical Information [115 KB]

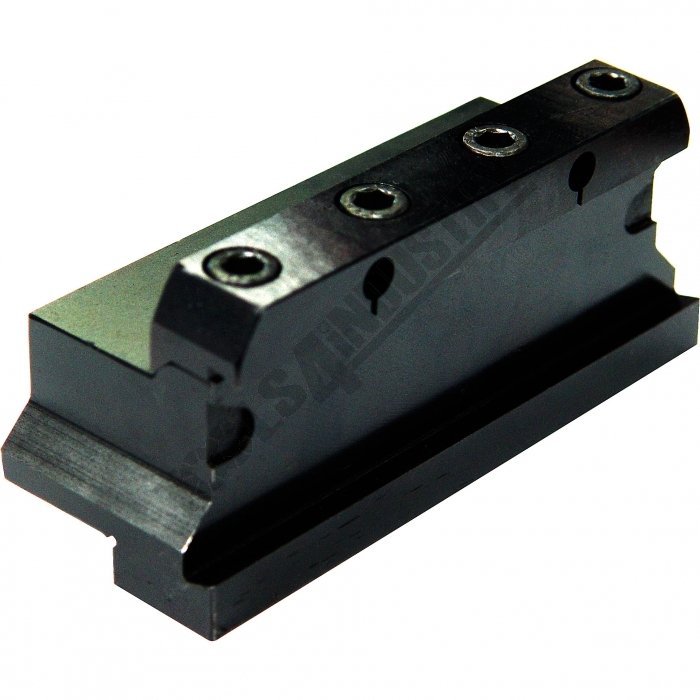

Parting Block - Suits 32mm Blade 20mm Tool Height

Description

NOTE: Blades and Inserts not included:

Optional Accessories

Blade - 32 x 3mm (L4693) & Inserts (L0513)

Specifications

Compare 5 Products

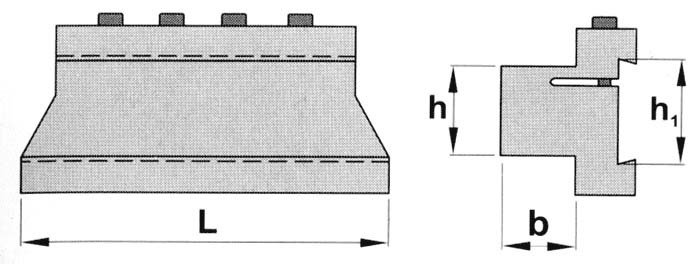

ORDER CODE
Blade Size (h1)mm
hmm
bmm
Lmm
Nett Weightkg

L029B
32 x 3
20
20
87
0.8

L030
32 x 3
25
20
100
1.0

L027
26 x 2 or 26 x 3
12
16
87
0.7

L028
26 x 2 or 26 x 3
16
16
87
0.7

L029
26 x 2 or 26 x 3
20
20
87
0.8

ORDER CODE	32 x 3
Blade Size (h1)mm	20
hmm	20
bmm	87
Lmm	0.8
Nett Weightkg
