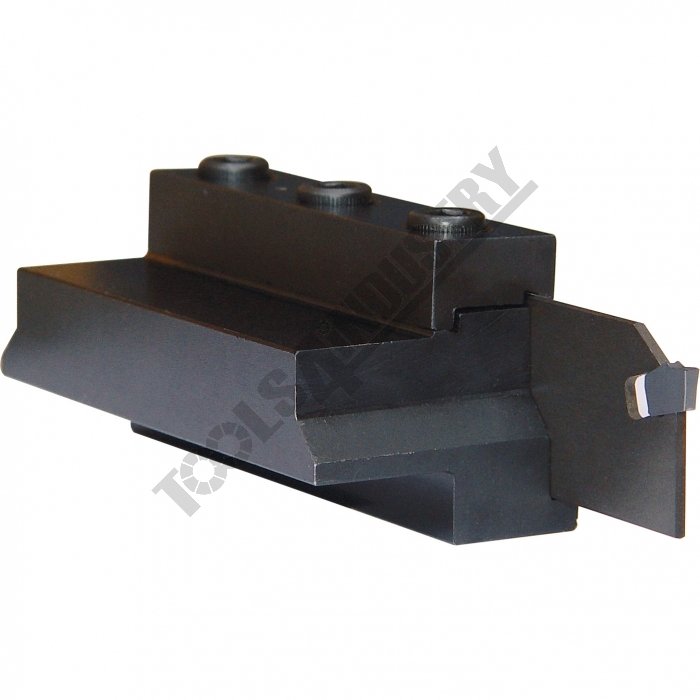

Shown Setup with Optional Blade and Tip

Shown Setup with Optional Blade and Tip

Code	L027
Capacity	12mm Tool Height
Weight (kg)	0.64
Weight (m³)	0.000
Weight (Freight)	0.64
Dimensions (cm)	9.8 x 4.5 x 4.5

TOOLMASTER

India

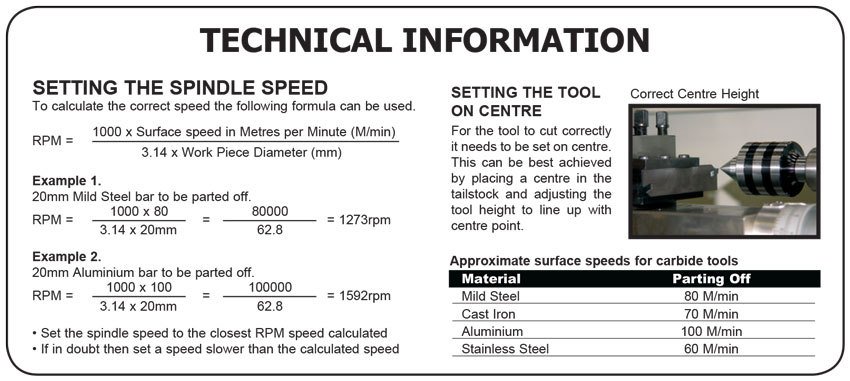

Product Brochure Technical Information [115 KB]

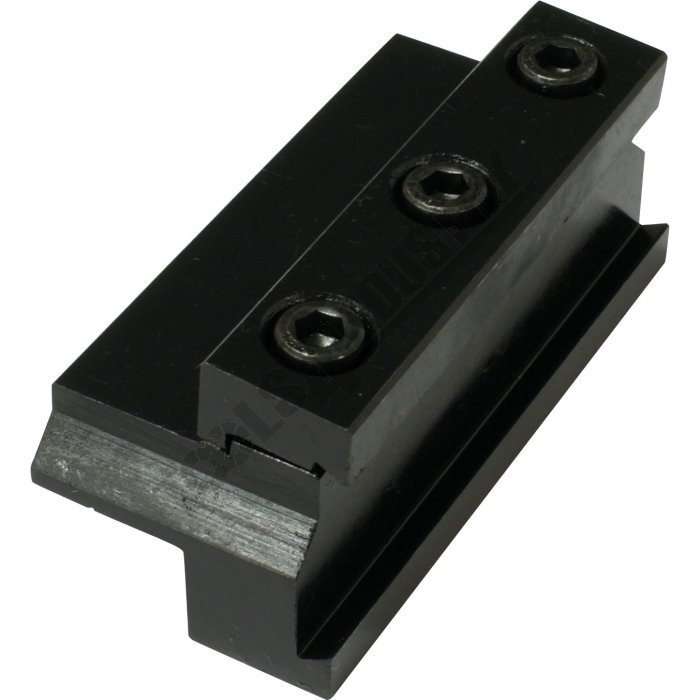

Parting Block - Suits 26mm Blade 12mm Tool Height

Description

NOTE: Blades and Inserts not included:

Optional Accessories

Blade - 26 x 2mm (L468) & Inserts (L0512)
Blade - 26 x 3mm (L469) & Inserts (L0513)

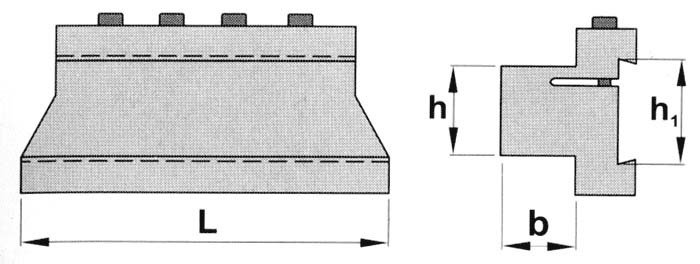

Specifications

Compare 5 Products
ORDER CODE
Blade Size (h1)mm
hmm
bmm
Lmm
Nett Weightkg

L027
26 x 2 or 26 x 3
12
16
87
0.7

L028
26 x 2 or 26 x 3
16
16
87
0.7

L029
26 x 2 or 26 x 3
20
20
87
0.8

L029B
32 x 3
20
20
87
0.8

L030
32 x 3
25
20
100
1.0

ORDER CODE	26 x 2 or 26 x 3
Blade Size (h1)mm	12
hmm	16
bmm	87
Lmm	0.7
Nett Weightkg
