| Code | D9507 |
|---|---|
| Model | HF-750 |
| Capacity | 4 Speed - 150 / 200 / 300 / 380rpm |
| Weight (kg) | 31 |
| Weight (m3) | 0.080 |
| Weight (Freight) | 31 |
| Dimensions (cm) | 61.5 x 27 x 48 |

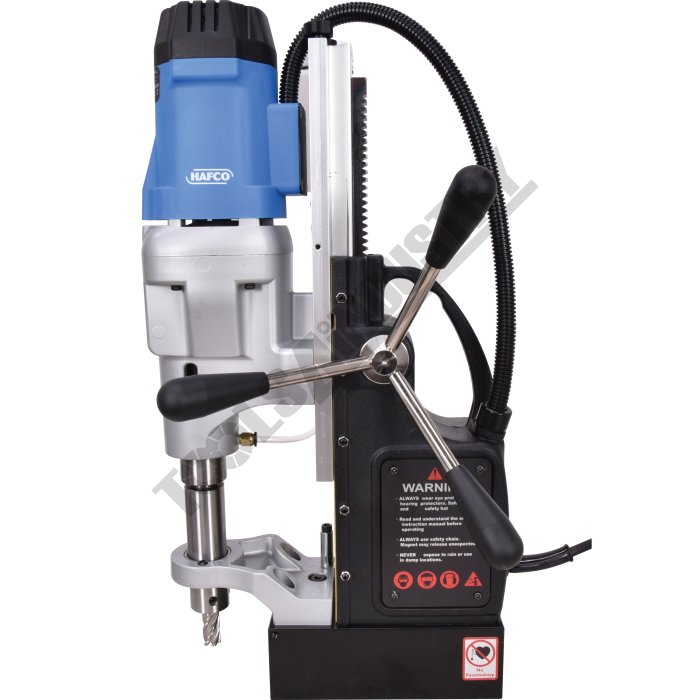

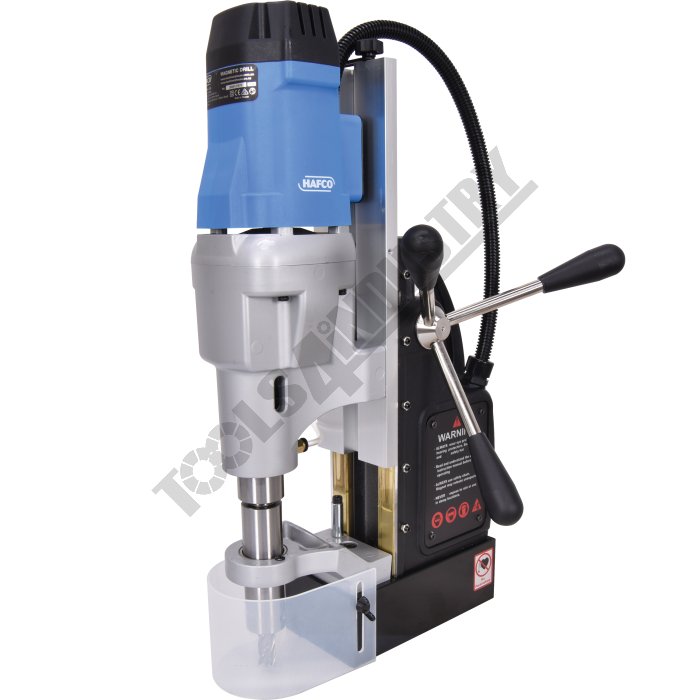

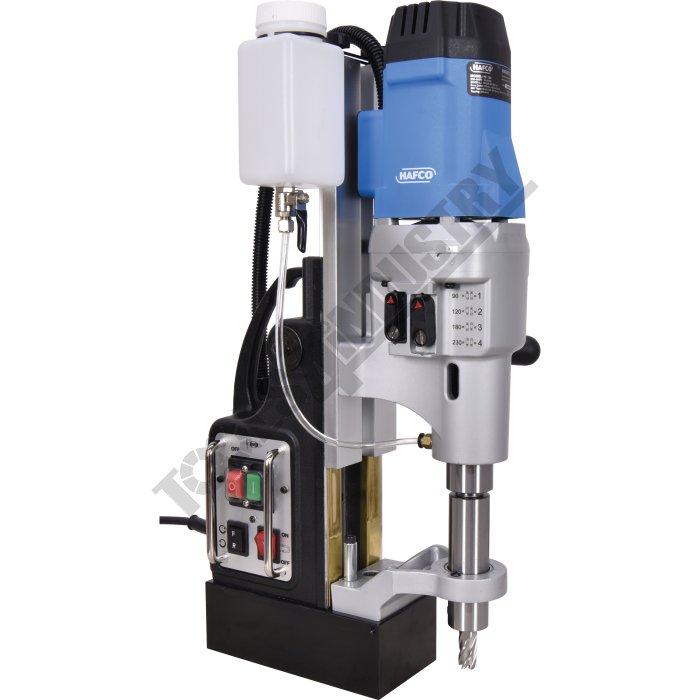

Portable Magnetic Drill - 3MT HF-750 4 Speed - 150 / 200 / 300 / 380rpm
Description
Manufactured in TaiwanOn-site hole cutting in steel plates, H-Beams shaped bars, framework, ship building, bridge construction and repair, steel reinforcements, and many other metal working and construction jobs.
Hafco offers a full line of robust and versatile magnetic drilling machines built specifically for the hole making needs of various industries. Applications include fabrication, industrial and civil construction, maintenance, ship building and many others.
This large No. 3 morse taper four speed model drill, has the versatility of using either broach cutters or taper shank drills. It is manual feed and has forward and reverse to make it suitable to be used as a tapping machine.
This model features a purpose-built mag drill motor. This is designed to have the ideal torque characteristics to produce the best performance and durability for heavy-duty industrial use.

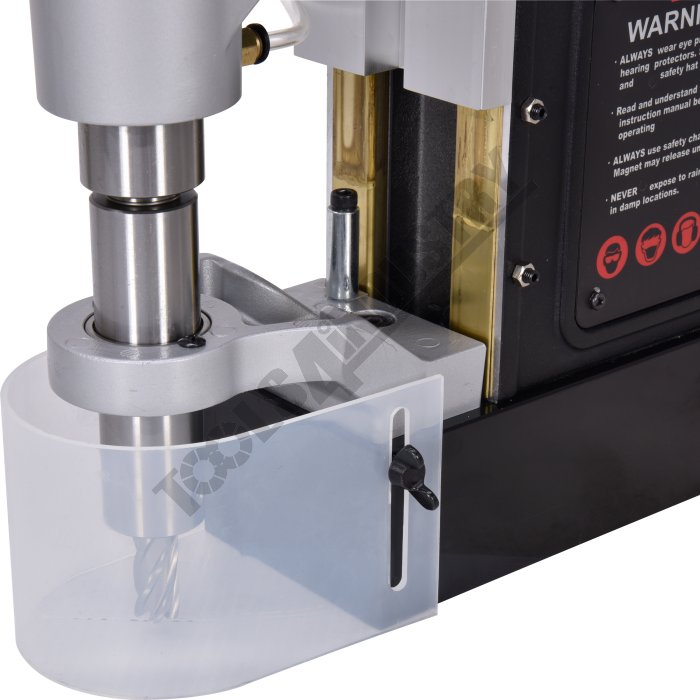

NOTE: Shown with optional broach cutter
Features
- 3MT spindle taper
- 19mm shank broach holder & bracket

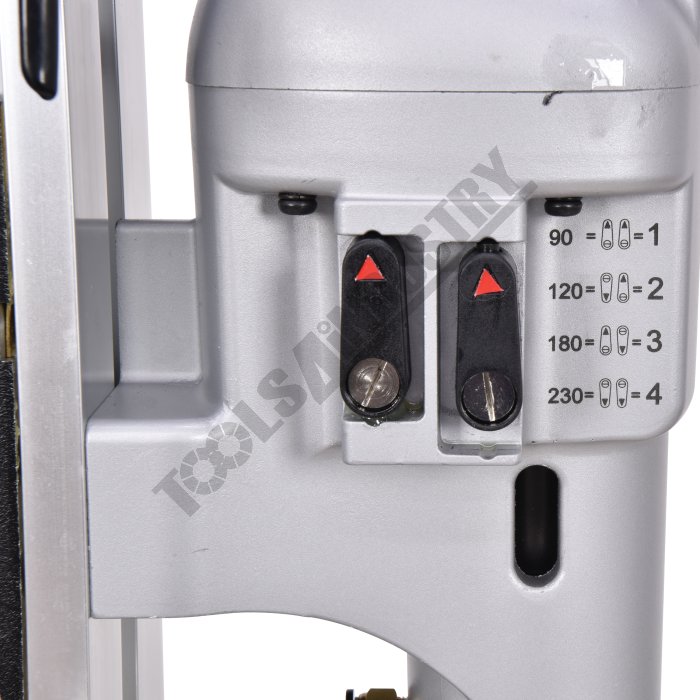

- 4-speed gearbox
- No load speeds: 150, 200, 300, 380rpm
- Full load speeds: 90, 120, 180, 230rpm
- 1800W 240V motor

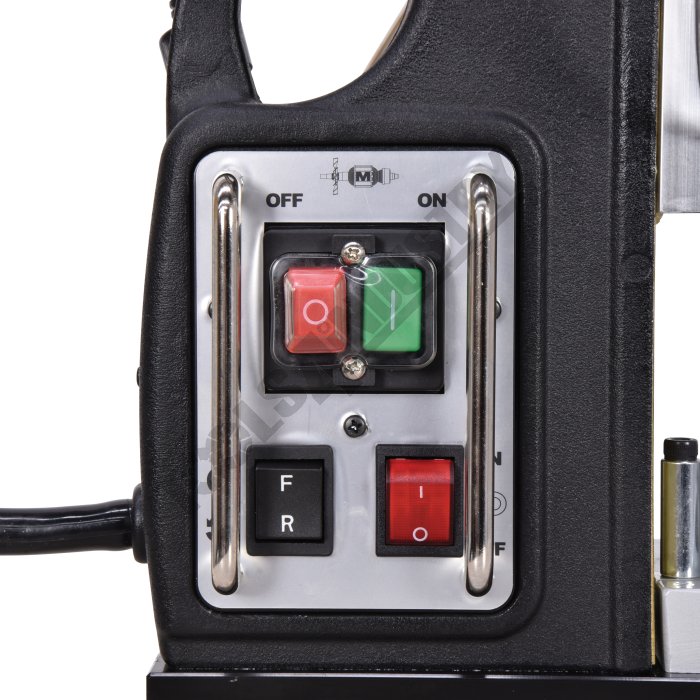

- Forward/reverse for tapping
- Ø75mm drilling capacity through 50mm plate
- Bronze dovetail slides
- Can be used with 3MT drills up-to 31.5mm
- CE approved
Includes
- 3MT spindle taper
- 4 speed gearbox

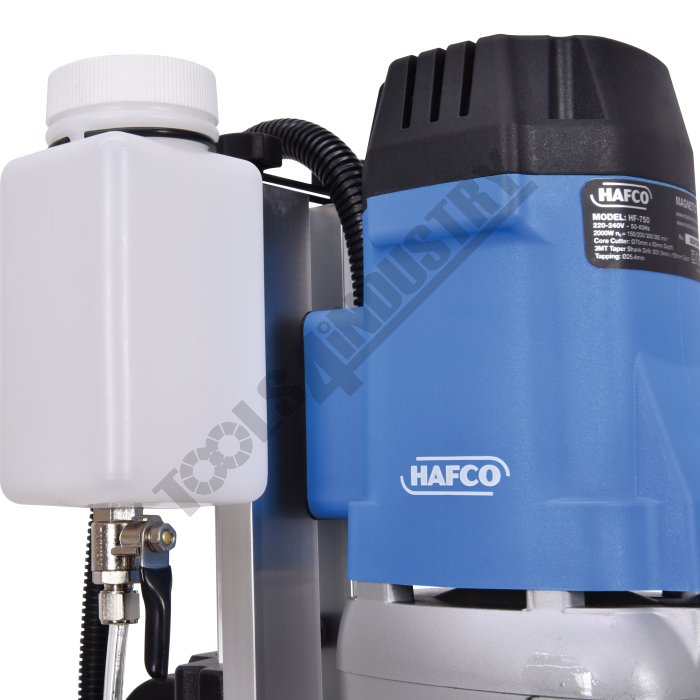

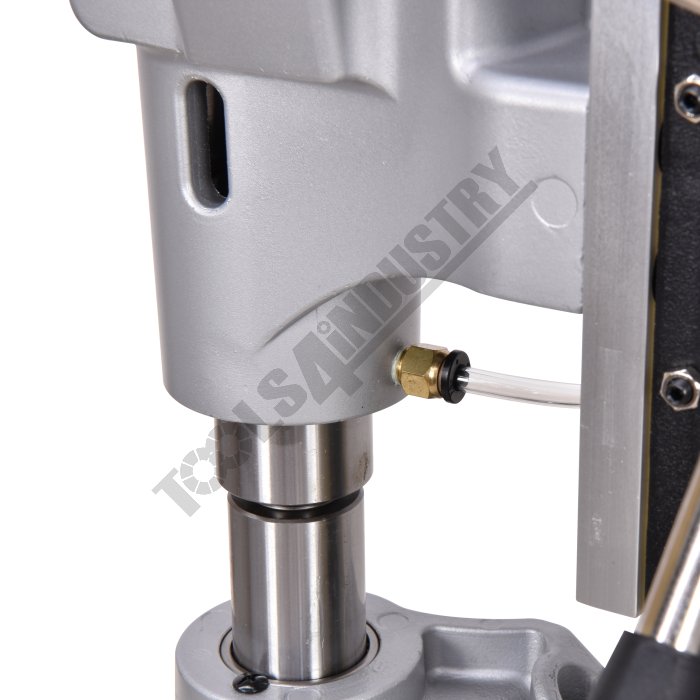

- Coolant tank kit

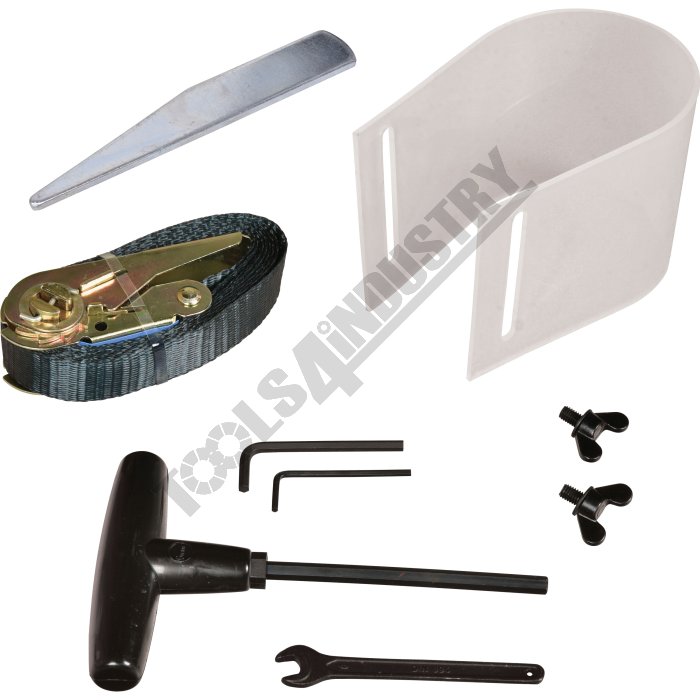

- Safety chain

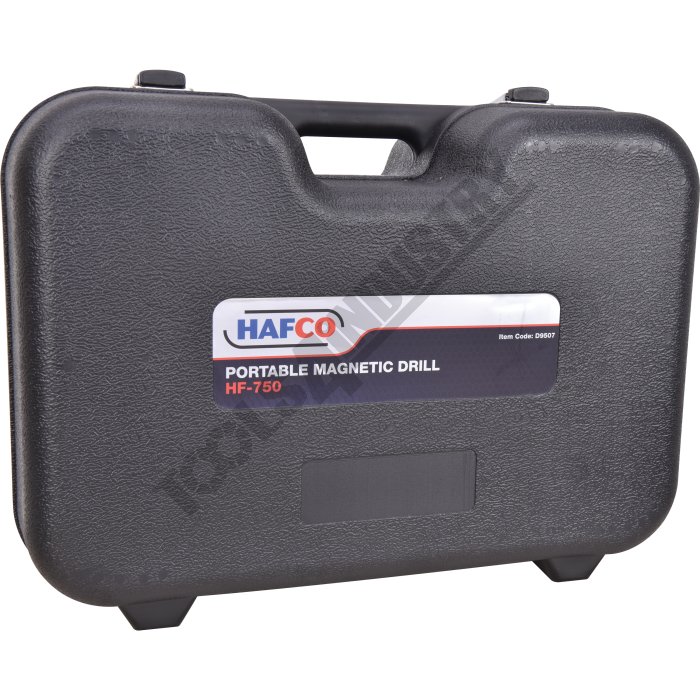

- Blow mould plastic case
Specifications
- Compare 5 Products
- ORDER CODE
- MODEL
- Feed
- Drilling Capacity Range - Manualmm
- Drilling Capacity Range - Auto Feedmm
- Height Adjustmentmm
- Strokemm
- Maximum Thicknessmm
- Suits Cutter Shank Sizemm
- Number of Drilling SpeedsNo.
- Full Load Drilling Speedsrpm
- No Load Drilling Speedsrpm
- Magnetic Holding Powerkg/f
- Motor PowerkW / hp
- Voltage / AmperageV / amp
- Machine Weight Onlykg
- Nett Weightkg
- D9507
- HF-750
- Manual
- 12 - 75
- ~
- ~
- ~
- 50
- 19
- 4
- 90 / 120 / 180 / 230
- 150 / 200 / 300 / 380
- 3263
- 1.8 / 2.4
- 240 / 10
- 24.8
- 31
- D854
- EM-50
- Manual
- 12 - 50
- ~
- 117
- 145
- 50
- 19
- 2
- ~
- 250 / 450
- 1224
- 1.2 / 1.6
- 240 / 10
- ~
- 29
- D9506
- HFLP-35
- Manual
- 12 - 35
- ~
- ~
- ~
- 35
- 19
- 1
- 390
- 650
- 1500
- 1.1 / 1.46
- 240 / 10
- 10
- 14
- D9509
- HF-42
- Manual
- 12 - 42
- ~
- ~
- ~
- 50
- 19
- 1
- 270
- 450
- 1733
- 1.1 / 1.46
- 240 / 10
- 12.6
- 17.5
- D9508
- HF-50
- Manual
- 12 - 50
- ~
- ~
- ~
- 50
- 19
- 2
- 180 / 270
- 300 / 450
- 1733
- 1.1 / 1.46
- 240 / 10
- 14
- 17.5
| ORDER CODE | HF-750 |
|---|---|
| MODEL | Manual |
| Feed | 12 - 75 |
| Drilling Capacity Range - Manualmm | ~ |
| Drilling Capacity Range - Auto Feedmm | ~ |
| Height Adjustmentmm | ~ |
| Strokemm | 50 |
| Maximum Thicknessmm | 19 |
| Suits Cutter Shank Sizemm | 4 |
| Number of Drilling SpeedsNo. | 90 / 120 / 180 / 230 |
| Full Load Drilling Speedsrpm | 150 / 200 / 300 / 380 |
| No Load Drilling Speedsrpm | 3263 |
| Magnetic Holding Powerkg/f | 1.8 / 2.4 |
| Motor PowerkW / hp | 240 / 10 |
| Voltage / AmperageV / amp | 24.8 |
| Machine Weight Onlykg | 31 |
| Nett Weightkg |
