| Code | D9506 |
|---|---|
| Model | HFLP-35 |
| Capacity | Includes Quick Action Broach Chuck & LED Work Light |
| Weight (kg) | 14 |
| Weight (m3) | 0.028 |
| Weight (Freight) | 14 |
| Dimensions (cm) | 45 x 16.5 x 38 |

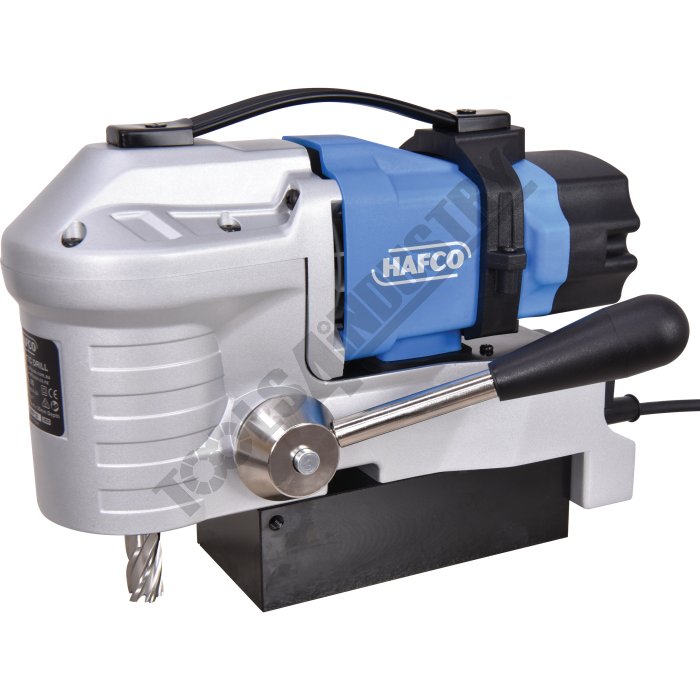

Portable Magnetic Drill - Low Profile HFLP-35 Includes Quick Action Broach Chuck & LED Work Light
Description
Manufactured in Taiwan"New Low Profile Magnetic Drilling Machine" is designed to can enter spaces impossible to reach with a conventional magnetic drill as the total height is only 200mm.
On-site hole cutting in steel plates, H-Beams shaped bars, framework, ship building, bridge construction and repair, steel reinforcements, and many other metal working and construction jobs.
NOTE: Shown with optional broach cutter
Features

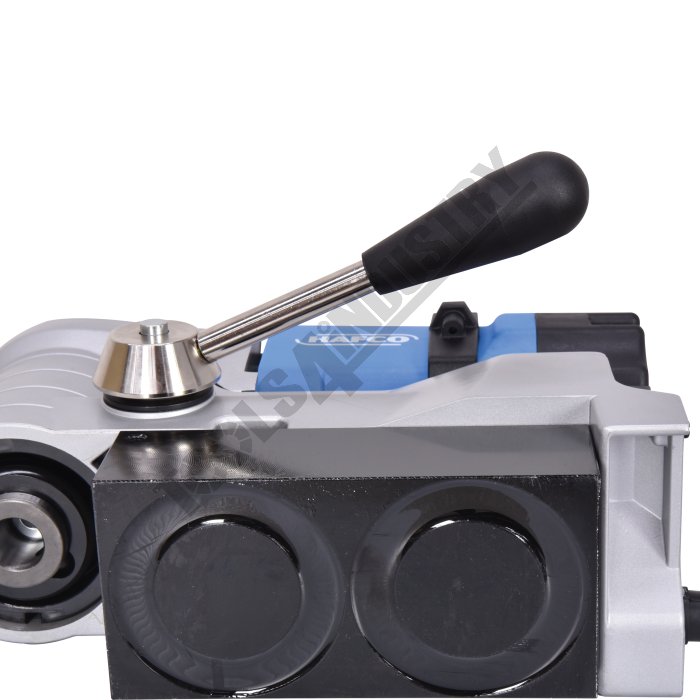

- Low profile & compact with heavy duty magnet
- Drills up to 35mm diameter through 35mm plate
- LED work light help locate drill centre in dark areas
- Quick action broach drill lock release chuck mechanism
- Sturdy carrying strap fixed to unit for convenient positioning
- Sturdy feed handle with quick release can be used on left or right side of machine
- 285 x 101 x 200mm (L x W x H)
- CE approved
Includes

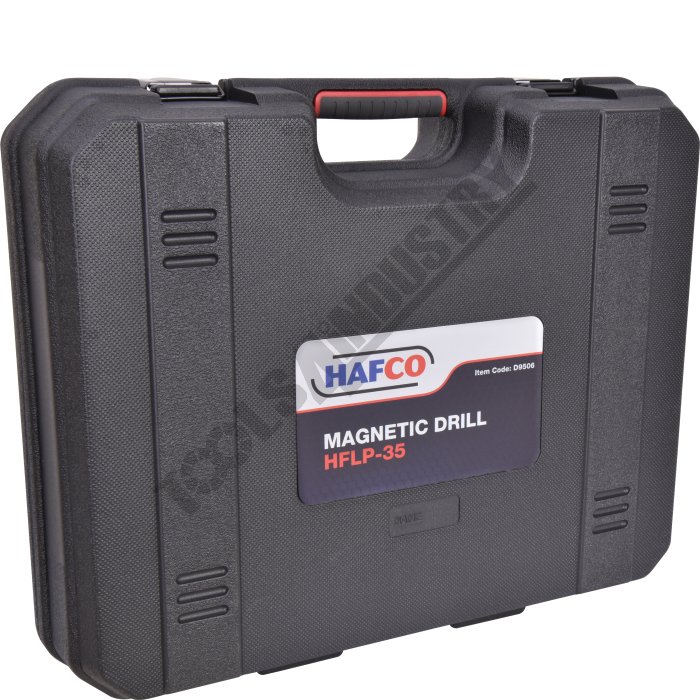

- Blow mould plastic case

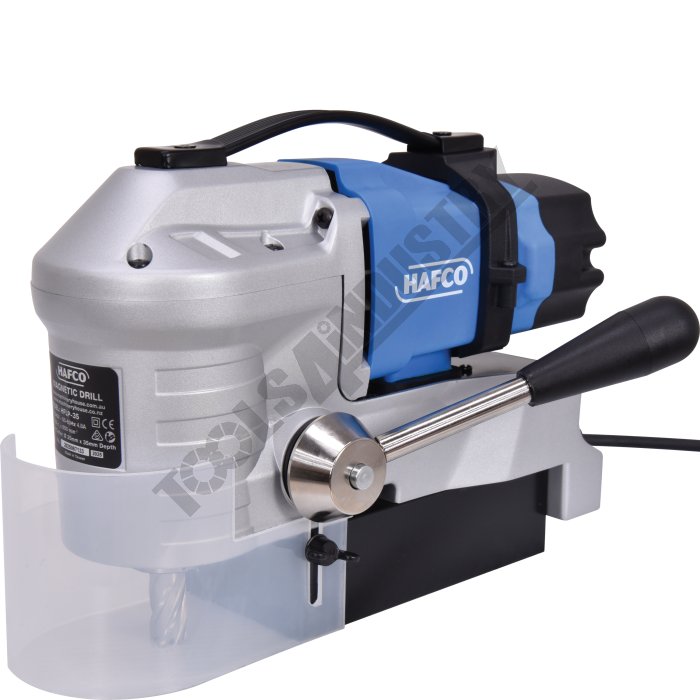

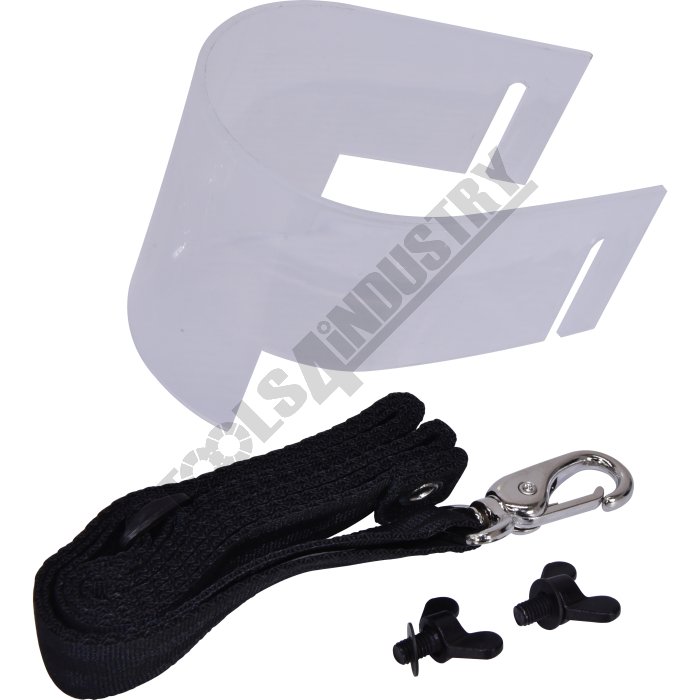

- Chip guard
- Safety strap
Specifications
- Compare 5 Products
- ORDER CODE
- MODEL
- Feed
- Drilling Capacity Range - Manualmm
- Drilling Capacity Range - Auto Feedmm
- Height Adjustmentmm
- Strokemm
- Maximum Thicknessmm
- Suits Cutter Shank Sizemm
- Number of Drilling SpeedsNo.
- Full Load Drilling Speedsrpm
- No Load Drilling Speedsrpm
- Magnetic Holding Powerkg/f
- Motor PowerkW / hp
- Voltage / AmperageV / amp
- Machine Weight Onlykg
- Nett Weightkg
- D9506
- HFLP-35
- Manual
- 12 - 35
- ~
- ~
- ~
- 35
- 19
- 1
- 390
- 650
- 1500
- 1.1 / 1.46
- 240 / 10
- 10
- 14
- D9509
- HF-42
- Manual
- 12 - 42
- ~
- ~
- ~
- 50
- 19
- 1
- 270
- 450
- 1733
- 1.1 / 1.46
- 240 / 10
- 12.6
- 17.5
- D9508
- HF-50
- Manual
- 12 - 50
- ~
- ~
- ~
- 50
- 19
- 2
- 180 / 270
- 300 / 450
- 1733
- 1.1 / 1.46
- 240 / 10
- 14
- 17.5
- D9507
- HF-750
- Manual
- 12 - 75
- ~
- ~
- ~
- 50
- 19
- 4
- 90 / 120 / 180 / 230
- 150 / 200 / 300 / 380
- 3263
- 1.8 / 2.4
- 240 / 10
- 24.8
- 31
- D854
- EM-50
- Manual
- 12 - 50
- ~
- 117
- 145
- 50
- 19
- 2
- ~
- 250 / 450
- 1224
- 1.2 / 1.6
- 240 / 10
- ~
- 29
| ORDER CODE | HFLP-35 |
|---|---|
| MODEL | Manual |
| Feed | 12 - 35 |
| Drilling Capacity Range - Manualmm | ~ |
| Drilling Capacity Range - Auto Feedmm | ~ |
| Height Adjustmentmm | ~ |
| Strokemm | 35 |
| Maximum Thicknessmm | 19 |
| Suits Cutter Shank Sizemm | 1 |
| Number of Drilling SpeedsNo. | 390 |
| Full Load Drilling Speedsrpm | 650 |
| No Load Drilling Speedsrpm | 1500 |
| Magnetic Holding Powerkg/f | 1.1 / 1.46 |
| Motor PowerkW / hp | 240 / 10 |
| Voltage / AmperageV / amp | 10 |
| Machine Weight Onlykg | 14 |
| Nett Weightkg |
