| Code | D854 |
|---|---|
| Model | EM-50 |
| Capacity | Includes 2 x Drilling Speeds 250 / 450rpm |
| Weight (kg) | 29 |
| Weight (m3) | 0.058 |
| Weight (Freight) | 29 |
| Dimensions (cm) | 52 x 43 x 26 |
| Only Available From | (Limited Availability) |

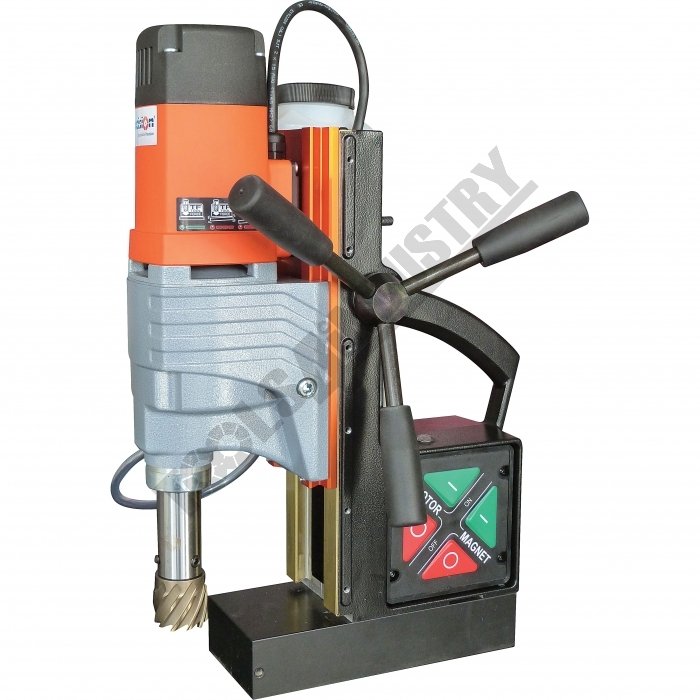

Portable Magnetic Drill EM-50 Includes 2 x Drilling Speeds 250 / 450rpm
Description

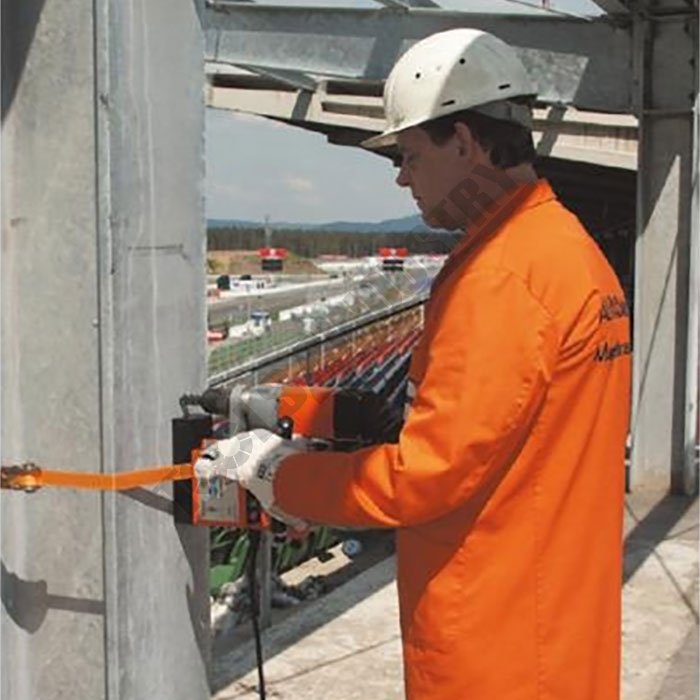

The EM-50 is the 2 speed industrial workhorse magnetic based drill of Excision's range. The EM 50 allows for a large range of application through the double height adjustment, and direct weldon type arbor.On-site hole cutting in steel plates, H-Beams shaped bars, framework, ship building, bridge construction and repair, steel reinforcements, and many other metal working and construction jobs.
NOTE: Shown with optional broach cutter
Features

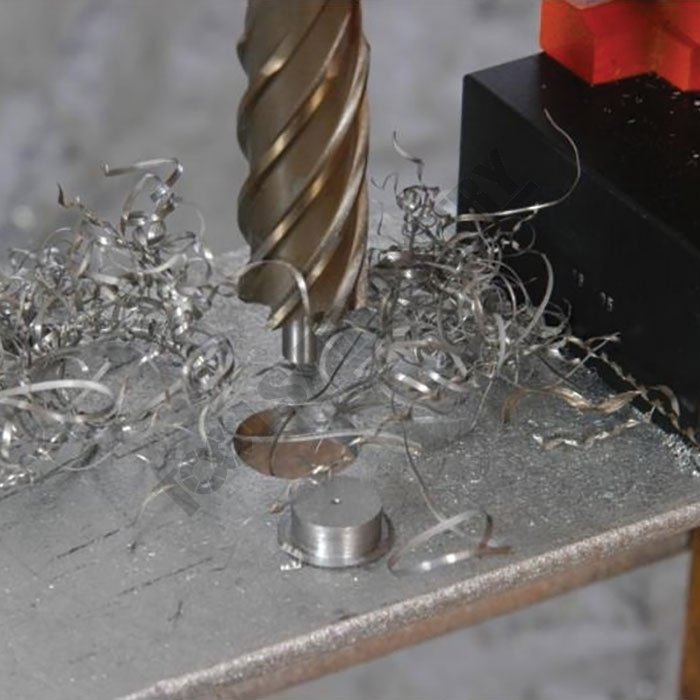

- Drills up to 50mm diameter through 50mm plate
- 3 Coil 12,000N Magnetic adhesion for industrial use

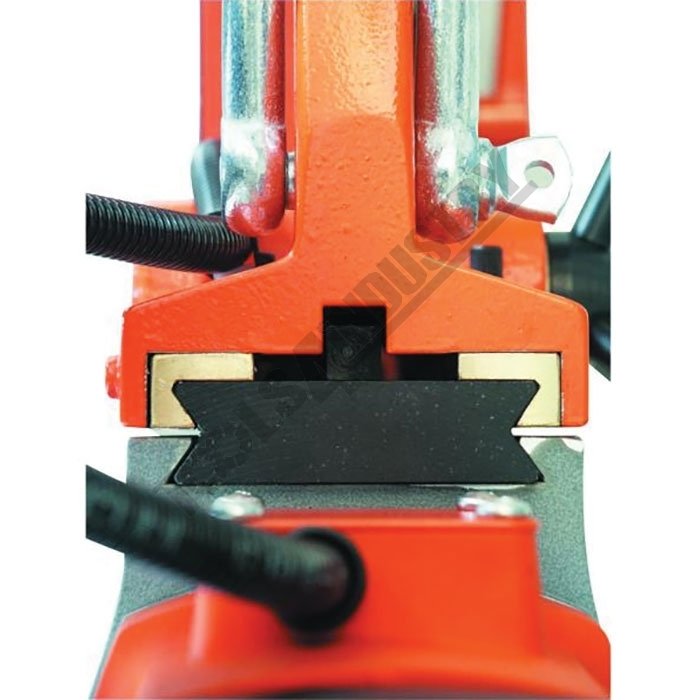

- Spring loaded guides for rigid gliding and reduced vibration
- Height adjustable slide enables an increased range of applications including standard twist drills
- Smart start feature protects the motor to increase longevity
- Direct Weldon arbor type spindle for use with all 19mm shank core drills
- Durable touch pad for ergonomic use
- Hybrid relays to protect circuit board from voltage spikes
- Integrated coolant system to increase the life of your core drills
- 145mm stroke
- Height adjustment 117mm
- 2 speeds 250/450rpm
- 1200W motor
- 15kg weight
Includes

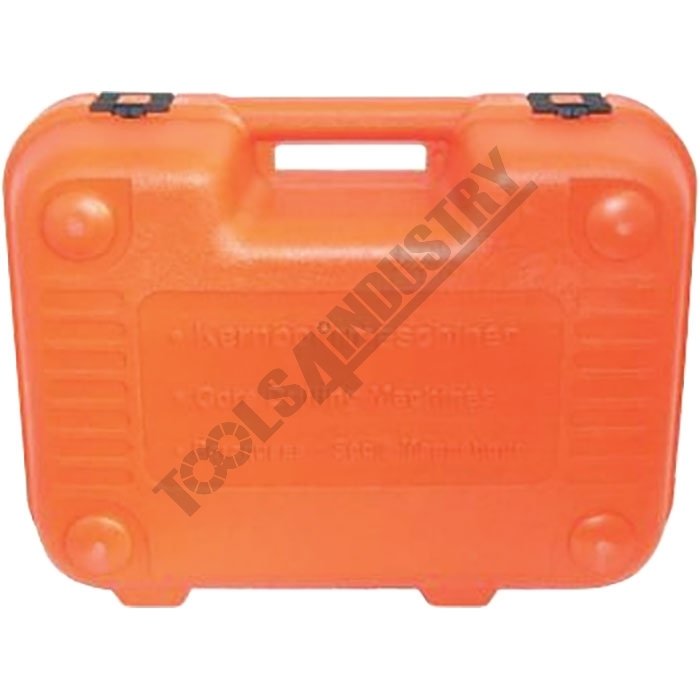

- Transport Case
- Coolant Unit
Specifications
- Compare 5 Products
- ORDER CODE
- MODEL
- Feed
- Drilling Capacity Range - Manualmm
- Drilling Capacity Range - Auto Feedmm
- Height Adjustmentmm
- Strokemm
- Maximum Thicknessmm
- Suits Cutter Shank Sizemm
- Number of Drilling SpeedsNo.
- Full Load Drilling Speedsrpm
- No Load Drilling Speedsrpm
- Magnetic Holding Powerkg/f
- Motor PowerkW / hp
- Voltage / AmperageV / amp
- Machine Weight Onlykg
- Nett Weightkg
- D854
- EM-50
- Manual
- 12 - 50
- ~
- 117
- 145
- 50
- 19
- 2
- ~
- 250 / 450
- 1224
- 1.2 / 1.6
- 240 / 10
- ~
- 29
- D9506
- HFLP-35
- Manual
- 12 - 35
- ~
- ~
- ~
- 35
- 19
- 1
- 390
- 650
- 1500
- 1.1 / 1.46
- 240 / 10
- 10
- 14
- D9509
- HF-42
- Manual
- 12 - 42
- ~
- ~
- ~
- 50
- 19
- 1
- 270
- 450
- 1733
- 1.1 / 1.46
- 240 / 10
- 12.6
- 17.5
- D9508
- HF-50
- Manual
- 12 - 50
- ~
- ~
- ~
- 50
- 19
- 2
- 180 / 270
- 300 / 450
- 1733
- 1.1 / 1.46
- 240 / 10
- 14
- 17.5
- D9507
- HF-750
- Manual
- 12 - 75
- ~
- ~
- ~
- 50
- 19
- 4
- 90 / 120 / 180 / 230
- 150 / 200 / 300 / 380
- 3263
- 1.8 / 2.4
- 240 / 10
- 24.8
- 31
| ORDER CODE | EM-50 |
|---|---|
| MODEL | Manual |
| Feed | 12 - 50 |
| Drilling Capacity Range - Manualmm | ~ |
| Drilling Capacity Range - Auto Feedmm | 117 |
| Height Adjustmentmm | 145 |
| Strokemm | 50 |
| Maximum Thicknessmm | 19 |
| Suits Cutter Shank Sizemm | 2 |
| Number of Drilling SpeedsNo. | ~ |
| Full Load Drilling Speedsrpm | 250 / 450 |
| No Load Drilling Speedsrpm | 1224 |
| Magnetic Holding Powerkg/f | 1.2 / 1.6 |
| Motor PowerkW / hp | 240 / 10 |
| Voltage / AmperageV / amp | ~ |
| Machine Weight Onlykg | 29 |
| Nett Weightkg |
