| Code | A356 |
|---|---|
| Model | UTECRANE500 |
| Capacity | *800kg Lifting Capacity |
| Weight (kg) | 64 |
| Weight (m3) | 0.276 |
| Weight (Freight) | 91.908 |
| Dimensions (cm) | 127 x 64 x 34 |

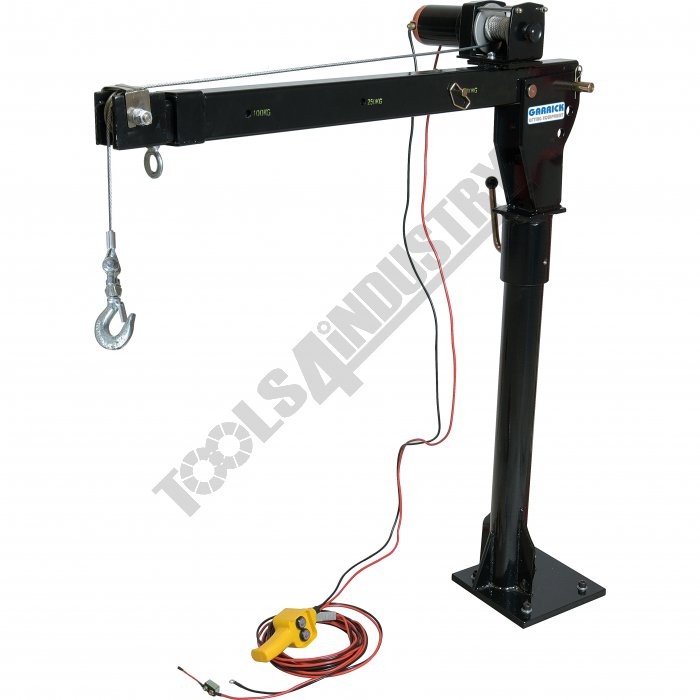

Swivel Crane - Truck or Ute UTECRANE500 *800kg Lifting Capacity
Description
The CR500EL utility crane is lightweight, portable & compact design for mounting onto ute's, service bodies, vans, trucks, loading docks, platforms for lifting goods on and off up to 500kg with a single line lift via the powerful 12 volt DC winch.Features

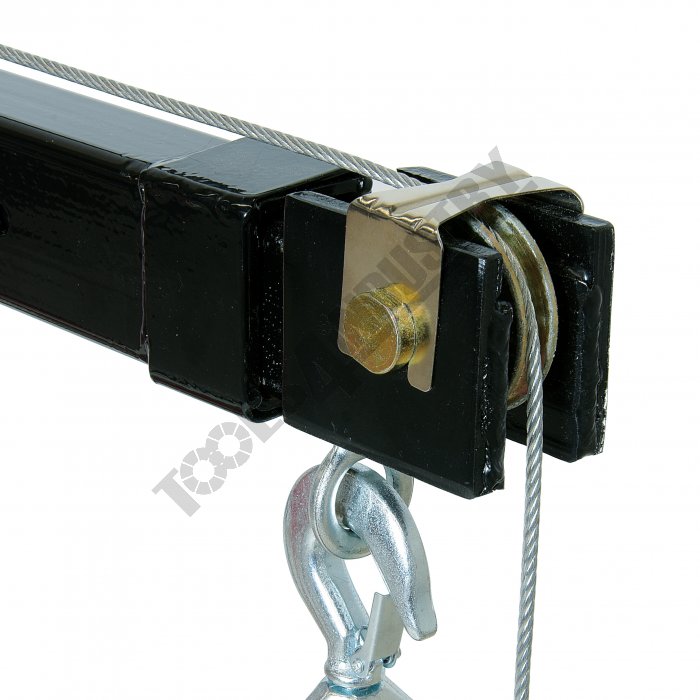

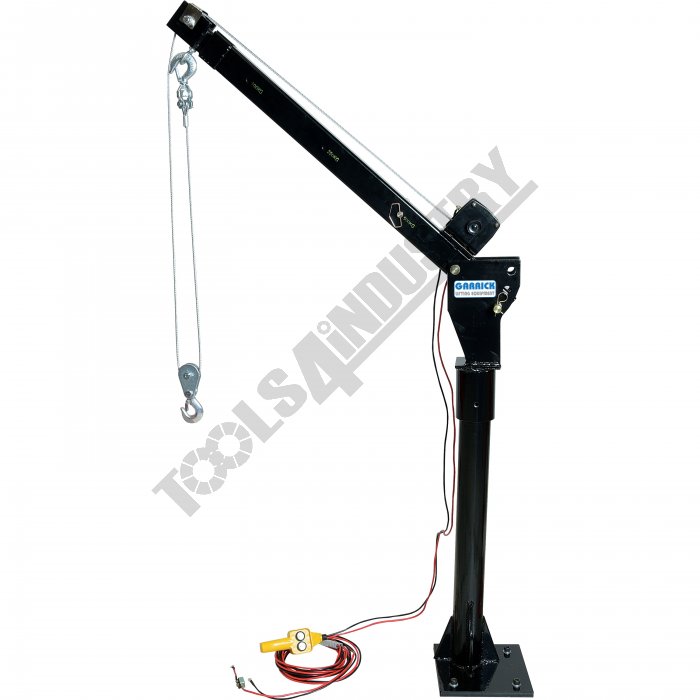

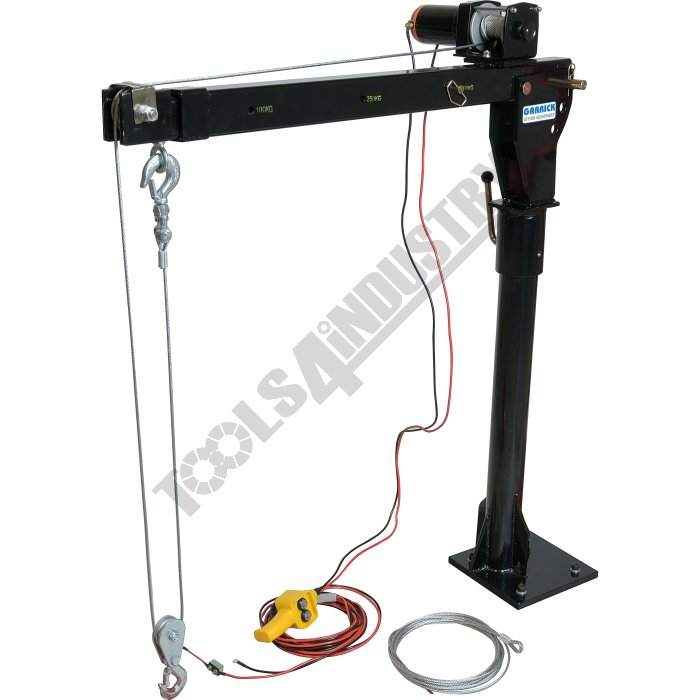

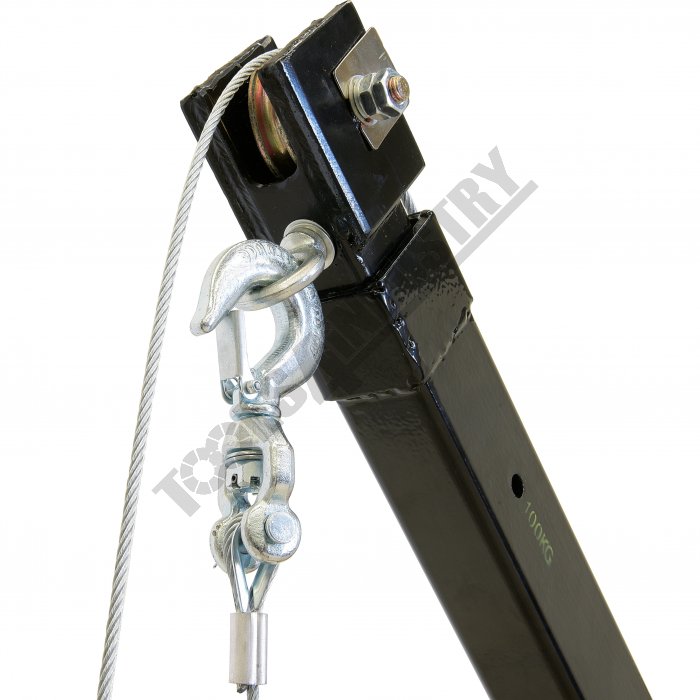

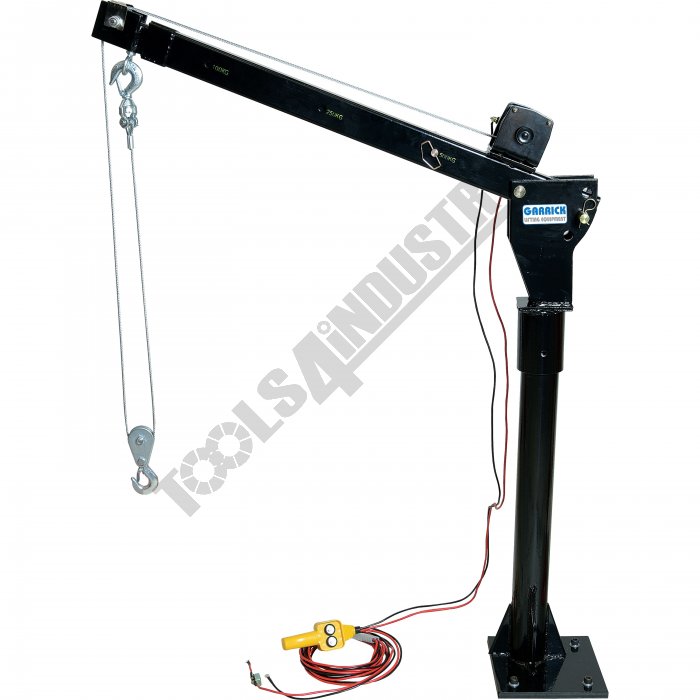

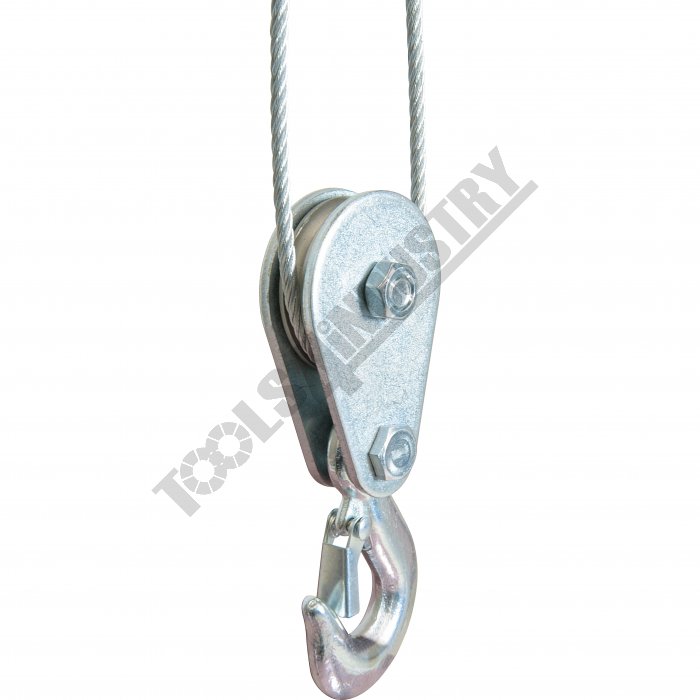

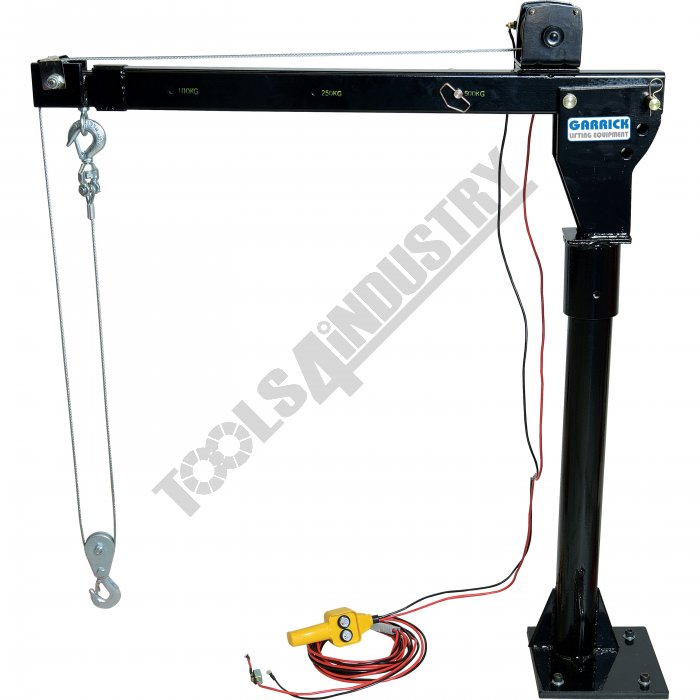

- *800kg capacity, when set up with double line lifting
- 500kg capacity, when set up with single line lifting

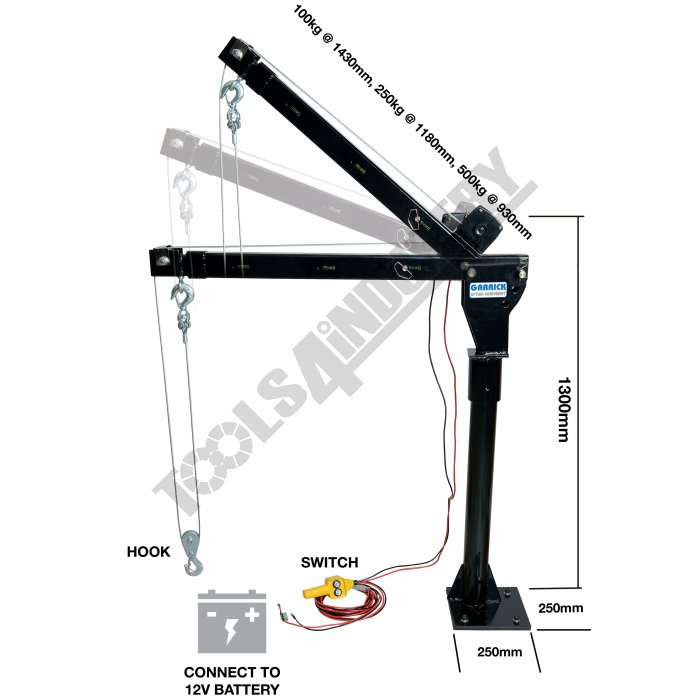

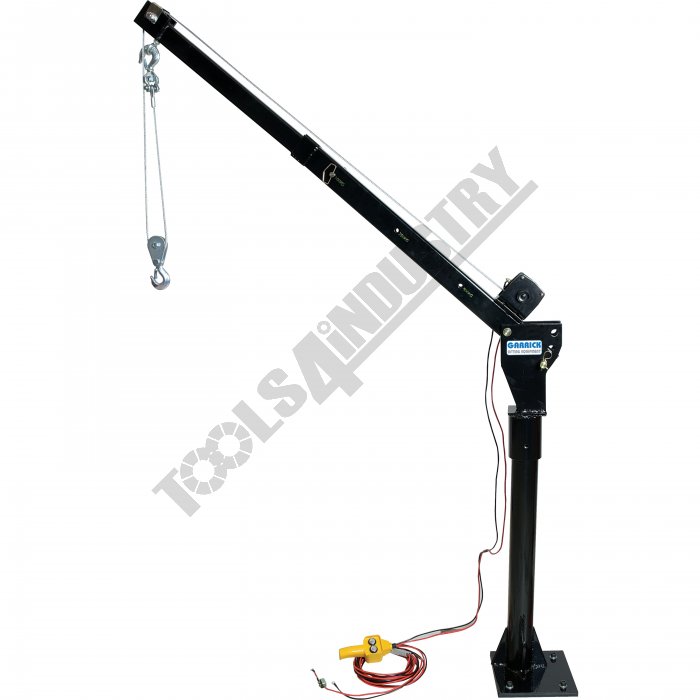

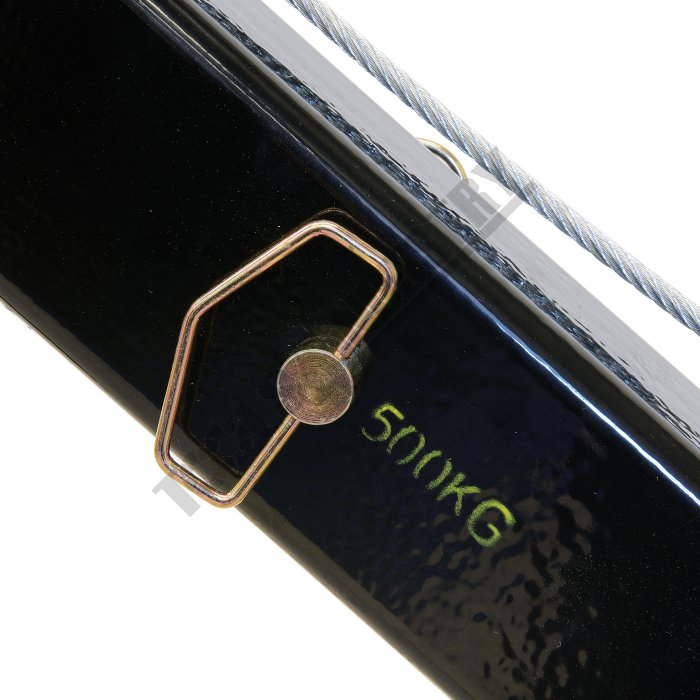

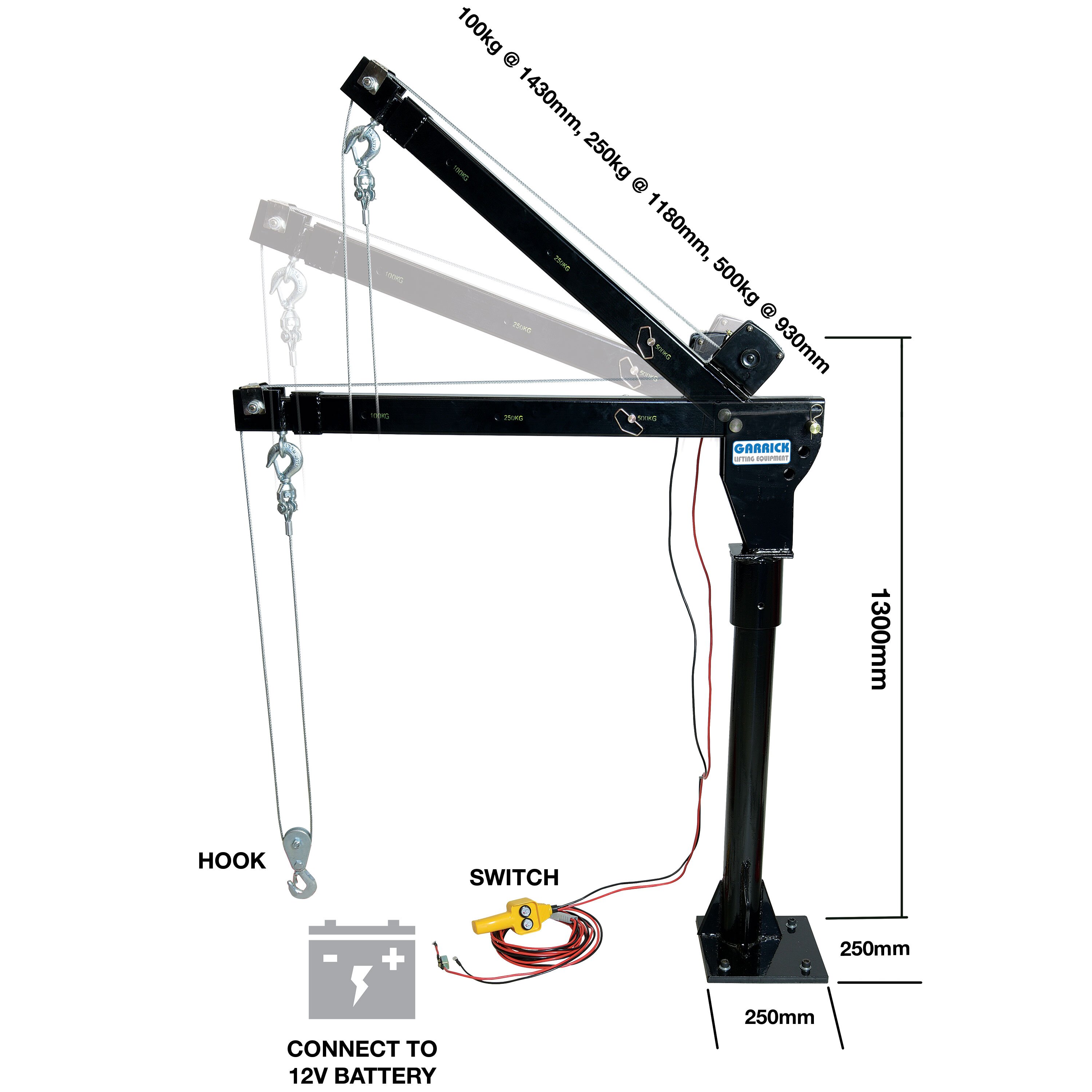

- 3 position telescoping boom : 500kg @ 930mm, 250kg @ 1180mm, 100kg @ 1430mm when set up with single line lifting

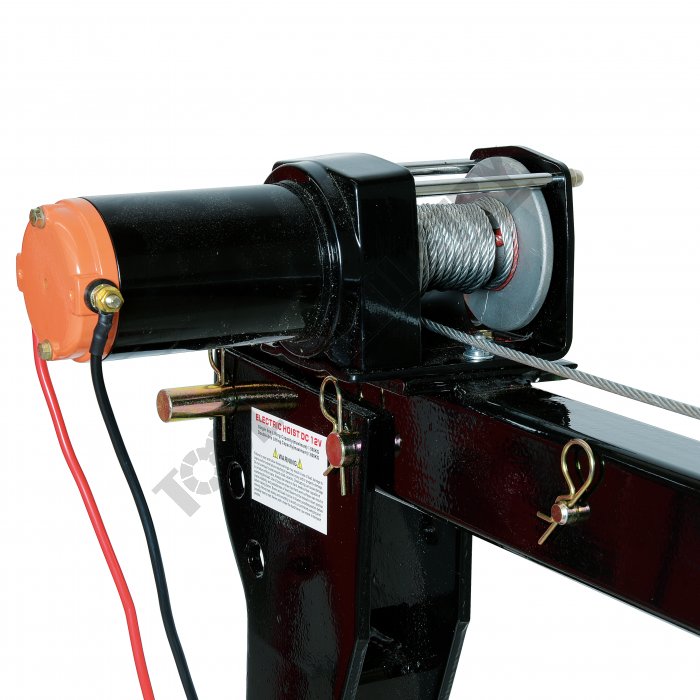

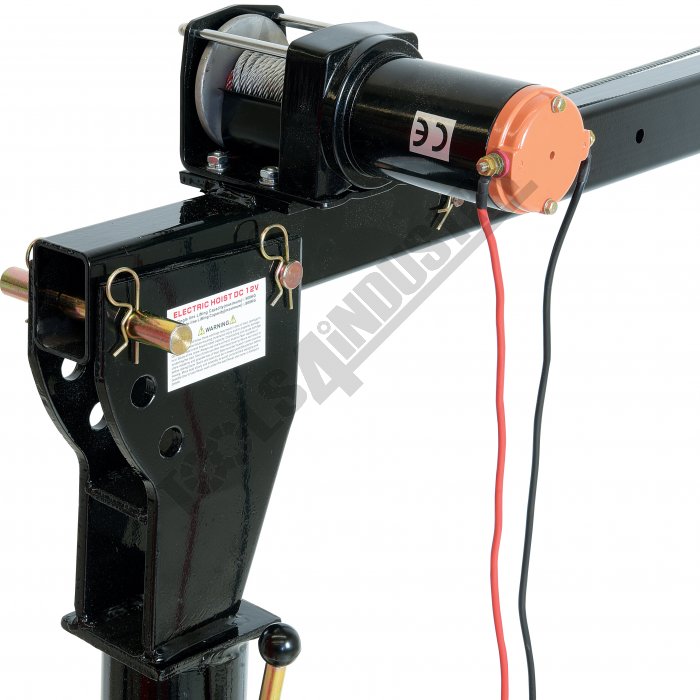

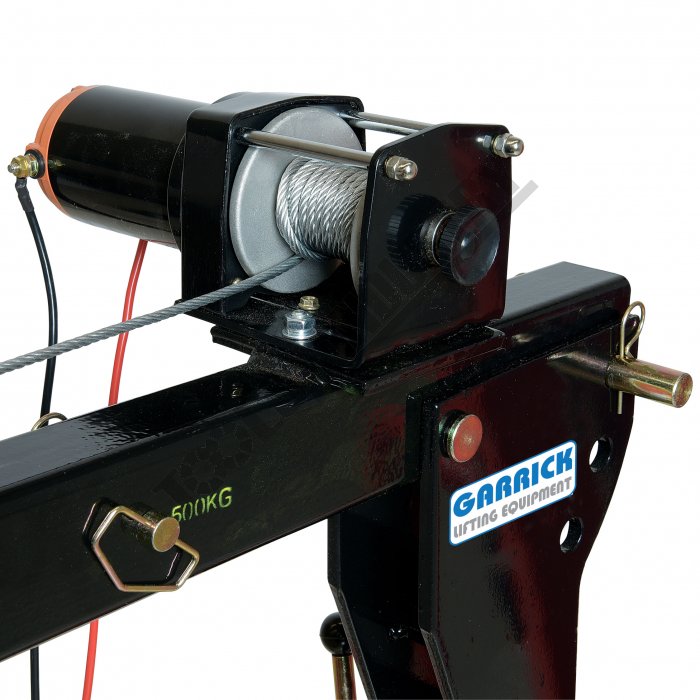

- Lifting electric winch: 12V DC 125amps

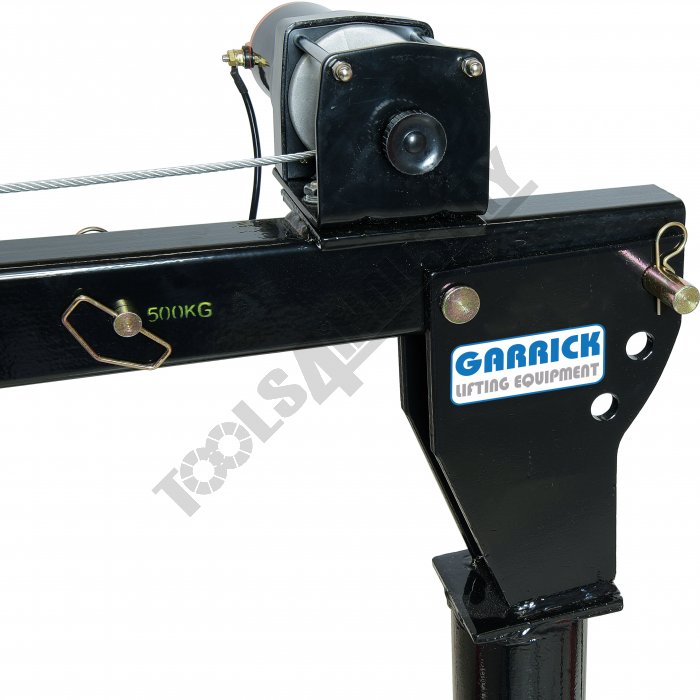

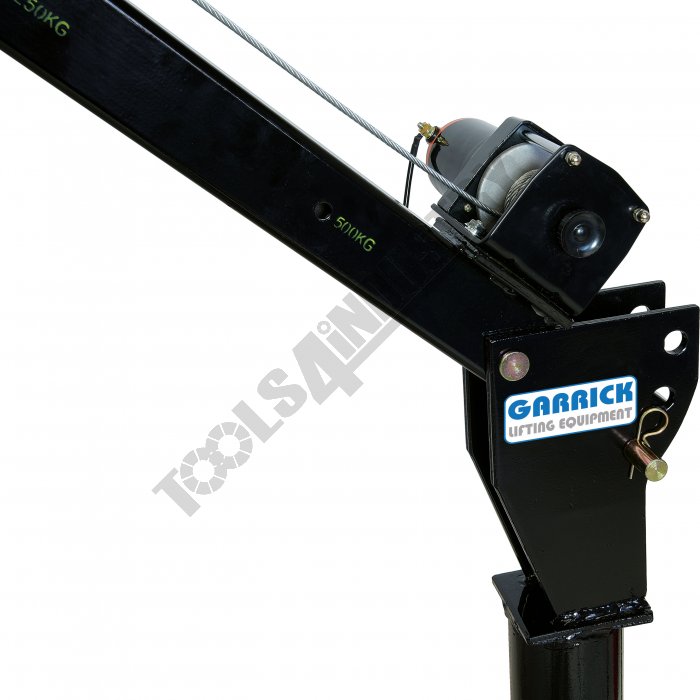

- 3 boom elevation angles: 3°, 20°, 40° raised manually
- 3.6m/min speed with no load & single line lift
- 360° continuous manual rotation of sealed thrust bearing

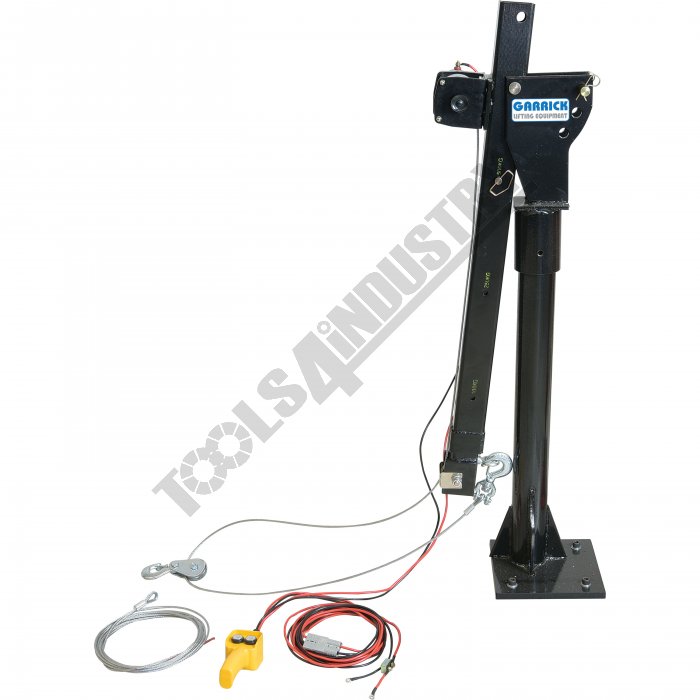

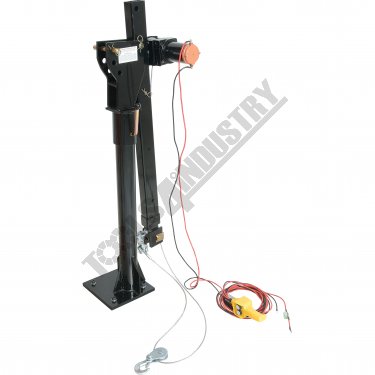

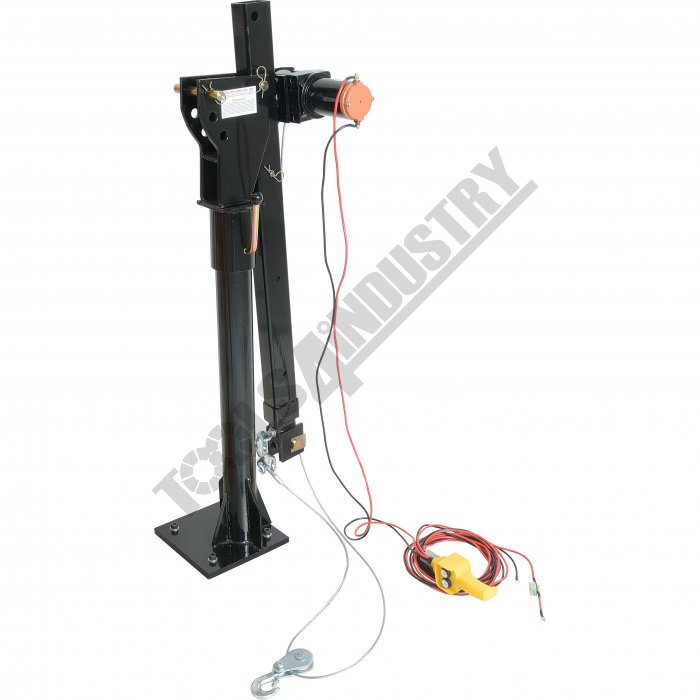

- Storage height folded (from base): 1300mm
- Lifting height (Base to hook): 1940mm

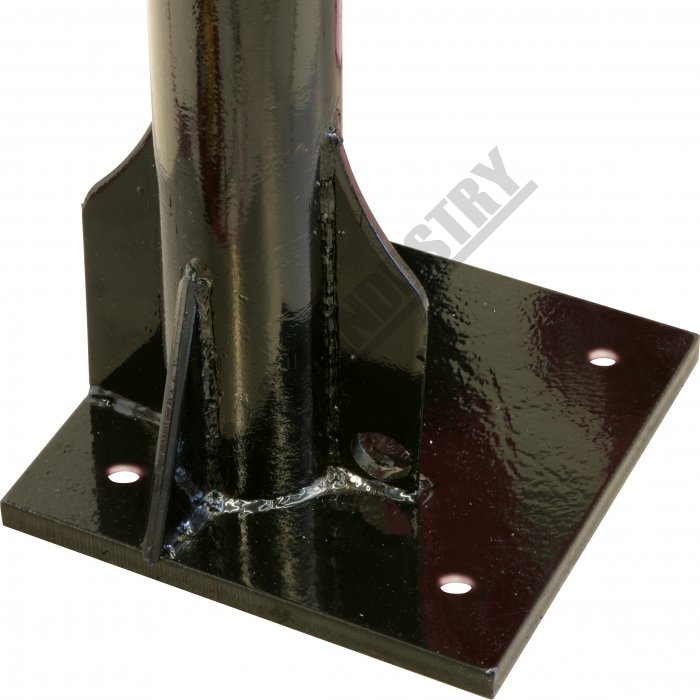

- 250 x 250 x 16mm mounting base plate with 170 x 170mm bolt holes centres

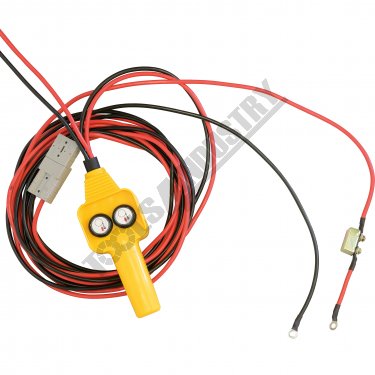

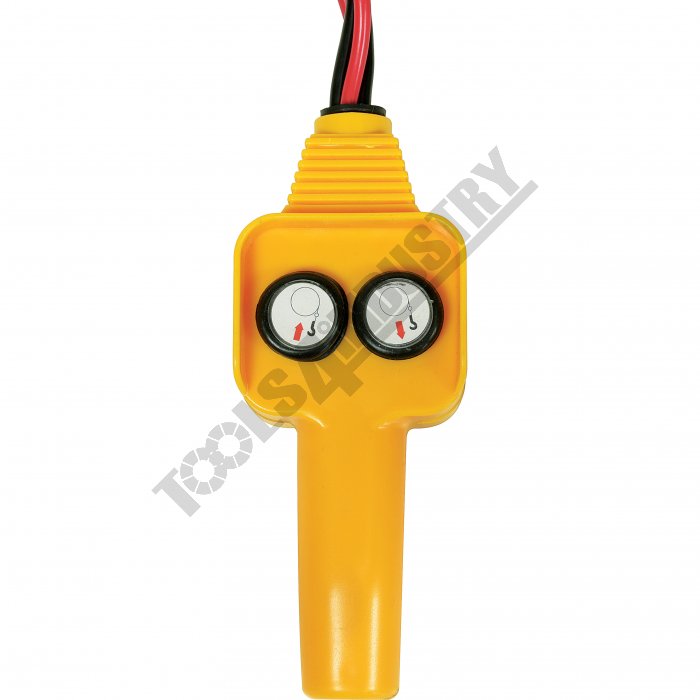

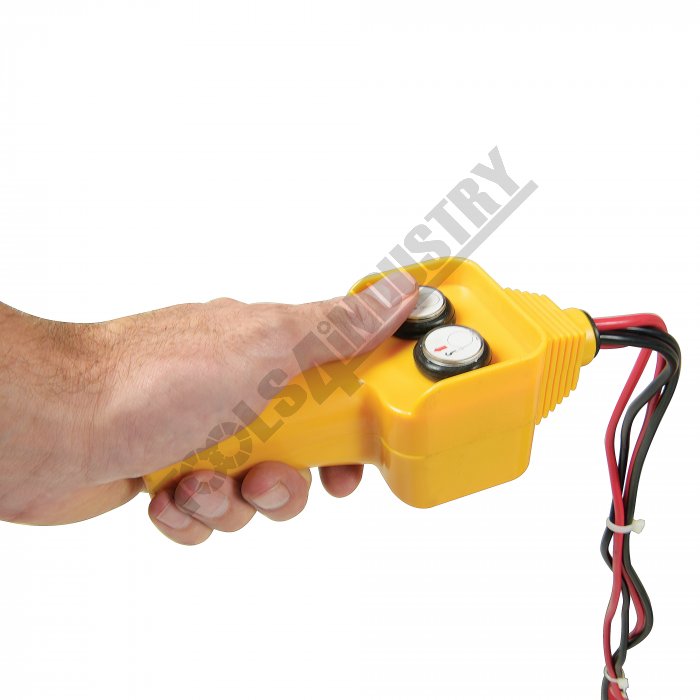

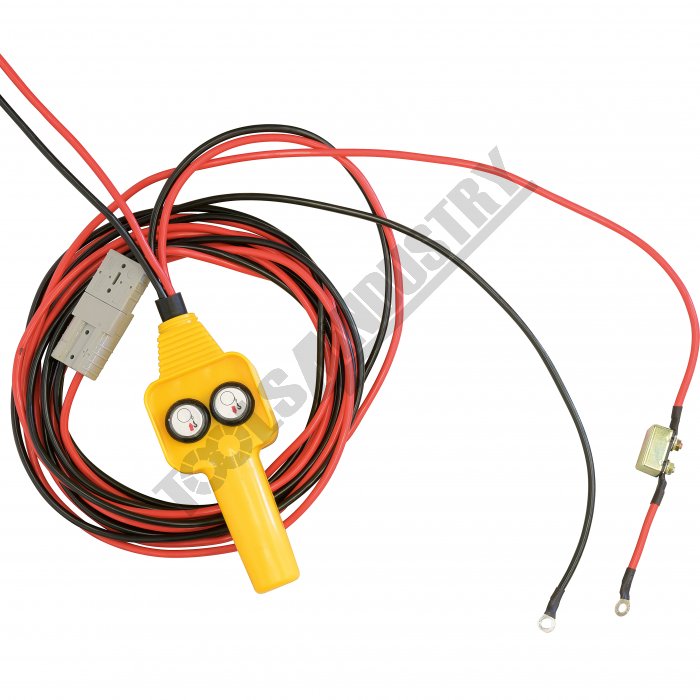

- Hand control with 4.2 metre cable

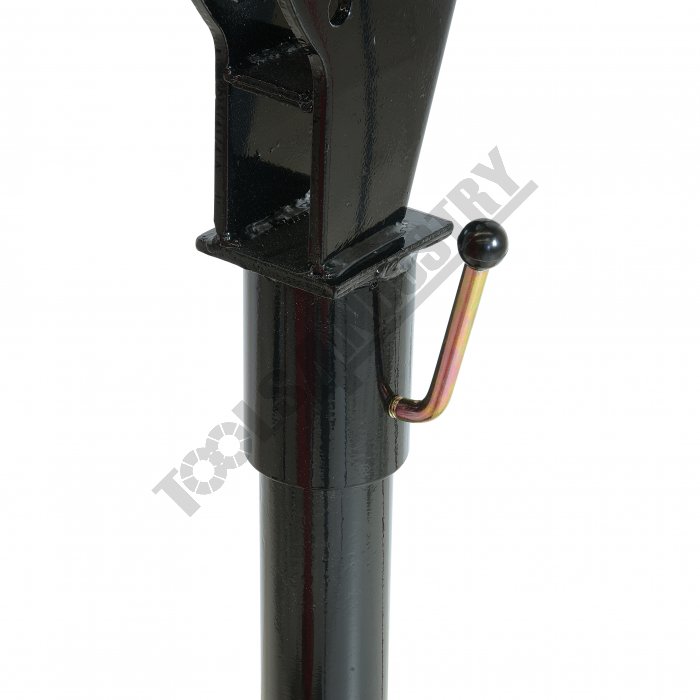

- Rotation hand lock
- Complies with Australian Standard AS1418.2
- Supplied with test certificate
Specifications
- Compare 2 Products
- Order Code
- MODEL
- Hydraulic RamTonne
- Power SupplyV
- Single Line Lifting Capacitykg
- Double Line Lifting Capacitykg
- Lifting SystemType
- Lift Capacity Pin LocationsKg
- Steel Box Section Size - Vertical Supportmm
- Steel Box Section Size - Extension Arm Supportmm
- Max. Lift Height (Base to Lifting Shackle)mm
- Min. Lift Height (Base to Lifting Shackle)mm
- Overall Height - Boom at Lowest Positionmm
- Nett Weightkg
| Order Code | UTECRANE500 |
|---|---|
| MODEL | ~ |
| Hydraulic RamTonne | 12 |
| Power SupplyV | 500 |
| Single Line Lifting Capacitykg | 800 |
| Double Line Lifting Capacitykg | Electric Winch |
| Lifting SystemType | 500, 250 & 100 |
| Lift Capacity Pin LocationsKg | Ø86 |
| Steel Box Section Size - Vertical Supportmm | 75 x 50 |
| Steel Box Section Size - Extension Arm Supportmm | ~ |
| Max. Lift Height (Base to Lifting Shackle)mm | ~ |
| Min. Lift Height (Base to Lifting Shackle)mm | 1300 |
| Overall Height - Boom at Lowest Positionmm | 64 |
| Nett Weightkg |
