| Code | A354 |
|---|---|
| Model | TCS-907 |
| Capacity | 900kg Lifting Capacity |
| Weight (kg) | 65 |
| Weight (m3) | 0.107 |
| Weight (Freight) | 65 |
| Dimensions (cm) | 127 x 35 x 24 |

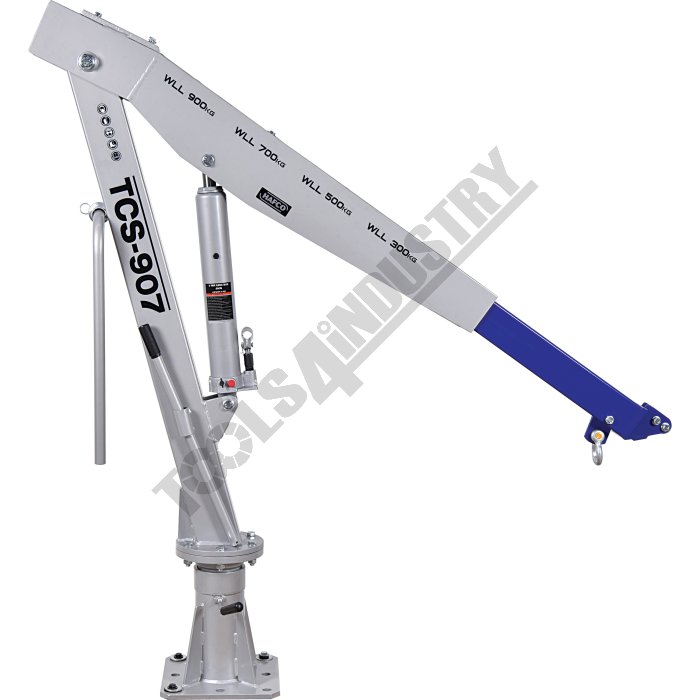

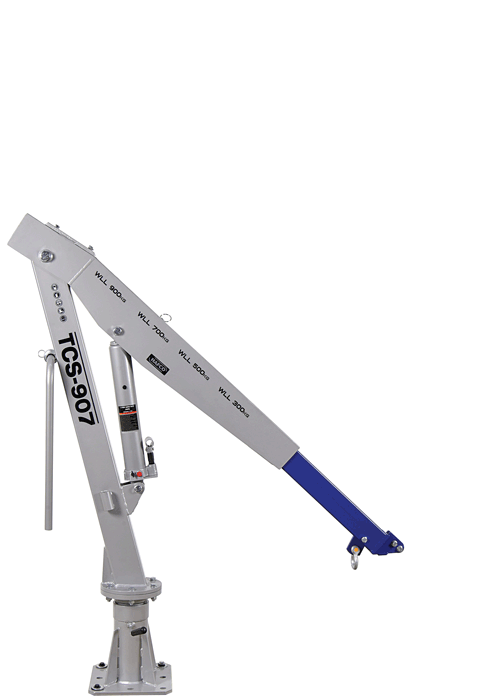

Swivel Crane - Truck or Ute TCS-907 900kg Lifting Capacity
Description
Use it in your workshop or the back of your ute / truck. The base includes a tapered roller bearing for 360-degree swivel & the bow shackle lifting point to securely attach slings or chains.Features
- Heavy duty steel construction with robot welded components

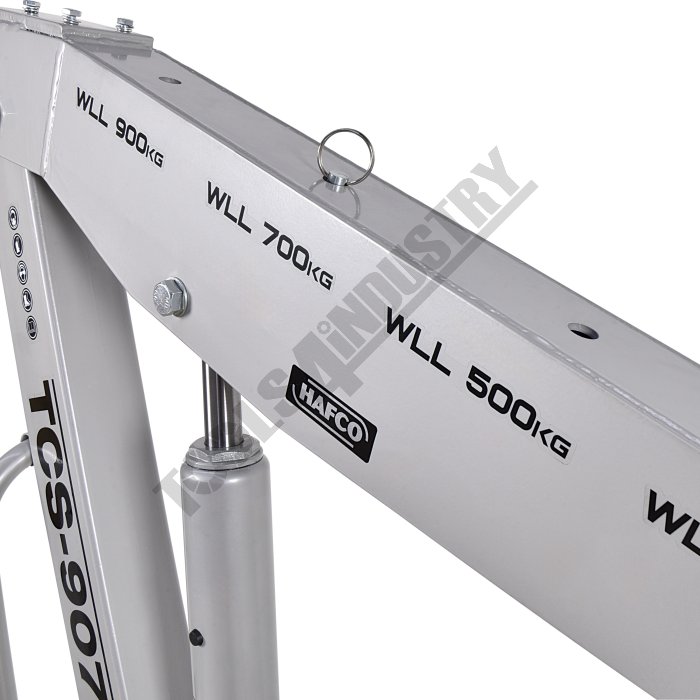

- 4 Lifting positions - 900kg, 700kg, 500kg & 300kg
- 360º swiveling base with taper roller bearing

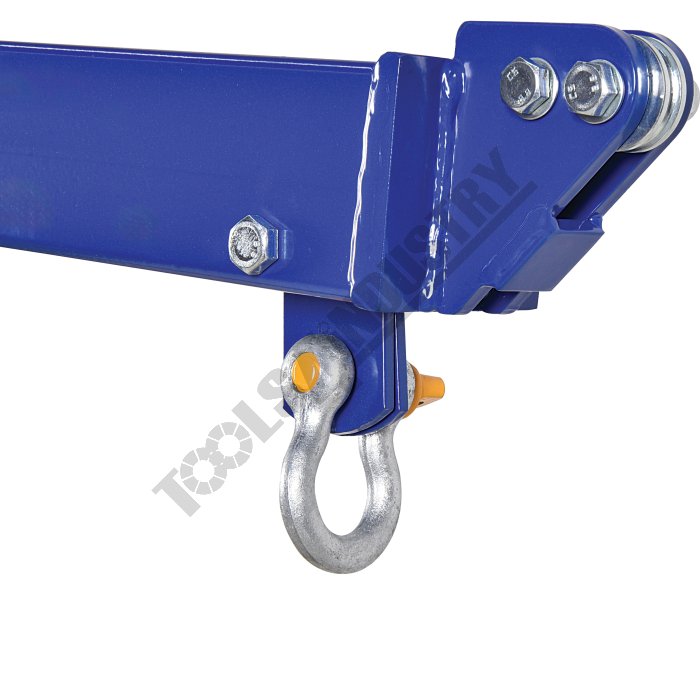

- Supplied with a load rated bow shackle

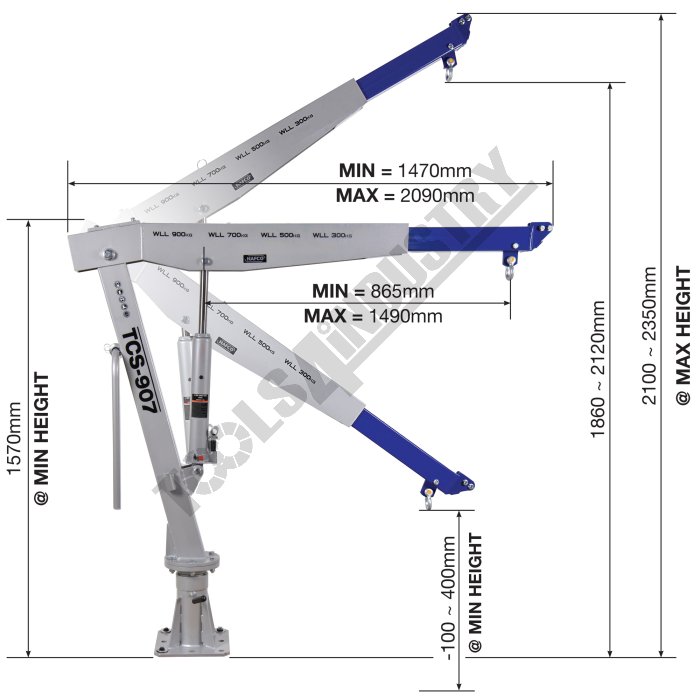

- Max. Lift Height at 900kg Position = 1880mm
- Max. Lift Height at 300kg Position = 2150mm
Specifications
- Compare 2 Products
- Order Code
- MODEL

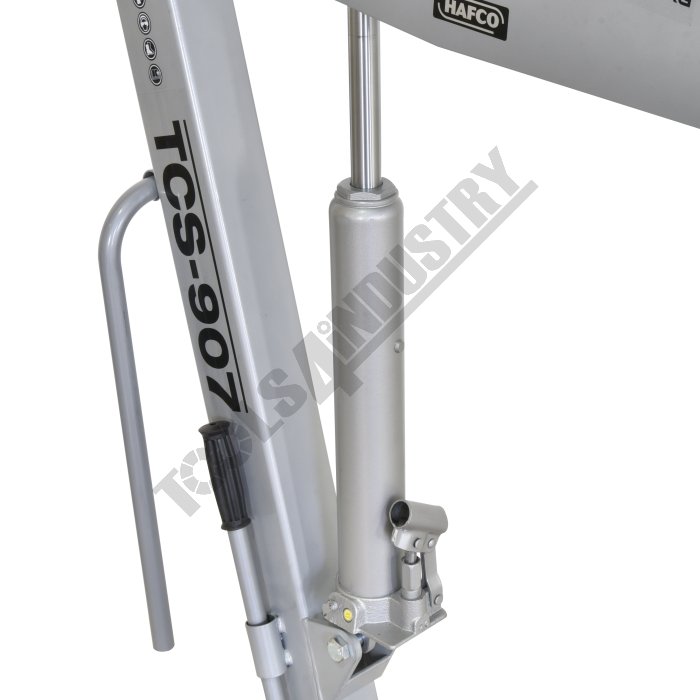

- Hydraulic RamTonne
- Power SupplyV
- Single Line Lifting Capacitykg
- Double Line Lifting Capacitykg
- Lifting SystemType
- Lift Capacity Pin LocationsKg
- Steel Box Section Size - Vertical Supportmm
- Steel Box Section Size - Extension Arm Supportmm
- Max. Lift Height (Base to Lifting Shackle)mm
- Min. Lift Height (Base to Lifting Shackle)mm
- Overall Height - Boom at Lowest Positionmm
- Nett Weightkg
| Order Code | TCS-907 |
|---|---|
| MODEL | 3 |
| Hydraulic RamTonne | ~ |
| Power SupplyV | 900 |
| Single Line Lifting Capacitykg | ~ |
| Double Line Lifting Capacitykg | Hydraulic - Manual |
| Lifting SystemType | 900, 700, 500 & 300 |
| Lift Capacity Pin LocationsKg | 100 x 80 |
| Steel Box Section Size - Vertical Supportmm | 90 x 90 |
| Steel Box Section Size - Extension Arm Supportmm | ~ |
| Max. Lift Height (Base to Lifting Shackle)mm | ~ |
| Min. Lift Height (Base to Lifting Shackle)mm | 1600 |
| Overall Height - Boom at Lowest Positionmm | 88 |
| Nett Weightkg |
