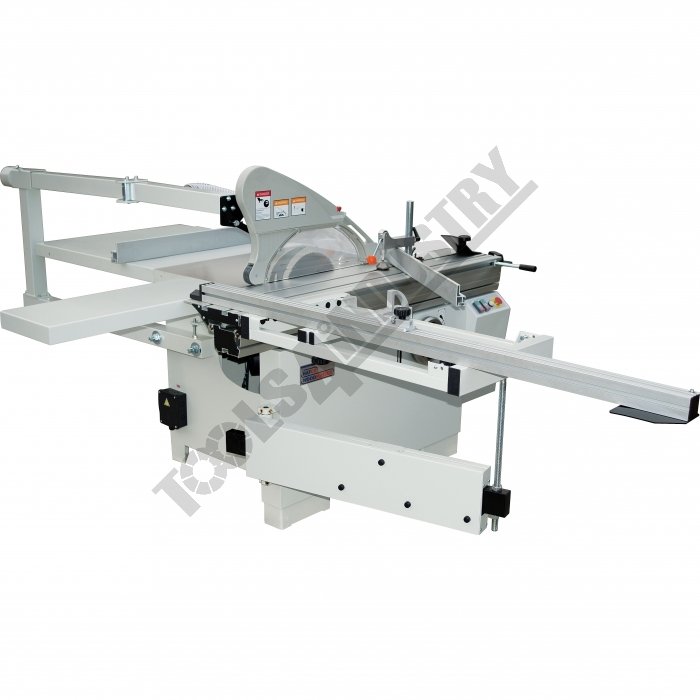

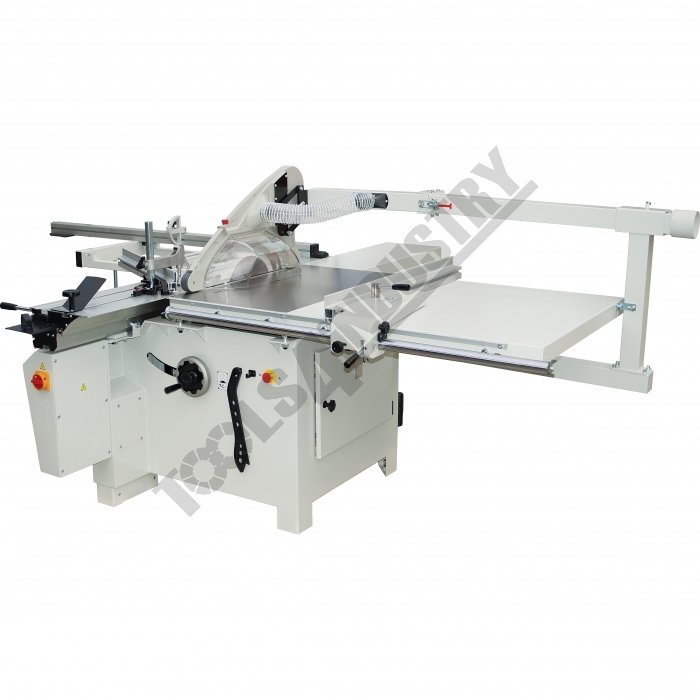

Panel Saw OAV P30CE 548 x 896mm Cast Iron Table

Description

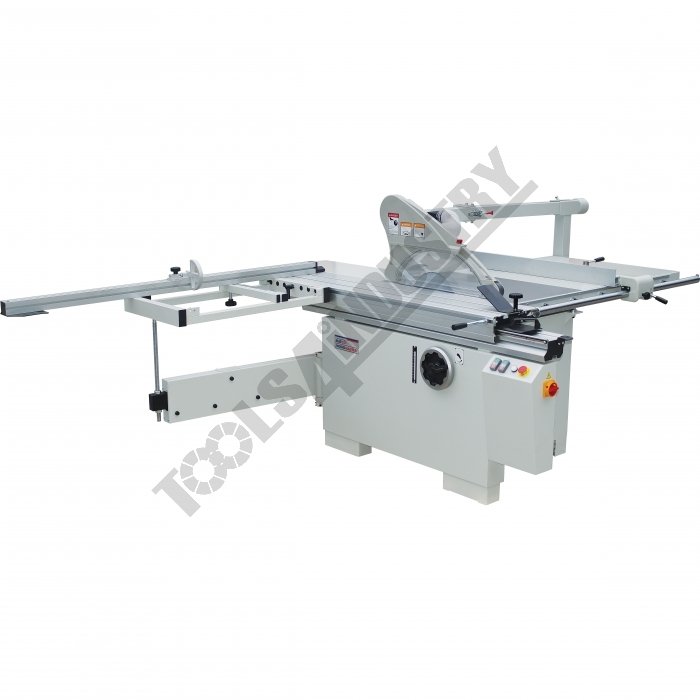

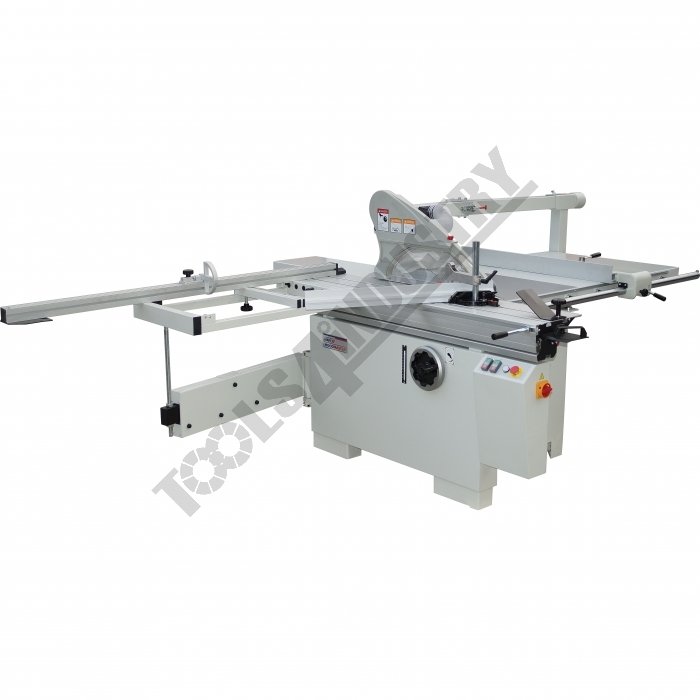

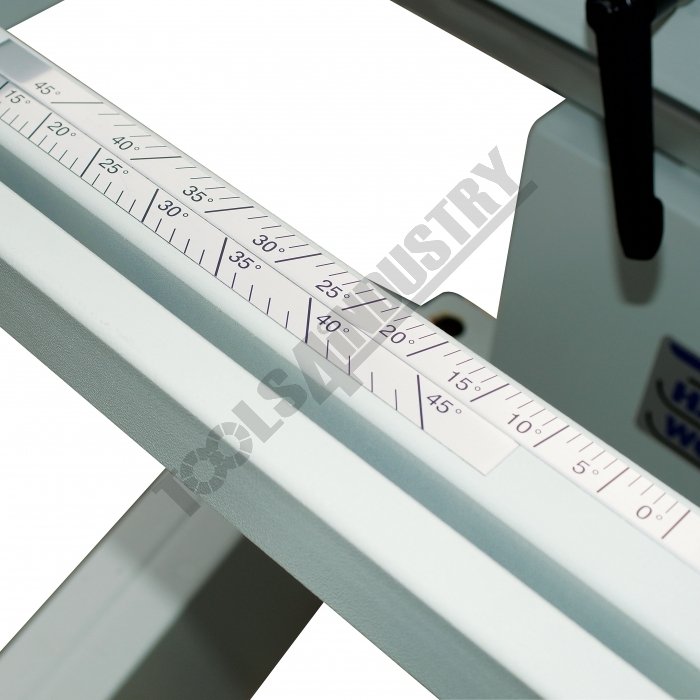

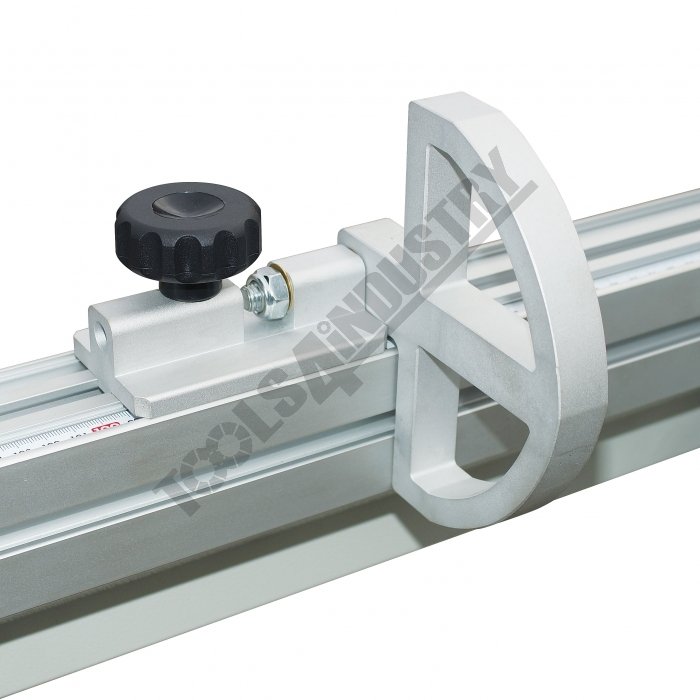

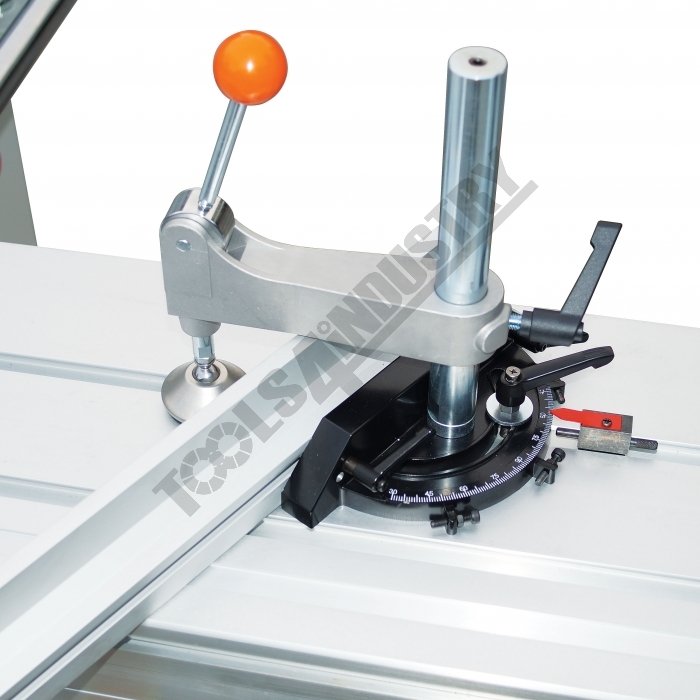

The OAV P30CE features an impressive 1600mm cutting capacity in front of the blade. Its heavy-duty 1600 x 315mm sliding table is robust and glides smoothly on precision slides. A panel frame supports larger boards, while a mitre fence with an extension and two length stops come standard.

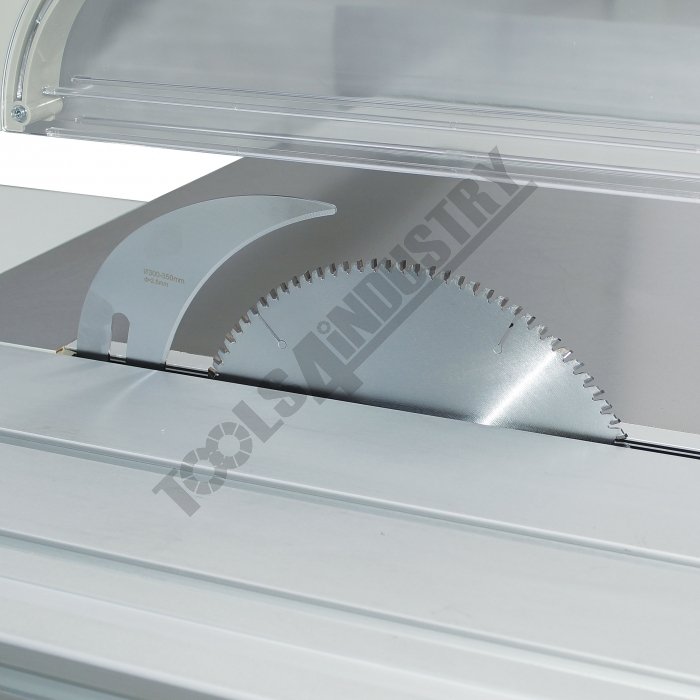

A large 305mm blade powered by a 5hp 415V motor, provides a maximum cutting depth of 90mm at 90°. Additionally, a 120mm scoring blade, driven by a separate 0.75hp motor, delivers exceptional accuracy on laminated materials, effectively preventing edge chipping.

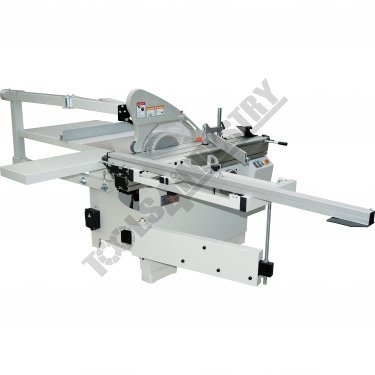

The main table is a rigid, precision-ground cast iron surface measuring 548 x 896mm, supported by a welded steel chassis with a durable powder-coated finish for long-lasting protection. A cast iron rip fence with fine width adjustment is paired with a long alloy extrusion fence arm, all mounted on a sturdy 40mm chromed steel rail. Rear outfeed and side extension tables made from thick gauge sheet steel are also included for enhanced versatility and support.

Features

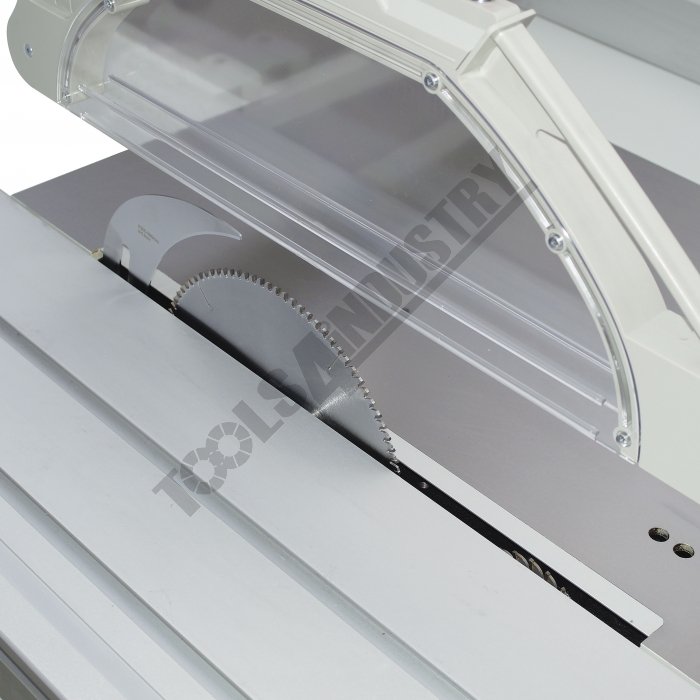

• Main and scoring saw blade ensures tear-free cutting
• Ø305mm main blade driven by powerful 3.75kW / 5hp 415V motor
• Ø120mm scoring blade driven by 0.56kW / 0.75hp 415V motor
• Main blade spindle speed 4000rpm
• Scoring blade spindle speed 8000rpm

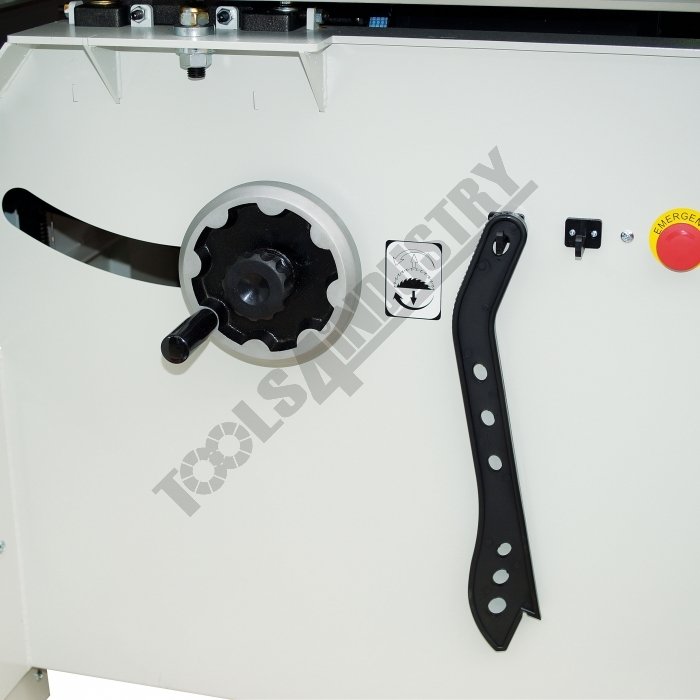

• Depth of cut: 90mm @ 90º, 63mm @ 45º
• 1600mm sliding table stroke

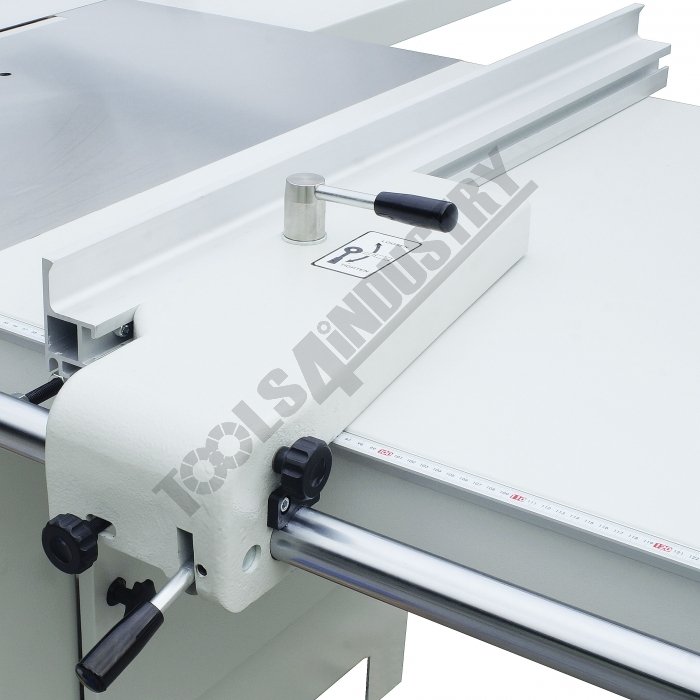

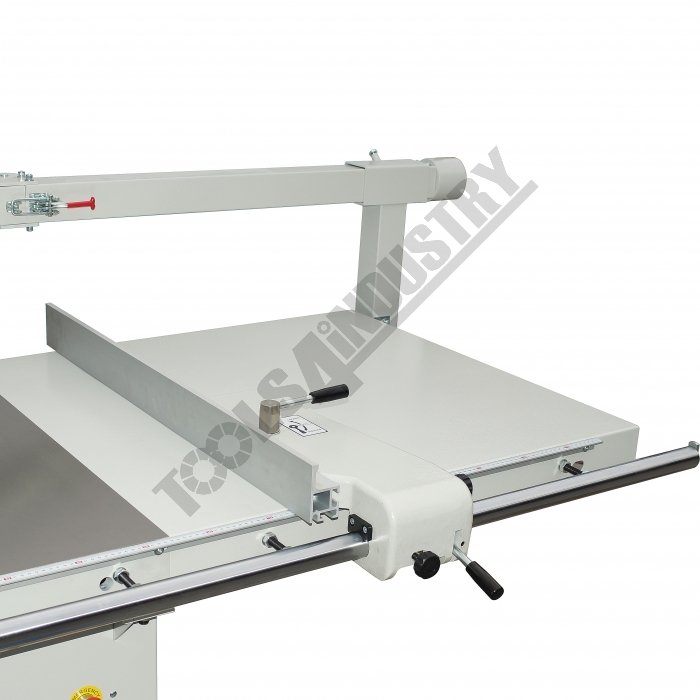

• 1300mm ripping capacity with smooth rip fence & adjustment

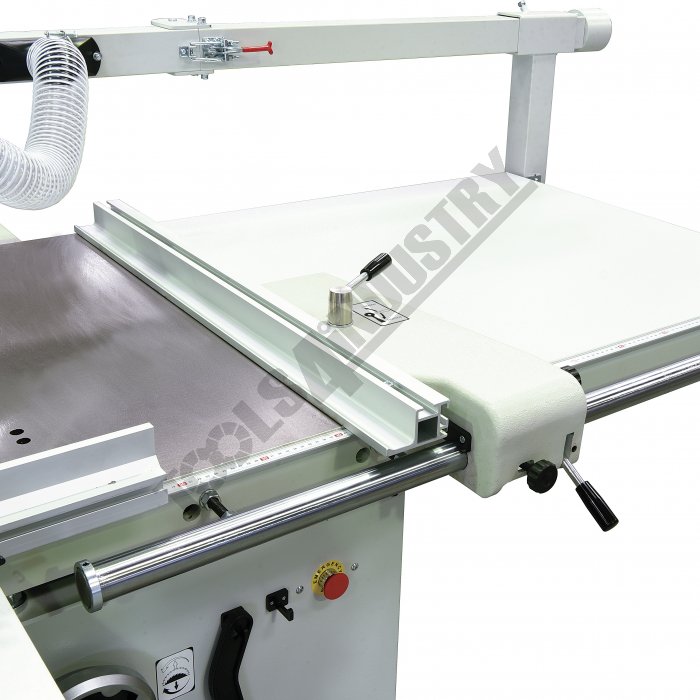

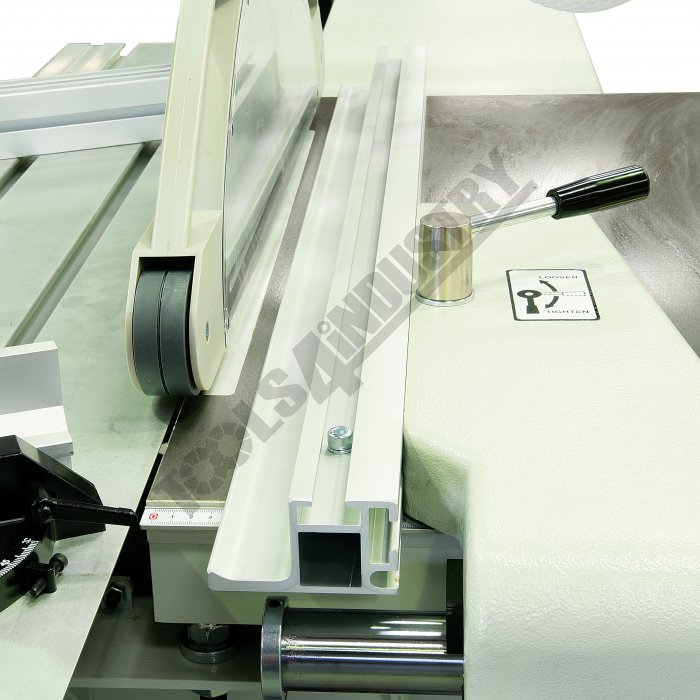

• Heavy duty aluminium extruded fence with 2 height options

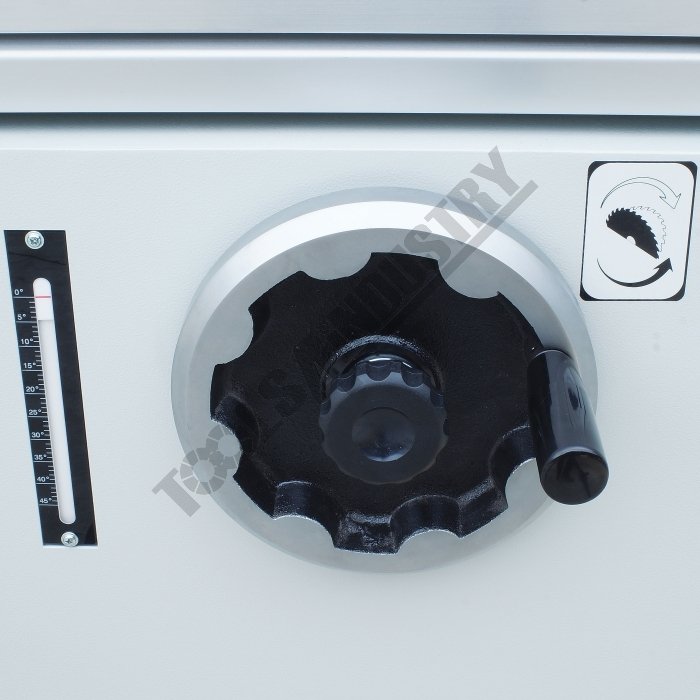

• Precision ball bearing main spindle tilts to 45º
• Cast iron main table with steel extension
• Durable extruded aluminium slide provides extremely smooth traverse, table is 1600 x 315mm wide
• Heavy duty internal mechanism

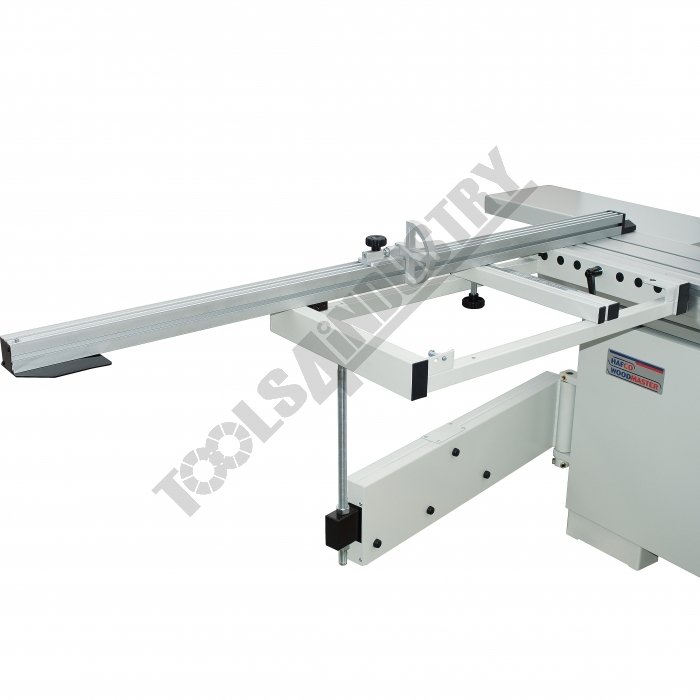

• Solid outrigger table with swing arm

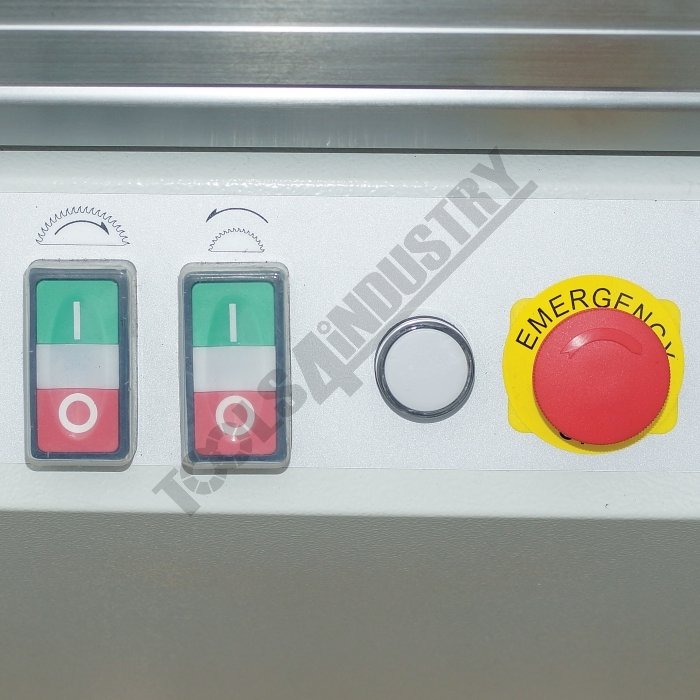

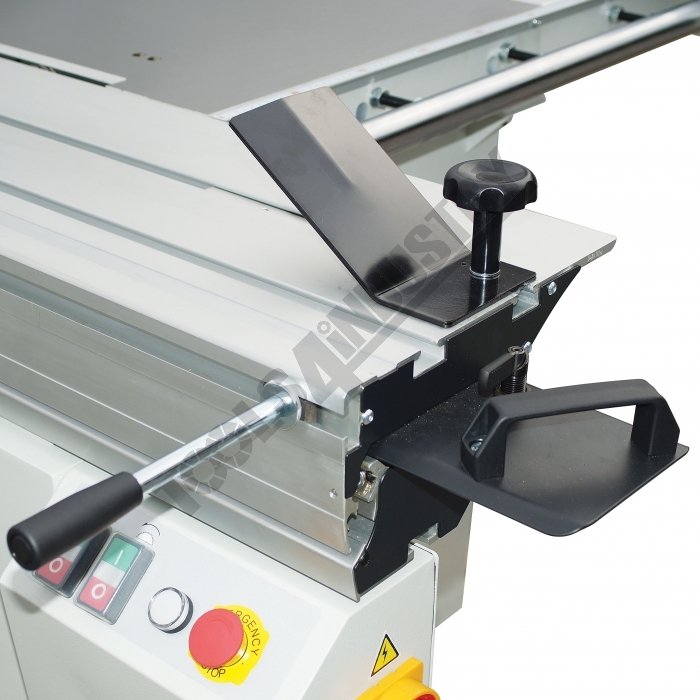

• Easy access electrical controls on main frame
• Magnetic switch with overload protection

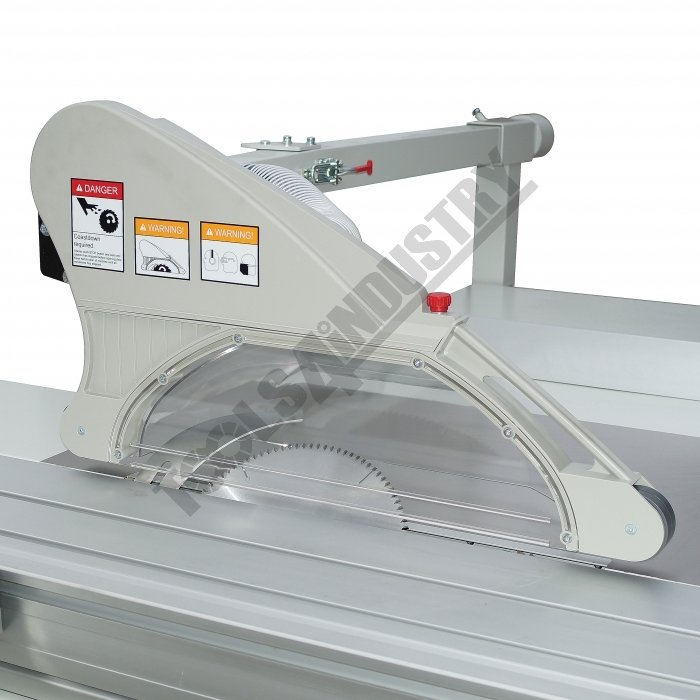

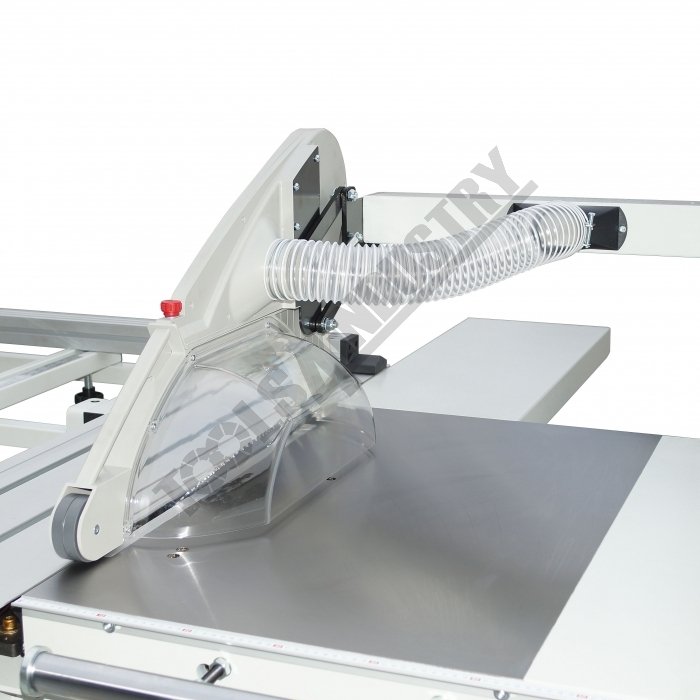

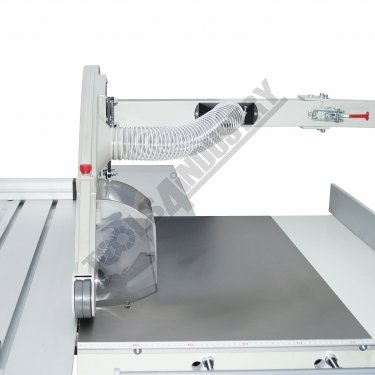

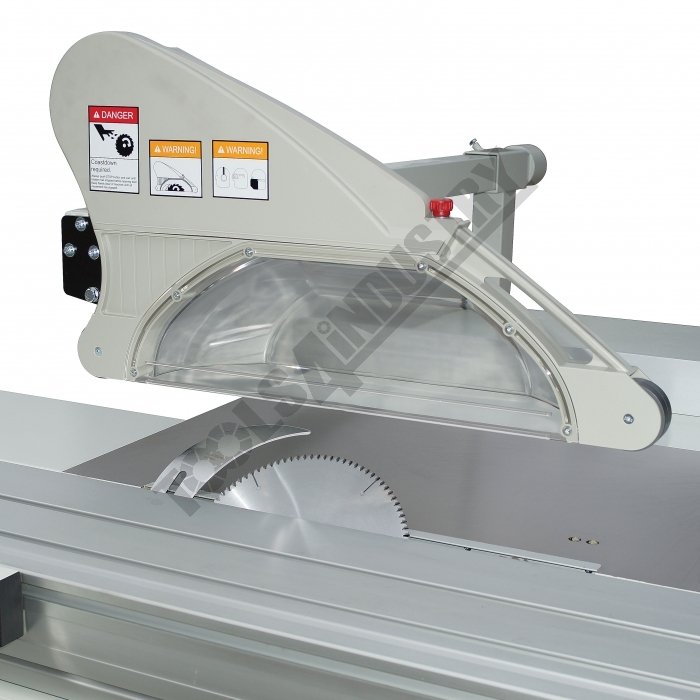

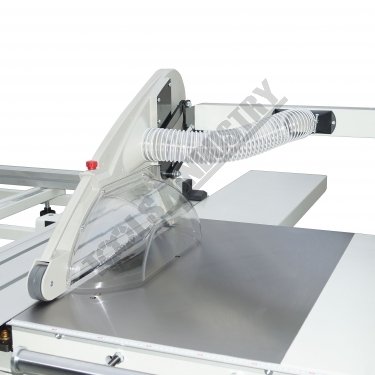

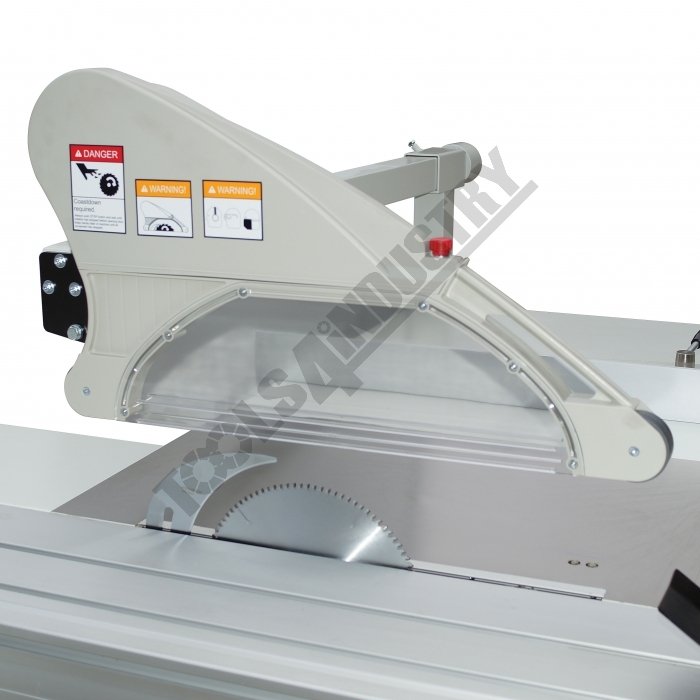

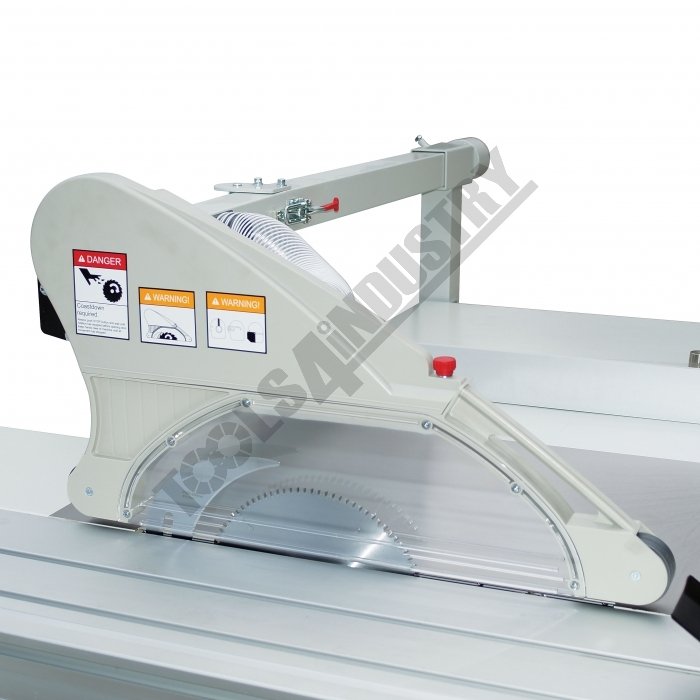

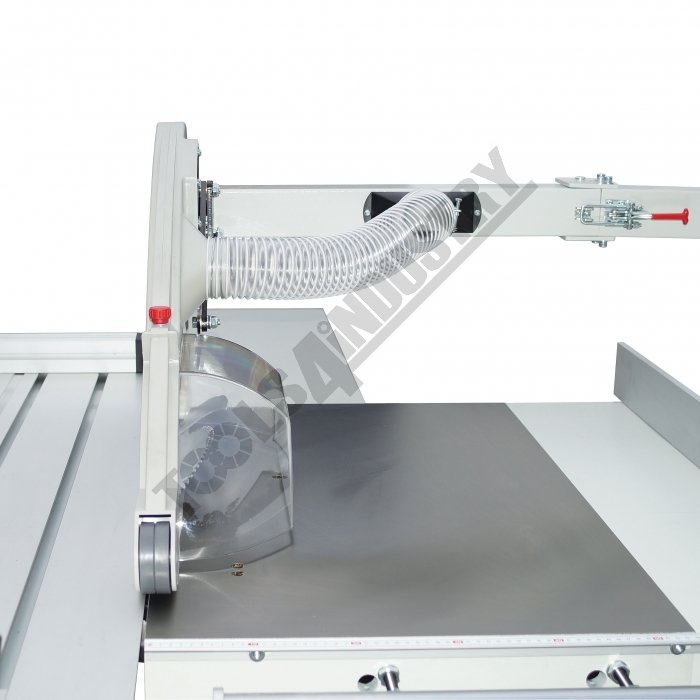

• Heavy duty overhead saw blade guard with dust collector port
• Industrial Taiwanese machine
