| Code | W08350 |
|---|---|
| Model | WT28-RB500 |
| Capacity | 500 x 200 x 200mm |
| Weight (kg) | 62 |
| Weight (m3) | 0.028 |
| Weight (Freight) | 62 |
| Dimensions (cm) | 53 x 23 x 23 |

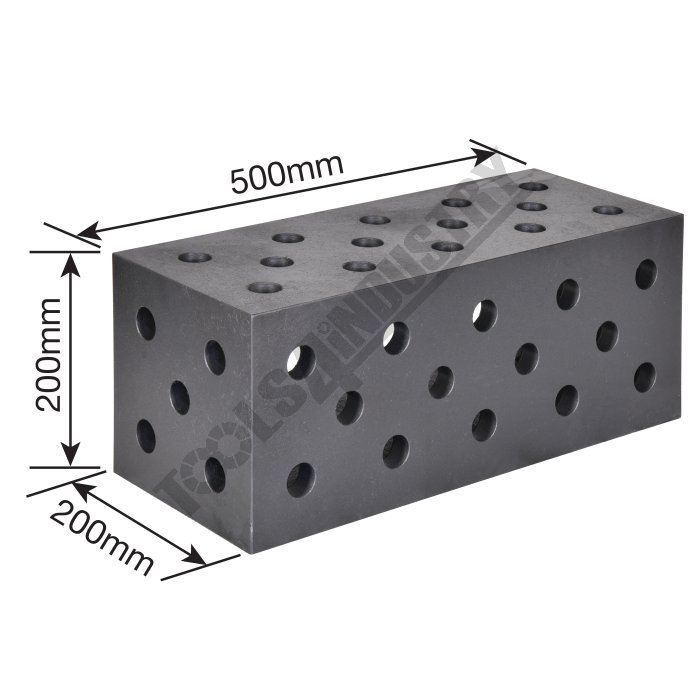

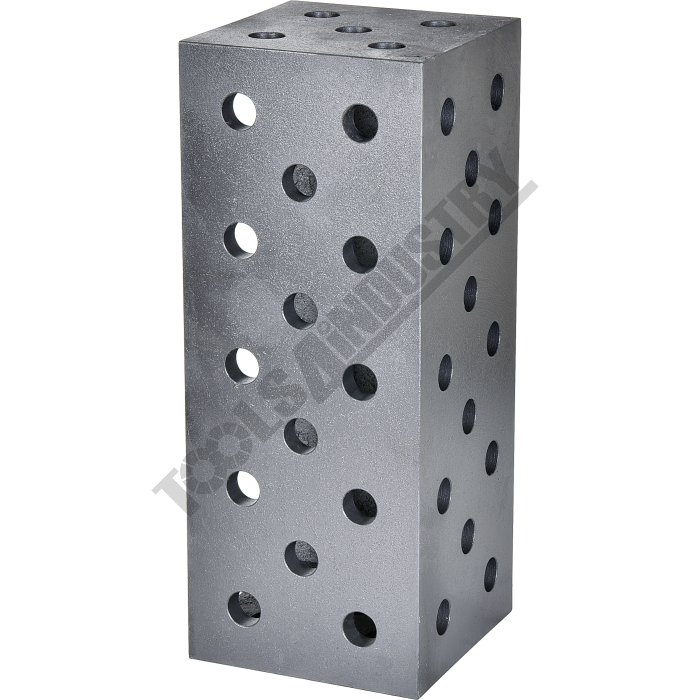

Riser Block WT28-RB500 500 x 200 x 200mm
Description

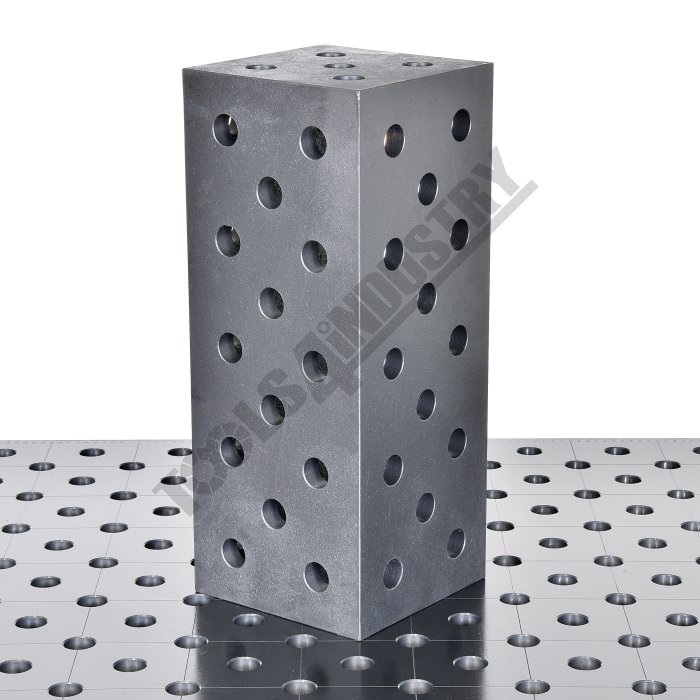

The perfect addition to complement our METALMASTER M28 Pro Series welding table to use as a table riser, bridge or table extension. The modular design makes it easy to set-up and tear down for your job at hand whether it is big or small. Increase precision & consistency for all your welding tasks to save you time and money.Features
- Heavy 25mm thick steel construction
- Plasma nitriding surface finish for increased hardness, rust & spatter resistance
- Ø28mm Precision bored fixing holes at 100mm centres to match our M28 Pro Series tables
- Diagonal hole grid pattern offering a multitude of clamping options
- 5 sided CNC machined surfaces
- Precision CNC machined surfaces to ensure high tolerances
Specifications
- Compare 13 Products
- ORDER CODE
- MODEL
- Type
- Suits Table Hole SizeDiameter
- Size
- Plate Thicknessmm
- Nett Weightkg
- W08350
- WT28-RB500
- Riser Block - 5 Face
- Ø28mm
- 500 x 200 x 200mm
- 25
- 58
- W08351
- WT28-RB1000
- Riser Block - 5 Face
- Ø28mm
- 1000 x 200 x 200mm
- 25
- 120
- W08512
- ~
- Weld Clamps Adaptor
- ~
- 25mm height
- ~
- 2.3
- W08353
- WT28-RB1500
- Riser Block - 5 Face
- Ø28mm
- 1500 x 200 x 200mm
- 25
- 166
- W08354
- WT28-RB2000
- Riser Block - 5 Face
- Ø28mm
- 2000 x 200 x 200mm
- 25
- 216
- W08539
- WTS4515
- Welding Table Square
- Ø16mm
- 450 x 150 x 50mm
- ~
- 3
- W08577
- WTR-311
- Riser Block - 5 Face
- Ø16mm
- 300 x 300 x 100mm
- 6
- 5.0
- W08591
- WTW-6015
- Table Wing / Extension
- Ø16mm
- 600 x 150 x 300mm
- 6
- 15.5
- W07868
- WT16-RB300
- Riser Block - 5 Face
- Ø16mm
- 300 x 100 x 50mm
- 12
- ~
- W07869
- WT16-RB500
- Riser Block - 5 Face
- Ø16mm
- 500 x 100 x 50mm
- 12
- ~
- W07870
- WT16-RBC300
- Riser Block - 5 Face
- Ø16mm
- 300 x 100 x 100mm
- 12
- ~
- W07875
- WT16-RB500
- Riser Block - 5 Face
- Ø16mm
- 500 x 100 x 100mm
- 12
- ~
- W07877
- WT16-RB1000
- Riser Block - 5 Face
- Ø16mm
- 1000 x 100 x 100mm
- 12
- ~
| ORDER CODE | WT28-RB500 |
|---|---|
| MODEL | Riser Block - 5 Face |
| Type | Ø28mm |
| Suits Table Hole SizeDiameter | 500 x 200 x 200mm |
| Size | 25 |
| Plate Thicknessmm | 58 |
| Nett Weightkg |
