| Code | W08331 |
|---|---|
| Model | WT28-LB275 |
| Capacity | 275 x 225 x 25mm |
| Weight (kg) | 2.57 |
| Weight (m3) | 0.000 |
| Weight (Freight) | 2.57 |
| Dimensions (cm) | 28 x 3 x 3 |

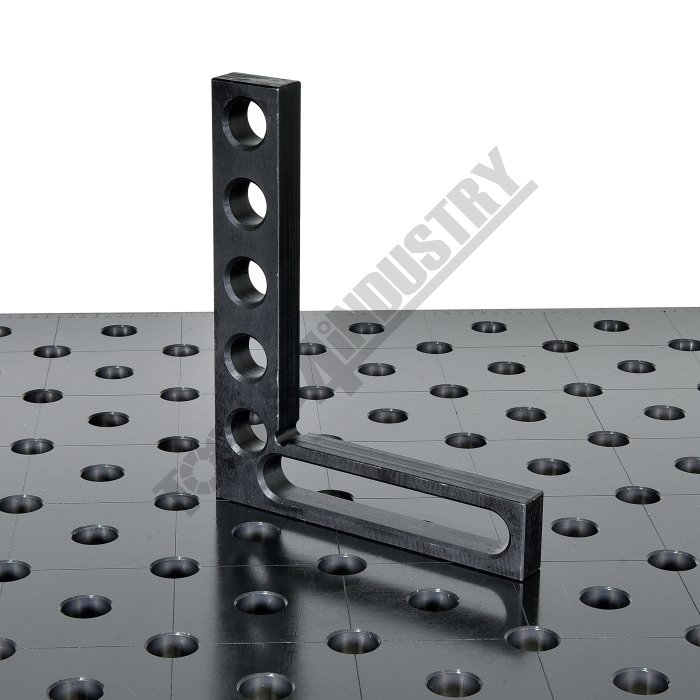

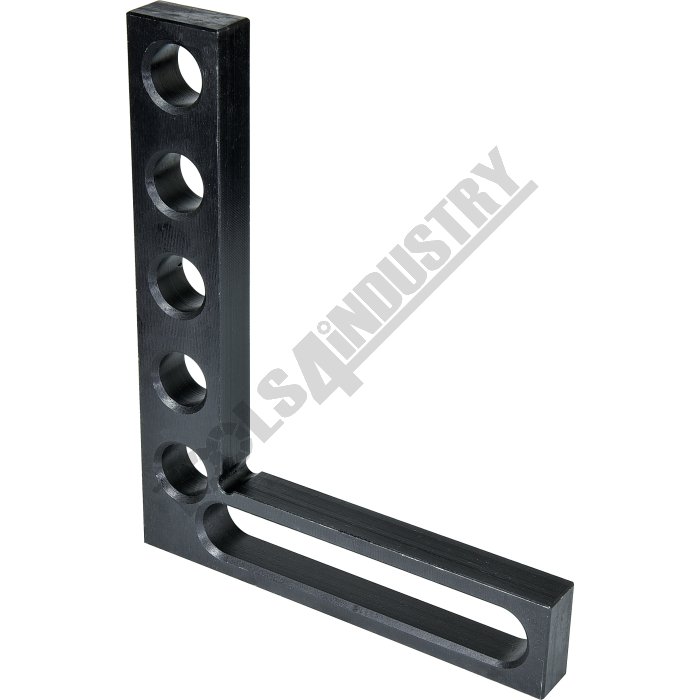

L Bracket WT28-LB275 275 x 225 x 25mm
Description
The perfect addition to complement our METALMASTER M28 Pro Series welding tables. The modular design makes it easy to set-up and tear down for your job at hand whether it is big or small. Increase precision & consistency for all your welding tasks to save you time and money.Features
- Heavy 25mm thick steel construction
- Includes 5 x 28mm hole & 1 x slot
- CNC machined surfaces to ensure precision tolerances
- Burnished finish surface treatment to prevent rust
Specifications
- Compare 30 Products
- ORDER CODE
- MODEL
- Type
- Suits Table Hole DiameterØ (mm)
- Sizemm
- Slot Lengthmm
- Nett Weightkg
- W08331
- WT28-LB275
- L Bracket
- Ø28mm
- 275 x 225 x 25mm
- ~
- 2.57
- W08335
- WT28-TB2501
- T Bracket
- Ø28mm
- 250 x 150 x 25mm
- ~
- 2.11
- W08329
- WT28-AB500ADJ
- Adjustable Angle Bracket
- Ø28mm
- 500 x 100 x 100mm
- ~
- 24
- W08326
- WT28-AB300LR
- Angle Bracket Set
- Ø28mm
- 300 x 275 x 100mm
- ~
- 32
- W08327
- WT28-AB600LR
- Angle Bracket Set
- Ø28mm
- 600 x 375 x 100mm
- ~
- 55
- W08328
- WT28-AB800LR
- Angle Bracket Set
- Ø28mm
- 800 x 375 x 100mm
- ~
- 50
- W07840
- WT16-AB443
- Right Angle Bracket / Stop
- Ø16mm
- ~
- ~
- 0.10
- W07841
- WT16-AB943
- Right Angle Bracket / Stop
- Ø16mm
- ~
- 66
- 0.15
- W07844
- WT16-AB993
- Right Angle Bracket / Stop
- Ø16mm
- ~
- ~
- 0.25
- W07845
- WT16-AB1405x1
- Right Angle Bracket / Stop
- Ø16mm
- 140 x 90 x 30mm
- ~
- 0.32
- W07853
- WT16-LB105
- L Bracket
- Ø16mm
- ~
- ~
- 0.32
- W07855
- WT16-LB155
- L Bracket
- Ø16mm
- ~
- ~
- 2.0
- W07857
- WT16-TB130
- T Bracket
- Ø16mm
- ~
- ~
- 2.5
- W07858
- WT16-TB250
- T Bracket
- Ø16mm
- ~
- ~
- 2.5
- W07846
- WT16-CSQ100
- Clamping Square
- Ø16mm
- 140 x 90 x 100 x 50mm
- ~
- 0.32
- W07847
- WT16-CSQ200
- Clamping Square
- Ø16mm
- 140 x 90 x 200 x 50mm
- ~
- 0.32
- W07848
- WT16-CSQ300
- Clamping Square
- Ø16mm
- 140 x 90 x 300 x 50mm
- ~
- 0.32
- W07850
- WT16-AB300LR
- Angle Bracket
- Ø16mm
- ~
- ~
- 9
- W07851
- WT16-AB400LR
- Angle Bracket
- Ø16mm
- ~
- ~
- 11
- W07852
- WT16-AB600LR
- Angle Bracket
- Ø16mm
- ~
- ~
- 16
- W08532
- WTS215
- Table Square
- Ø16mm
- 200 x 100 x 50mm
- ~
- 1.8
- W08554
- WTS3151
- Table Square
- Ø16mm
- 300 x 150 x 100mm
- ~
- 3.5
- W08539
- WTS4515
- Weldoing Table Square
- Ø16mm
- 450 x 150 x 50
- ~
- 3
- W08111
- T60231
- M. Cast Iron Clamp Square
- Ø16mm
- 50 x 140 x 300mm
- 2 Slots
- 2.9
- W08110
- T60230
- M. Cast Iron Clamp Square
- Ø16mm
- 50 x 140 x 300mm
- 2 Slots
- 2.9
- W08320
- WT28-AB755
- Right Angle Bracket / Stop
- Ø28mm
- 75 x 75 x 50mm
- ~
- 0.93
- W08321
- WT28-AB1755
- Right Angle Bracket / Stop
- Ø28mm
- 175 x 75 x 50mm
- ~
- 1.28
- W08324
- WT28-AB1753x1
- Right Angle Bracket / Stop
- Ø28mm
- 175 x 175 x 50mm
- ~
- 1.98
- W08325
- WT28-AB2755x1
- Right Angle Bracket / Stop
- Ø28mm
- 275 x 175 x 50mm
- ~
- 2.59
- W08330
- WT28-LB175
- L Bracket
- Ø28mm
- 175 x 175 x 25mm
- ~
- 1.76
| ORDER CODE | WT28-LB275 |
|---|---|
| MODEL | L Bracket |
| Type | Ø28mm |
| Suits Table Hole DiameterØ (mm) | 275 x 225 x 25mm |
| Sizemm | ~ |
| Slot Lengthmm | 2.57 |
| Nett Weightkg |
