Code	V321D
Model	CHV-130V-D
Capacity	130mm Jaw Width
Weight (kg)	0
Weight (m³)	0.000
Weight (Freight)	0.000
Dimensions (cm)

SAFEWAY

1 Year Warranty

Taiwan

Product Brochure Safeway Jaws [343 KB] Instruction Manual [3 MB] Parts List [2 MB]

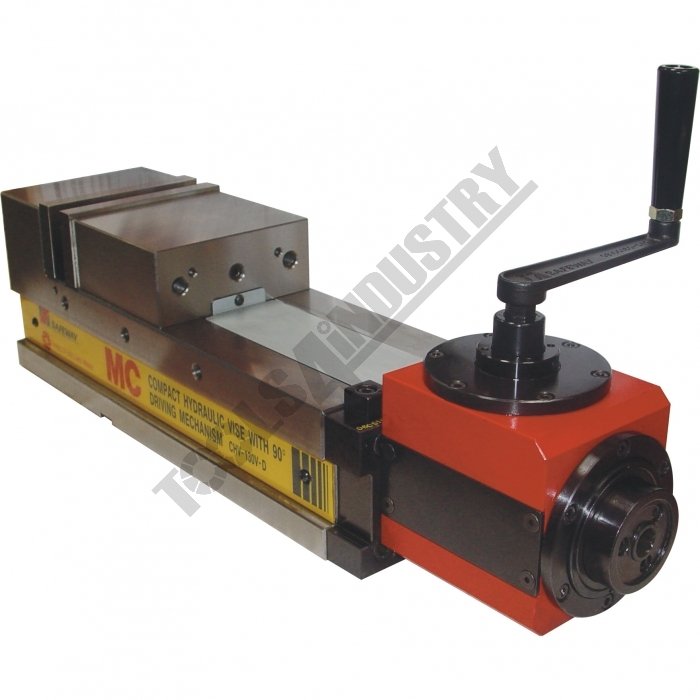

Safeway Compact Hydraulic Vice - Angle Drive CHV-130V-D 130mm Jaw Width

Description

Drive can be operated from either the top of the vice or from the end.

Features

Precision ground on all surfaces
Flame-hardened bed to HRC 45
Semi-sphere to eliminate jaw lift
swarf covers over leadscrew
Toleranced for use as matched pairs
Full hydraulic function is maintained

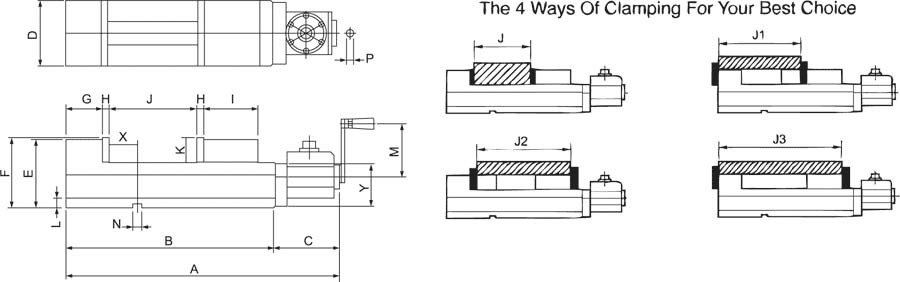

Specifications

Compare 6 Products
ORDER CODE
MODEL
Jaw Widthmm
D - Jaw Widthmm
J - Jaw Openingmm
J1 - Jaw Opening with Optional Jawsmm
J2 - Jaw Opening with Optional Jawsmm
J3 - Jaw Opening with Optional Jawsmm
K - Jaw Heightmm
Pressurekgf
Amm
Bmm
Cmm
Emm
Fmm
Gmm
Hmm
Imm
Lmm
Mmm
Nmm
Pmm
Xmm
Ymm
Nett Weightkg

V321D
CHV-130V-D
130
131
180
~
~
~
55
4500
577
405
172
147
150
70
15
115
22
125
18
14
65
95
37

V322
CHV-160V
160
161
240
240 - 320
240 - 360
240 - 470
58
5500
630
495
135
160
163
85
15
130
22
125
18
14
65
105
58

V323
CHV-200V
200
201
280
280 - 360
280 - 420
280 - 540
63
7000
705
570
135
170
173
90
18
150
22
125
18
14
82
110
80

V3225
CHV-160V-D
160
161
240
240 - 320
240 - 360
240 - 470
58
5500
667
495
172
160
163
85
15
130
22
125
18
14
65
105
58

V320
CHV-100V
100
101
125
125 - 190
125 - 230
125 - 320
48
3500
475
340
135
130
133
65
15
105
22
125
16
14
45
85
24

V321
CHV-130V
130
131
180
180 - 240
180 - 290
180 - 380
52
4500
540
405
135
147
150
70
15
115
22
125
18
14
65
95
37

ORDER CODE	CHV-130V-D
MODEL	130
Jaw Widthmm	131
D - Jaw Widthmm	180
J - Jaw Openingmm	~
J1 - Jaw Opening with Optional Jawsmm	~
J2 - Jaw Opening with Optional Jawsmm	~
J3 - Jaw Opening with Optional Jawsmm	55
K - Jaw Heightmm	4500
Pressurekgf	577
Amm	405
Bmm	172
Cmm	147
Emm	150
Fmm	70
Gmm	15
Hmm	115
Imm	22
Lmm	125
Mmm	18
Nmm	14
Pmm	65
Xmm	95
Ymm	37
Nett Weightkg
