| Code | V111 |
|---|---|
| Capacity | 152mm Jaw Width |
| Weight (kg) | 41 |
| Weight (m3) | 0.010 |
| Weight (Freight) | 41 |
| Dimensions (cm) | 46 x 19 x 12 |

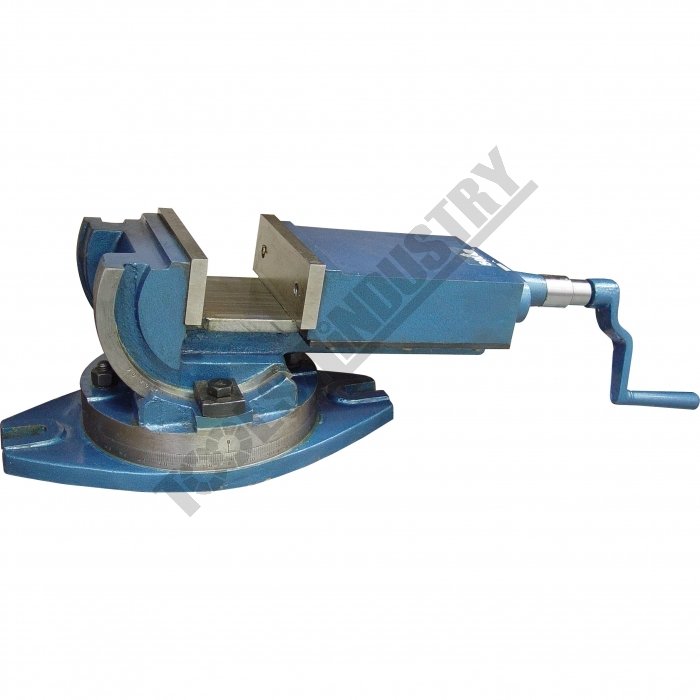

Tilting & Swivel Machine Vice 152mm Jaw Width
Description
Manufactured from close grain cast iron with hardened alloy jaws.Features
- Rotates 360º in the horizontal plane
- Tilts from 0 - 90º in the vertical plane
- Graduated degree markings on vice

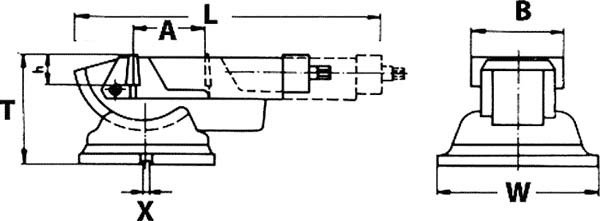

Specifications
- Compare 1 Products
- ORDER CODE
- B - Jaw Widthmm
- A - Jaw Openingmm
- h - Jaw Heightmm
- L (Min - Max)mm
- W (Min - Max)mm
- Xmm
- Nett Weightkg
- V111
- 152
- 155
- 58
- 480 - 630
- 230 - 370
- 17
- 55
| ORDER CODE | 152 |
|---|---|
| B - Jaw Widthmm | 155 |
| A - Jaw Openingmm | 58 |
| h - Jaw Heightmm | 480 - 630 |
| L (Min - Max)mm | 230 - 370 |
| W (Min - Max)mm | 17 |
| Xmm | 55 |
| Nett Weightkg |
