| Code | V0924 |
|---|---|
| Model | OSV-100 |
| Capacity | Right Hand Offset |
| Weight (kg) | 8.1 |
| Weight (m3) | 0.011 |
| Weight (Freight) | 8.1 |
| Dimensions (cm) | 35 x 20 x 15 |
100mm Steel Fabricated Offset Bench Vice OSV-100 Right Hand Offset
Description
Fabricated from heavy steel plate and designed for heavy duty work, includes a handy in-built anvil.Features
- Right hand offset design
- In-built anvil
- Hardened serrated jaws
- Double start nut for higher clamping force

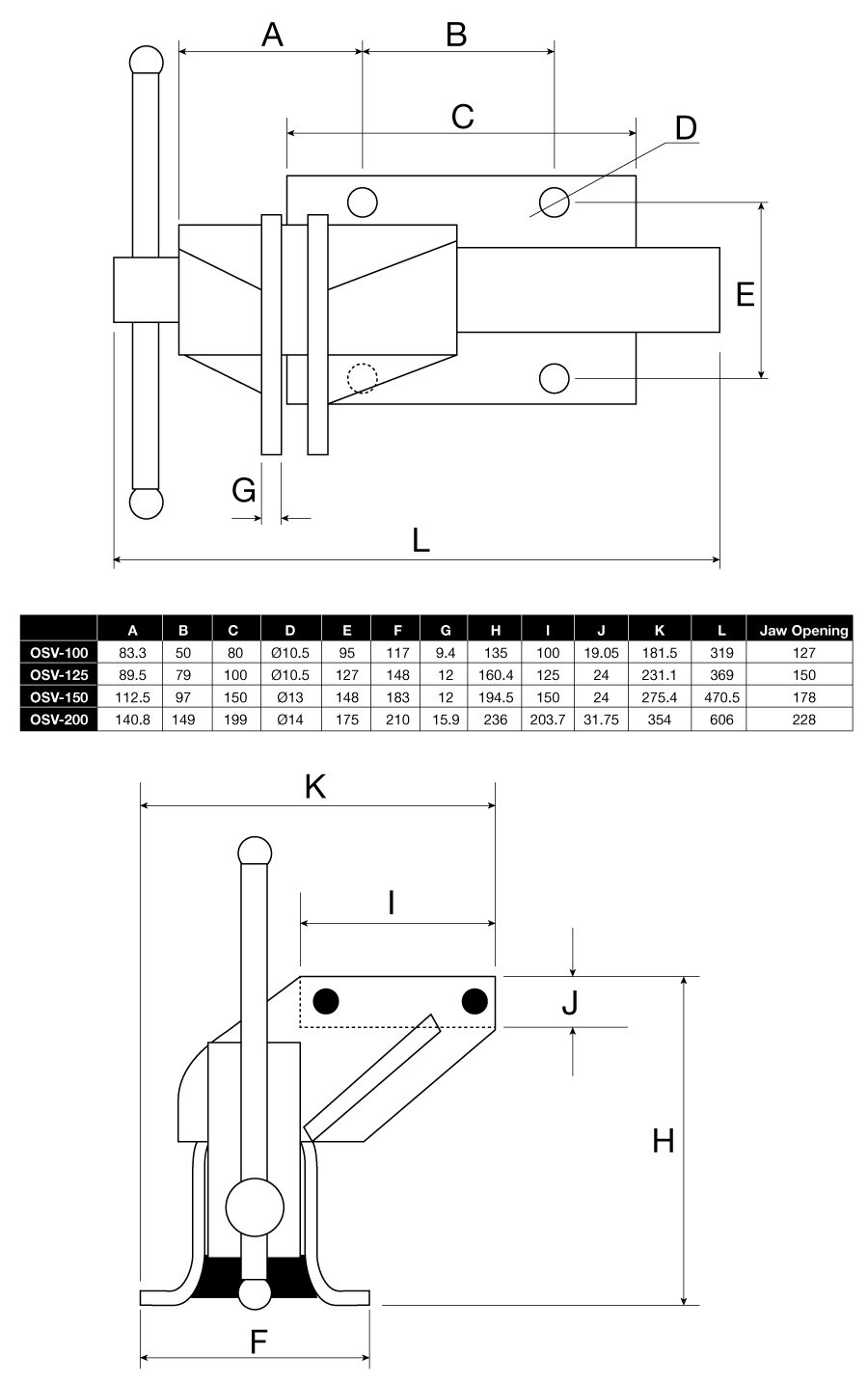

Specifications
- Compare 10 Products
- ORDER CODE
- Model
- Type
- Jaw Widthmm
- Jaw Height
- Jaw Openingmm
- Overall Length (Closed Jaws)mm
- Overall Widthmm
- Overall Heightmm
- Clamping ForceKN
- Nett Weightkg
- V0924
- OSV-100
- Offset - Right Hand
- 100
- 19
- 127
- 319
- 181.5
- 135
- 15
- 7.5
- V0925
- OSV-125
- Offset - Right Hand
- 125
- 24
- 150
- 369
- 131.1
- 160.4
- 25
- 10.8
- V0926
- OSV-150
- Offset - Right Hand
- 150
- 24
- 178
- 470.5
- 275.4
- 194.5
- 35
- 22.1
- V0928
- OSV-200
- Offset - Right Hand
- 200
- 31.75
- 228
- 606
- 354
- 236
- 60
- 39
- V088
- No. 4
- Bench
- 100
- ~
- 120
- 250
- 135
- 150
- ~
- 11.5
- V089
- No. 5
- Bench
- 127
- ~
- 150
- 410
- 160
- 170
- ~
- 17
- V090
- No. 6
- Bench
- 152
- ~
- 195
- 380
- 190
- 200
- ~
- 23
- V075
- MPV-12
- Universal
- 125
- ~
- 150
- 500
- 150
- 240
- ~
- 21
- K230
- MPV-12 + VB-125 Package
- Universal
- 125
- ~
- 150
- 500
- 150
- 240
- ~
- 22.5
- V067
- OFV6S
- Offset - Right Hand
- 152
- ~
- 178
- 430
- 240
- 182
- ~
- 19.6
| ORDER CODE | OSV-100 |
|---|---|
| Model | Offset - Right Hand |
| Type | 100 |
| Jaw Widthmm | 19 |
| Jaw Height | 127 |
| Jaw Openingmm | 319 |
| Overall Length (Closed Jaws)mm | 181.5 |
| Overall Widthmm | 135 |
| Overall Heightmm | 15 |
| Clamping ForceKN | 7.5 |
| Nett Weightkg |
