| Code | S707 |
|---|---|
| Model | SL-100 |
| Capacity | 100mm Stroke |
| Weight (kg) | 360 |
| Weight (m3) | 0.743 |
| Weight (Freight) | 360 |
| Dimensions (cm) | 85 x 76 x 115 |

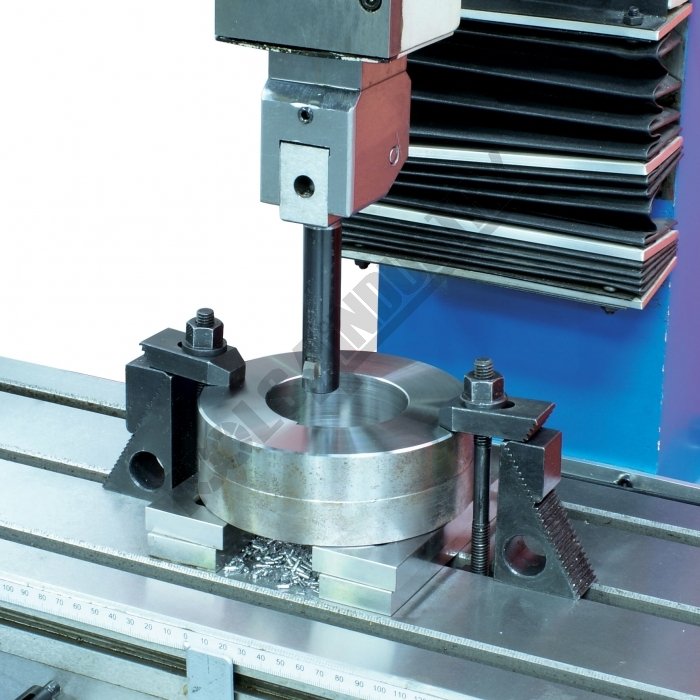

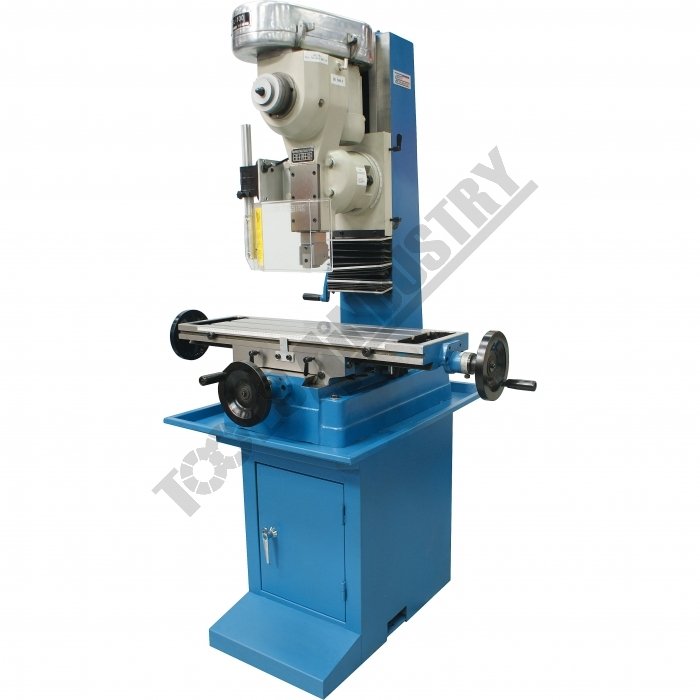

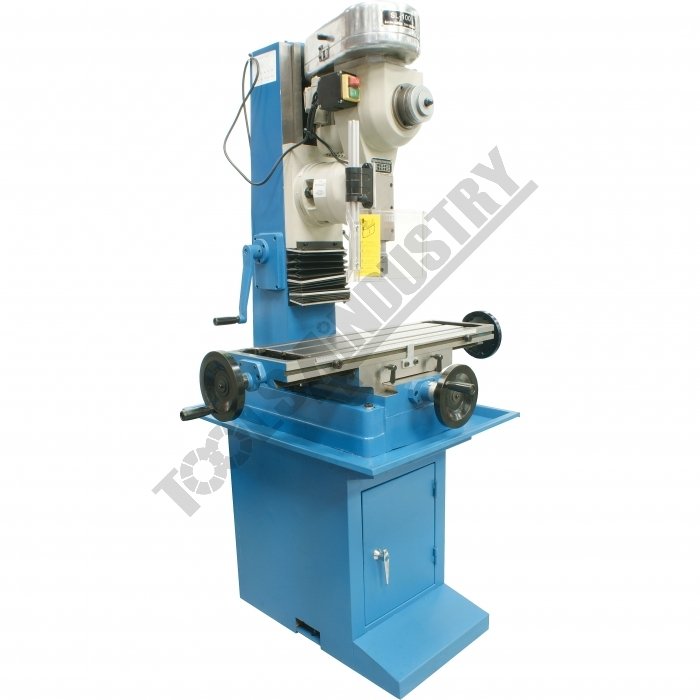

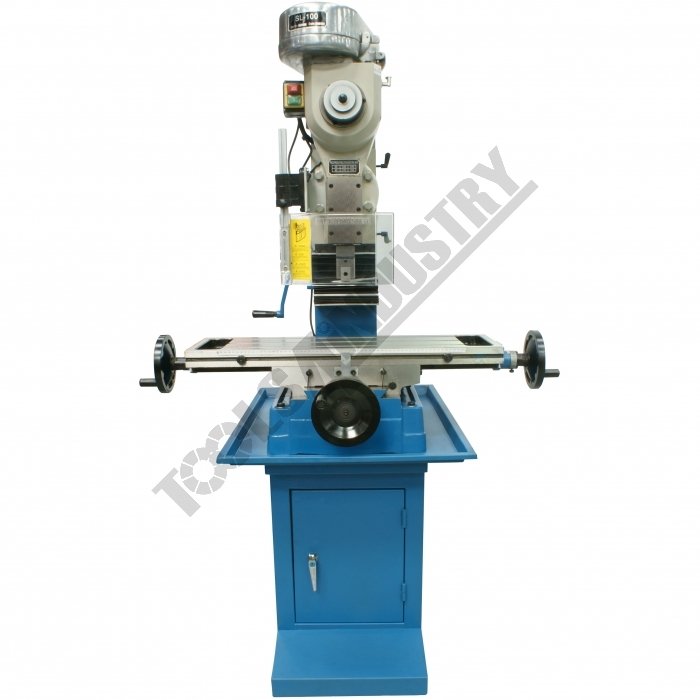

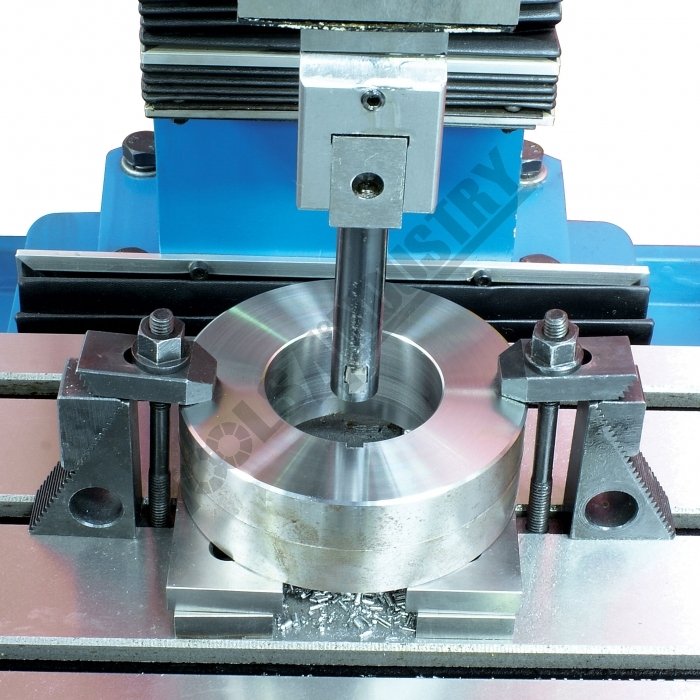

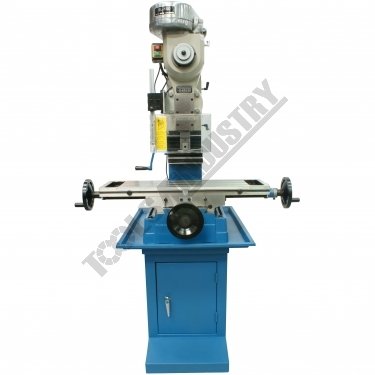

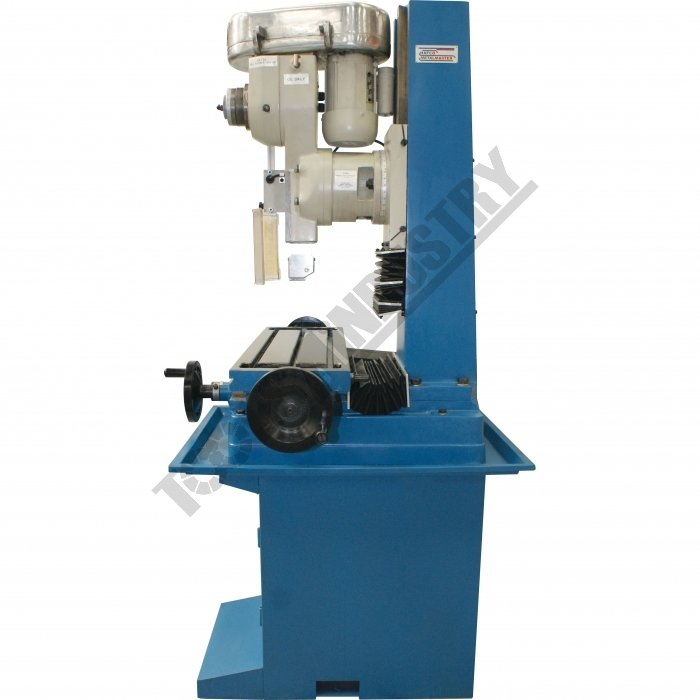

Swivel Head Slotting Machine SL-100 100mm Stroke
Features
- Heavy duty cast iron construction

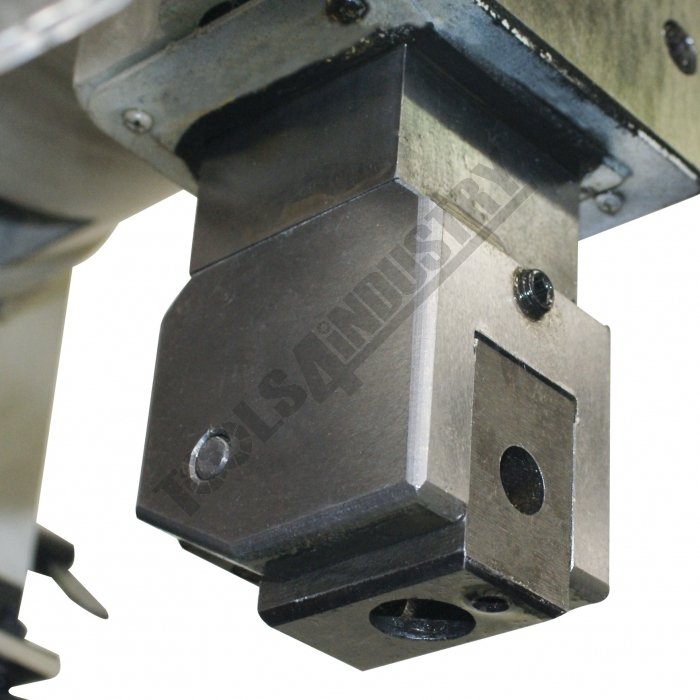

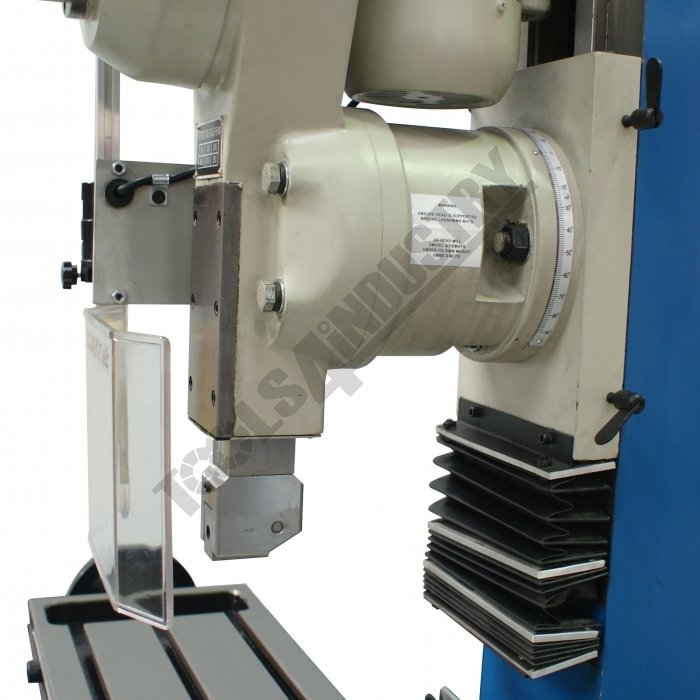

- Swivel head tilts left and right 90º

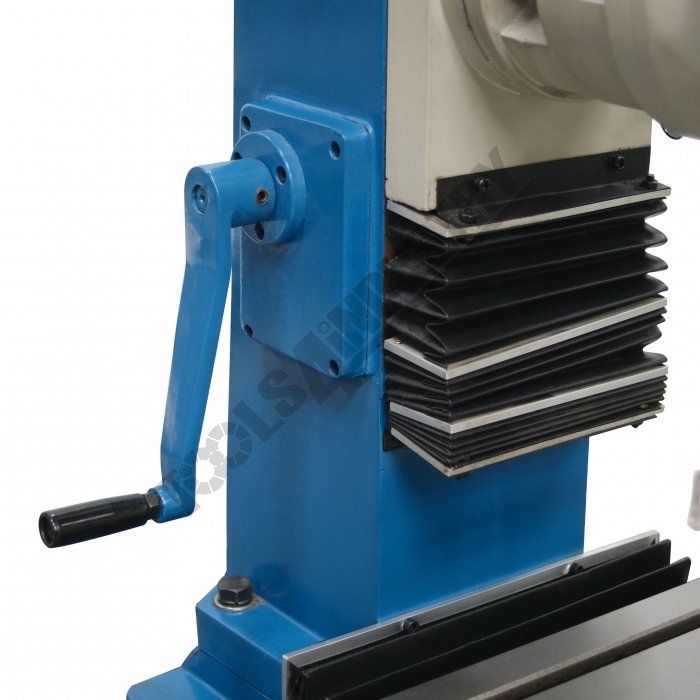

- Dovetail vertical Z-Axis

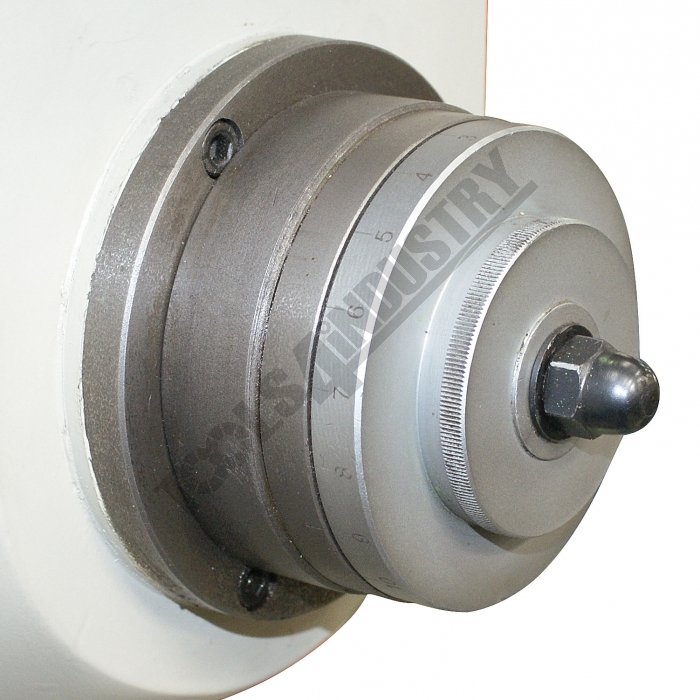

- 0-100mm machining stroke range

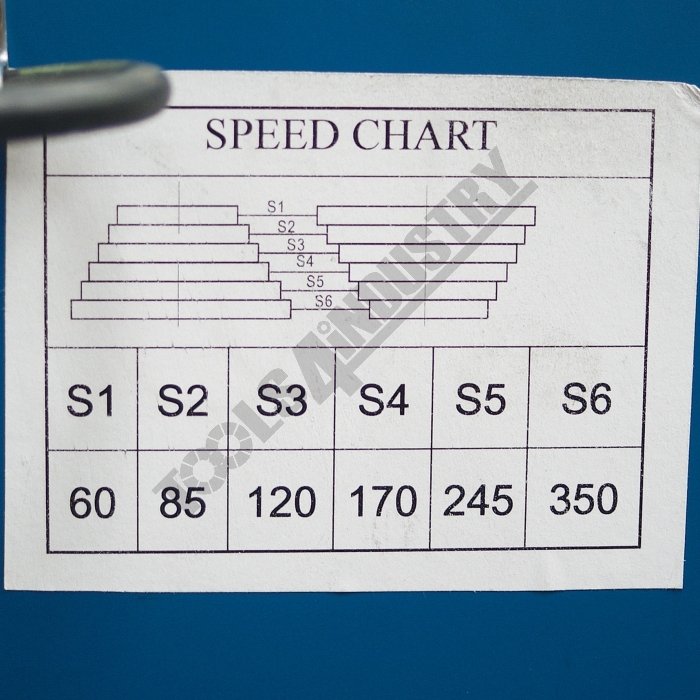

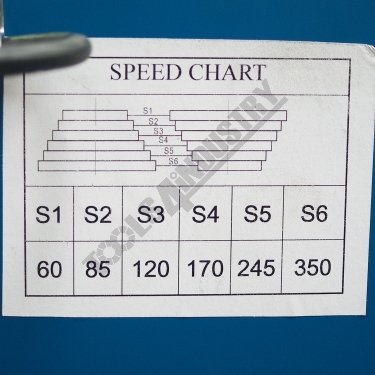

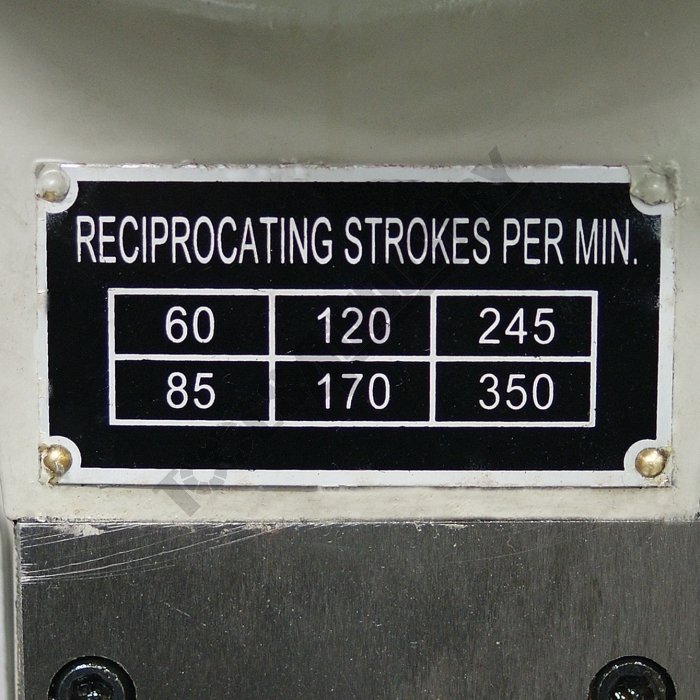

- Strokes per minute 60-350 (6 ranges)

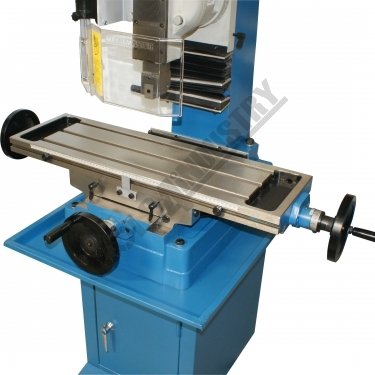

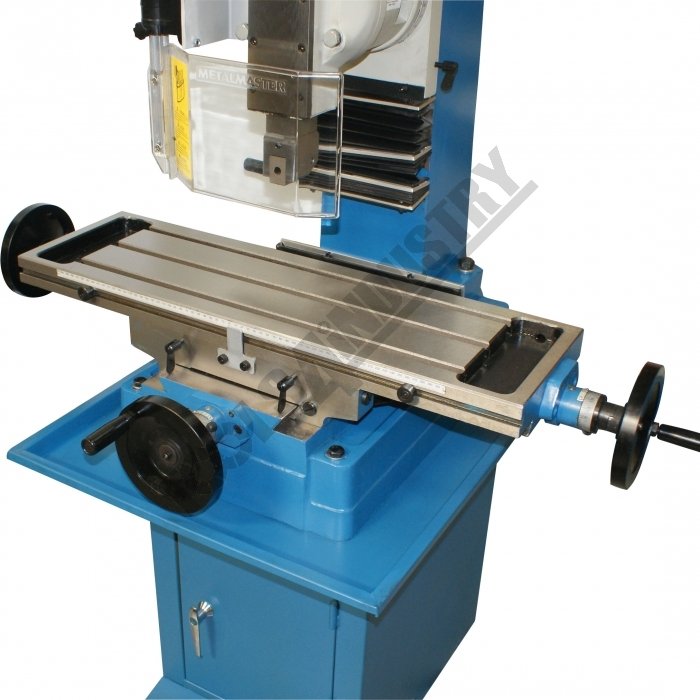

- 800 x 240mm table size
- 230mm working table cross travel
- 560mm working table longitudinal travel

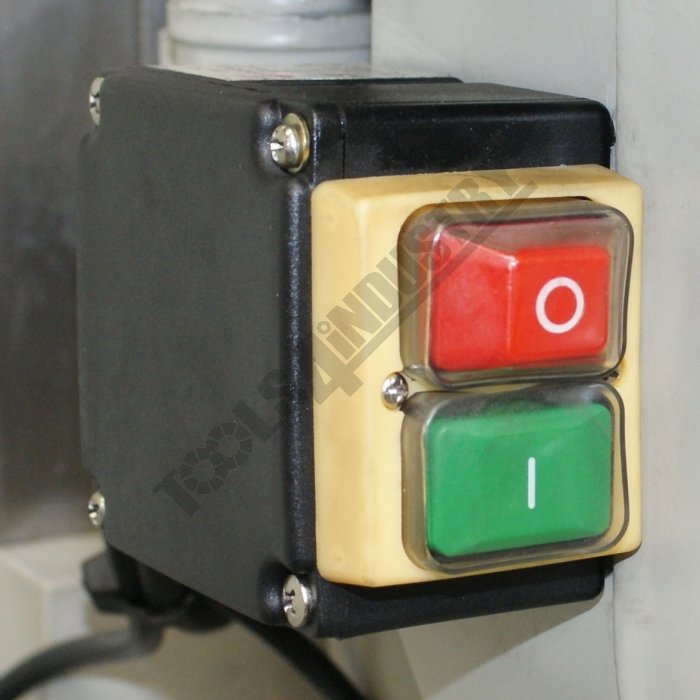

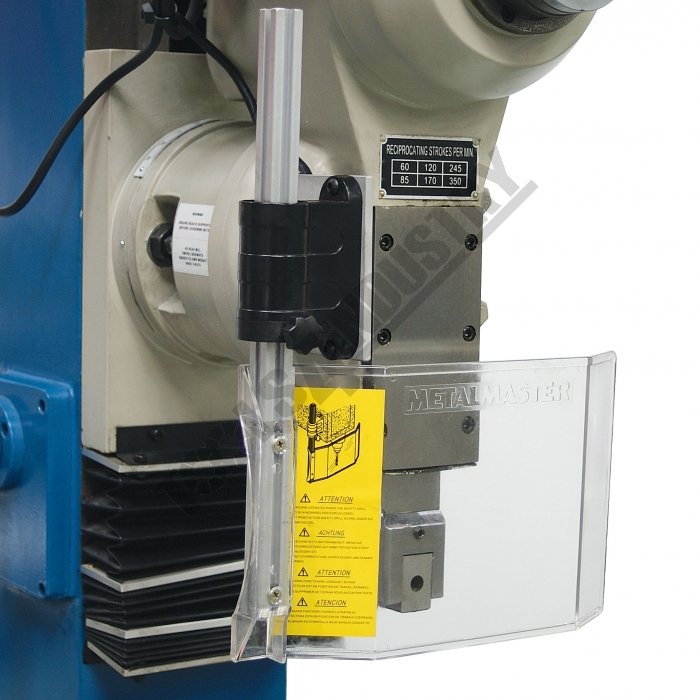

- Safety chuck guard with micro
- 14mm T-Slot on table
- 370W/0.5hp, 240V motor
- Includes steel fabricated stand
- Suits 16mm diameter tooling
Specifications
- Compare 1 Products
- ORDER CODE
- MODEL
- Maximum Strokemm
- Ram Stroke (strokes/min)SPM
- Throat Depthmm
- Rotary Table Sizemm
- 3-Jaw Chuck Sizemm
- Work Table Sizemm
- Work Table longitudinal Travelmm
- Work Table Cross Travelmm
- Motor PowerkW / hp
- Voltage / AmperageV / amp
- Nett Weightkg
- S707
- SL-100
- 100
- 60-350 (6 steps)
- ~
- ~
- ~
- 800 x 240
- 560
- 230
- 0.37 / 0.05
- 240 / 10
- 300
| ORDER CODE | SL-100 |
|---|---|
| MODEL | 100 |
| Maximum Strokemm | 60-350 (6 steps) |
| Ram Stroke (strokes/min)SPM | ~ |
| Throat Depthmm | ~ |
| Rotary Table Sizemm | ~ |
| 3-Jaw Chuck Sizemm | 800 x 240 |
| Work Table Sizemm | 560 |
| Work Table longitudinal Travelmm | 230 |
| Work Table Cross Travelmm | 0.37 / 0.05 |
| Motor PowerkW / hp | 240 / 10 |
| Voltage / AmperageV / amp | 300 |
| Nett Weightkg |
