| Code | R020 |
|---|---|
| Model | DP-3 |
| Capacity | Suits HV-10, HV-12, HV-14 & HV-16 Rotary Tables & Suits CS-6, CS-8 Super Indexing Heads |
| Weight (kg) | 4.98 |
| Weight (m3) | 0.003 |
| Weight (Freight) | 4.98 |
| Dimensions (cm) | 21 x 7 x 22 |

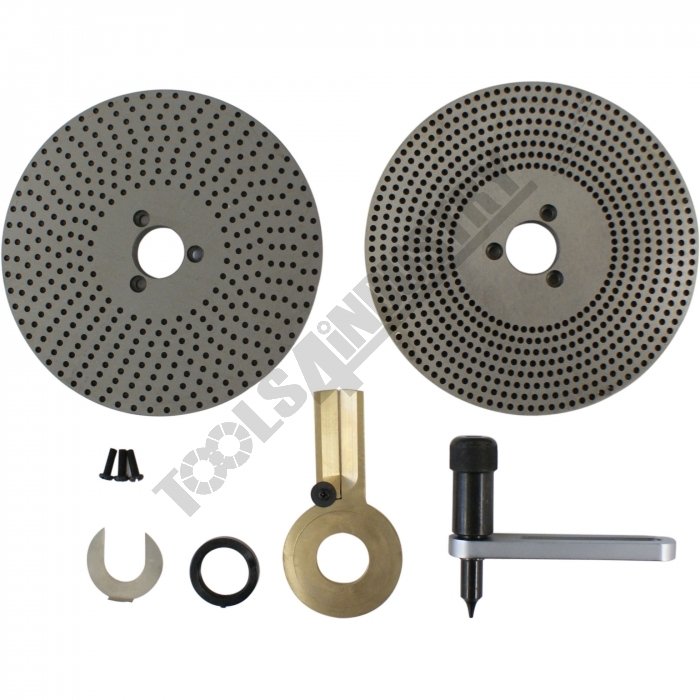

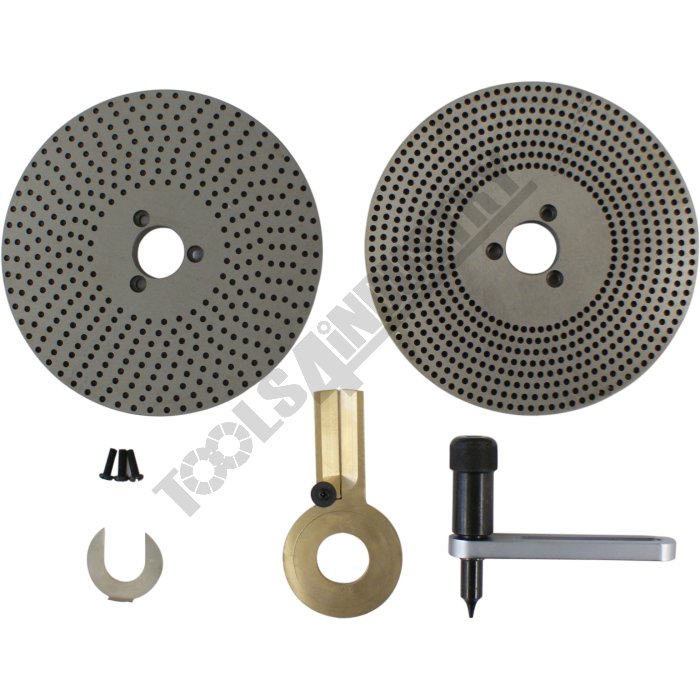

Vertex Dividing Plate DP-3 Suits HV-10, HV-12, HV-14 & HV-16 Rotary Tables & Suits CS-6, CS-8 Super Indexing Heads
Description
Plate Specifications:Plates are double sided
A-PLATE
26, 30, 34, 38, 41, 44, 47, 51, 57
28, 32, 37, 39, 43, 46, 49, 53, 59
B-PLATE
61, 67, 71, 77, 81, 87, 91, 97
63, 69, 73, 79, 83, 89, 93, 99
Features
- Suitable for 10-16" Rotary Tables (R010, R012, R012A, R012B)
- Also suitable for 6-8" Super Indexing Spacers (R002 & R004)
Specifications
- Compare 3 Products
- ORDER CODE
- MODEL
- Suits Rotary Tables
- Suits Super Indexing Heads
- Nett Weightkg
| ORDER CODE | DP-3 |
|---|---|
| MODEL | HV-10, HV-12, HV-14, HV-16 |
| Suits Rotary Tables | CS-6, CS-8 |
| Suits Super Indexing Heads | 5.0 |
| Nett Weightkg |
