Code	R016
Model	DP-1
Capacity	Suits HV-4 & HV-6 Rotary Tables
Weight (kg)	1.5
Weight (m³)	0.003
Weight (Freight)	1.5
Dimensions (cm)	23 x 21 x 7

VERTEX

1 Year Warranty

Taiwan

Product Brochure

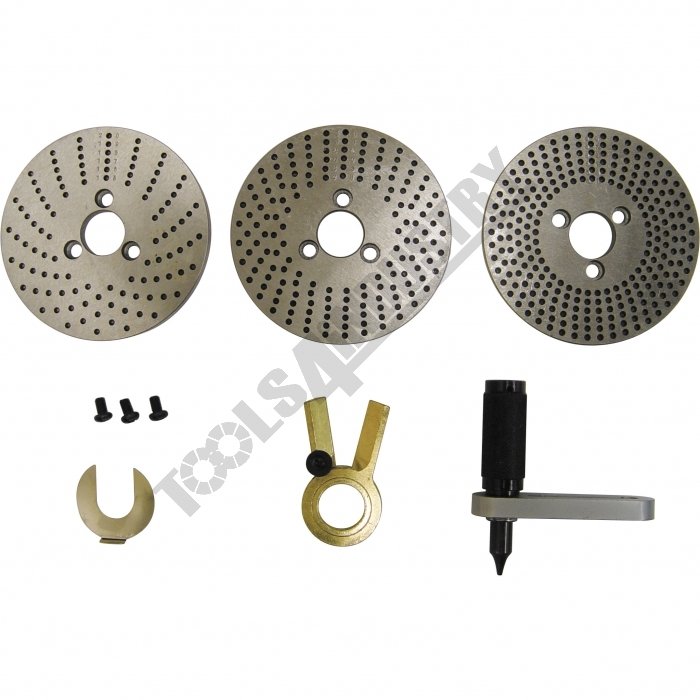

Vertex Dividing Plate DP-1 Suits HV-4 & HV-6 Rotary Tables

Description

Plate Specifications:

A-PLATE 15, 16, 17, 18, 19, 20
B-PLATE 21, 23, 27, 29, 31, 33
C-PLATE 37, 39, 41, 43, 47, 49

Features

Suitable for 4" & 6" Rotary Tables (R005 + R006)

Specifications

Compare 3 Products
ORDER CODE
MODEL
Suits Rotary Tables
Suits Super Indexing Heads
Nett Weightkg

R016
DP-1
HV-4, HV-6
~
1.5

R018
DP-2
HV-8
~
4.9

R020
DP-3
HV-10, HV-12, HV-14, HV-16
CS-6, CS-8
5.0

ORDER CODE	DP-1
MODEL	HV-4, HV-6
Suits Rotary Tables	~
Suits Super Indexing Heads	1.5
Nett Weightkg
