| Code | S536 |
|---|---|
| Model | SG-812 |
| Capacity | 2470 x 1.2mm Mild Steel Shearing Capacity |
| Weight (kg) | 636 |
| Weight (m3) | 1.676 |
| Weight (Freight) | 636 |
| Dimensions (cm) | 285 x 56 x 105 |

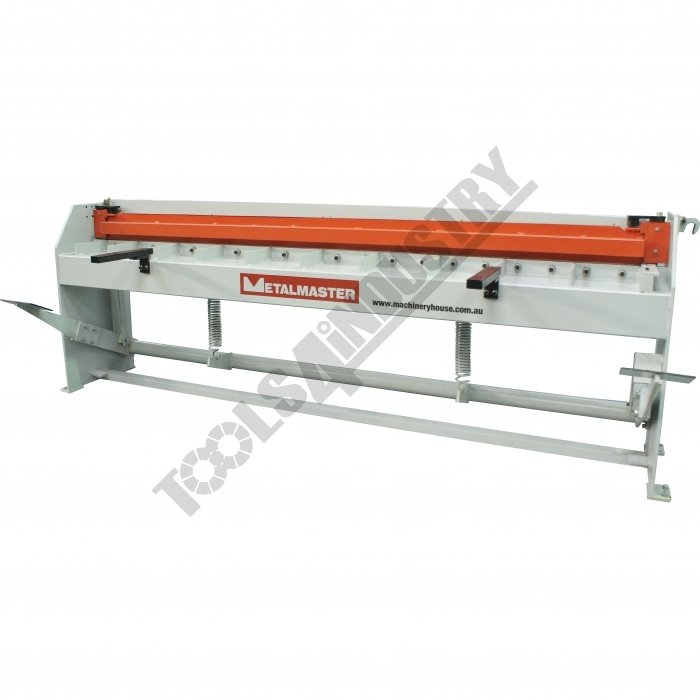

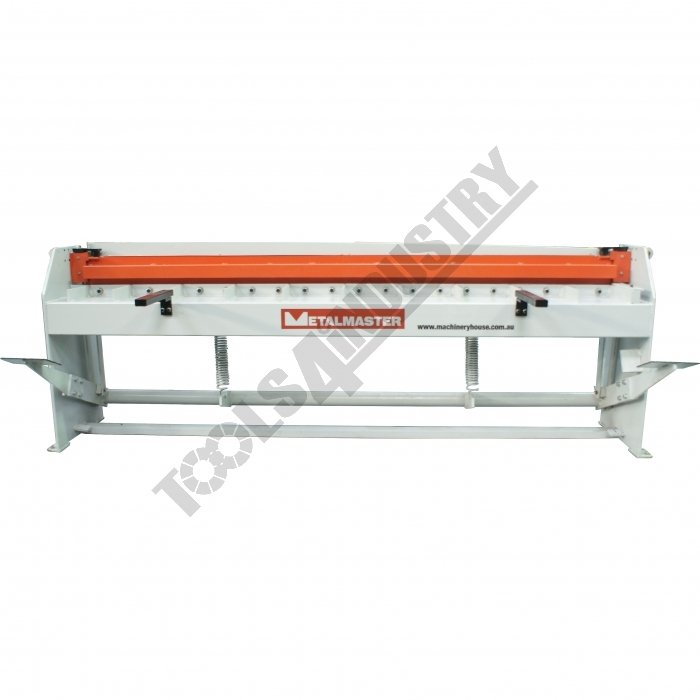

Manual Treadle Guillotine SG-812 2470 x 1.2mm Mild Steel Shearing Capacity
Features
- Quality steel-fabrication construction
- Blades made from 9CrSi material suitable for stainless steel

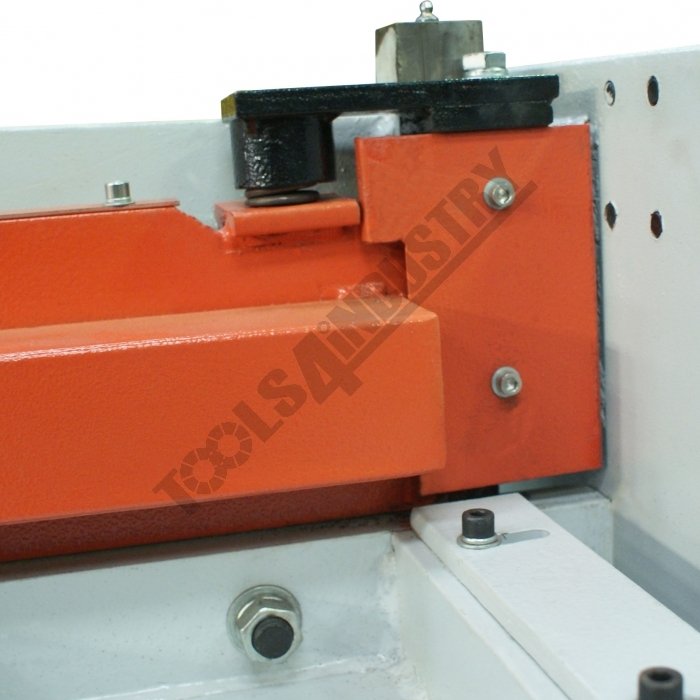

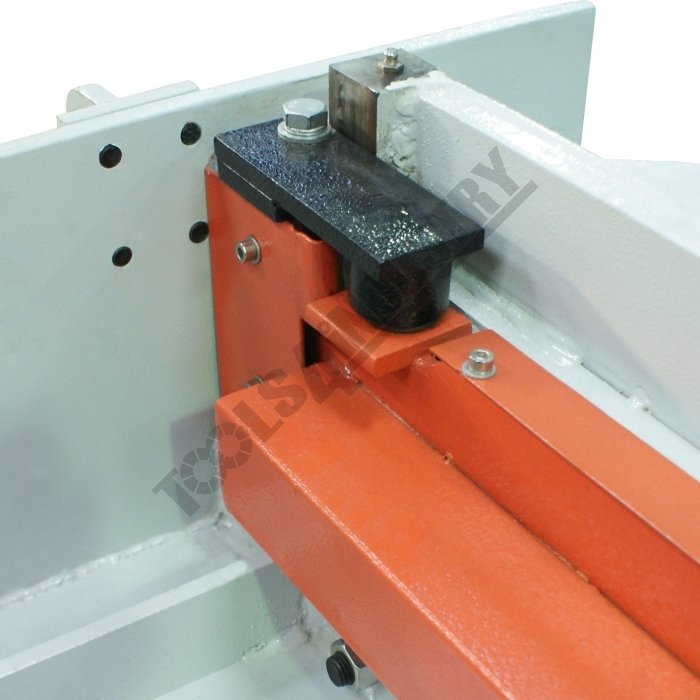

- Spring loaded material clamp beam
- Greasing & oiling points on bearing surfaces
- Adjustable blade gap clearance for thin material

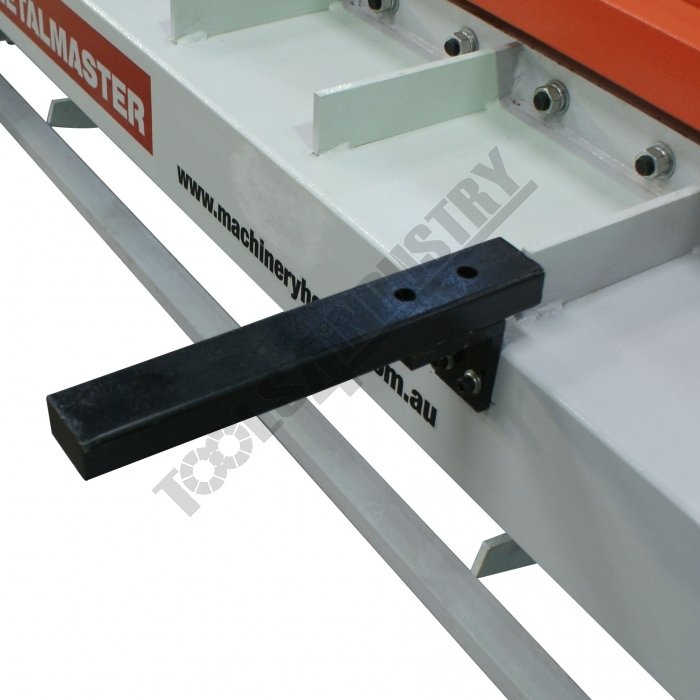

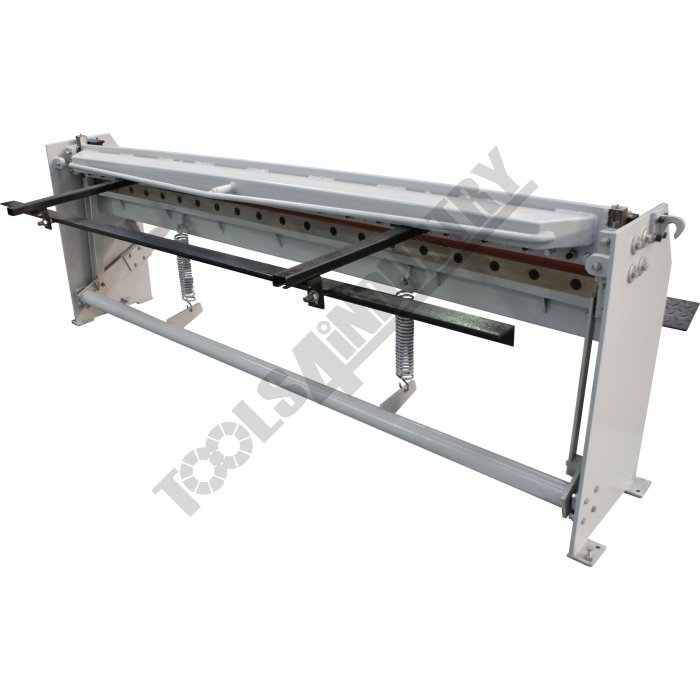

- Includes front sheet supports and backgauge
- Mild steel capacity is rated on hot rolled material with 250MPA
Specifications
- Compare 3 Products
- ORDER CODE
- MODEL
- Shearing Capacity - Mild Steelmm
- Shearing Capacity - Stainless Steel
- Shearing Lengthmm
- Floor Space (L x W x H)mm
- Nett Weightkg
| ORDER CODE | SG-812 |
|---|---|
| MODEL | 1.2 |
| Shearing Capacity - Mild Steelmm | 0.8 |
| Shearing Capacity - Stainless Steel | 2470 |
| Shearing Lengthmm | 2920 x 850 x 1100 |
| Floor Space (L x W x H)mm | 800 |
| Nett Weightkg |
