| Code | S264 |
|---|---|
| Model | PB-820A |
| Capacity | 2440 x 2mm Mild Steel Bending Capacity |
| Weight (kg) | 1444 |
| Weight (m3) | 2.463 |
| Weight (Freight) | 1444 |
| Dimensions (cm) | 294 x 57 x 147 |

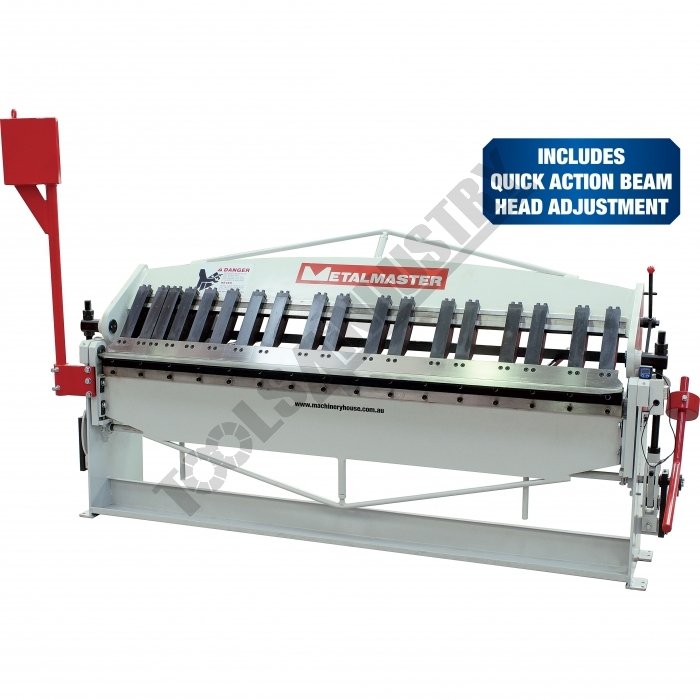

Manual Panbrake PB-820A 2440 x 2mm Mild Steel Bending Capacity
Features
- 2440mm x 2mm capacity
- Extended fingers allows bending of pans or boxes to a depth of 230mm
- Quick head adjustment mechanism to suit your material thickness
- Ground segmented fingers can be repositioned to suit many applications
- Heavy duty steel fabricated frame provides accurate bends

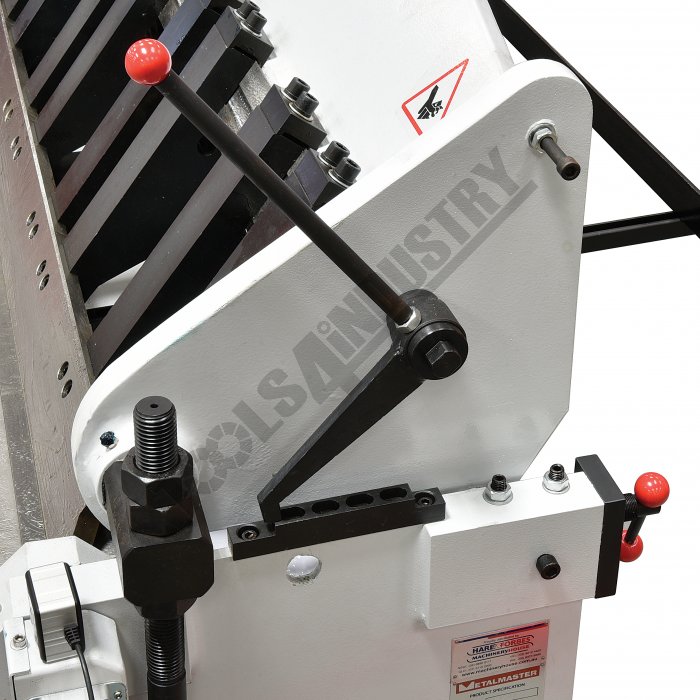

- Safety top beam support stop lever located on right side of machine
- Grease nipples located on all rotating parts
- Quick action beam adjustment for varying material thickness

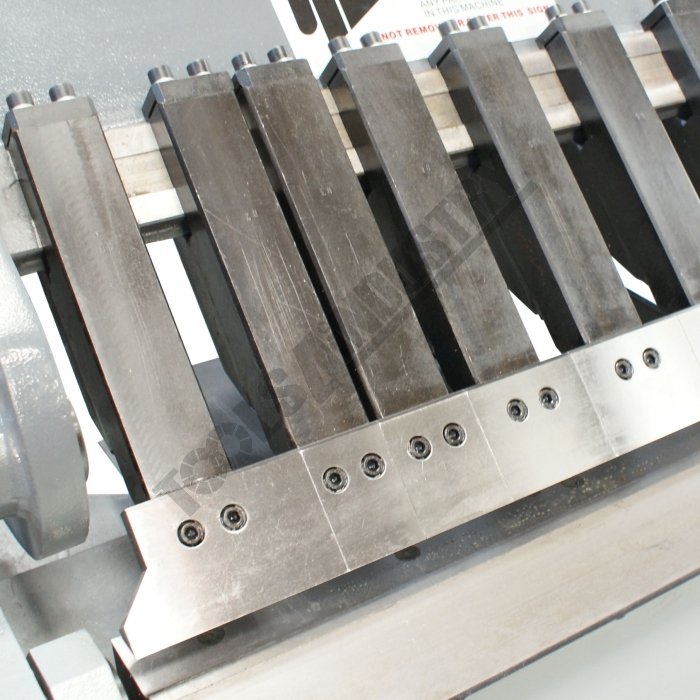

- Removable individual bending fingers for pans or boxes
- Mild steel capacity is rated on hot rolled material with 250MPA
Includes

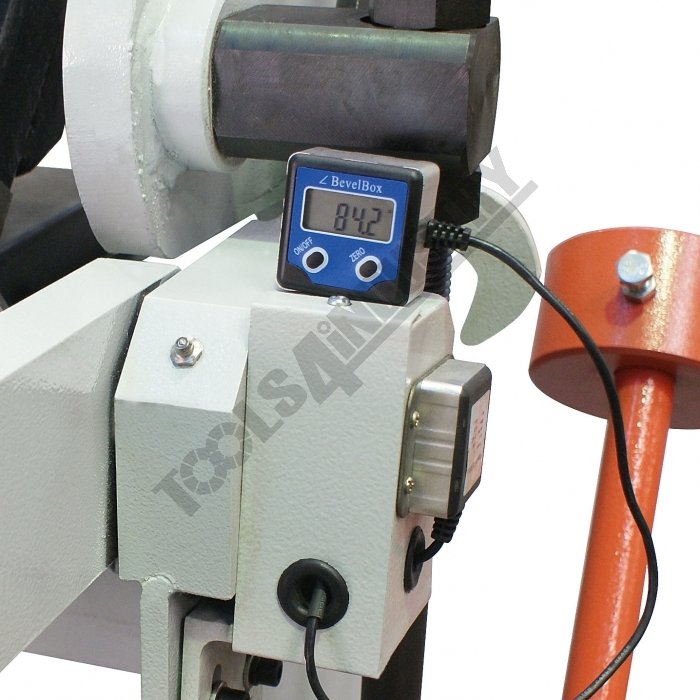

- Includes digital angle readout with CR2032 battery

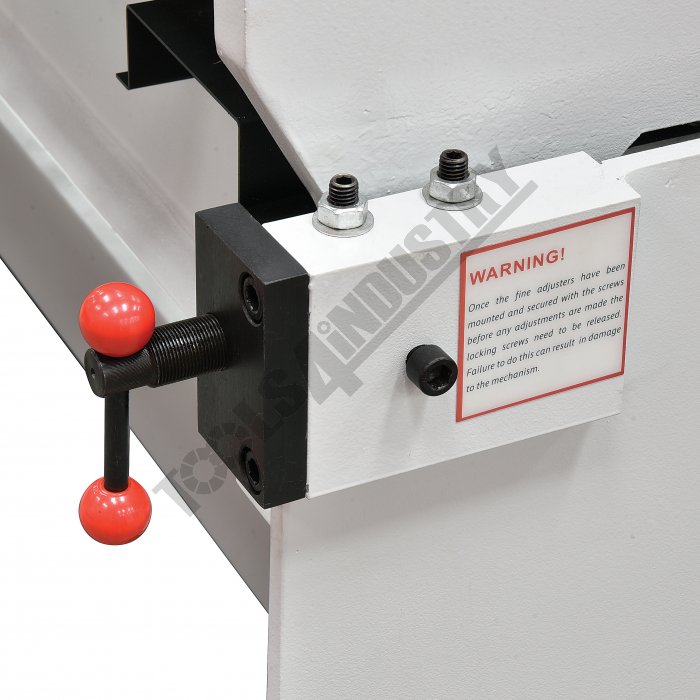

- Quick Action Beam Head Adjustment for Material Thickness

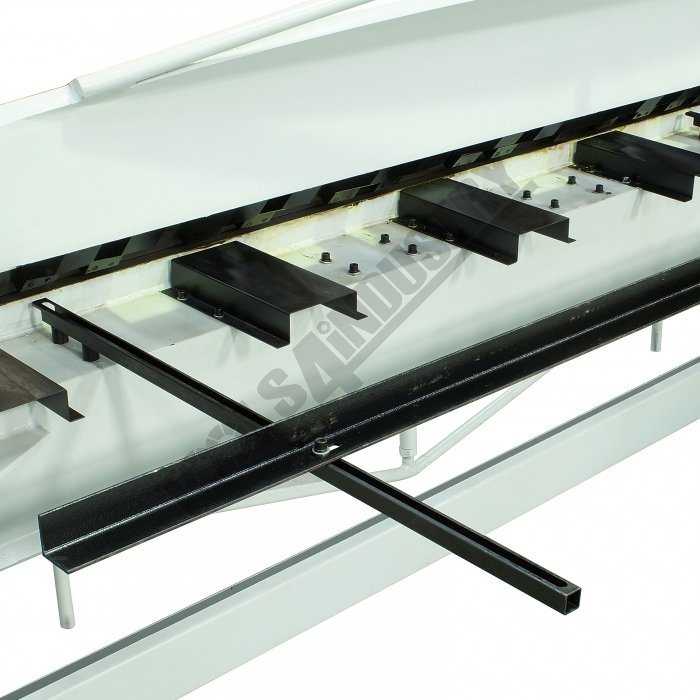

- Rear manual backgauge
Specifications
- Compare 7 Products
- ORDER CODE
- MODEL
- Bending Capacity - Mild Steelmm
- Material Length Capacitymm
- Floor Space (L x W x H)mm
- Nett Weightkg
| ORDER CODE | PB-820A |
|---|---|
| MODEL | 2 |
| Bending Capacity - Mild Steelmm | 2440 |
| Material Length Capacitymm | 2960 x 800 x 1470 |
| Floor Space (L x W x H)mm | 1530 |
| Nett Weightkg |
